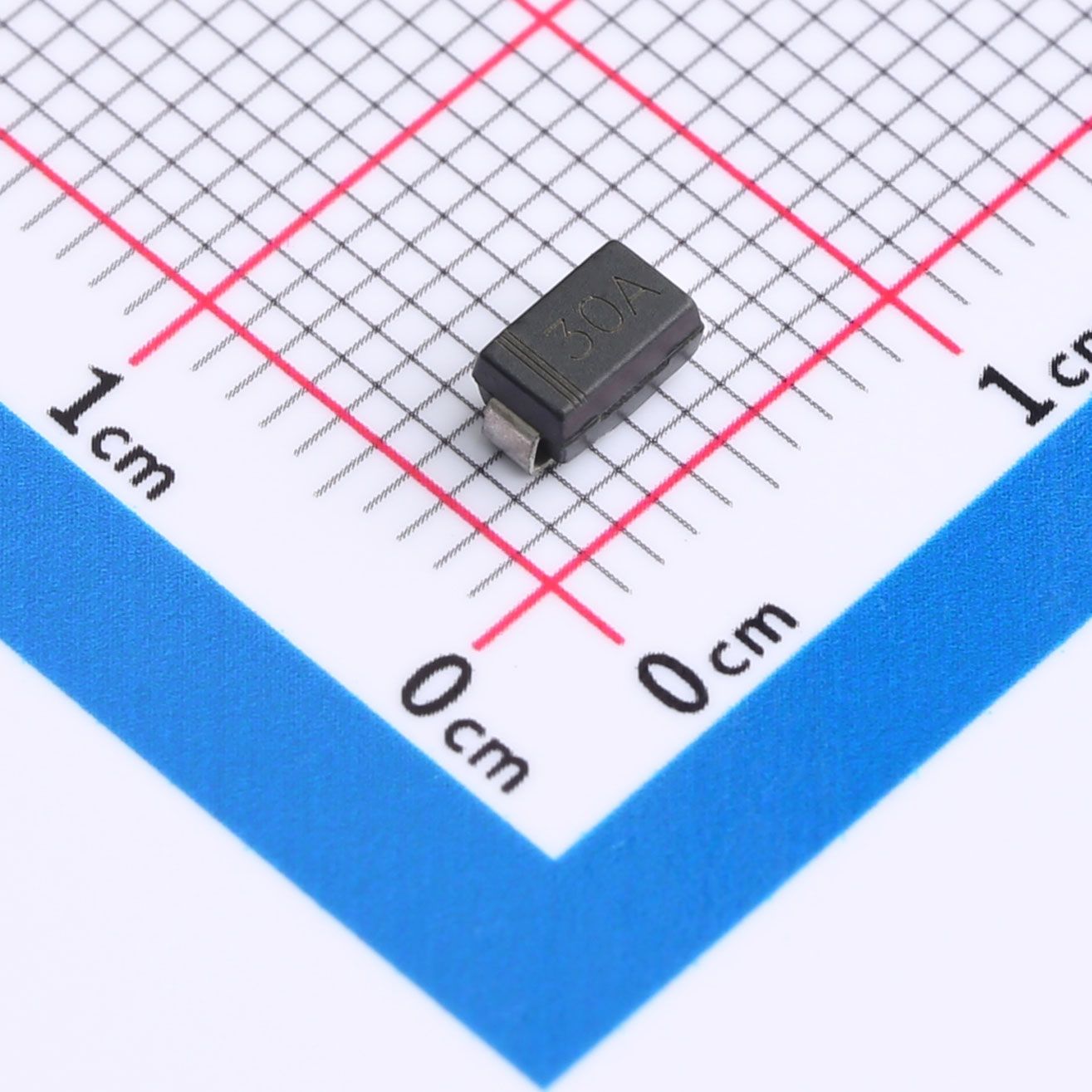

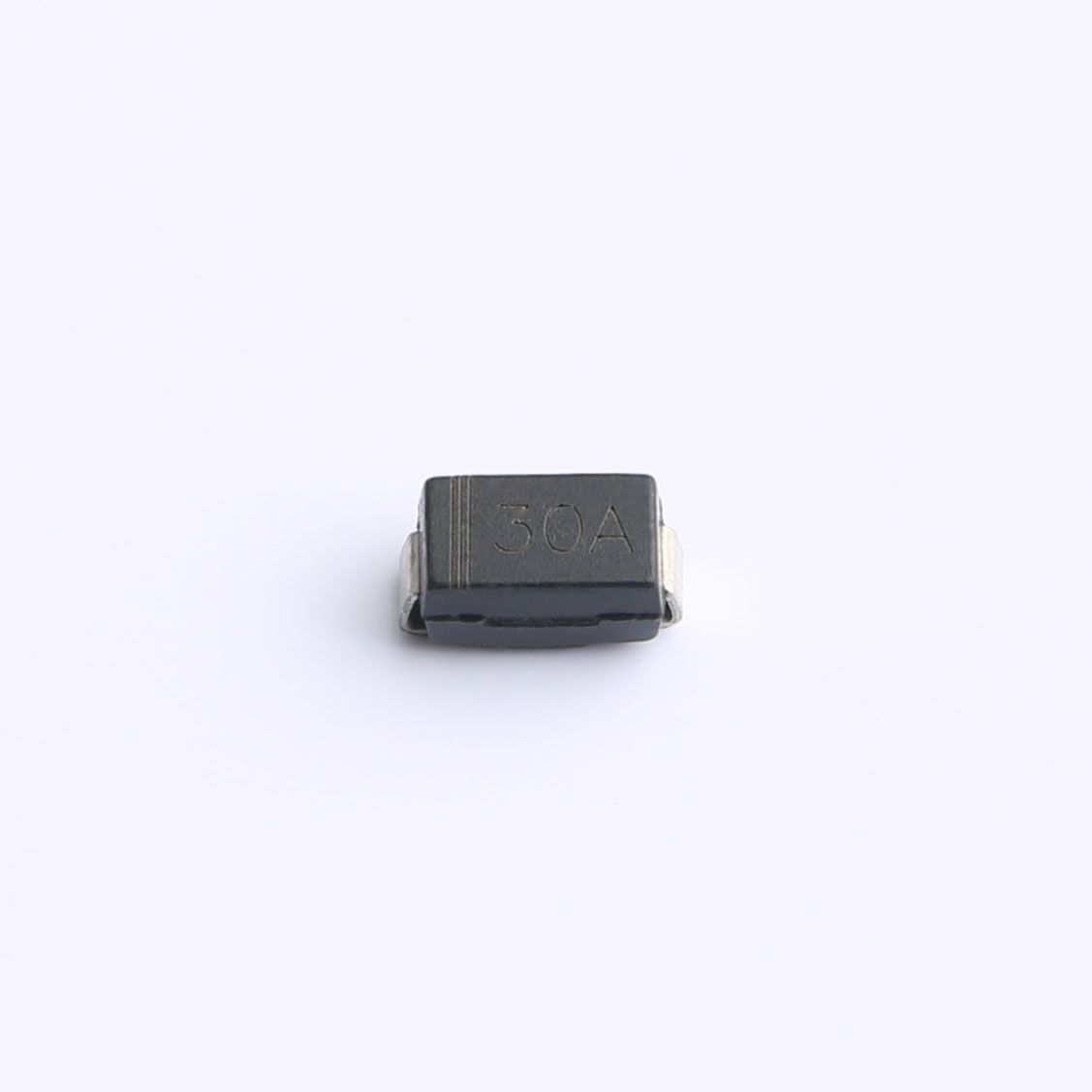

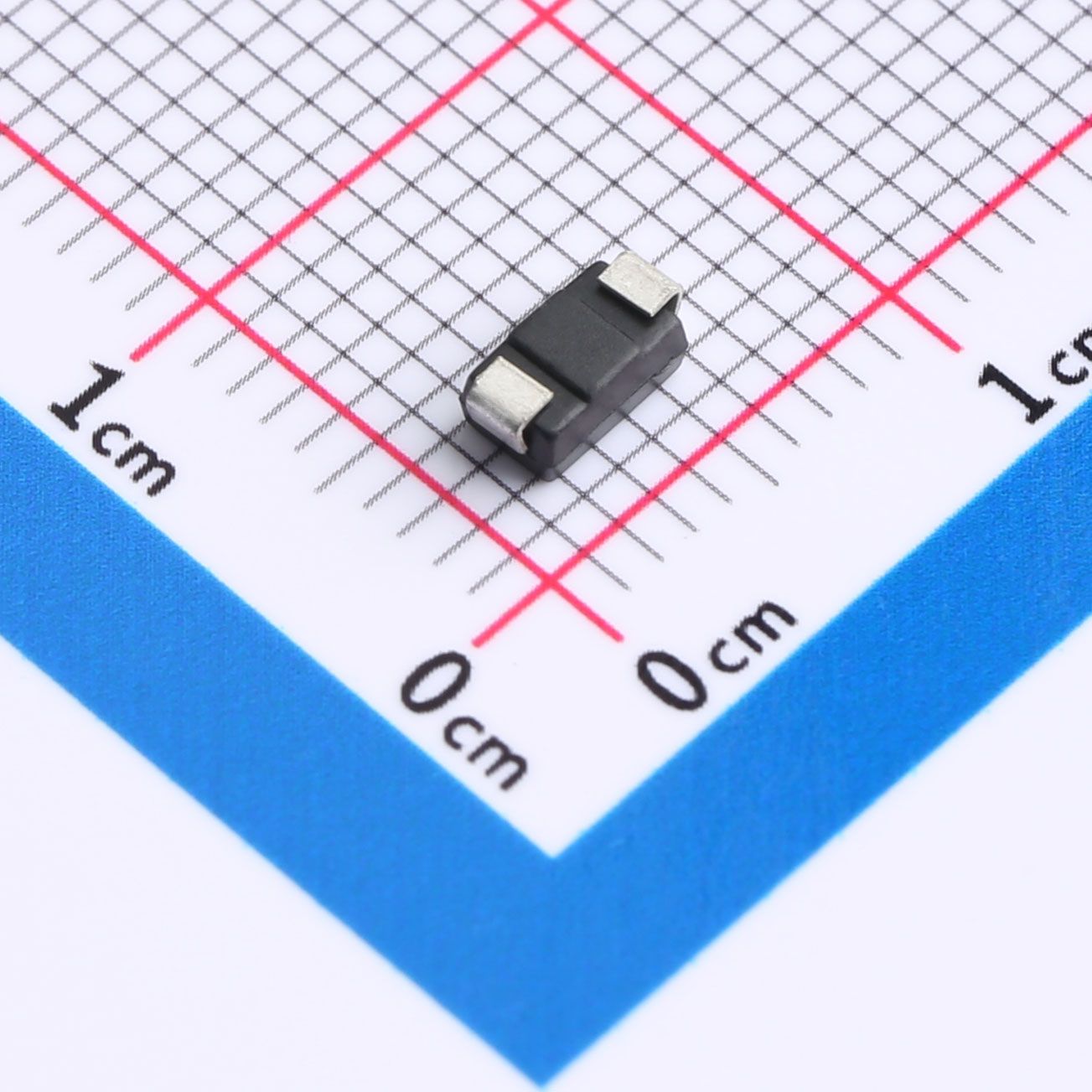

P4SMA30A TVS Diode SMA(DO-214AC)
P4SMA30A is a bidirectional 400W surface mount TVS diode with SMA/DO-214AC package. It is designed to suppress positive and negative ESD, lightning surge and transient overvoltage for various electronic circuit protection.
Description
P4SMA30A is a bidirectional 400W surface mount TVS diode with SMA/DO-214AC package. It is designed to suppress positive and negative ESD, lightning surge and transient overvoltage for various electronic circuit protection.
Features
- Bidirectional protection, rated peak pulse power:400W at 10/1000μs waveform
- VRWM=25.6V, VBR:28.5~31.5V@1mA, IR≤1μA@25.6V, VC=41.4V@9.9A
- Glass passivated or planar die, response time＜1ps
- Superior clamping performance, low inductance compact body
- Withstand 260℃/10s high temperature reflow soldering
Our advantages
- Bidirectional structure blocks both positive and negative voltage spikes
- 400W high surge rating provides reliable transient suppression
- Ultra-fast response instantly clamps abnormal overvoltage
- Ultra-low leakage minimizes standby power loss
- Low inductance prevents signal distortion for signal lines
- Standard SMA footprint compatible with automatic SMT assembly
Mechanical Data
- Package: SMA (DO-214AC), green environmental molding compound
- Bidirectional type without cathode marking band
- Single unit weight:0.07g
- Operating & storage temperature: -55℃ ~ +150℃
- Packaged by 12mm EIA standard tape & reel
Applications
Automotive electronics, consumer electronics, industrial control equipment, telecommunication products, aerospace devices, AC/DC power supplies, I/O interfaces, RS232 & RS485 signal transmission lines
