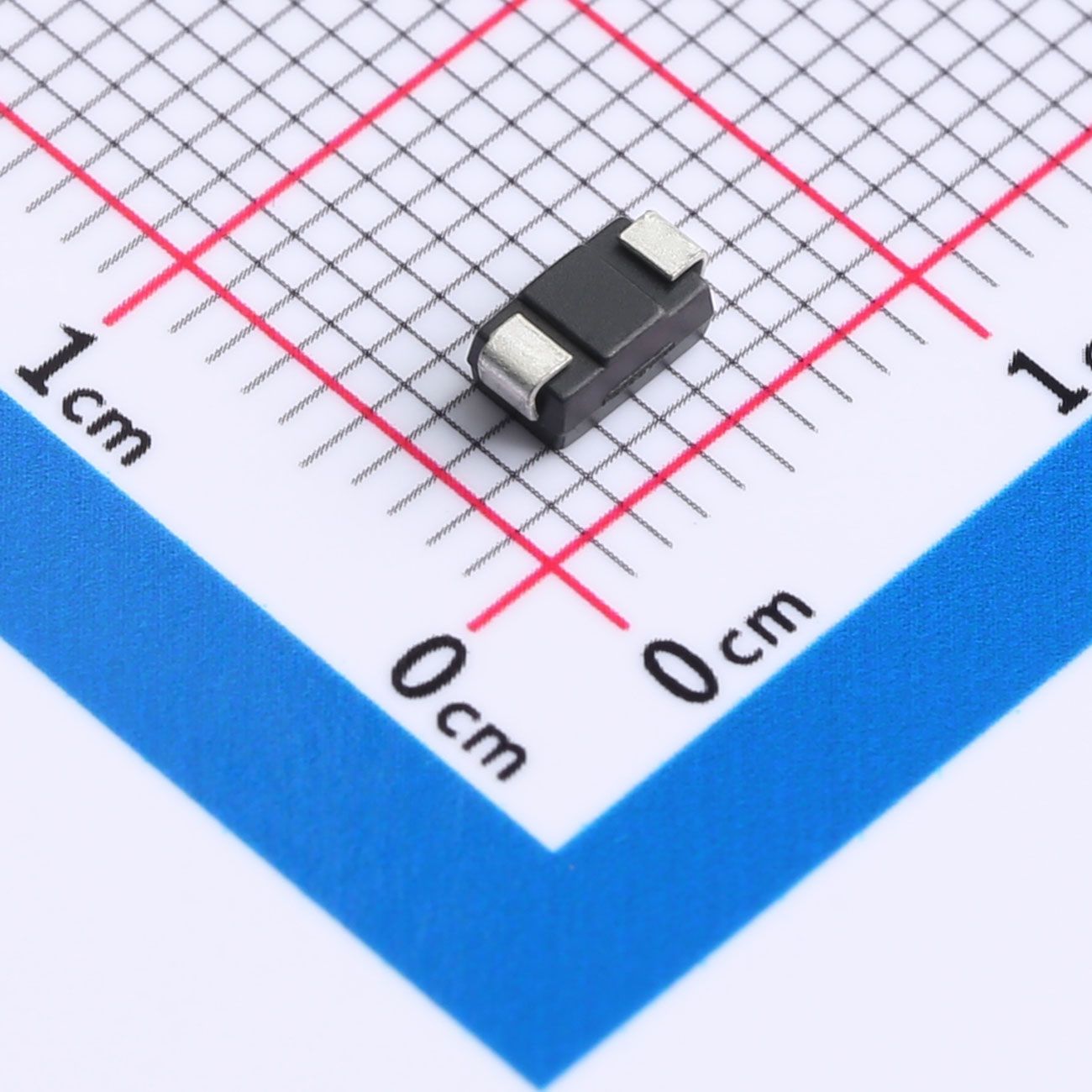

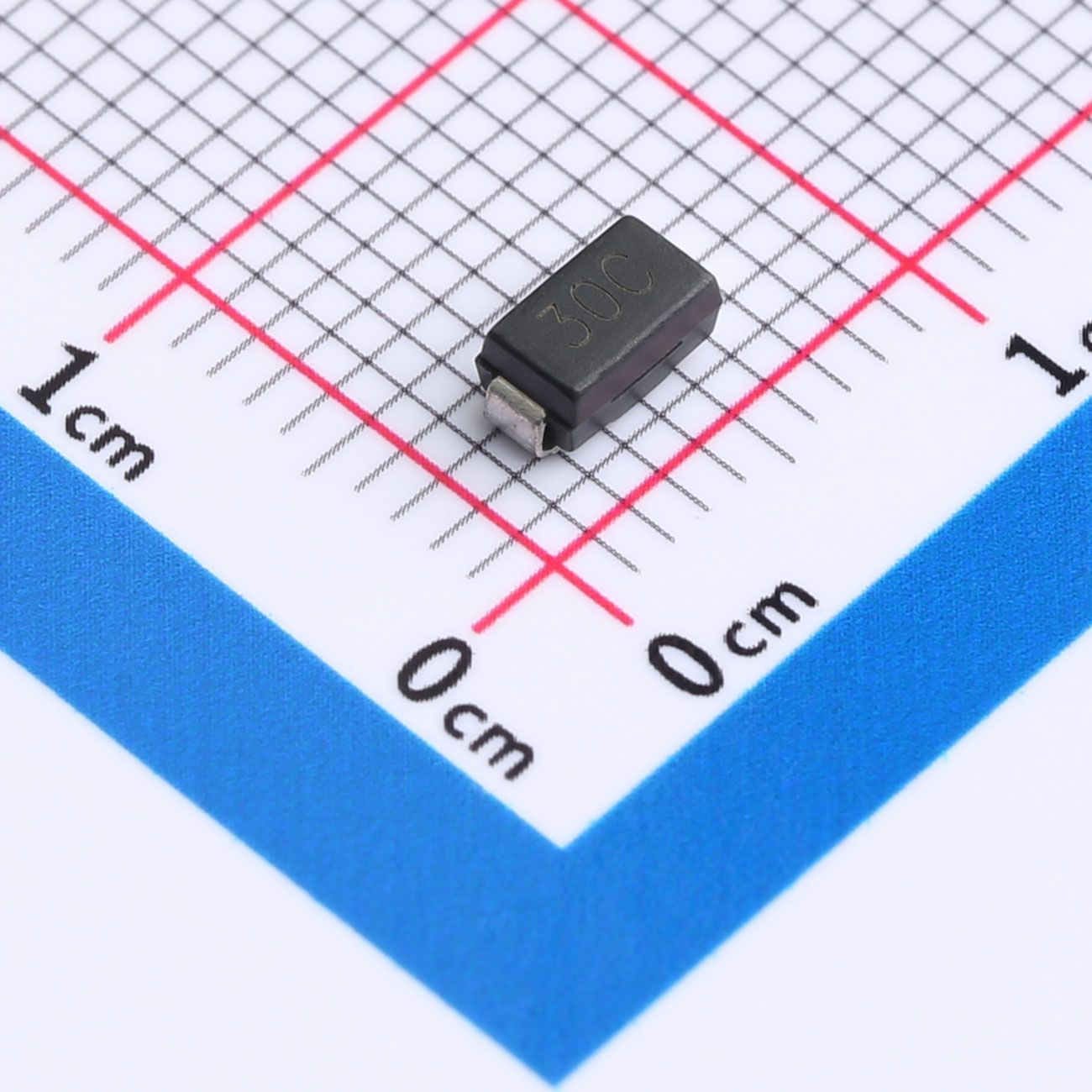

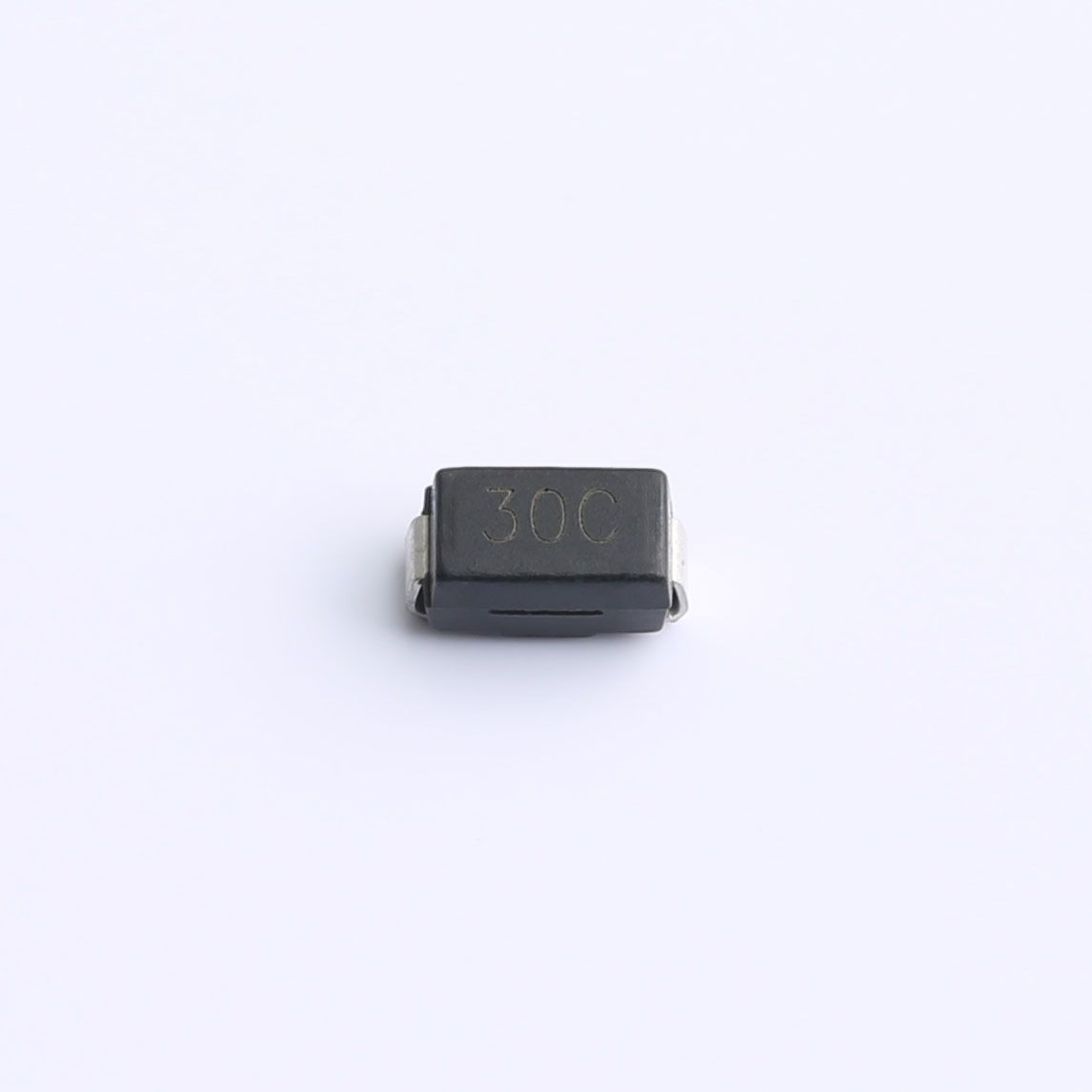

P4SMA30CA TVS Diode SMA
P4SMA30CA is bidirectional 400W transient voltage suppressor adopting SMA/DO-214AC surface-mount package. It is engineered to guard electronic circuits against bidirectional ESD, surge pulse and unexpected transient overvoltage across various electronic equipment.
Description
P4SMA30CA is bidirectional 400W transient voltage suppressor adopting SMA/DO-214AC surface-mount package. It is engineered to guard electronic circuits against bidirectional ESD, surge pulse and unexpected transient overvoltage across various electronic equipment.
Features
- Bidirectional overvoltage protection, peak pulse power: 400W under 10/1000μs surge waveform
- VRWM=25.6V, VBR:28.5V~31.5V @1mA, IR≤1μA @25.6V, VC=41.4V @9.9A
- Glass passivated or planar chip structure, response time＜1ps
- Excellent clamping performance, low inductance compact outline
- Able to endure 260℃/10s high-temperature reflow soldering
Our advantages
- Bidirectional design suppresses both positive and negative voltage spikes
- High 400W surge absorption capacity for reliable circuit safeguard
- Ultra-fast reaction instantly clamps abrupt surge voltage
- Ultra-low leakage current reduces standby power consumption
- Low inductance characteristic avoids signal distortion
- Standard SMA form factor fits automated SMT mounting
Mechanical Data
- Package: SMA (DO-214AC), green halogen-free molding plastic
- Bidirectional type without cathode color marking band
- Single weight: 0.07g
- Operating & storage temperature: -55℃ ~ +150℃
- Packed with 12mm EIA standard carrier tape & reel
Applications
Automotive electronics, consumer gadgets, industrial controllers, communication devices, aerospace equipment, AC/DC power supplies, I/O ports, RS232 and RS485 signal lines
