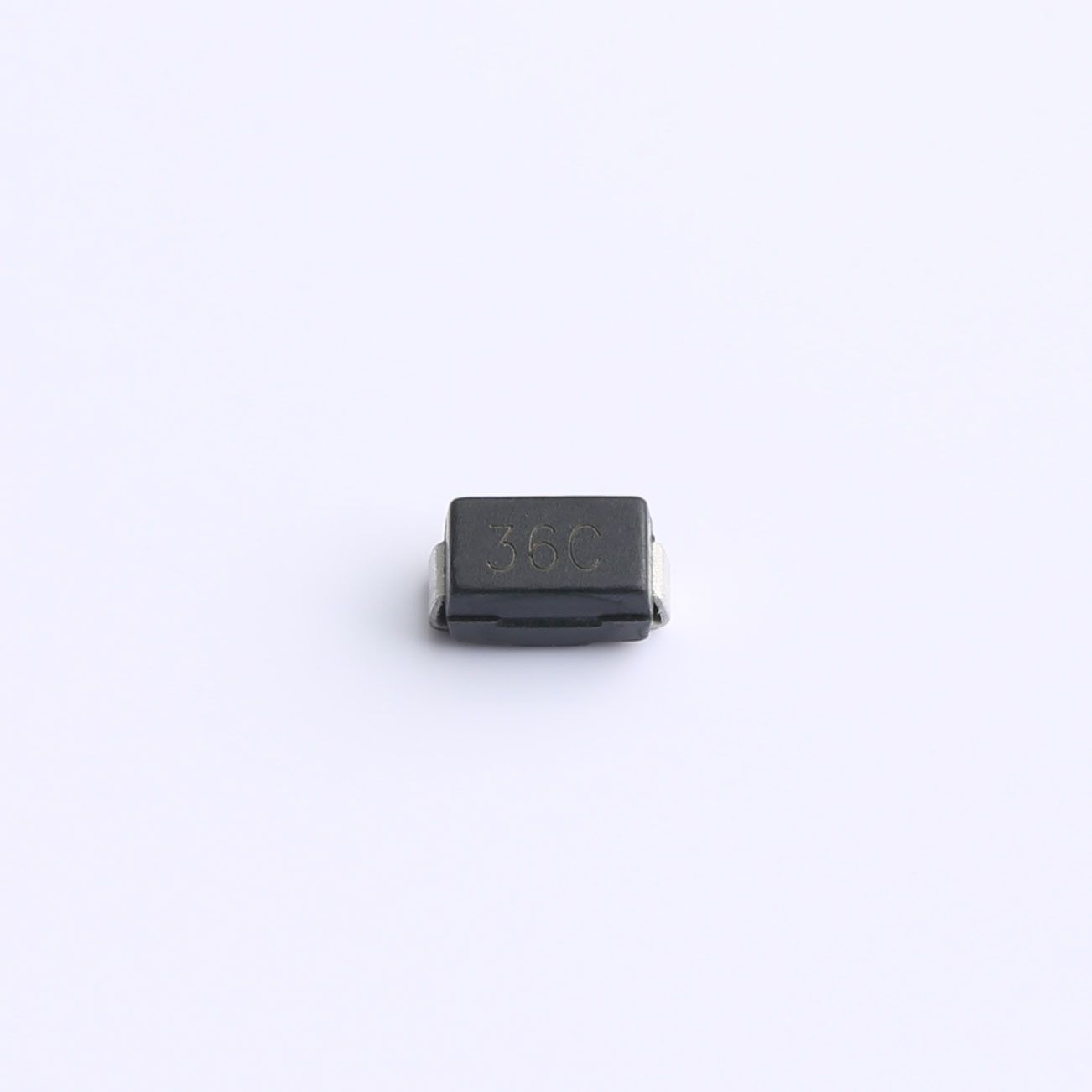

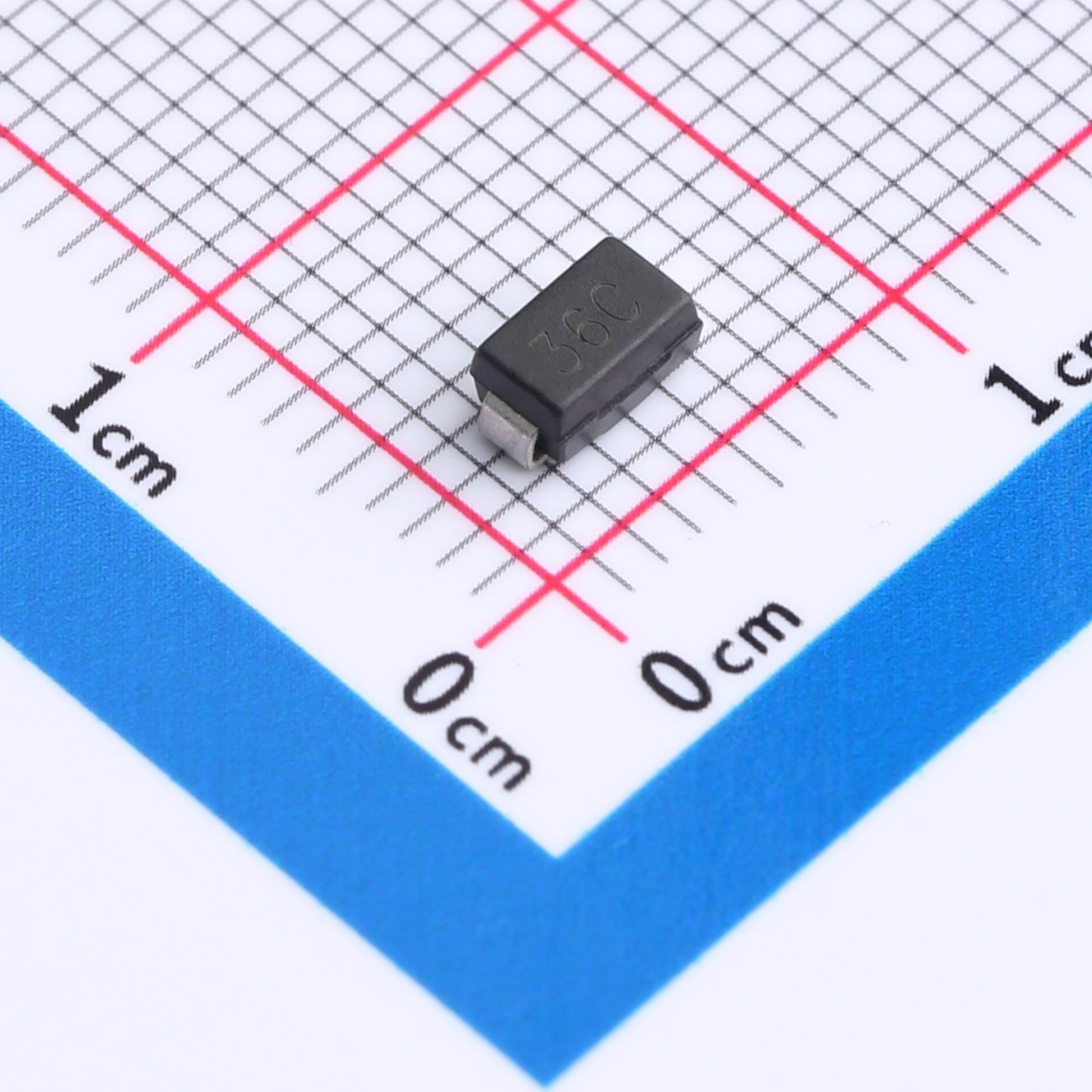

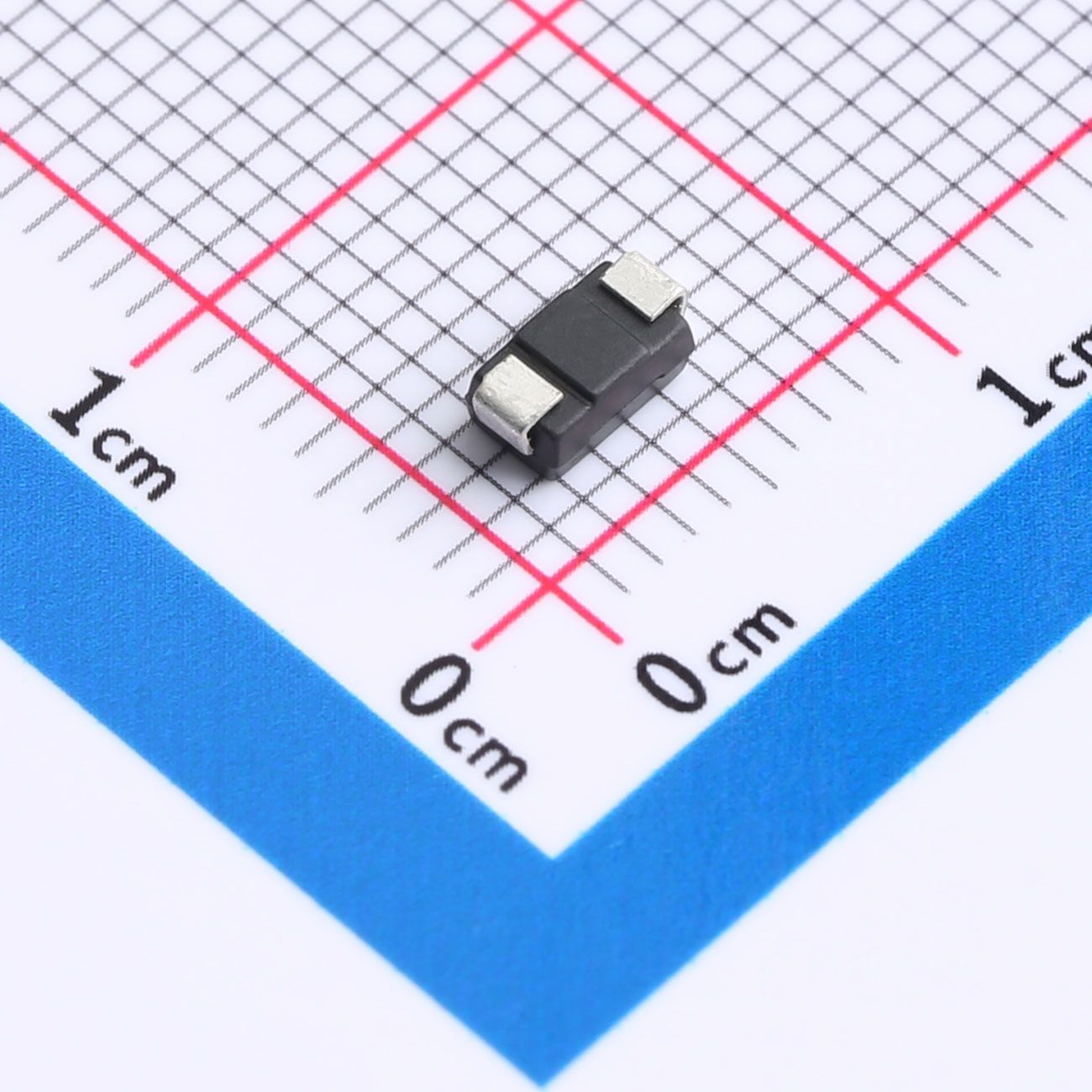

P4SMA36CA TVS Diode SMA
P4SMA36CA is a bidirectional 400W transient voltage suppressor in SMA/DO-214AC surface mount package. It protects electronic circuits against positive/negative ESD, lightning surge and transient overvoltage for various electronic equipment.
Description
P4SMA36CA is a bidirectional 400W transient voltage suppressor in SMA/DO-214AC surface mount package. It protects electronic circuits against positive/negative ESD, lightning surge and transient overvoltage for various electronic equipment.
Features
- Bidirectional protection, peak pulse power:400W @10/1000μs waveform
- VRWM=30.8V; VBR=34.2~37.8V@1mA; IR≤1μA@30.8V; VC=49.9V@8.2A
- Glass passivated or planar chip, response time＜1ps
- Excellent clamping capacity, low inductance compact body
- Supports 260℃/10s high-temperature reflow soldering
Our advantages
- Bidirectional design suppresses both positive and negative voltage spikes
- 400W high surge rating delivers reliable circuit protection
- Ultra-fast response instantly clamps unexpected overvoltage
- Ultra-low leakage cuts quiescent power consumption
- Low inductance avoids signal distortion for signal tracks
- Standard SMA outline compatible with automatic SMT production
Mechanical Data
- Package: SMA(DO-214AC), green environment-friendly molding resin
- Bidirectional device without cathode identification stripe
- Single weight:0.07g
- Operating & storage temperature: -55℃ ~ +150℃
- Packed by EIA standard 12mm carrier tape & reel
Applications
Automotive electronics, consumer appliances, industrial controllers, communication devices, aerospace modules, AC-DC power supplies, I/O interfaces, RS232 and RS485 signal lines
