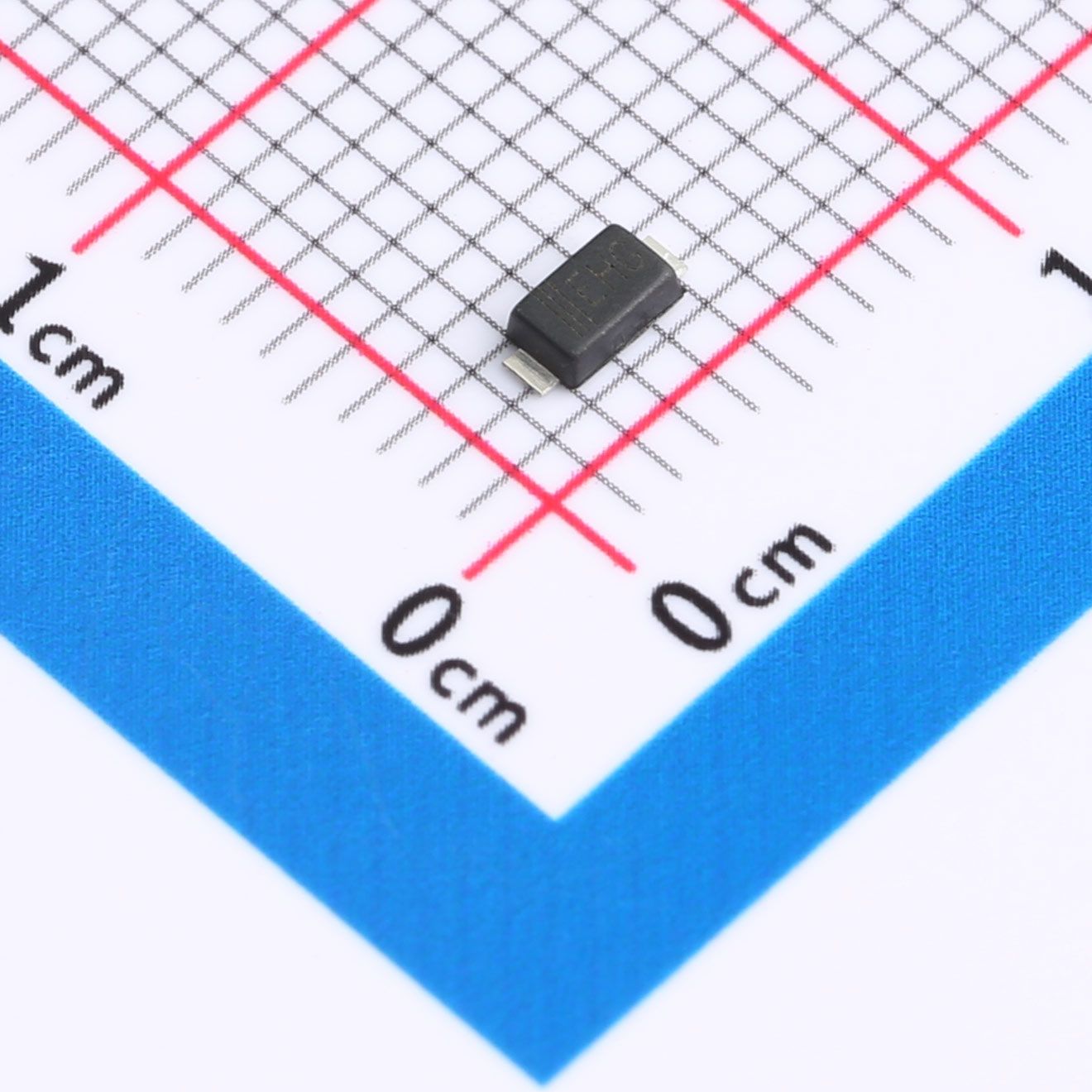

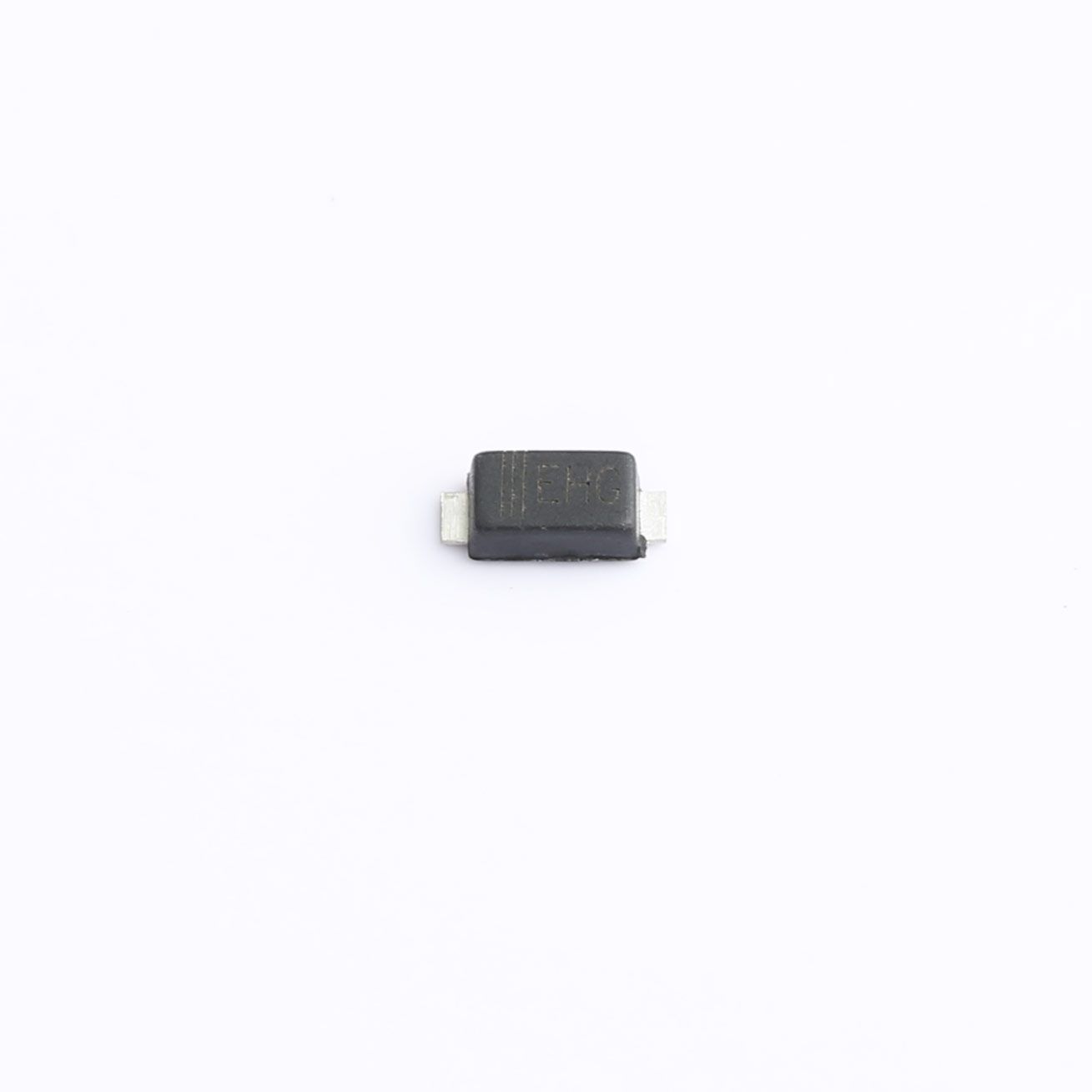

M4SMF6.0A TVS Diode SOD-123FL
M4SMF6.0A is unidirectional high-power SOD-123FL surface mount TVS diode with 4500W peak pulse power rated under 8/20μs surge waveform, designed to protect circuits from surge, lightning pulse and transient overvoltage across multiple electronic devices.
Description
M4SMF6.0A is unidirectional high-power SOD-123FL surface mount TVS diode with 4500W peak pulse power rated under 8/20μs surge waveform, designed to protect circuits from surge, lightning pulse and transient overvoltage across multiple electronic devices.
Features
- 4500W peak pulse power at 8/20μs waveform
- VRWM=6V; VBR:6.7~7.4V@10mA; IR≤100μA@6V; VC=16V@220A
- Ultra-fast response speed less than 1ps, low inductance design
- Excellent voltage clamping performance
- Low-profile SMD SOD-123FL package
Our advantages
- Ultra-high 4500W surge absorption for heavy surge protection scenarios
- Quick clamping efficiently restricts instantaneous voltage spikes
- Small outline saves PCB layout space
- Low leakage current reduces idle power consumption
- Standard tape reel fits automatic SMT mass production
Mechanical Data
- Package: SOD-123FL, 94V-0 flame retardant molded plastic
- Color band marks cathode terminal
- Approximate single weight:0.07g
- Junction temp: -55℃~+125℃; Storage temp: -55℃~+150℃
- Compliant with MSL 1 moisture standard
Applications
Computer systems, household appliances, video input modules, automotive electronics, industrial control, communication equipment
