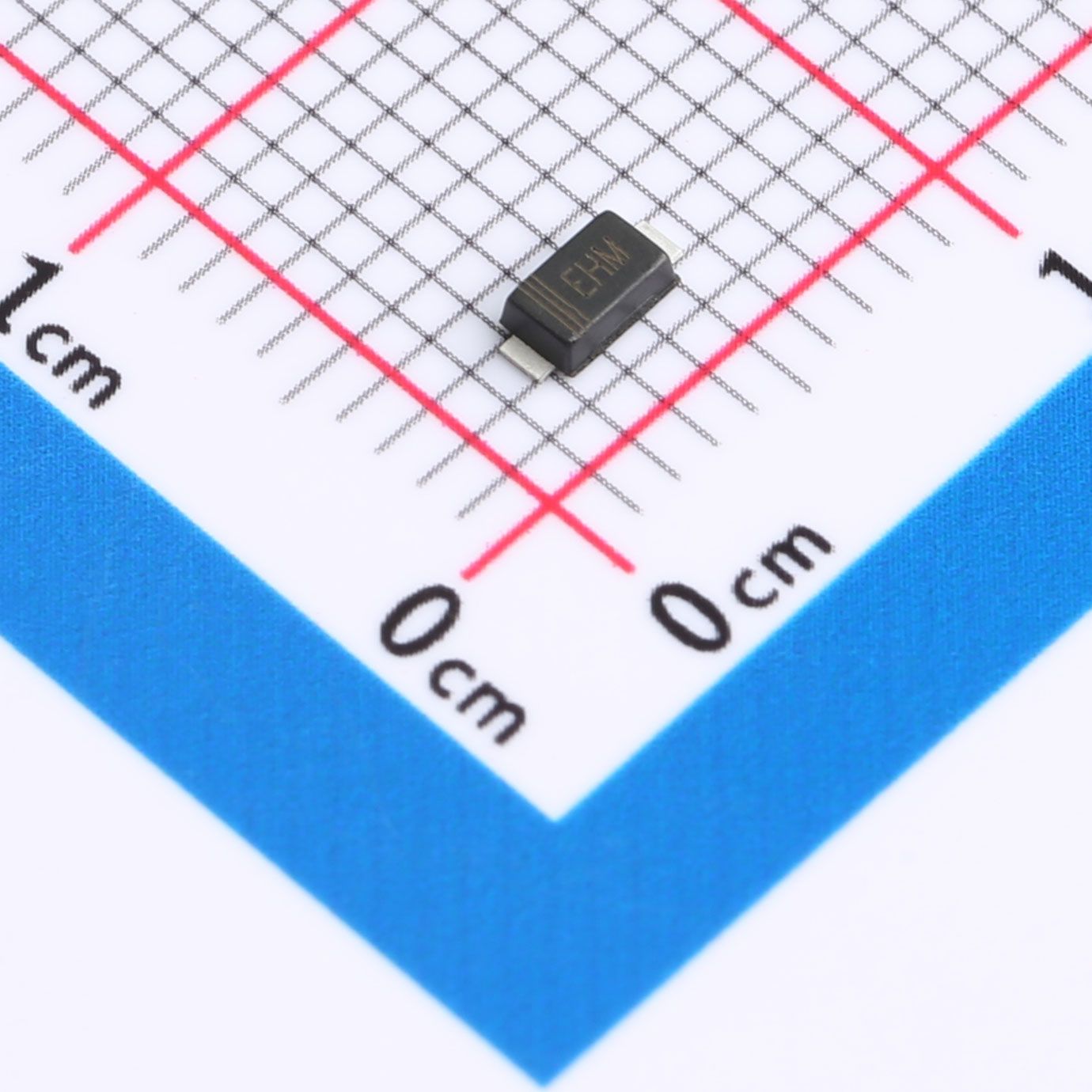

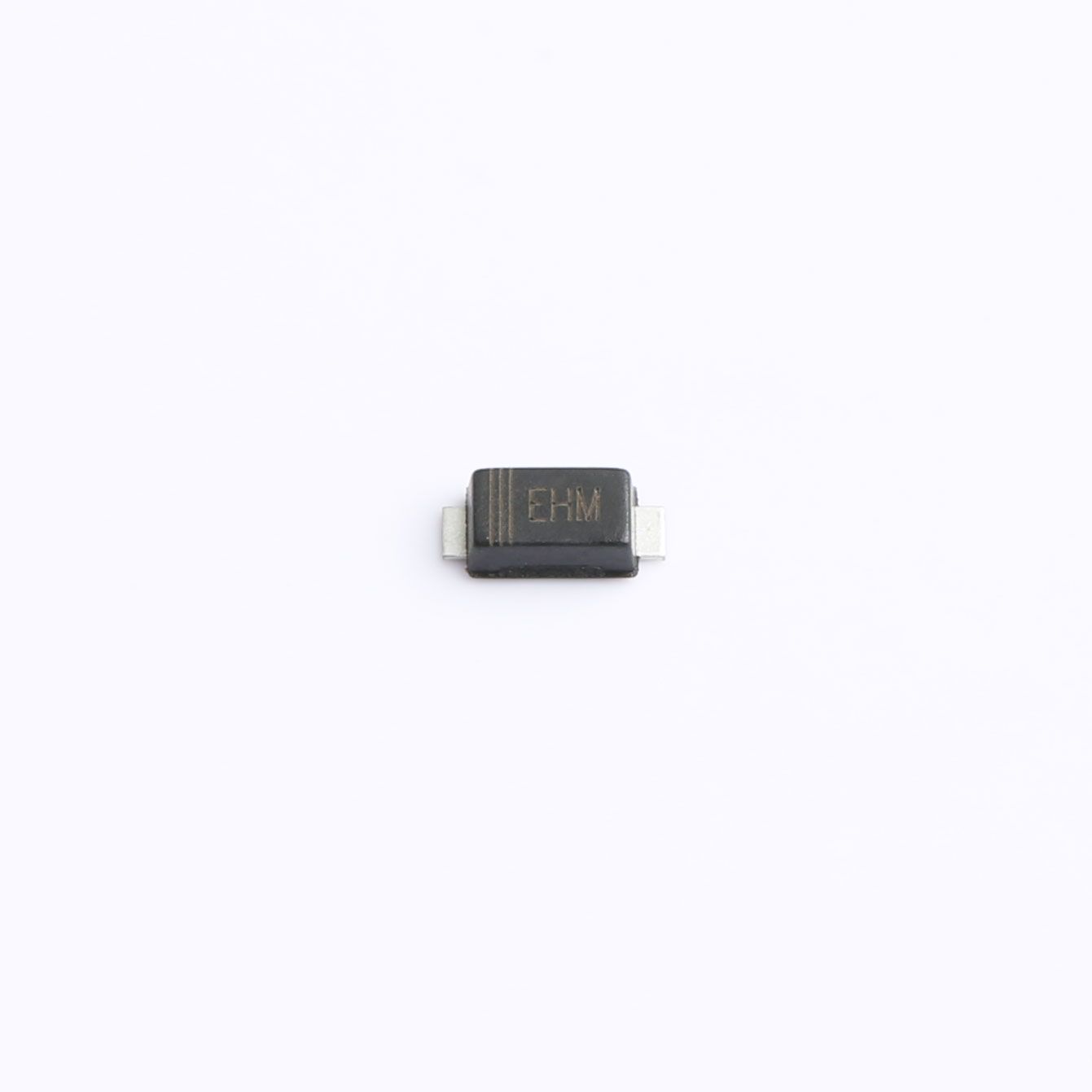

M4SMF7.0A TVS Diode SOD-123FL
M4SMF7.0A is unidirectional SOD-123FL surface mount TVS diode with 4500W peak power at 8/20μs waveform, designed to protect electronic circuits from surge pulse, lightning and ESD transient overvoltage.
Description
M4SMF7.0A is unidirectional SOD-123FL surface mount TVS diode with 4500W peak power at 8/20μs waveform, designed to protect electronic circuits from surge pulse, lightning and ESD transient overvoltage.
Features
- 4500W peak pulse power under 8/20μs surge waveform
- VRWM=7V; VBR:7.7~8.6V@10mA; IR≤50μA@7V; VC=17V@220A
- Ultra-fast response less than 1ps, low inductance design
- Superior transient voltage clamping capability
- Compact low-profile SMD SOD-123FL package
Our advantages
- Ultra-high 4500W surge absorption for heavy surge protection scenarios
- Rapid clamping effectively suppress instantaneous voltage spikes
- Mini size saves PCB layout space for compact equipment
- Low leakage reduces standby power consumption
- Standard tape reel packaging fits automatic SMT production
Mechanical Data
- Package: SOD-123FL, 94V-0 flame retardant molded plastic
- Color stripe marks cathode terminal
- Approximate single weight:0.07g
- Junction temp: -55℃ ~ +125℃; Storage temp: -55℃ ~ +150℃
- Comply with MSL1 moisture resistance standard
Applications
Computer systems, household appliances, video input modules, automotive electronics, industrial control, communication devices
