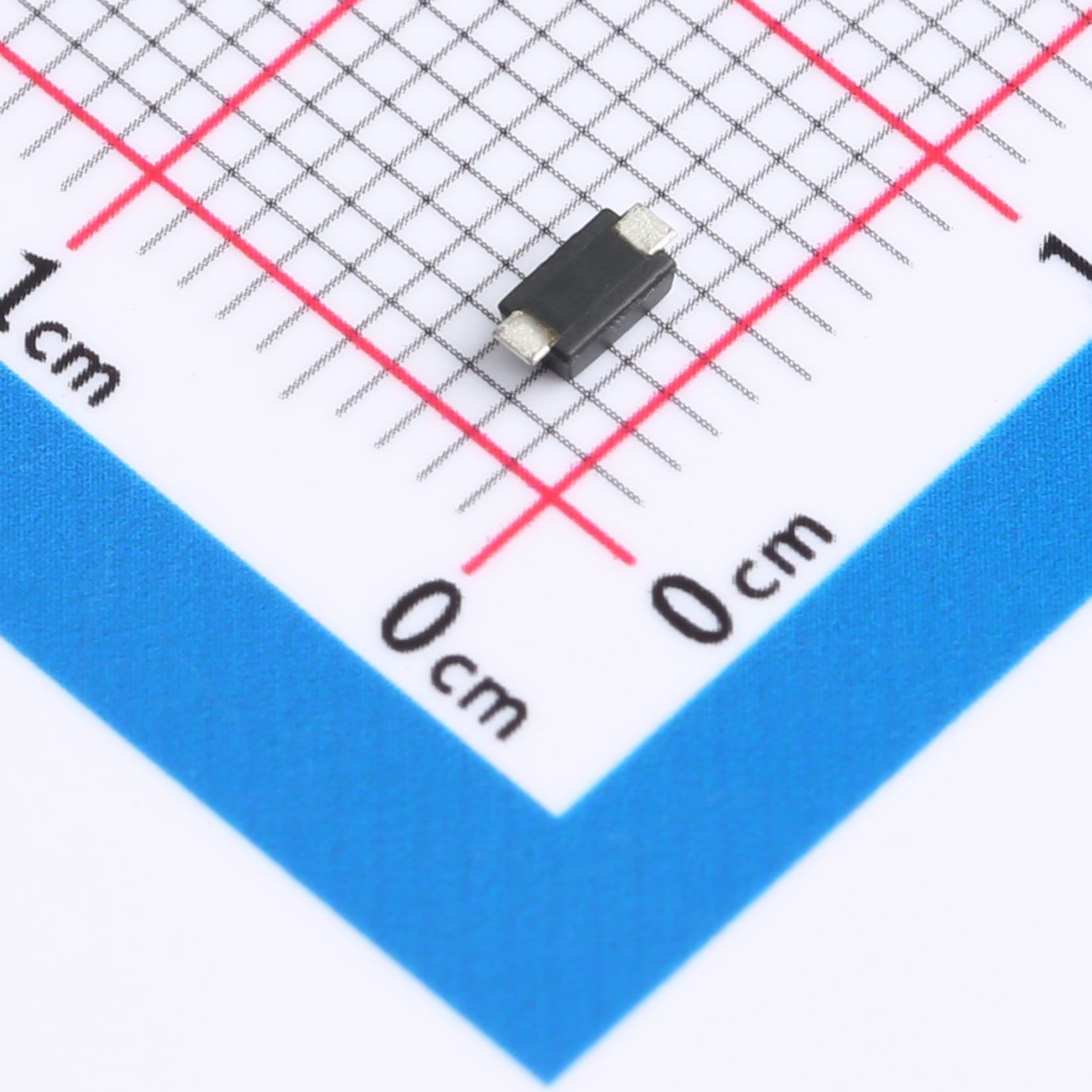

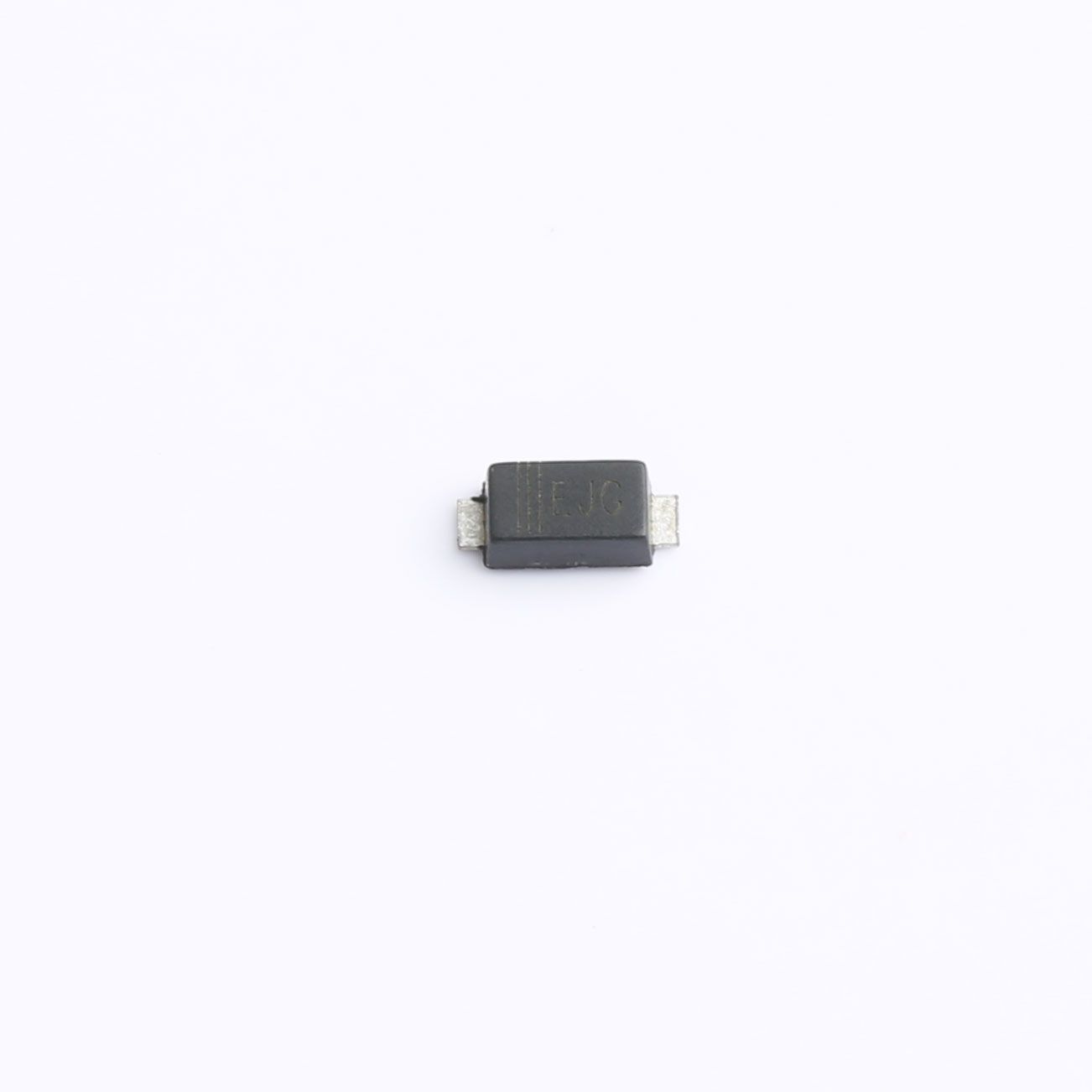

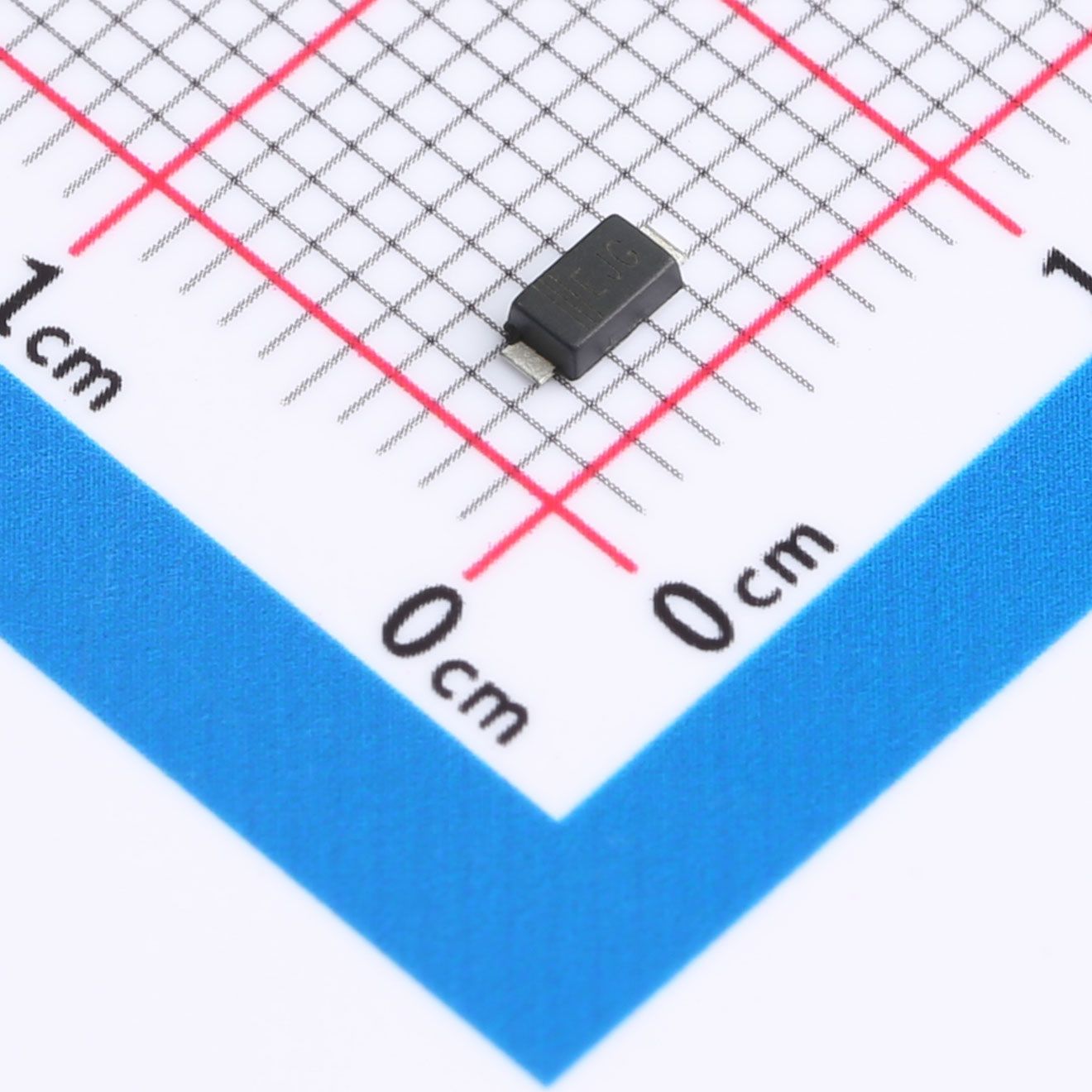

M4SMF28A TVS Diode SOD-123FL
M4SMF28A is a unidirectional surface-mount transient voltage suppressor (TVS) packaged in SOD-123FL. It is rated for 4500W peak pulse power under 8/20μs surge waveform, which is widely used to protect electronic circuits from electrostatic discharge, lightning surges and transient overvoltage.
Description
M4SMF28A is a unidirectional surface-mount transient voltage suppressor (TVS) packaged in SOD-123FL. It is rated for 4500W peak pulse power under 8/20μs surge waveform, which is widely used to protect electronic circuits from electrostatic discharge, lightning surges and transient overvoltage.
Features
- 4500W peak pulse power for standard 8/20μs surge waveform
- Electrical parameters: VRWM=28V, VBR=31.1V~34.4V @ 1mA, IR≤1μA @ 28V, VC=48V @ 80A
- Ultra-fast response time less than 1ps and low inductance design
- Excellent performance on transient voltage clamping
- Low-profile SMD package, ideal for surface mount assembly
Our advantages
- High surge power rating delivers reliable protection against severe transient pulses
- Fast response quickly clamps voltage spikes and safeguards sensitive electronic components
- Compact body effectively saves PCB space for miniaturized devices
- Ultra-low leakage current reduces standby power consumption
- Standard tape and reel packaging is fully compatible with automatic high-speed SMT production
Mechanical Data
- Package: SOD-123FL, molded plastic with UL94V-0 flame retardant rating
- Color band is adopted to mark the cathode terminal
- Single unit weight: approximately 0.07g
- Operating junction temperature: -55℃ ~ +125℃; Storage temperature: -55℃ ~ +150℃
- Complies with MSL 1 moisture sensitivity standard
- Solder-plated terminals meet MIL-STD-750 soldering requirements
Applications
Computer systems, household appliances, video input modules, automotive electronics, aerospace equipment, telecommunication devices and intelligent control systems
