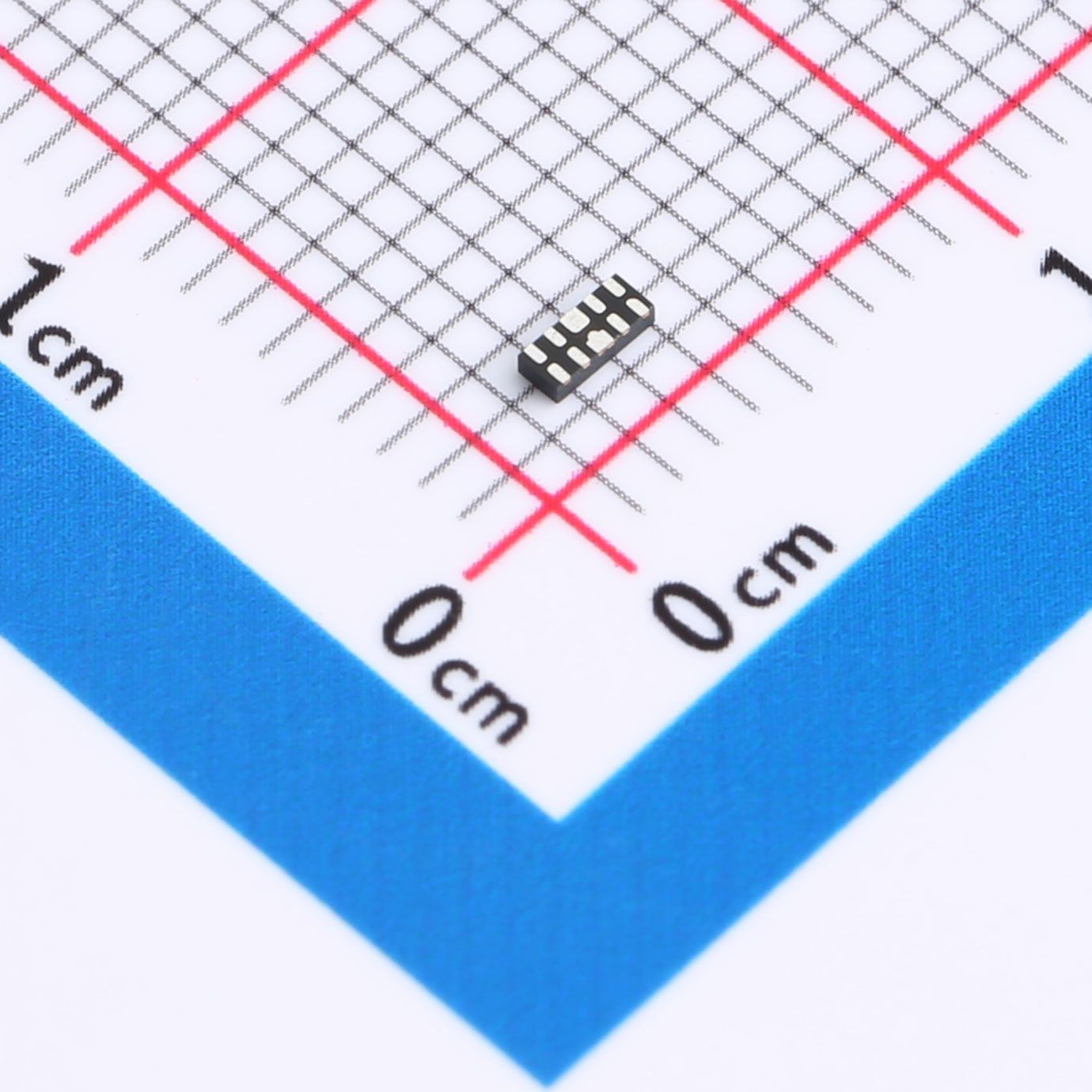

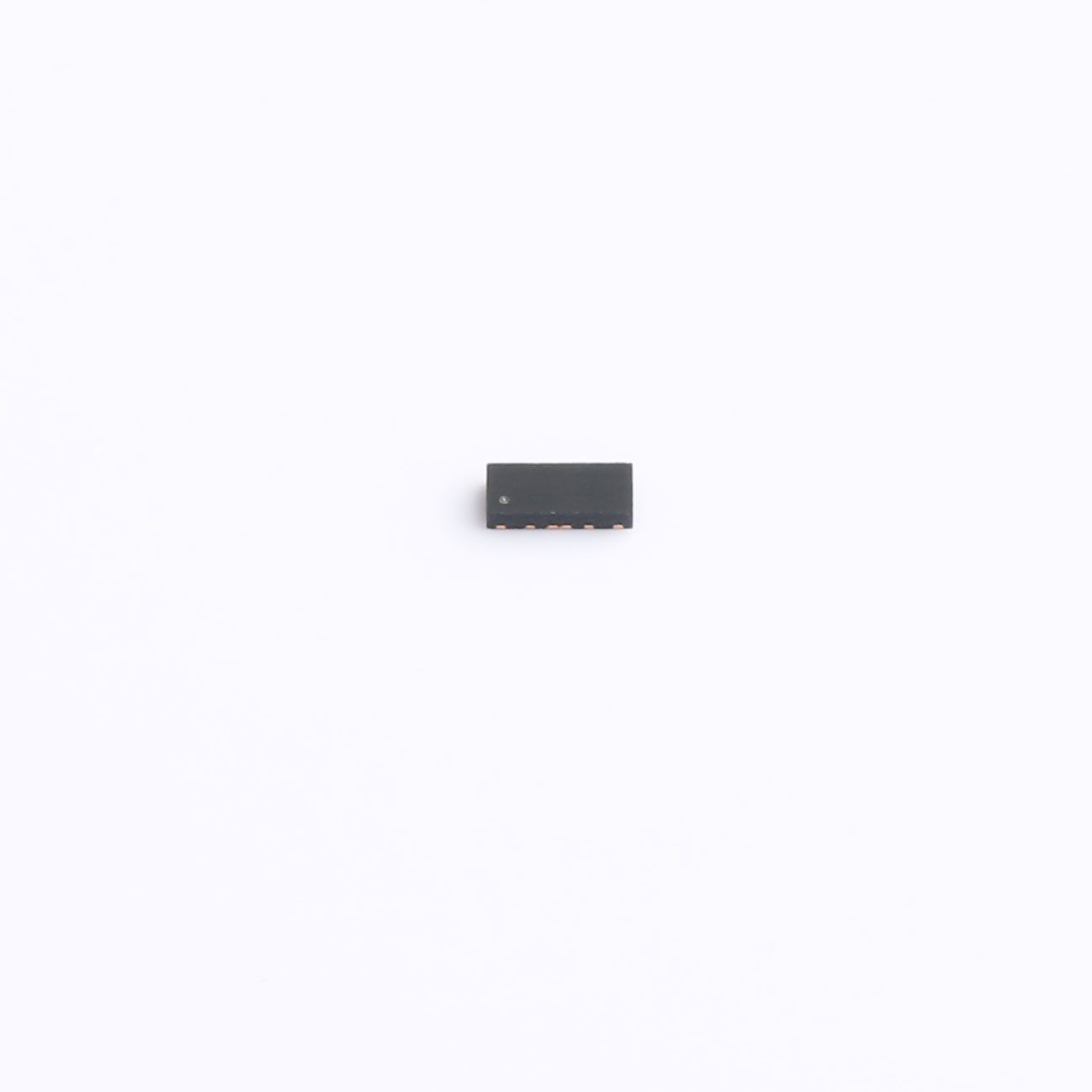

RCLAMP0544P-SL TVS Diode DFN2510-10
RCLAMP0544P-SL is a 4-line ultra-low capacitance TVS diode array adopting advanced monolithic silicon technology. It delivers fast response and low ESD clamping voltage, specially designed to protect voltage-sensitive high-speed data interfaces. With tiny package size, ultra-low capacitance and outstanding ESD & surge protection performance, it is an ideal solution for mainstream high-speed ports.
Description
RCLAMP0544P-SL is a 4-line ultra-low capacitance TVS diode array adopting advanced monolithic silicon technology. It delivers fast response and low ESD clamping voltage, specially designed to protect voltage-sensitive high-speed data interfaces. With tiny package size, ultra-low capacitance and outstanding ESD & surge protection performance, it is an ideal solution for mainstream high-speed ports.
Features
- Ultra low typical capacitance of 0.3pF between I/O pins, no insertion loss up to 3.0GHz
- Rated working voltage: 5V
- Low clamping voltage for reliable transient suppression
- Supports protection for up to 4 signal lines
- Compliant with RoHS requirements
- High ESD resistance: ±8kV contact discharge and ±15kV air discharge per IEC 61000−4−2
Our advantages
- Extremely low capacitance ensures signal integrity without interfering with high-speed data transmission
- Compact DFN package saves PCB space and adapts to miniaturized device design
- Excellent ESD and surge protection performance effectively safeguards sensitive chips and circuits
- Straight-through pin layout simplifies PCB routing and reduces design difficulty
- Standard tape and reel packaging enables efficient automatic SMT assembly
- Wide operating temperature range ensures stable performance in various working environments
Mechanical Data
- Package Type: DFN2510-10 (2.5 × 1.0 × 0.5 mm)
- Terminal Finish: Matte Tin
- Housing Material: Environment-friendly molding compound, UL 94V-0 flame retardant rating
- Moisture Sensitivity Level: Level 3 per J-STD-020
- Packing Specification: 3000 pieces per 7-inch tape & reel
- Operating junction temperature: -55 ℃ ~ +125 ℃; Storage temperature: -55 ℃ ~ +150 ℃
Applications
- High-speed interfaces: HDMI, USB, MDDI, DVI, PCI Express and Serial SATA ports
- Digital devices: Set-top boxes, digital TVs, video graphics cards
- Portable devices: Notebook computers and other consumer electronic products
