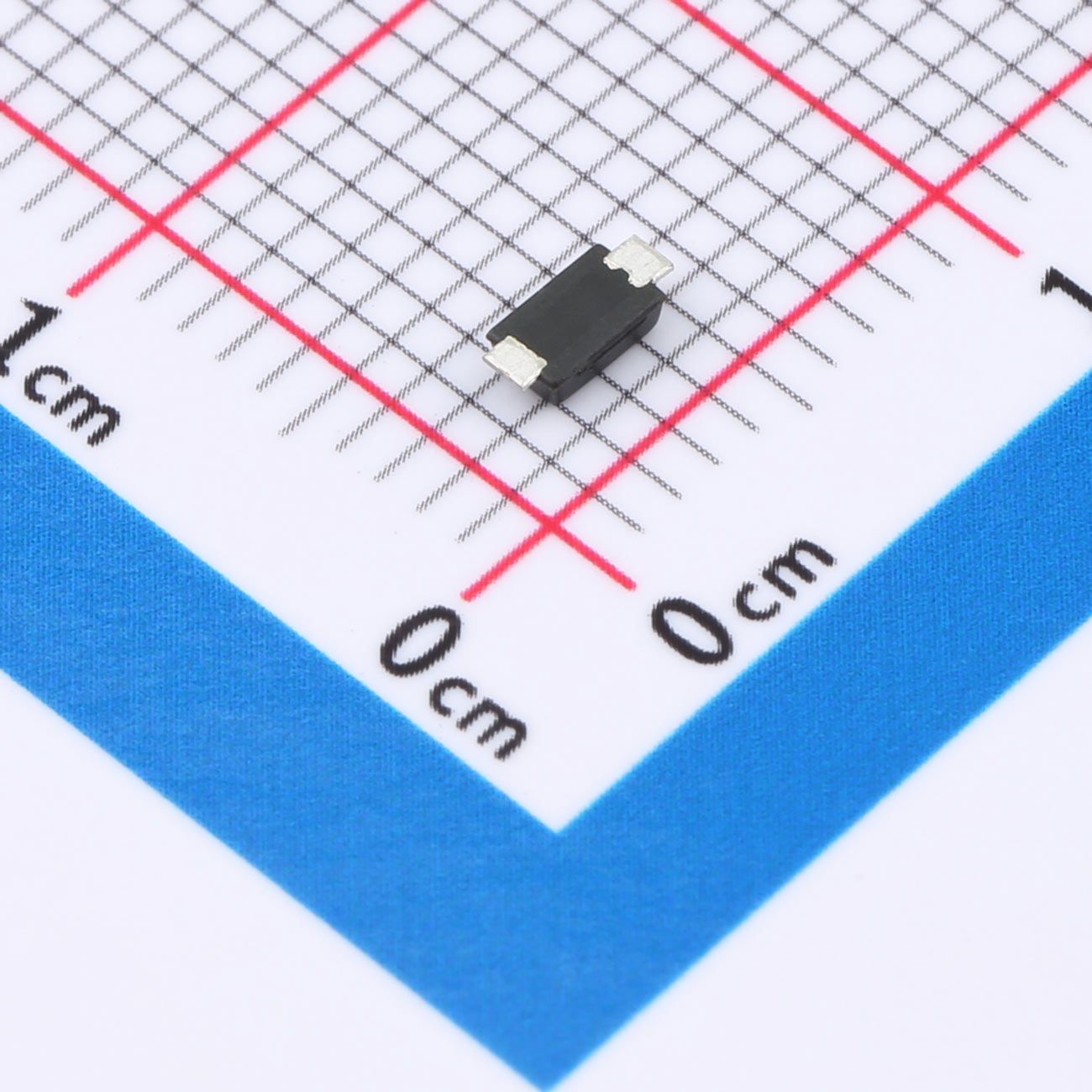

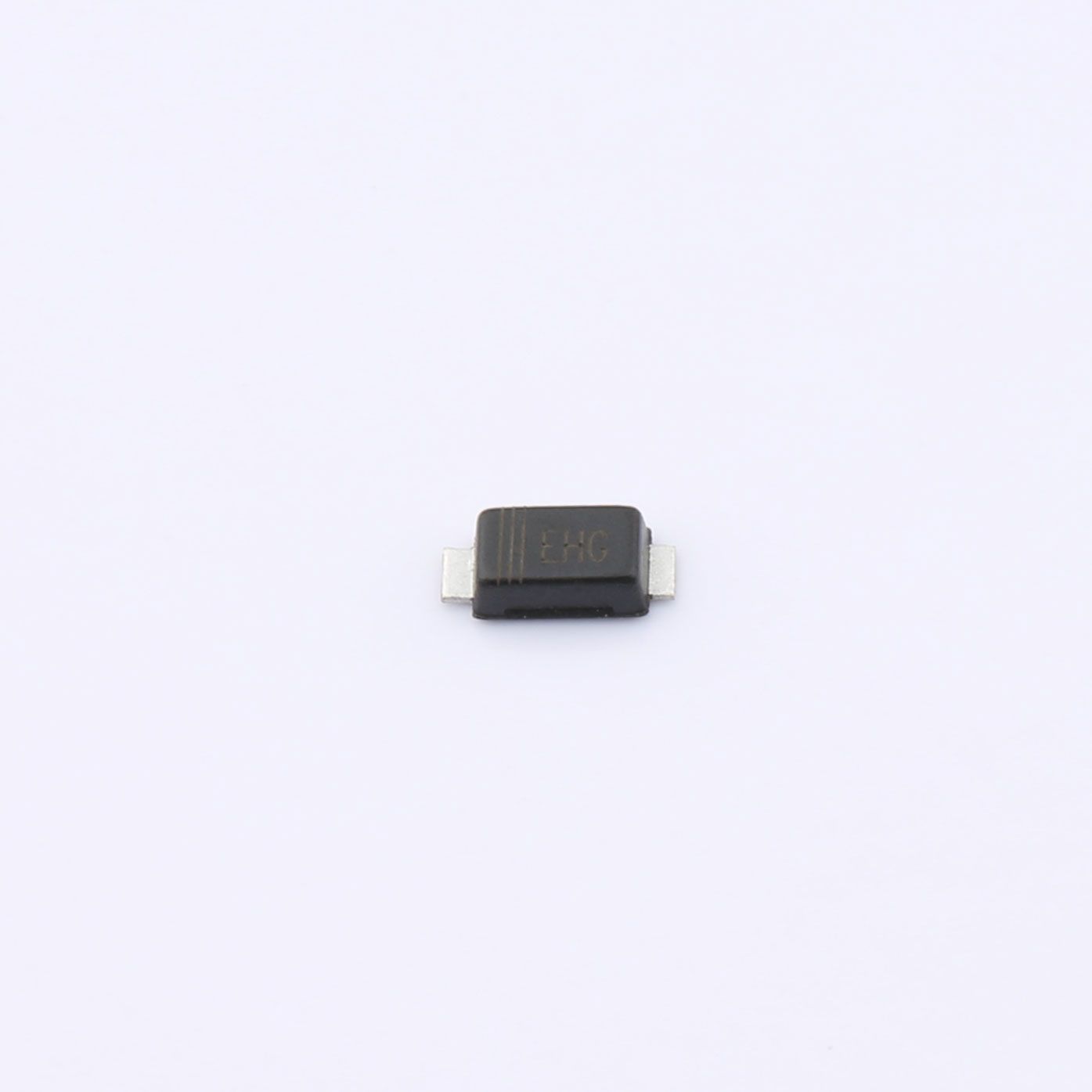

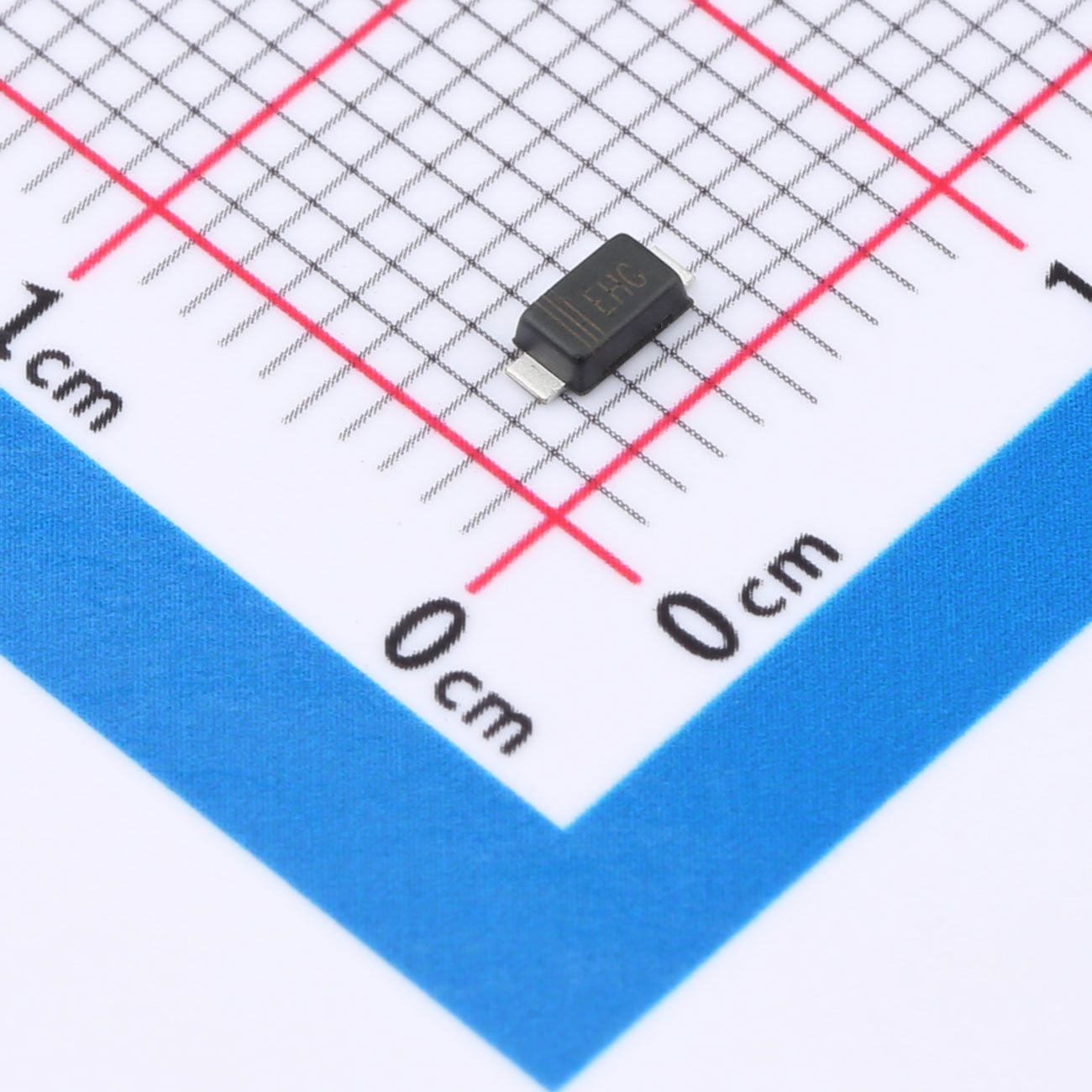

P4SMFT6.0A TVS Diode SMF
P4SMFT6.0A is a unidirectional surface-mount transient voltage suppressor (TVS) packaged in SOD-123FL. It features 400W peak pulse power under 10/1000μs surge waveform. This component is designed to protect electrical equipment and circuits from damage caused by wire-induced voltage spikes and transient surges.
Description
P4SMFT6.0A is a unidirectional surface-mount transient voltage suppressor (TVS) packaged in SOD-123FL. It features 400W peak pulse power under 10/1000μs surge waveform. This component is designed to protect electrical equipment and circuits from damage caused by wire-induced voltage spikes and transient surges.
Features
- 400W peak pulse power rating for standard 10/1000μs surge waveform
- Key electrical parameters: VRWM=6.0V, VBR=6.67V~7.37V @ 10mA, IR≤400μA @ 6.0V, VC=10.3V @ 38.84A
- Extremely fast response time less than 1ps and low inductance design
- Outstanding voltage clamping performance for transient suppression
- Wide working voltage range from 3.3V to 75V for the full series
- Reverse leakage current is typically below 1μA for models above 12V
- Low-profile SMD package, fully compliant with RoHS requirements
Our advantages
- Excellent clamping capability effectively absorbs transient voltage spikes and protects sensitive circuits
- Ultra-fast response ensures instant reaction to sudden surges
- Compact SOD-123FL package saves PCB space for miniaturized electronic devices
- Low inductance delivers stable performance in various circuit designs
- Meets MSL 1 moisture sensitivity standard, suitable for regular SMT processing
- Solder-plated terminals ensure good solderability and compatibility with automated assembly
- Wide operating temperature range adapts to diverse working environments
Mechanical Data
- Package: SOD-123FL (SMF), molded plastic with UL94V-0 flame retardant grade
- Polarity: Color band marks the cathode terminal
- Approximate single weight: 0.017g
- Moisture Sensitivity Level: MSL 1
- Terminal: Solder plated, conforming to MIL-STD-750 soldering specifications
- Operating junction temperature: -55℃ ~ +125℃
- Storage temperature: -55℃ ~ +150℃
Applications
Computer systems, household appliances, video input circuits and a wide range of electronic devices requiring transient surge protection
