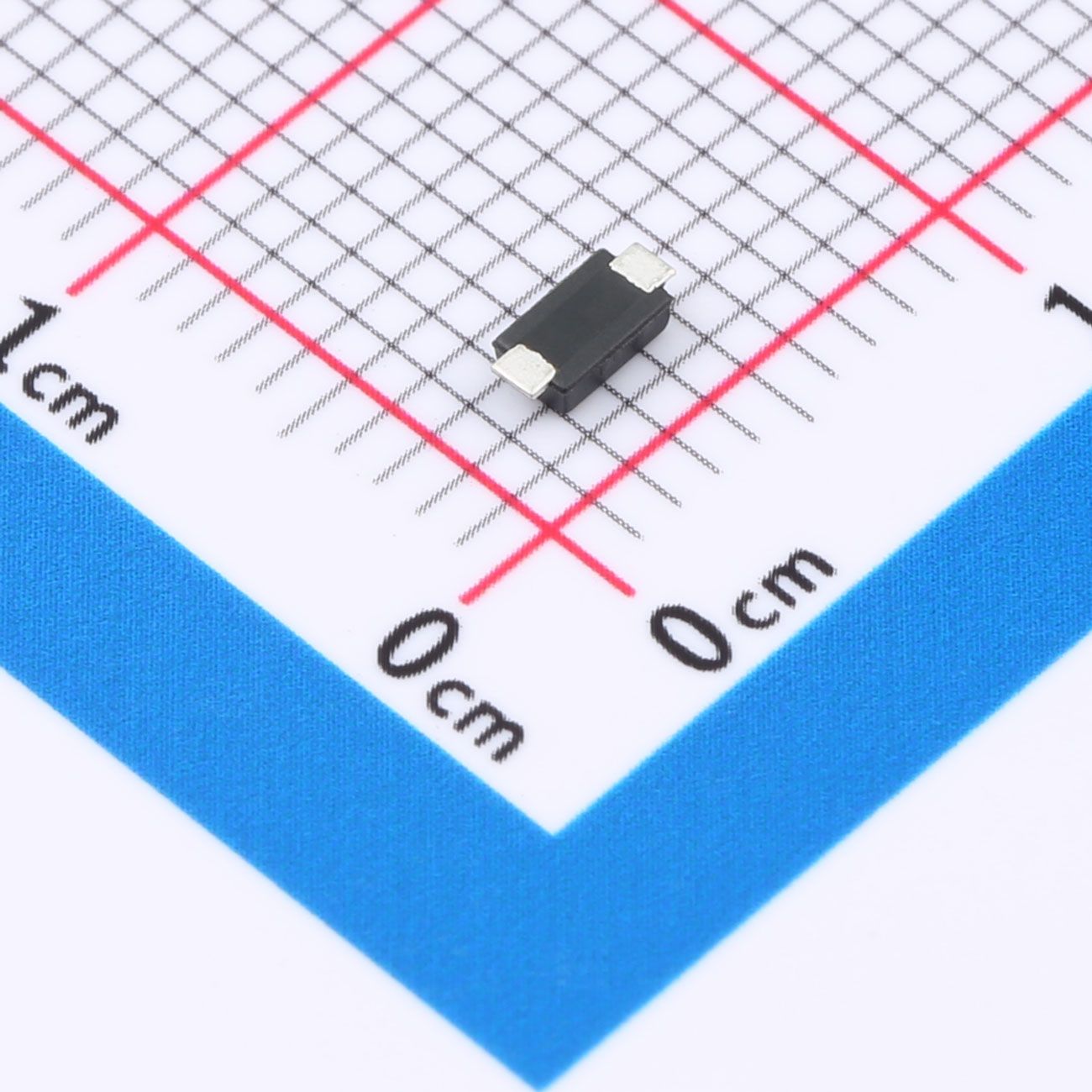

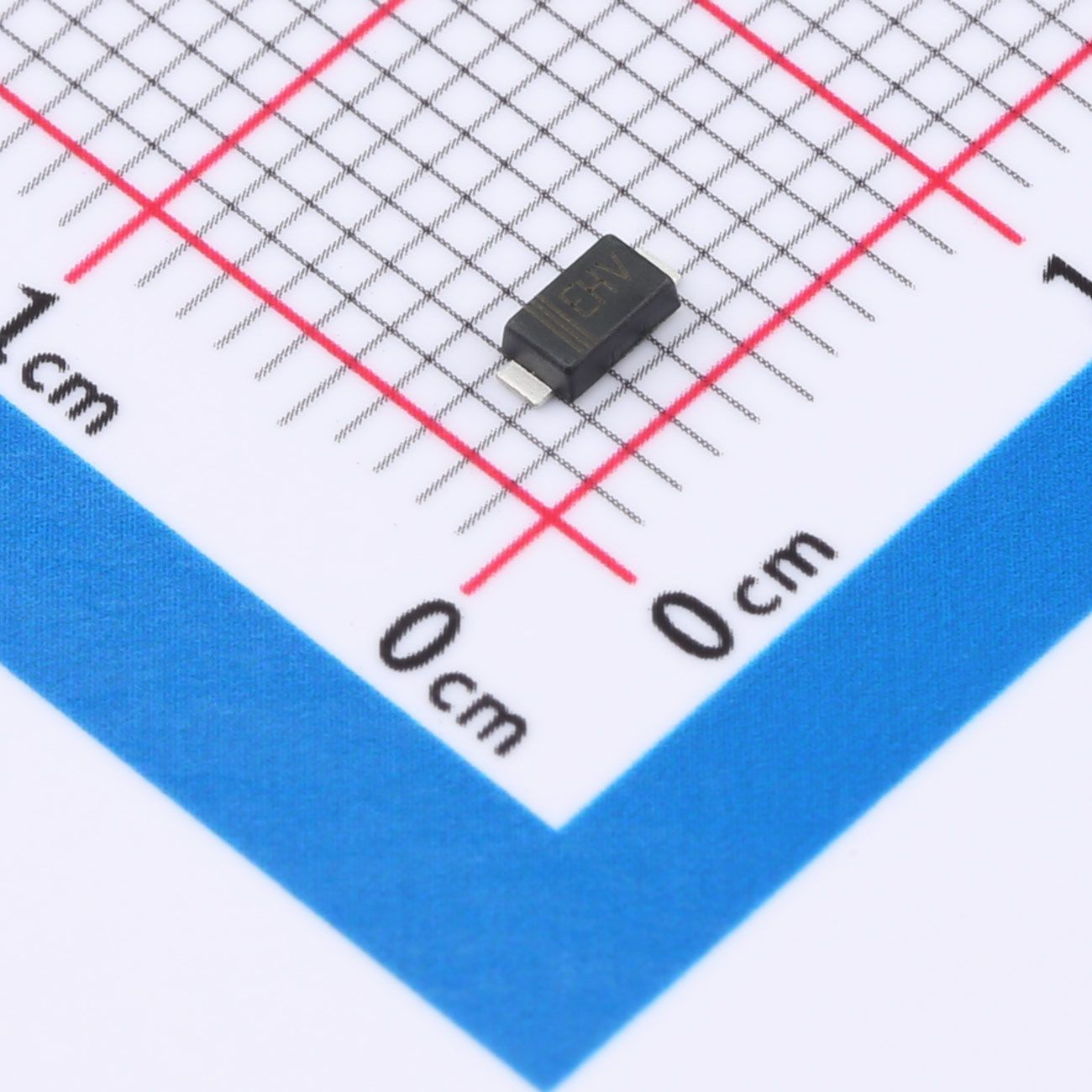

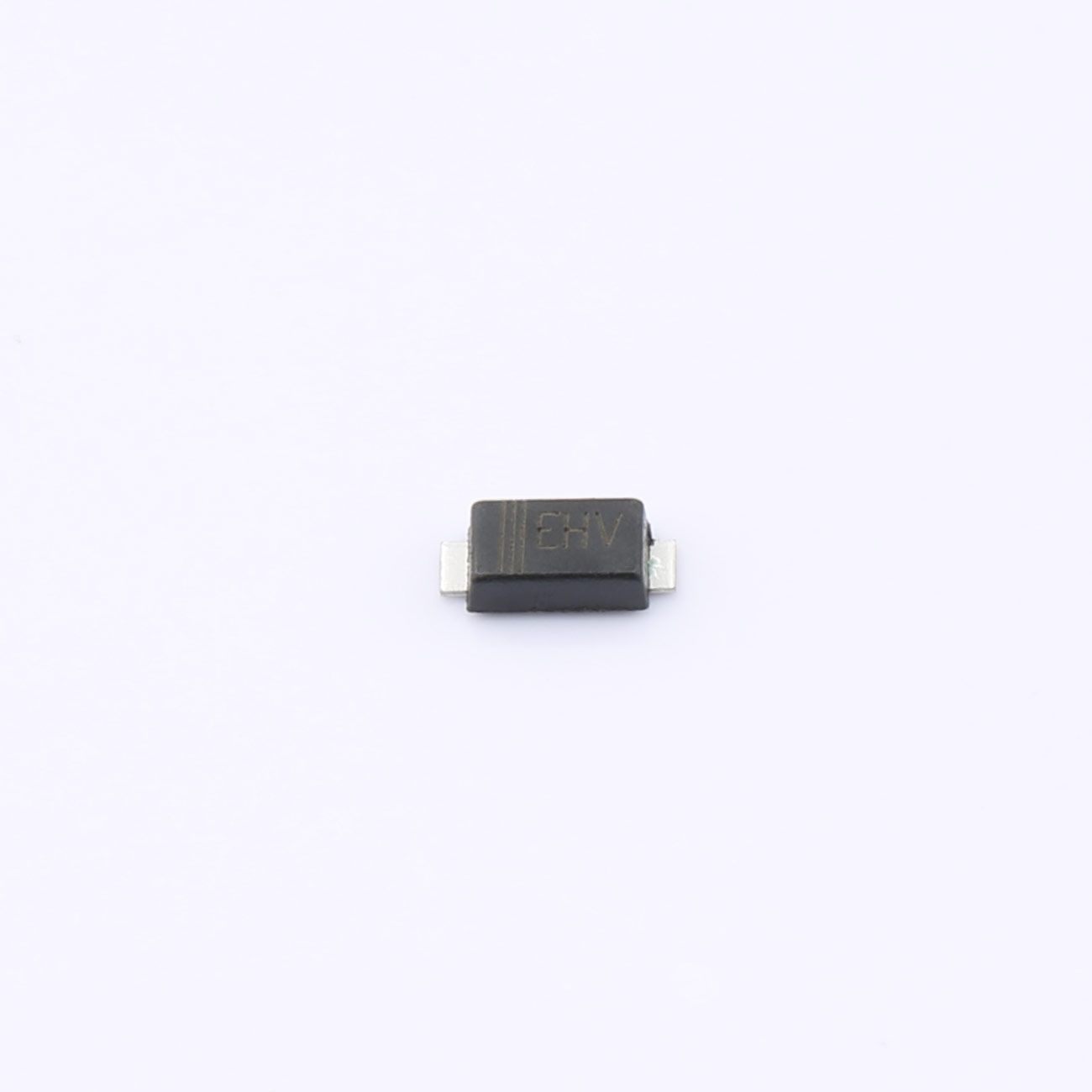

P4SMFT9.0A TVS Diode SMF
P4SMFT9.0A is a unidirectional surface-mount transient voltage suppressor (TVS) in SOD-123FL package. It delivers 400W peak pulse power under 10/1000μs surge waveform. This component is designed to protect electronic equipment and circuits from wire-borne voltage spikes and transient surges.
Description
P4SMFT9.0A is a unidirectional surface-mount transient voltage suppressor (TVS) in SOD-123FL package. It delivers 400W peak pulse power under 10/1000μs surge waveform. This component is designed to protect electronic equipment and circuits from wire-borne voltage spikes and transient surges.
Features
- 400W peak pulse power for standard 10/1000μs surge waveform
- Key electrical parameters: VRWM=9.0V, VBR=10.00V~11.10V @ 1mA, IR≤5μA @ 9.0V, VC=15.4V @ 25.98A
- Response time less than 1.0ps and low inductance design
- Excellent transient voltage clamping performance
- Full series covers VRWM range from 3.3V to 75V
- Reverse leakage current is typically below 1μA for models above 12V
- Low-profile SMD package, fully RoHS compliant
Our advantages
- High-efficiency clamping ability quickly absorbs voltage spikes and protects sensitive electronic components
- Ultra-fast response reacts instantly to transient pulses
- Compact SOD-123FL package saves PCB space for miniaturized devices
- Low inductance ensures stable operation in various circuit environments
- Complies with MSL 1 moisture standard for convenient SMT processing
- Solder-plated terminals meet MIL-STD-750 soldering requirements
- Wide temperature tolerance guarantees reliable performance in diverse working conditions
Mechanical Data
- Package: SOD-123FL molded plastic with UL94V-0 flame retardant rating
- Polarity: Cathode is marked with a color band
- Approximate single weight: 0.017g
- Moisture Sensitivity Level: MSL 1
- Operating junction temperature: -55℃ ~ +125℃
- Storage temperature: -55℃ ~ +150℃
Applications
Computer systems, household appliances, video input circuits and other electronic devices requiring transient surge protection
