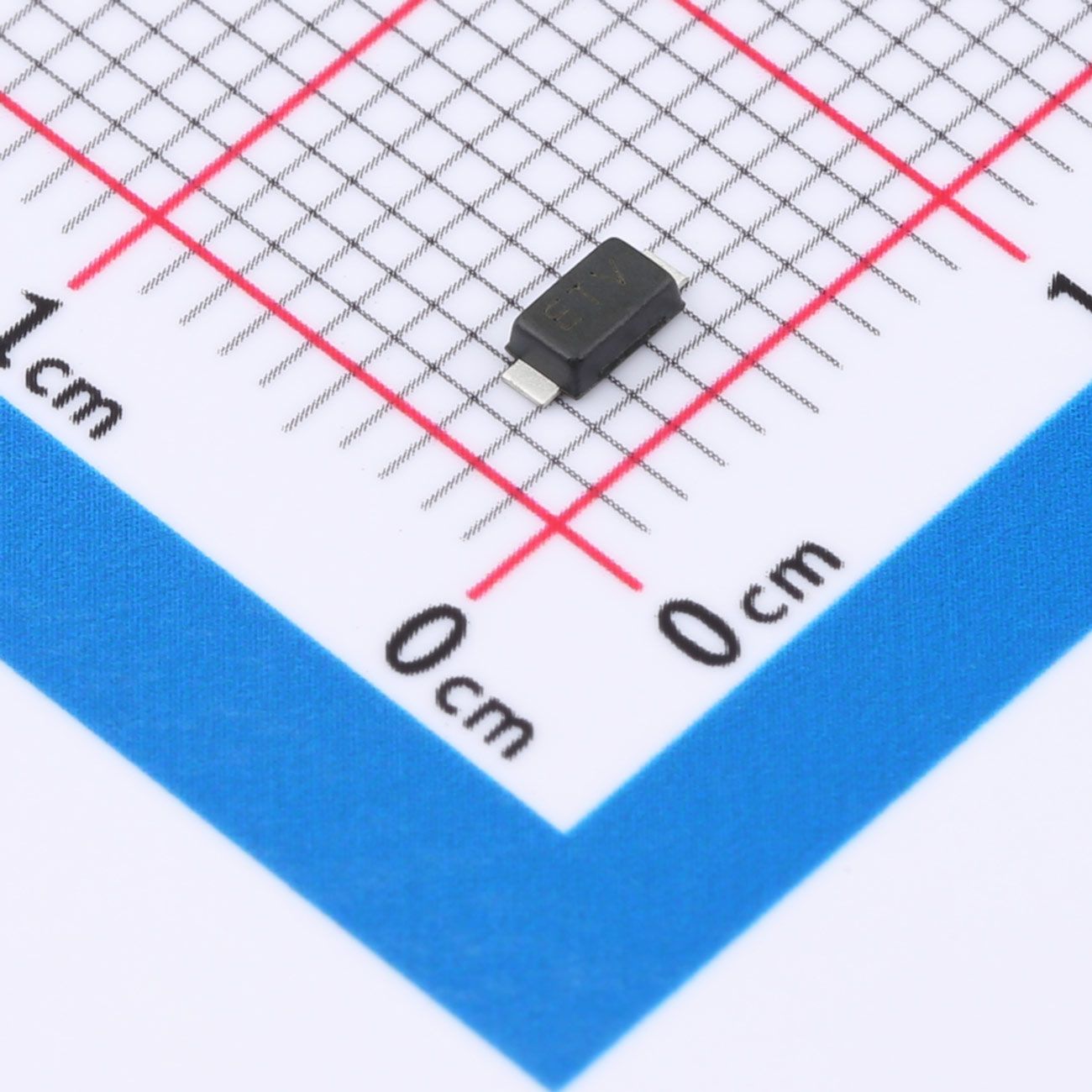

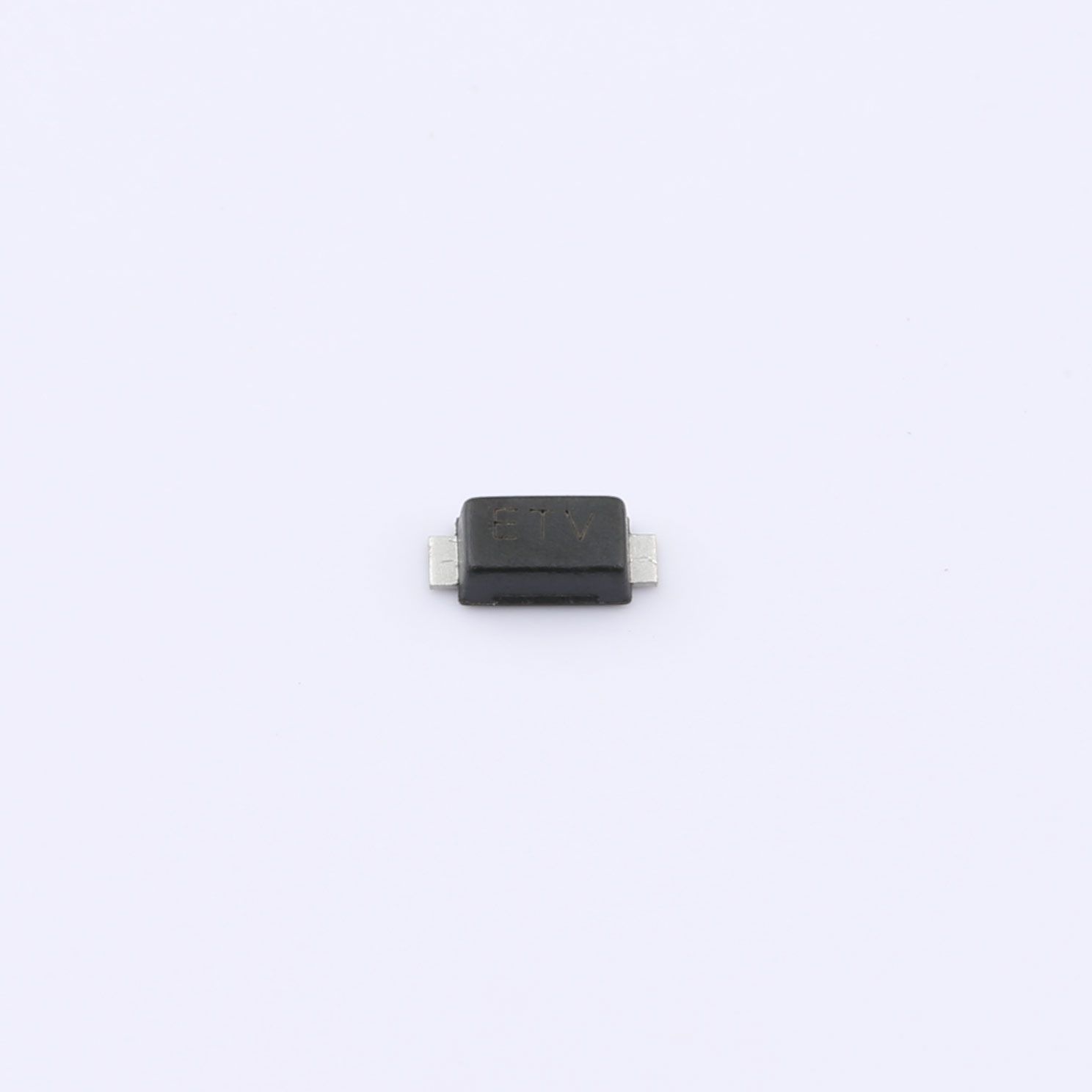

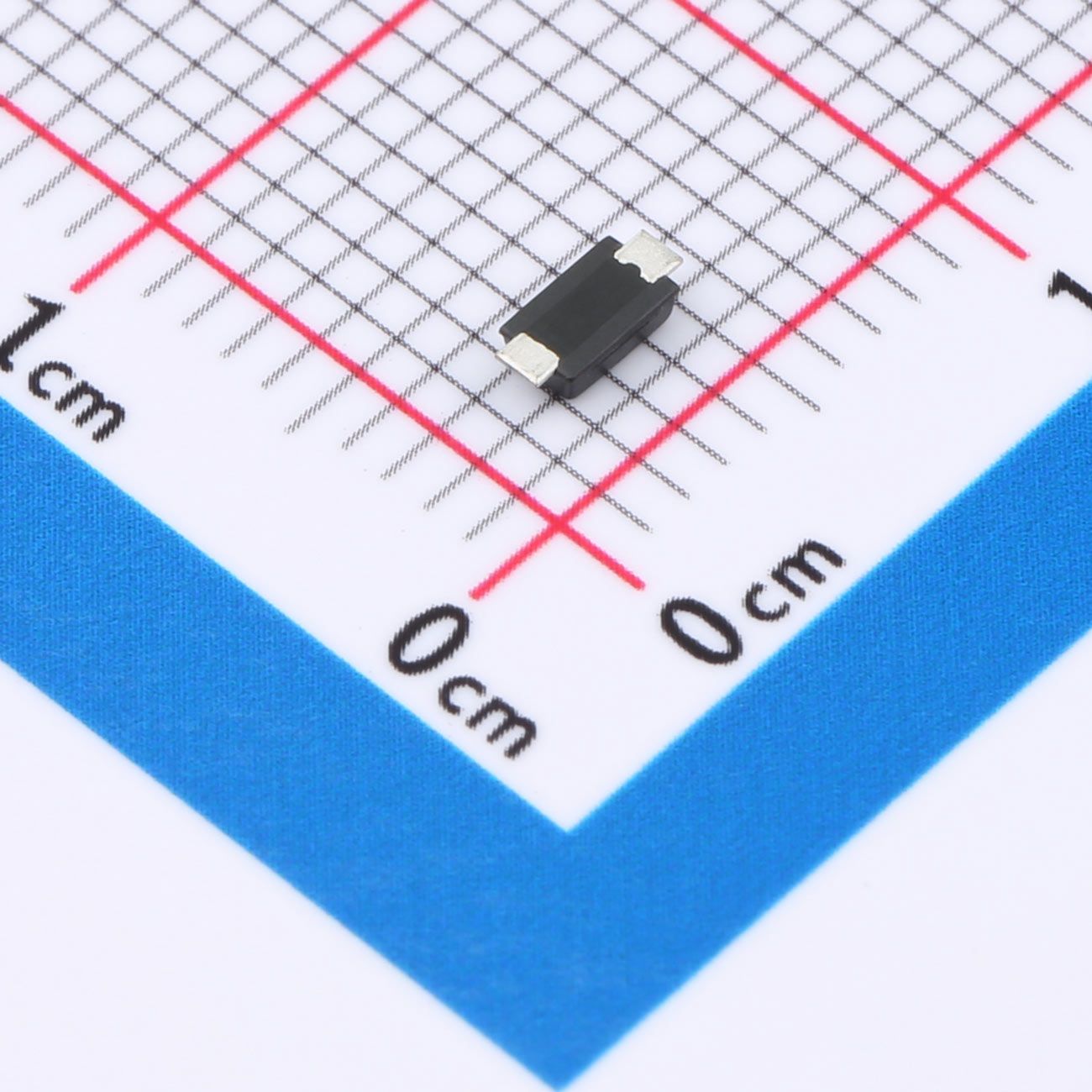

P4SMFT9.0CA TVS Diode SMF
P4SMFT9.0CA is a bidirectional surface-mount transient voltage suppressor (TVS) adopting SOD-123FL package. With 400W peak pulse power under 10/1000μs surge waveform, it is designed to protect electronic equipment and circuits from positive and negative voltage spikes and transient surges transmitted through connecting wires.
Description
P4SMFT9.0CA is a bidirectional surface-mount transient voltage suppressor (TVS) adopting SOD-123FL package. With 400W peak pulse power under 10/1000μs surge waveform, it is designed to protect electronic equipment and circuits from positive and negative voltage spikes and transient surges transmitted through connecting wires.
Features
- 400W peak pulse power rating for standard 10/1000μs surge waveform
- Core electrical parameters: VRWM=9.0V, VBR=10.00V~11.10V @ 1mA, IR≤5μA @ 9.0V, VC=15.4V @ 25.98A
- Ultra-fast response time less than 1.0ps and low inductance design
- Outstanding voltage clamping performance for transient suppression
- The full product series provides VRWM ranging from 3.3V to 75V
- Typical reverse leakage current is below 1μA for models over 12V
- Low-profile SMD package, fully compliant with RoHS requirements
Our advantages
- Bidirectional design offers full protection against both positive and negative transient voltages
- Extremely fast response quickly suppresses sudden voltage surges to safeguard sensitive components
- Compact SOD-123FL package effectively saves PCB space for miniaturized electronic products
- Low inductance ensures stable operation in various circuit environments
- Complies with MSL 1 moisture sensitivity standard, suitable for standard SMT assembly lines
- Solder-plated terminals feature excellent solderability per MIL-STD-750 specifications
- Wide operating temperature range ensures reliable performance under harsh working conditions
Mechanical Data
- Package: SOD-123FL molded plastic with UL94V-0 flame retardant grade
- Polarity: No cathode color band for bidirectional type
- Approximate single weight: 0.017g
- Moisture Sensitivity Level: MSL 1
- Operating junction temperature: -55℃ ~ +125℃
- Storage temperature: -55℃ ~ +150℃
Applications
Computer systems, household appliances, video input circuits and other electronic devices that require bidirectional surge and ESD protection
