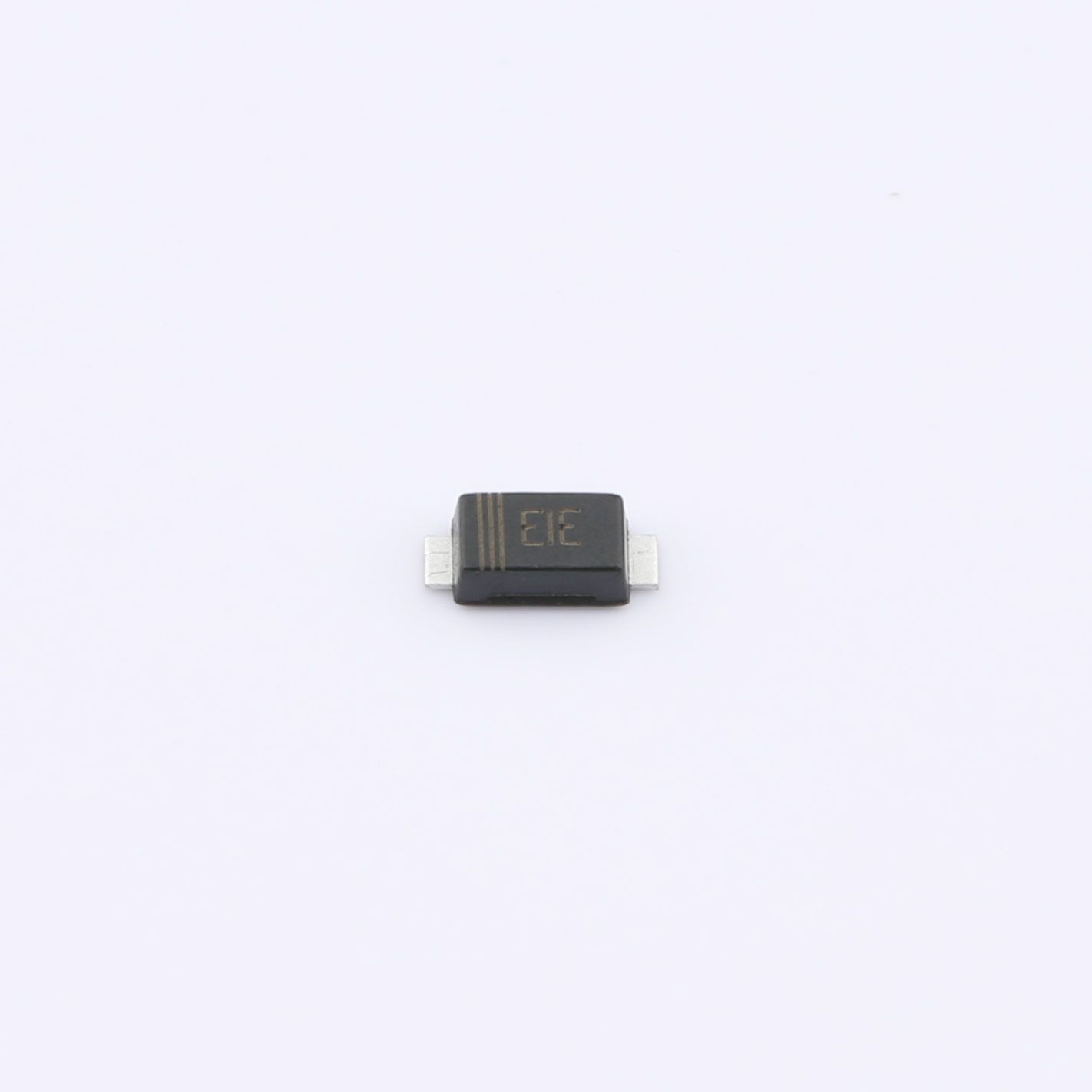

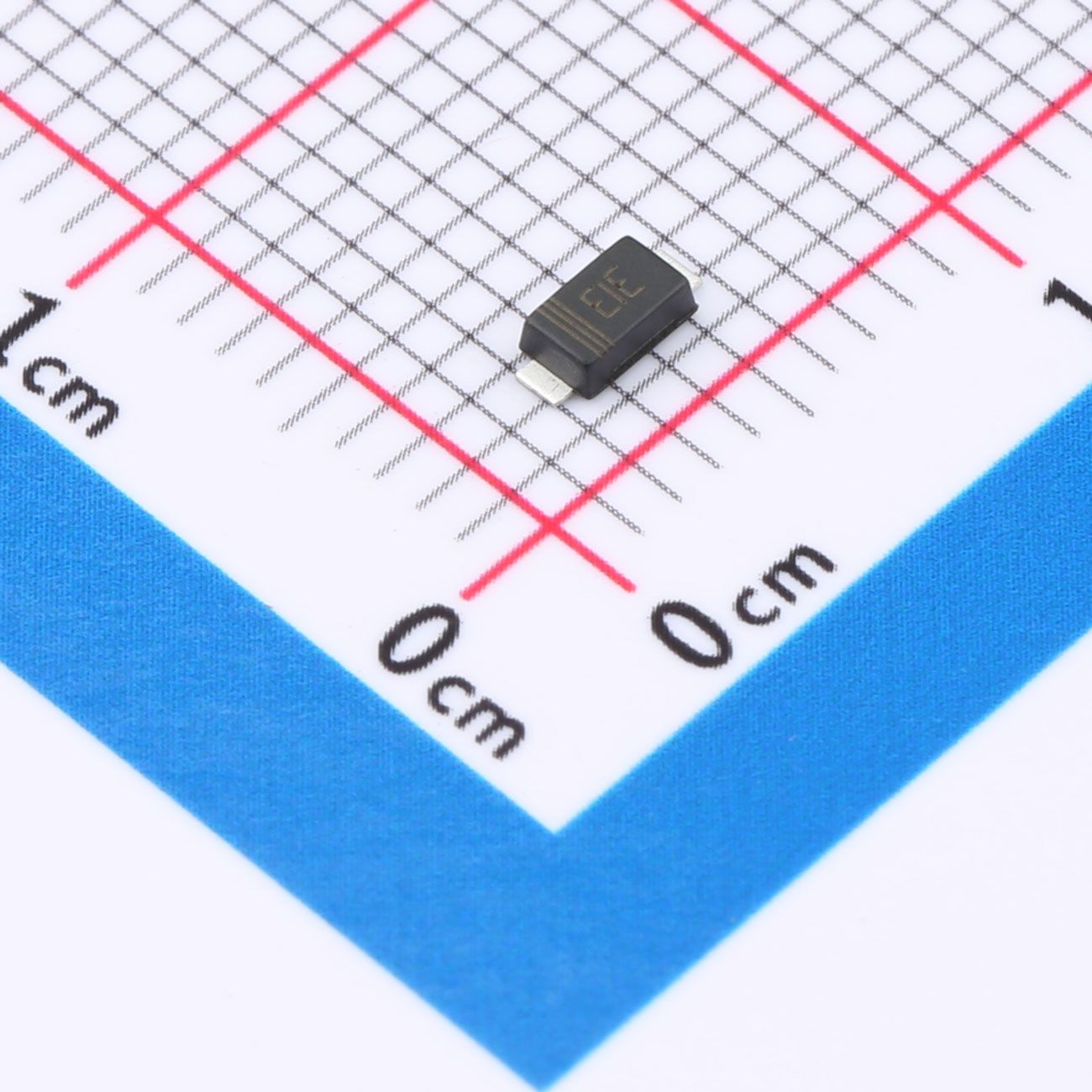

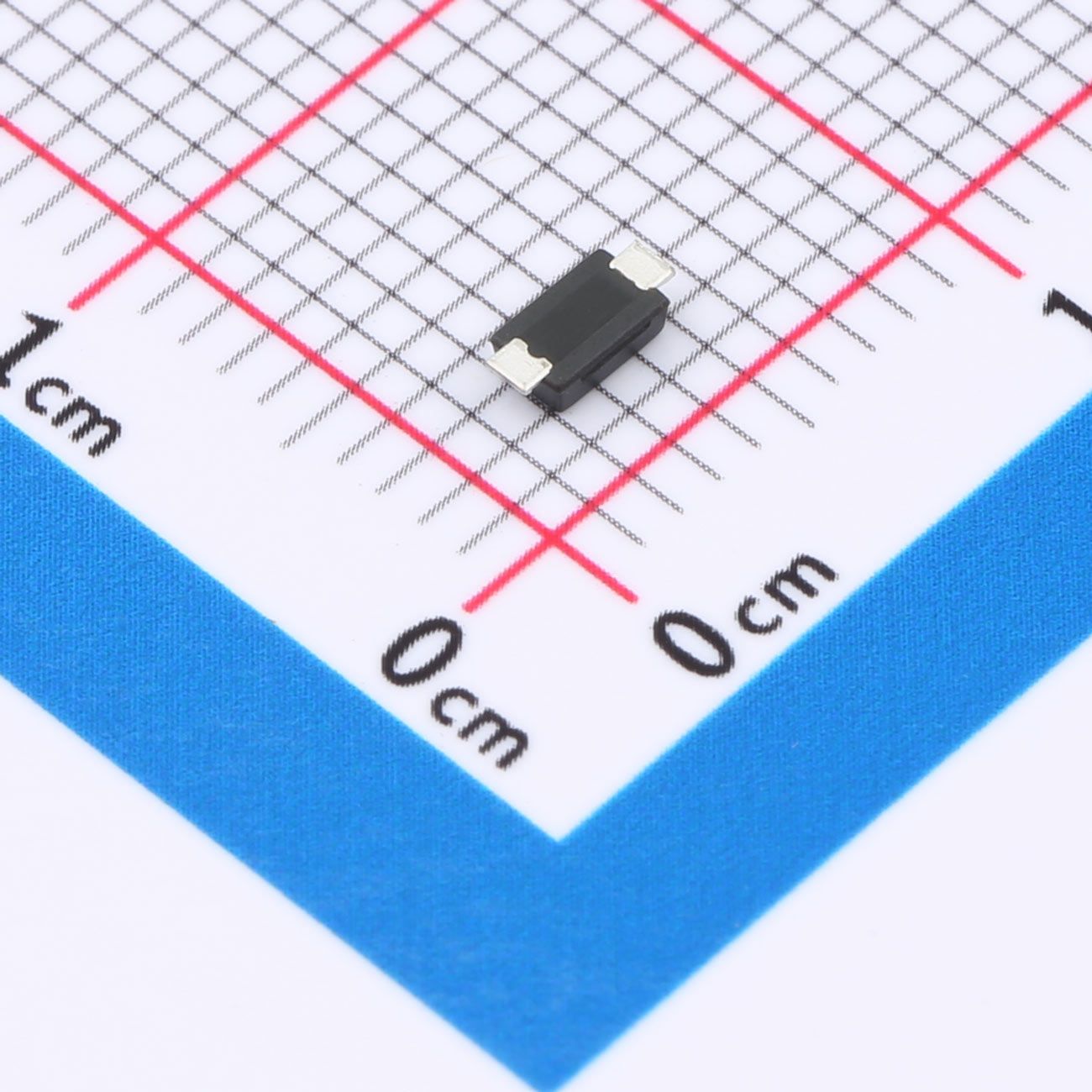

P4SMFT12A TVS Diode SMF
P4SMFT12A is a unidirectional surface-mount transient voltage suppressor (TVS) built in SOD-123FL package. It delivers 400W peak pulse power under 10/1000μs surge waveform. This device is designed to protect electronic equipment and circuits from destructive voltage spikes and transient surges transmitted through connecting wires.
Description
P4SMFT12A is a unidirectional surface-mount transient voltage suppressor (TVS) built in SOD-123FL package. It delivers 400W peak pulse power under 10/1000μs surge waveform. This device is designed to protect electronic equipment and circuits from destructive voltage spikes and transient surges transmitted through connecting wires.
Features
- 400W peak pulse power rating for standard 10/1000μs surge waveform
- Key electrical parameters: VRWM=12.0V, VBR=13.30V~14.70V @ 1mA, IR≤2.5μA @ 12.0V, VC=19.9V @ 20.11A
- Response time less than 1.0ps and low inductance design
- Excellent transient voltage clamping performance
- Full product series covers VRWM from 3.3V to 75V
- Typical reverse leakage current is lower than 1μA for models above 12V
- Low-profile SMD package, fully RoHS compliant
Our advantages
- Superior clamping performance effectively absorbs transient voltage spikes and protects sensitive circuits
- Ultra-fast response quickly reacts to sudden surges
- Compact SOD-123FL package saves PCB space for miniaturized electronic products
- Low inductance ensures stable operation in various circuit environments
- Complies with MSL 1 moisture standard for convenient mass SMT assembly
- Solder-plated terminals meet MIL-STD-750 requirements for reliable soldering
- Wide temperature range guarantees stable performance in diverse working conditions
Mechanical Data
- Package: SOD-123FL molded plastic with UL94V-0 flame retardant rating
- Polarity: Cathode is marked with a color band
- Approximate single weight: 0.017g
- Moisture Sensitivity Level: MSL 1
- Operating junction temperature: -55℃ ~ +125℃
- Storage temperature: -55℃ ~ +150℃
Applications
Computer systems, household appliances, video input circuits and other electronic devices requiring transient surge protection
