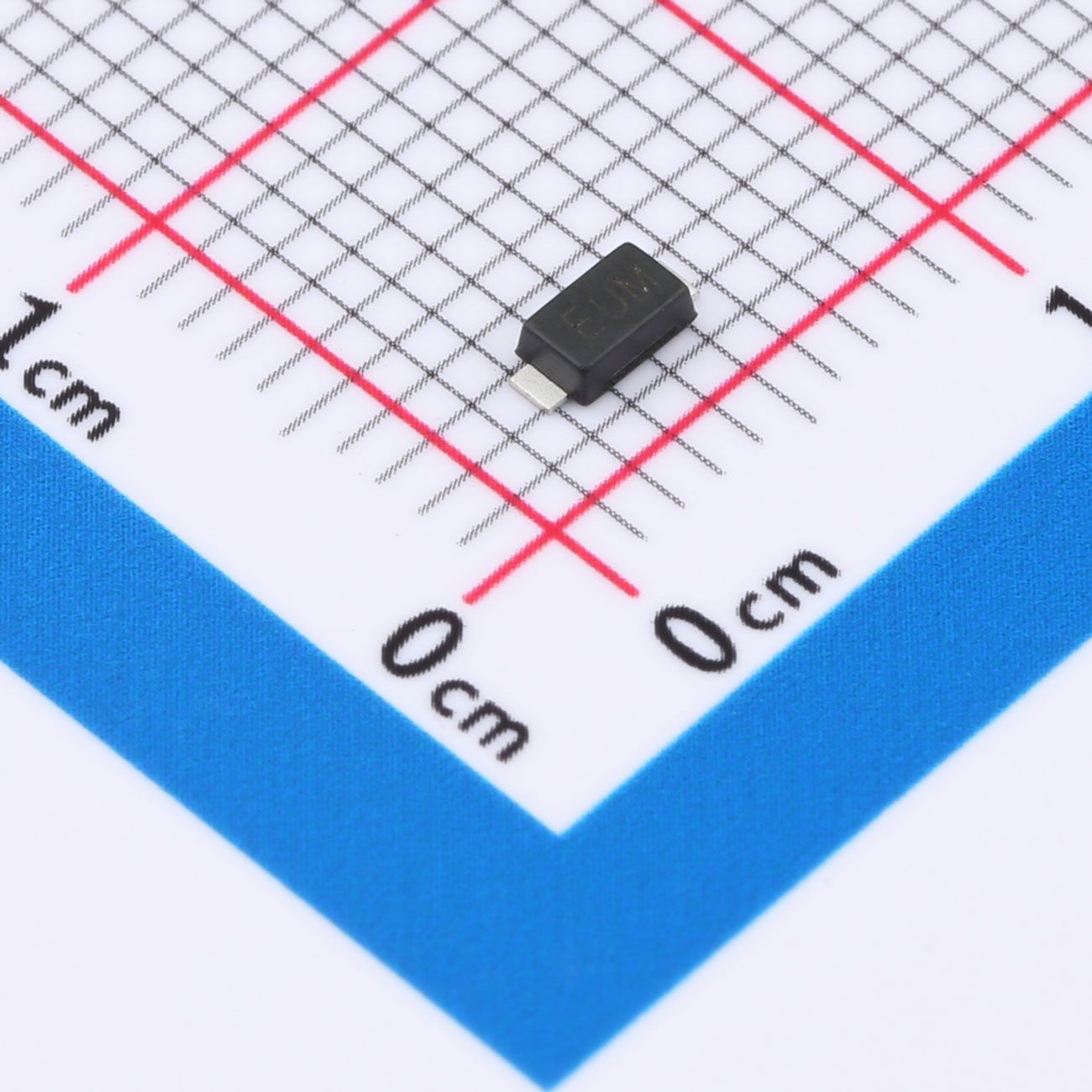

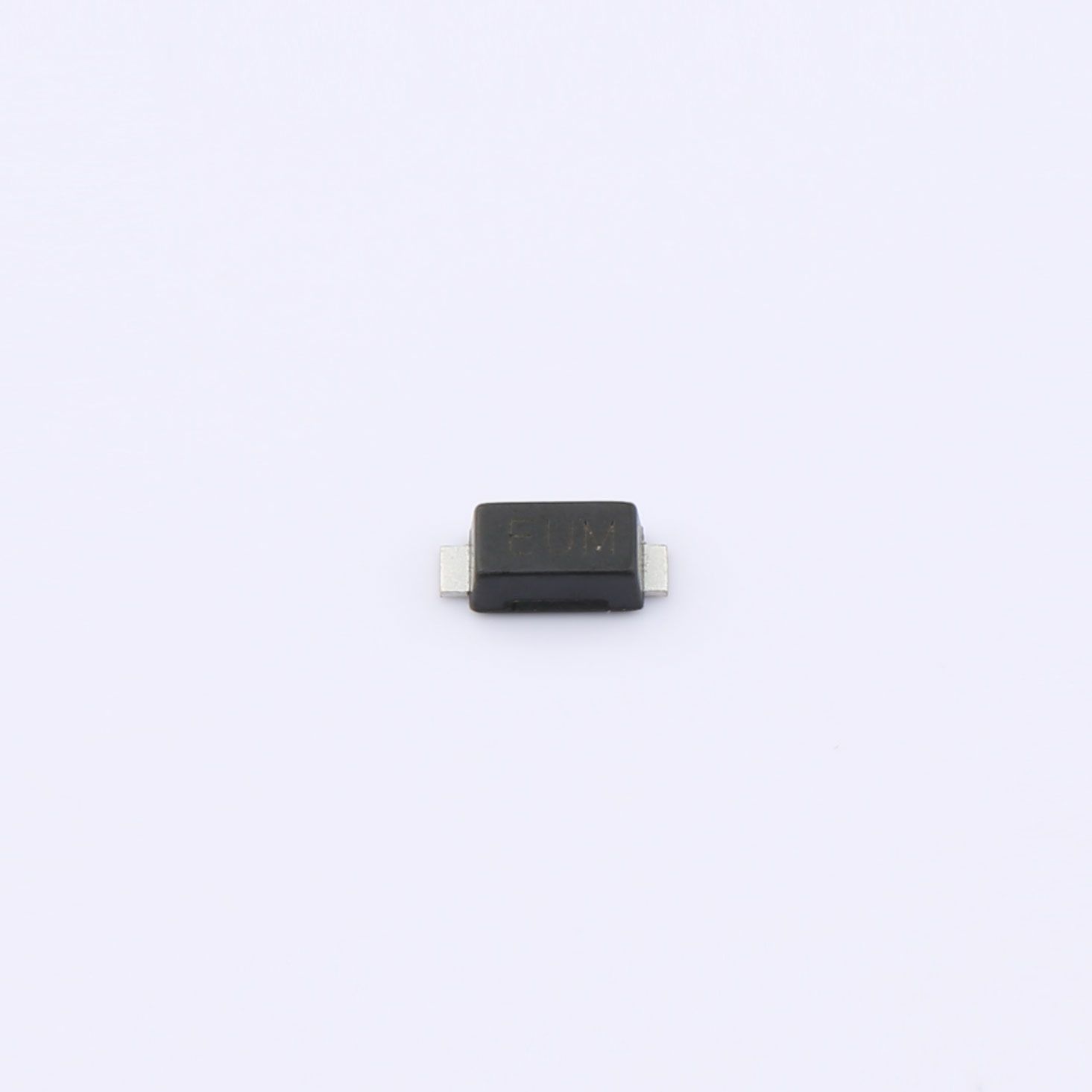

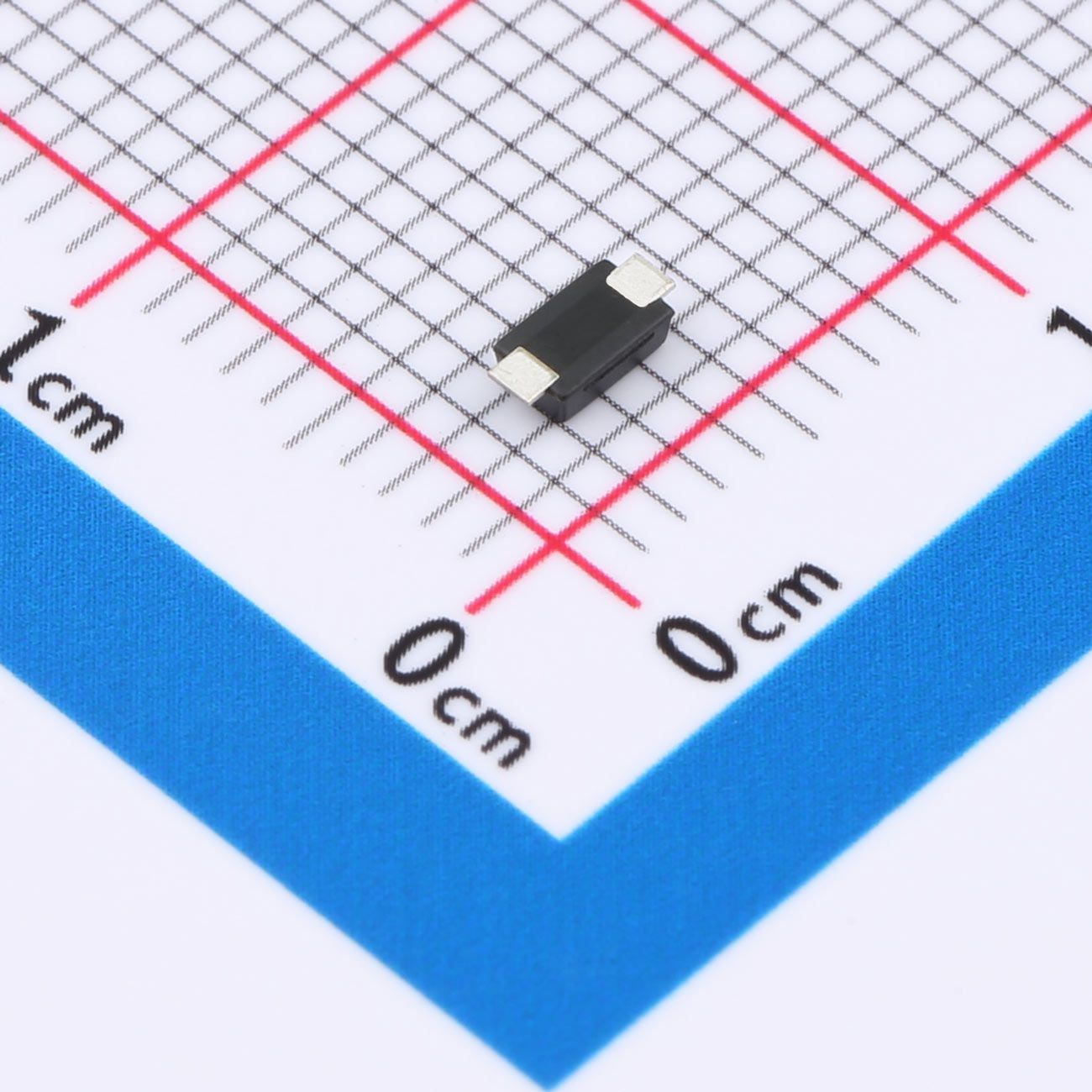

P4SMFT15CA TVS Diode SMF
P4SMFT15CA is a bidirectional surface-mount transient voltage suppressor (TVS) with SOD-123FL package. It delivers 400W peak pulse power under the 10/1000μs surge waveform. This component is designed to protect electronic equipment and circuits from both positive and negative voltage spikes and transient surges transmitted through connecting wires.
Description
P4SMFT15CA is a bidirectional surface-mount transient voltage suppressor (TVS) with SOD-123FL package. It delivers 400W peak pulse power under the 10/1000μs surge waveform. This component is designed to protect electronic equipment and circuits from both positive and negative voltage spikes and transient surges transmitted through connecting wires.
Features
- 400W peak pulse power for standard 10/1000μs surge waveform
- Key electrical parameters: VRWM=15.0V, VBR=16.70V~18.50V @ 1mA, IR≤1μA @ 15.0V, VC=24.4V @ 16.40A
- Ultra-fast response time less than 1.0ps and low inductance design
- Excellent transient voltage clamping performance
- The full product series offers VRWM ranging from 3.3V to 75V
- Typical reverse leakage current is lower than 1μA for models above 12V
- Low-profile SMD package, fully compliant with RoHS standards
Our advantages
- Bidirectional design provides comprehensive protection against positive and negative transients
- Near-instant response quickly suppresses sudden voltage surges to protect sensitive components
- Compact SOD-123FL footprint saves PCB space for miniaturized electronic products
- Low inductance ensures stable operation in various circuit environments
- Complies with MSL 1 moisture standard for smooth SMT assembly
- Solder-plated terminals feature good solderability in accordance with MIL-STD-750
- Wide operating temperature range ensures reliable performance in various working conditions
Mechanical Data
- Package: SOD-123FL molded plastic with UL94V-0 flame retardant rating
- Polarity: No color band for bidirectional type
- Approximate single weight: 0.017g
- Moisture Sensitivity Level: MSL 1
- Operating junction temperature: -55℃ ~ +125℃
- Storage temperature: -55℃ ~ +150℃
Applications
Computer systems, household appliances, video input circuits and other electronic devices requiring bidirectional surge and ESD protection
