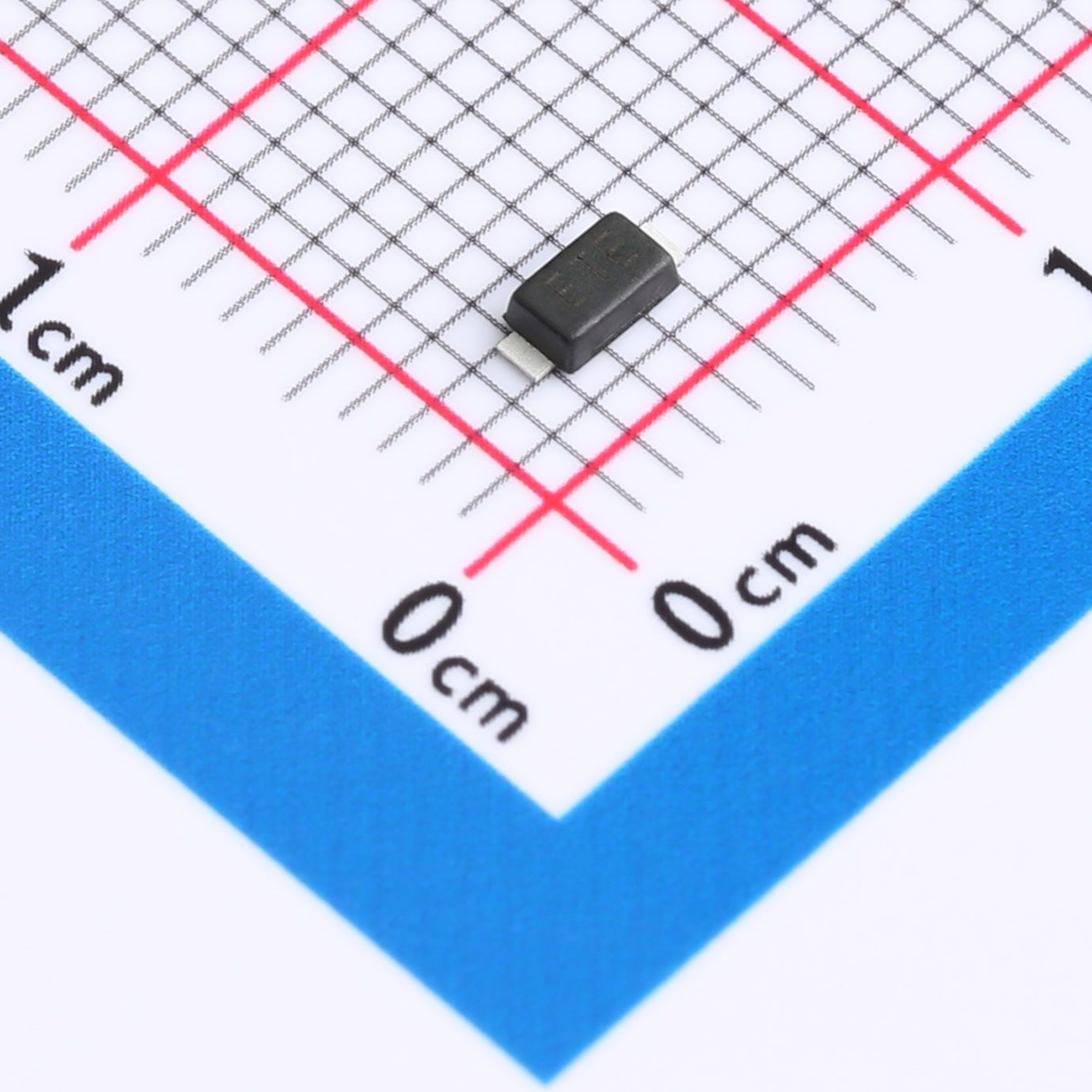

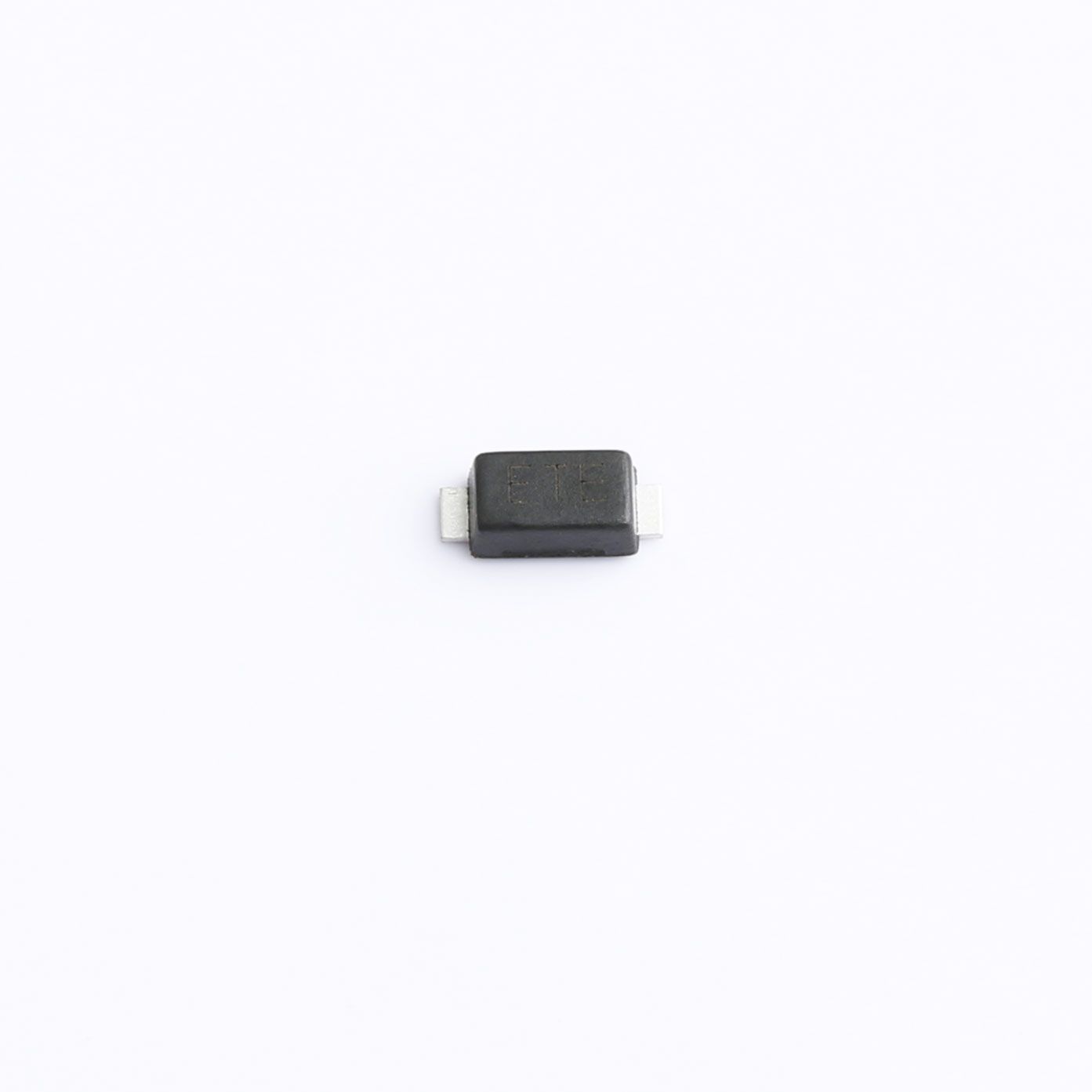

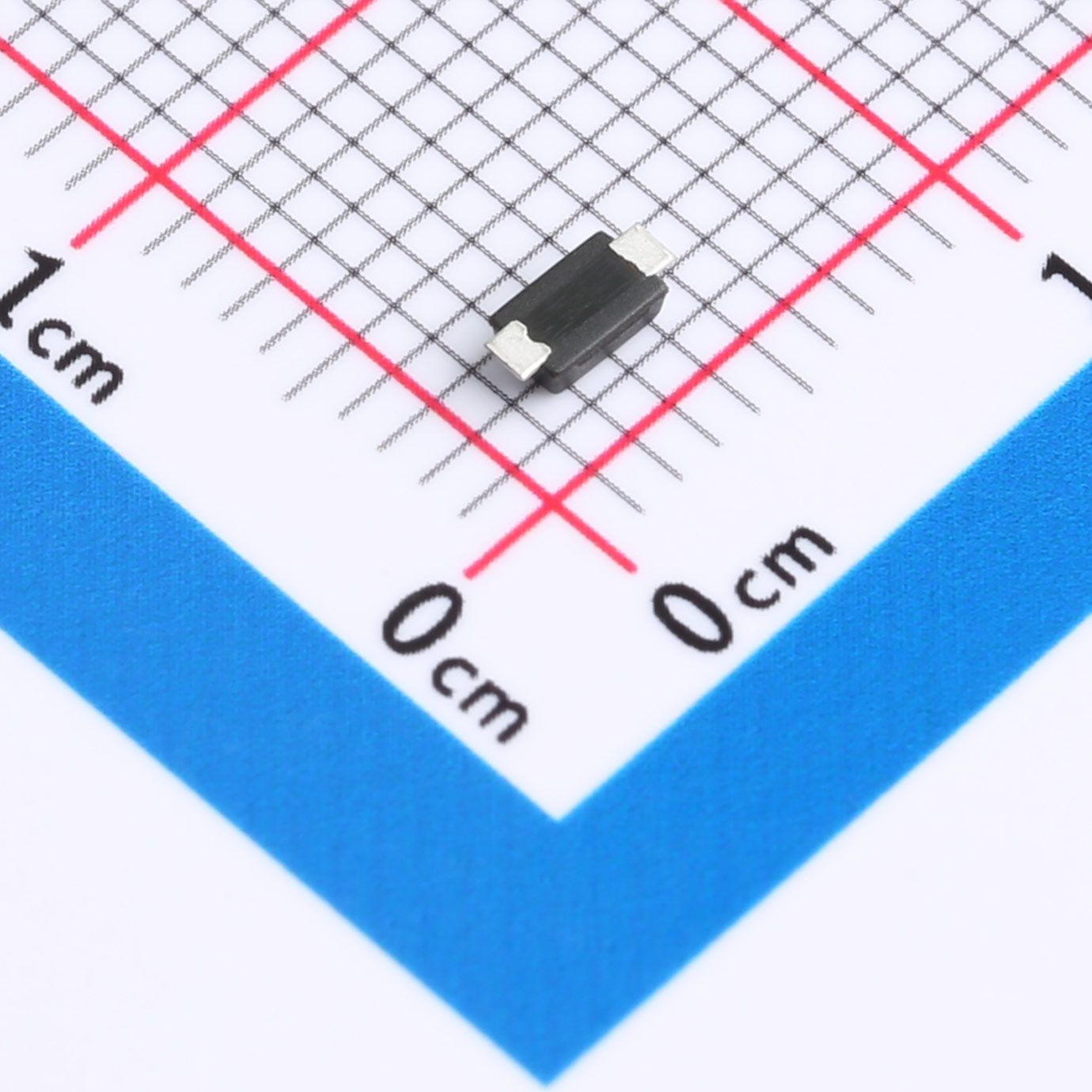

M4SMF5.0CA TVS Diode SOD-123FL
M4SMF5.0CA is a bidirectional surface-mount transient voltage suppressor (TVS) adopting SOD-123FL package. It is rated at 4500W peak pulse power under the 8/20μs surge waveform. This high-power protection diode is widely used to guard circuits and electronic devices against transient voltage spikes and surges in various fields.Features
Description
M4SMF5.0CA is a bidirectional surface-mount transient voltage suppressor (TVS) adopting SOD-123FL package. It is rated at 4500W peak pulse power under the 8/20μs surge waveform. This high-power protection diode is widely used to guard circuits and electronic devices against transient voltage spikes and surges in various fields.
Features
- 4500W peak pulse power for standard 8/20μs surge waveform
- Core electrical parameters: VR=5.0V, IR≤300μA @ VR, VBR=6.4V~7.0V @ 10mA, VC=15V @ 220A, typical capacitance 1000pF
- Ultra-fast response time less than 1.0ps
- Low inductance and excellent voltage clamping performance
- The full series provides VR ranging from 5.0V to 28V
- Typical reverse leakage current is below 1μA for models above 10V
- Low-profile SMD package, molded plastic with UL94V-0 flame retardant grade
Our advantages
- Bidirectional protection design defends against both positive and negative voltage surges
- Extra high peak pulse power delivers outstanding surge suppression capacity
- Near-instant response effectively clamps abnormal voltage and protects sensitive components
- Compact SOD-123FL package saves PCB space for compact product designs
- Low inductance ensures stable performance in high-speed circuits
- Meets MSL 1 moisture standard and features good solderability per MIL-STD-750
- Wide temperature range enables reliable operation in complex working environments
Mechanical Data
- Package Type: SOD-123FL molded plastic
- Flame Retardant Rating: UL94V-0
- Polarity: No color band for bidirectional type
- Approximate Single Weight: 0.07g
- Moisture Sensitivity Level: MSL 1
- Terminal: Solder-plated, compliant with MIL-STD-750 Method 2026
- Operating Junction Temperature: -55℃ ~ +125℃
- Storage Temperature: -55℃ ~ +150℃
Applications
Computer systems, household appliances, video input circuits, consumer electronics, automotive electronics, telecommunication equipment, aerospace devices and intelligent control systems
