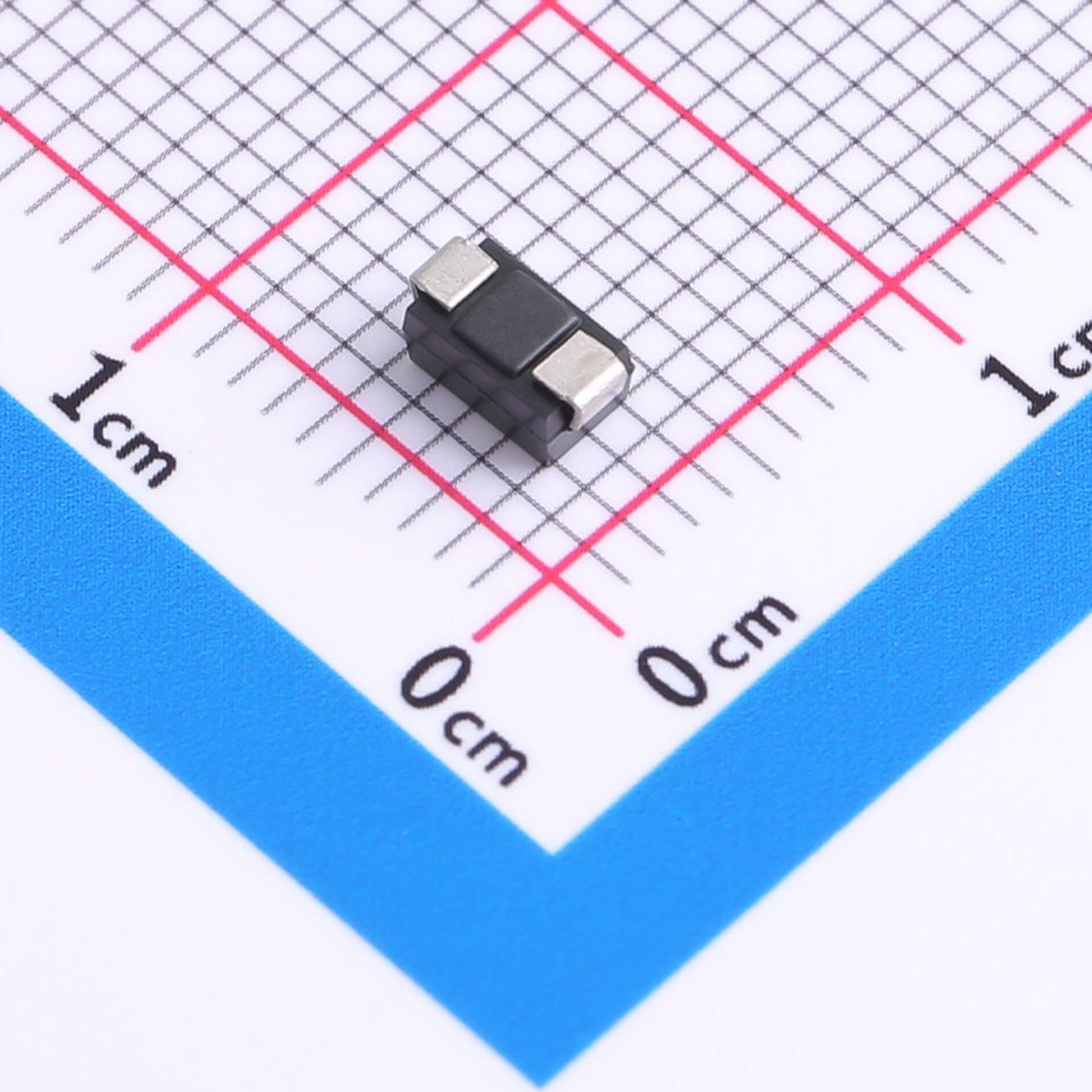

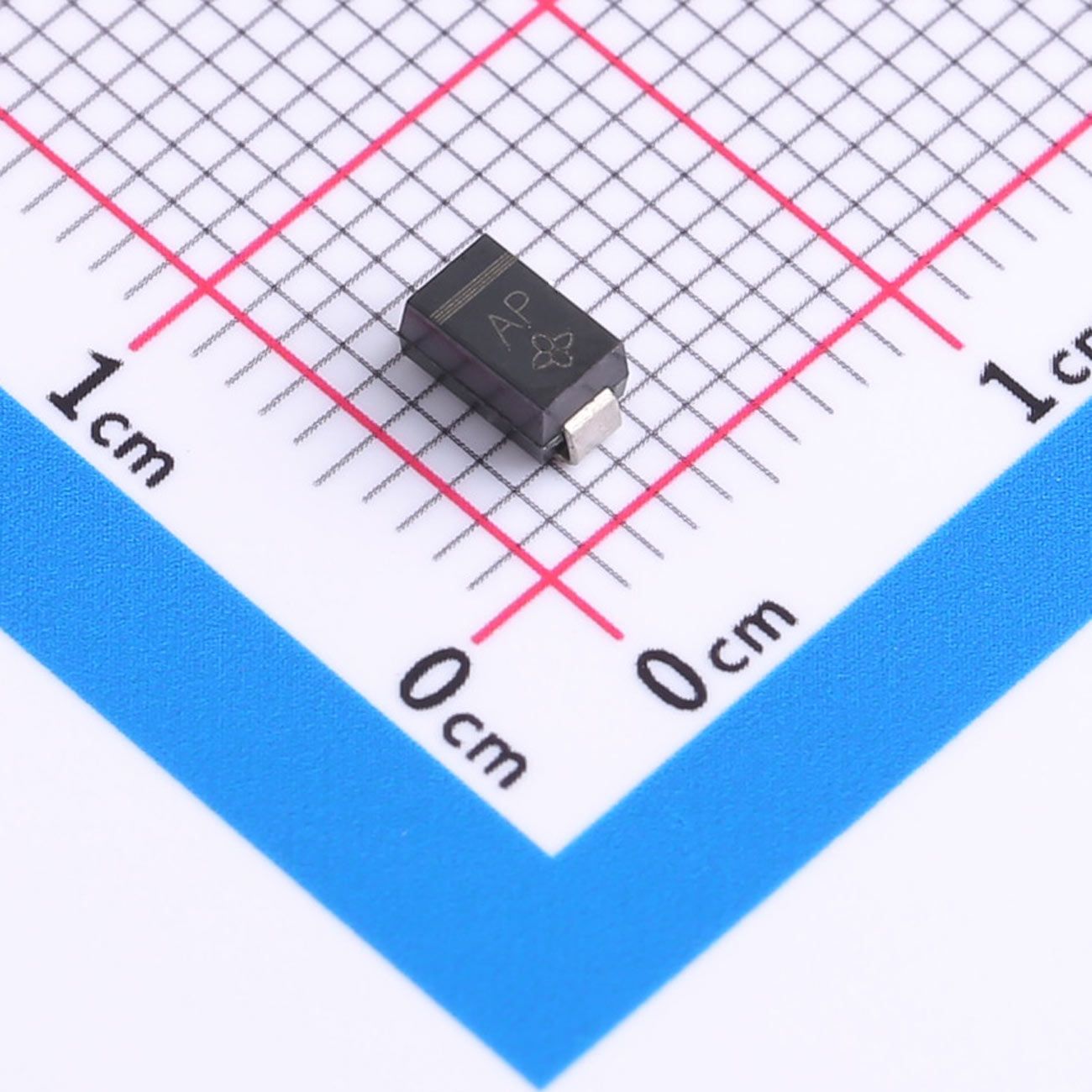

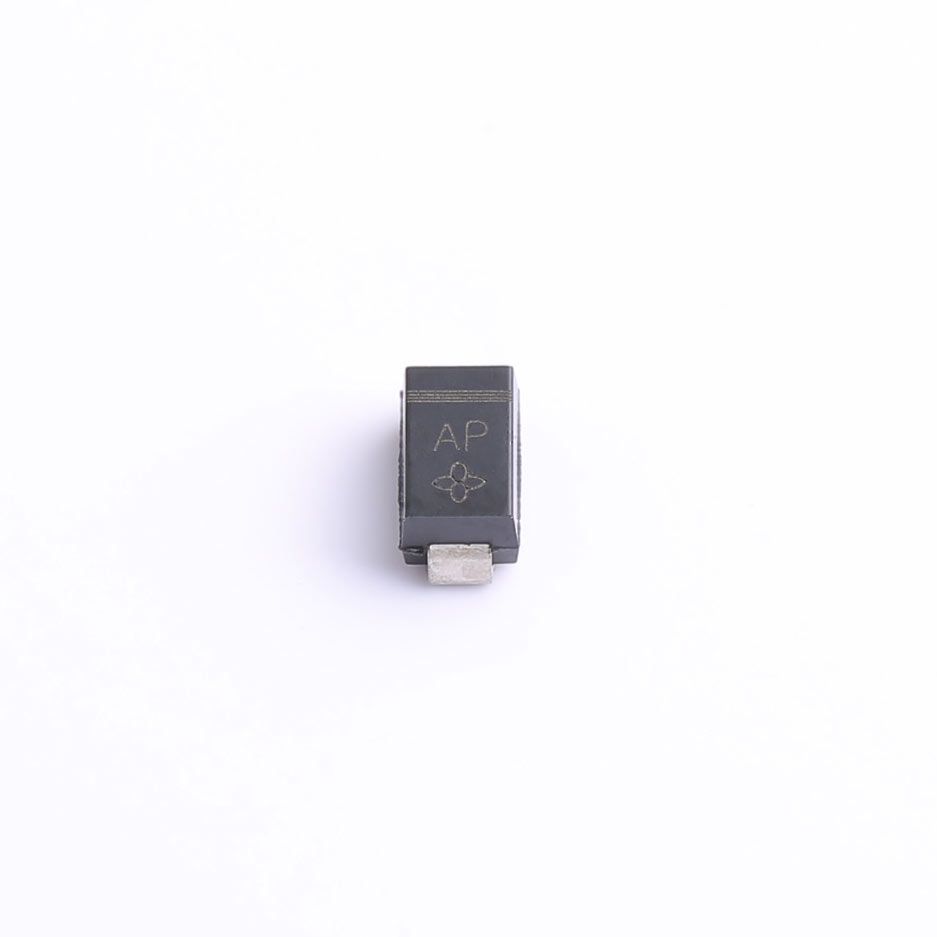

SMAJ7.5A TVS Diode SMA
SMAJ7.5A is a unidirectional surface-mount transient voltage suppressor (TVS) with standard SMA (DO-214AC) package. It adopts glass passivated die technology, designed to protect electronic circuits and sensitive components from transient voltage spikes and electrical surges. With 400W peak pulse power under 10/1000μs waveform, it provides reliable overvoltage protection for various electronic devices and systems.
Description
SMAJ7.5A is a unidirectional surface-mount transient voltage suppressor (TVS) with standard SMA (DO-214AC) package. It adopts glass passivated die technology, designed to protect electronic circuits and sensitive components from transient voltage spikes and electrical surges. With 400W peak pulse power under 10/1000μs waveform, it provides reliable overvoltage protection for various electronic devices and systems.
Features
- Rated 400W peak pulse power (10/1000μs surge waveform)
- Maximum single surge current: 40A (8.3ms single half sine-wave)
- Core electrical parameters (@25℃): VRWM=7.5V, VBR=8.33V ~ 9.21V @ 1mA, VC=12.9V, IR≤100μA
- Glass passivated chip for stable and reliable performance
- Excellent clamping capability and ultra-fast response time
- Molded epoxy housing with UL94V-0 flame retardant rating
- Solder-plated terminals, compliant with MIL-STD-750 Method 2026
- Wide operating and storage temperature range: -55℃ ~ +150℃
Our advantages
- High-efficiency clamping performance quickly absorbs surge energy to protect delicate electronic components
- Ultra-fast response suppresses instantaneous voltage transients effectively
- Standard compact SMA package saves PCB space, ideal for miniaturized products
- Mature glass passivated process enhances long-term durability and stability
- Good solderability supports high-volume automatic SMT assembly
- Low leakage current reduces standby power consumption
- Wide temperature adaptability ensures stable operation in harsh working environments
Mechanical Data
- Package Type: JEDEC SMA (DO-214AC), transfer molded epoxy
- Polarity: Cathode marked with color band for polarity identification
- Terminals: Solder plated, solderable per MIL-STD-750 Method 2026
- Dimensions: Standard SMA package dimensions (in inches and millimeters)
- Operating & Storage Temperature: -55℃ ~ +150℃
Applications
This TVS diode is widely used in consumer electronics, household appliances, communication equipment, industrial control systems, computer peripherals and other products requiring ESD and transient surge protection.
