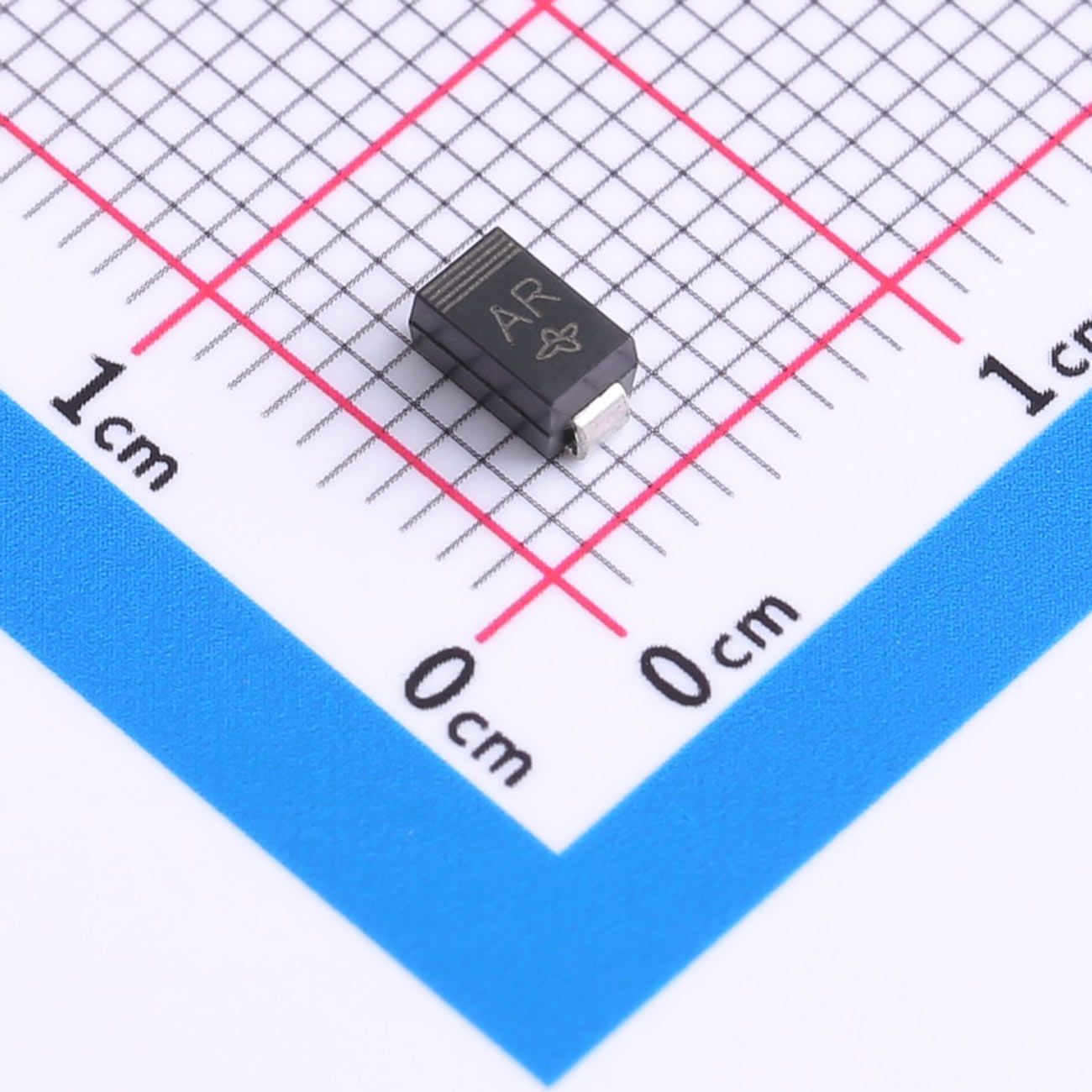

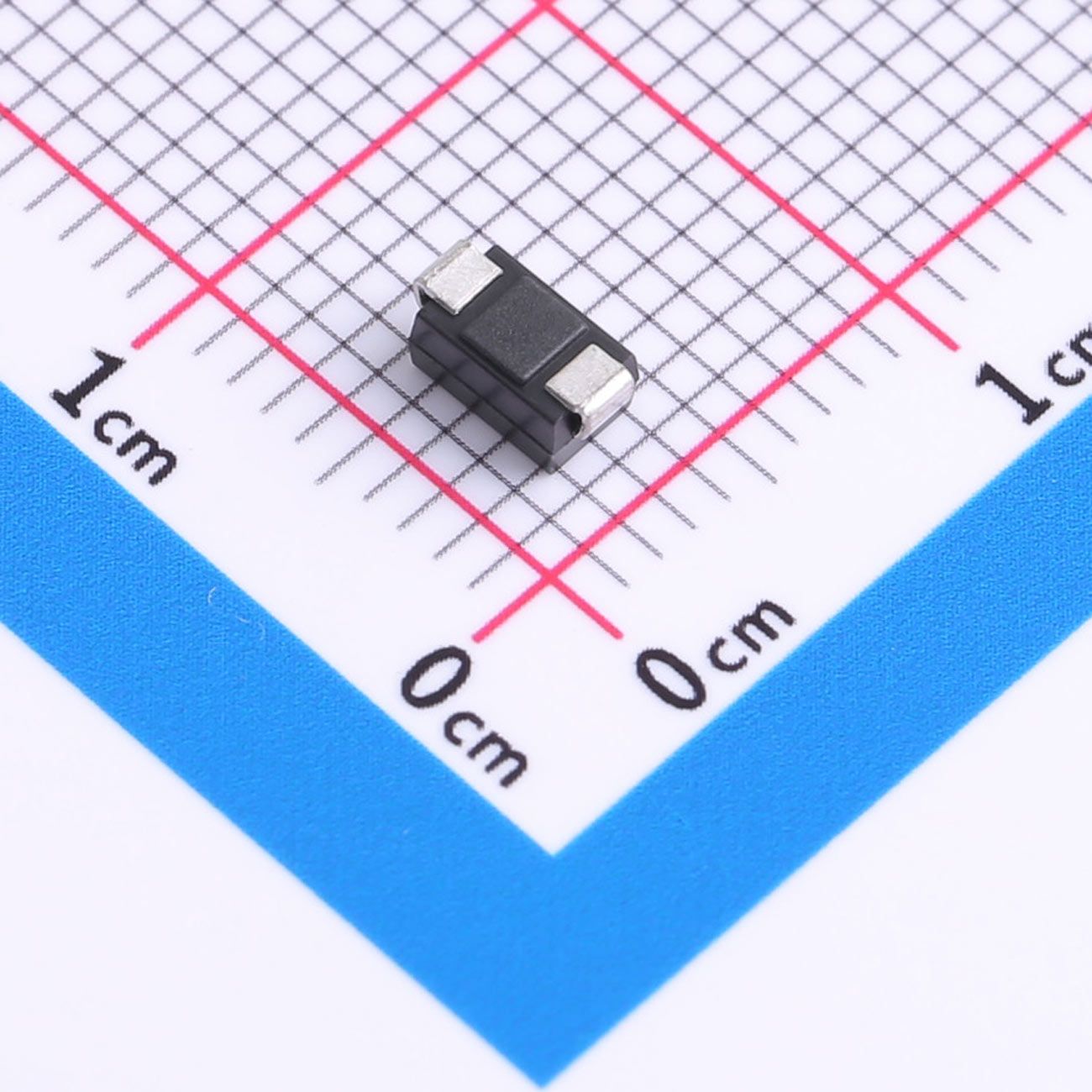

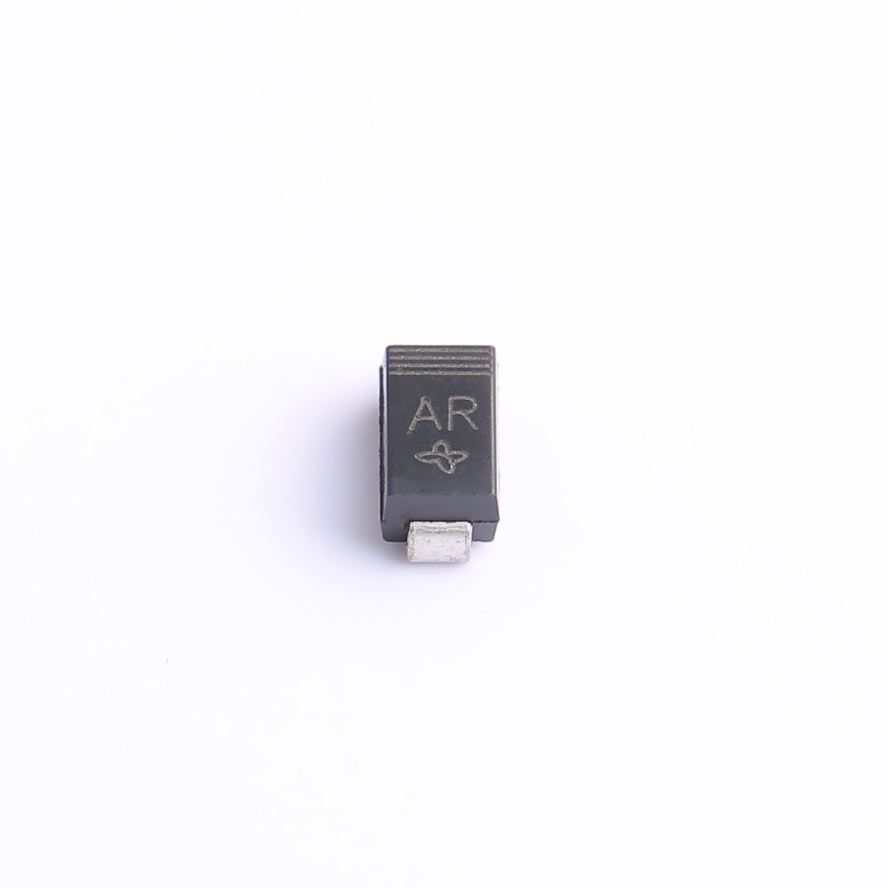

SMAJ8.0A TVS Diode SMA
SMAJ8.0A is a unidirectional surface-mount transient voltage suppressor (TVS) built in standard JEDEC SMA (DO-214AC) package. Adopting glass passivated die technology, it is specially developed to protect electronic circuits and sensitive components from transient voltage spikes and electrical surges. This component features 400W peak pulse power under 10/1000μs waveform, providing reliable overvoltage protection for a wide range of electronic equipment.
Description
SMAJ8.0A is a unidirectional surface-mount transient voltage suppressor (TVS) built in standard JEDEC SMA (DO-214AC) package. Adopting glass passivated die technology, it is specially developed to protect electronic circuits and sensitive components from transient voltage spikes and electrical surges. This component features 400W peak pulse power under 10/1000μs waveform, providing reliable overvoltage protection for a wide range of electronic equipment.
Features
- Peak pulse power: 400W at 10/1000μs surge waveform
- Maximum single surge current: 40A (8.3ms single half sine-wave)
- Core electrical parameters (@ 25℃): VRWM=8.0V, VBR=8.89V~10.23V @ 1mA, IR≤50μA, VC=13.6V, IPP=44.1A
- Glass passivated chip structure ensures stable electrical performance
- Excellent voltage clamping capability and ultra-fast response time
- Molded epoxy housing with UL94V-0 flame retardant rating
- Solder-plated terminals, compliant with MIL-STD-750 Method 2026
- Wide operating and storage temperature range: -55℃ ~ +150℃
Our advantages
- Superior clamping performance rapidly absorbs surge energy and shields delicate electronic parts from damage
- Ultra-fast response effectively suppresses instantaneous voltage transients
- Standard compact SMA package optimizes PCB layout and saves installation space
- Mature glass passivated process improves product durability and long-term stability
- Excellent solderability supports high-efficiency automatic SMT mass production
- Low reverse leakage current minimizes standby power consumption
- Great temperature resistance enables stable operation in diverse harsh working environments
Mechanical Data
- Package Type: JEDEC SMA (DO-214AC), transfer molded epoxy
- Polarity Identification: Cathode is marked with a color band for unidirectional version
- Terminals: Solder plated, fully solderable per MIL-STD-750 Method 2026
- Dimensions: Standard SMA dimensions (marked in inches and millimeters)
- Operating Junction Temperature: -55℃ ~ +150℃
- Storage Temperature: -55℃ ~ +150℃
Applications
This TVS diode is widely applied to consumer electronics, household appliances, computer systems, communication devices, industrial control units and other products requiring ESD and transient surge protection.
