Description

Features

• Glass passivated chip for long-term stability and surge resistance
• 600W peak pulse power at 10/1000μs waveform, duty cycle: 0.01%
• Excellent clamping capability to limit surge voltage to safe value quickly
• Low reverse leakage current to reduce static power consumption
• Ultra-fast response speed to suppress transient pulses instantly

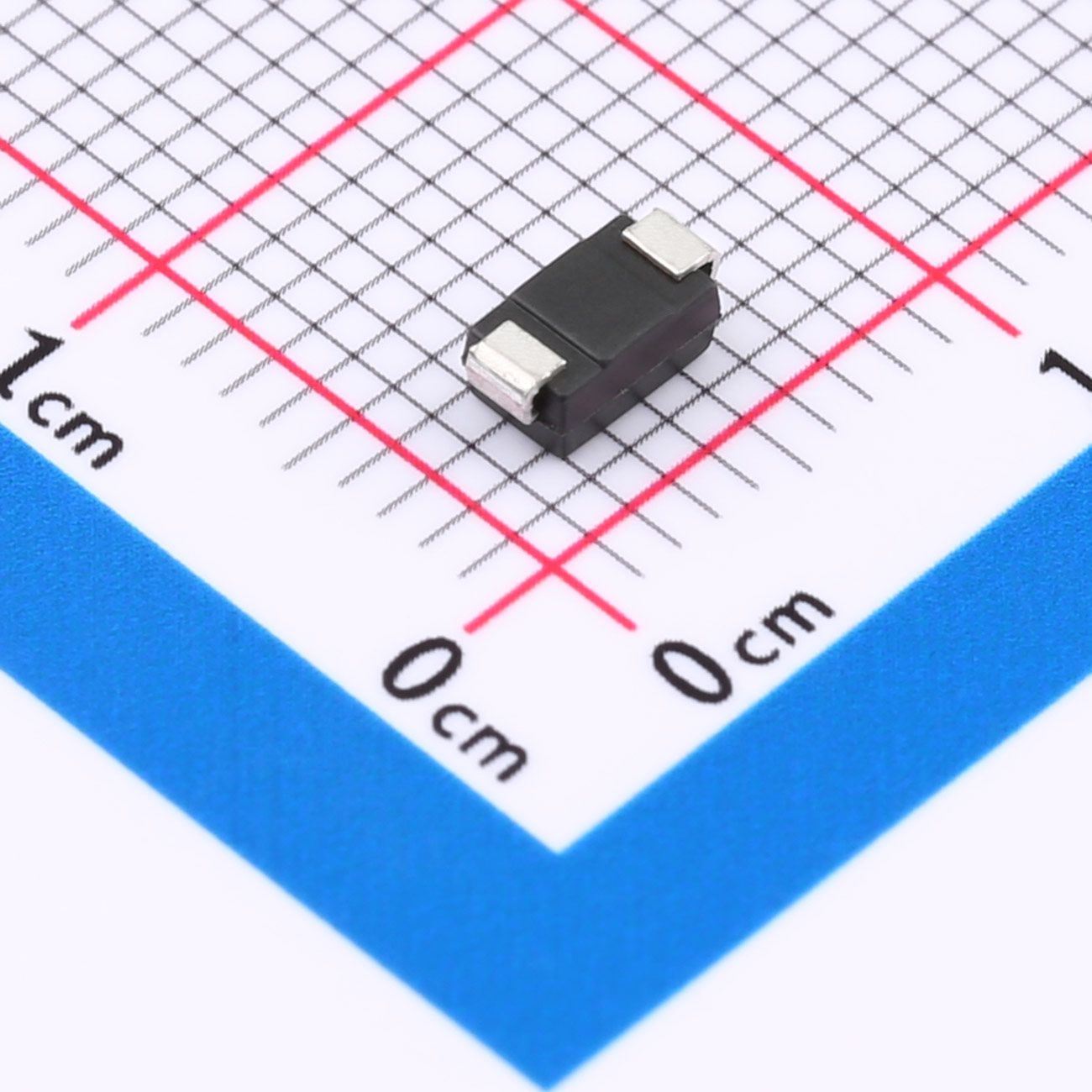

• DO-214AC SMA molded plastic surface-mount package
• Terminals meet MIL-STD-750 Method 2026 solderability standard
• UL 94V-0 flame retardant epoxy encapsulation, RoHS compliant
• Wide temperature range: -55℃ ~ +150℃ for junction and storage
• Core electrical parameters (TA=25℃, IT=1mA):


  VRWM=24V, VBR Min=26.7V / VBR Max=29.5V, IR≤1μA, VC=38.9V, IPP=15.5A

Our advantages

1. Glass passivated chip improves anti-fatigue performance and extends service life
2. 600W surge power satisfies medium surge protection requirements for consumer, industrial and automotive electronics
3. Ultra-low leakage fits battery-powered low-consumption devices to save energy
4. Fast response avoids IC breakdown induced by instant surge pulses
5. Mini SMA outline saves PCB space for compact and miniaturized products
6. Standard SMD form factor compatible with high-speed automatic SMT production
7. UL94V-0 flame retardant material meets global electronic safety and environmental norms
8. Stable electrical performance in high and low temperature harsh environments
9. Tight tolerance of breakdown voltage ensures consistent protection effect in mass production

Mechanical Data

1. Package Outline: DO-214AC (SMA) molded plastic surface mount package
2. Encapsulant: UL 94V-0 flame retardant epoxy resin
3. Lead Spec: Solderable per MIL-STD-750 Method 2026

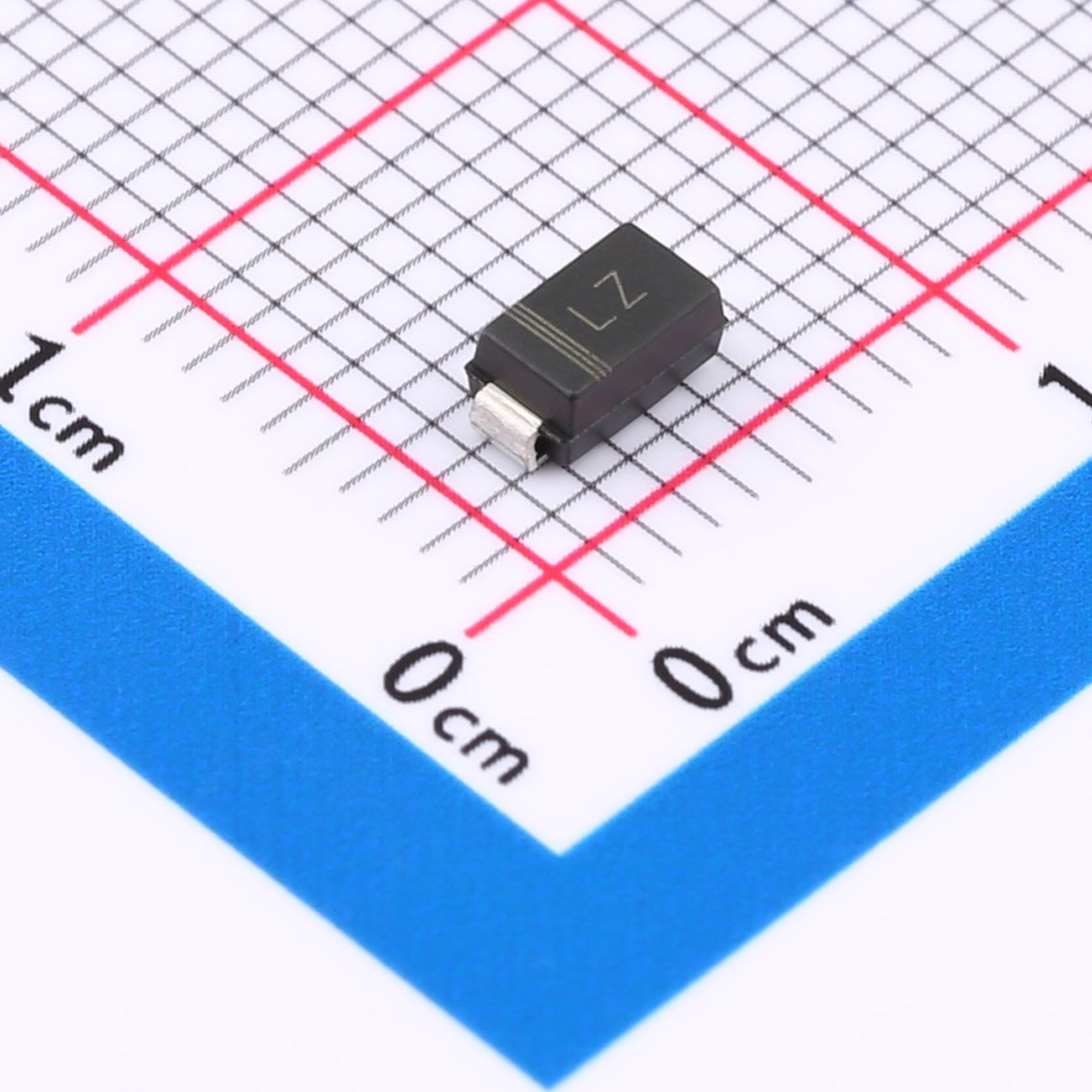

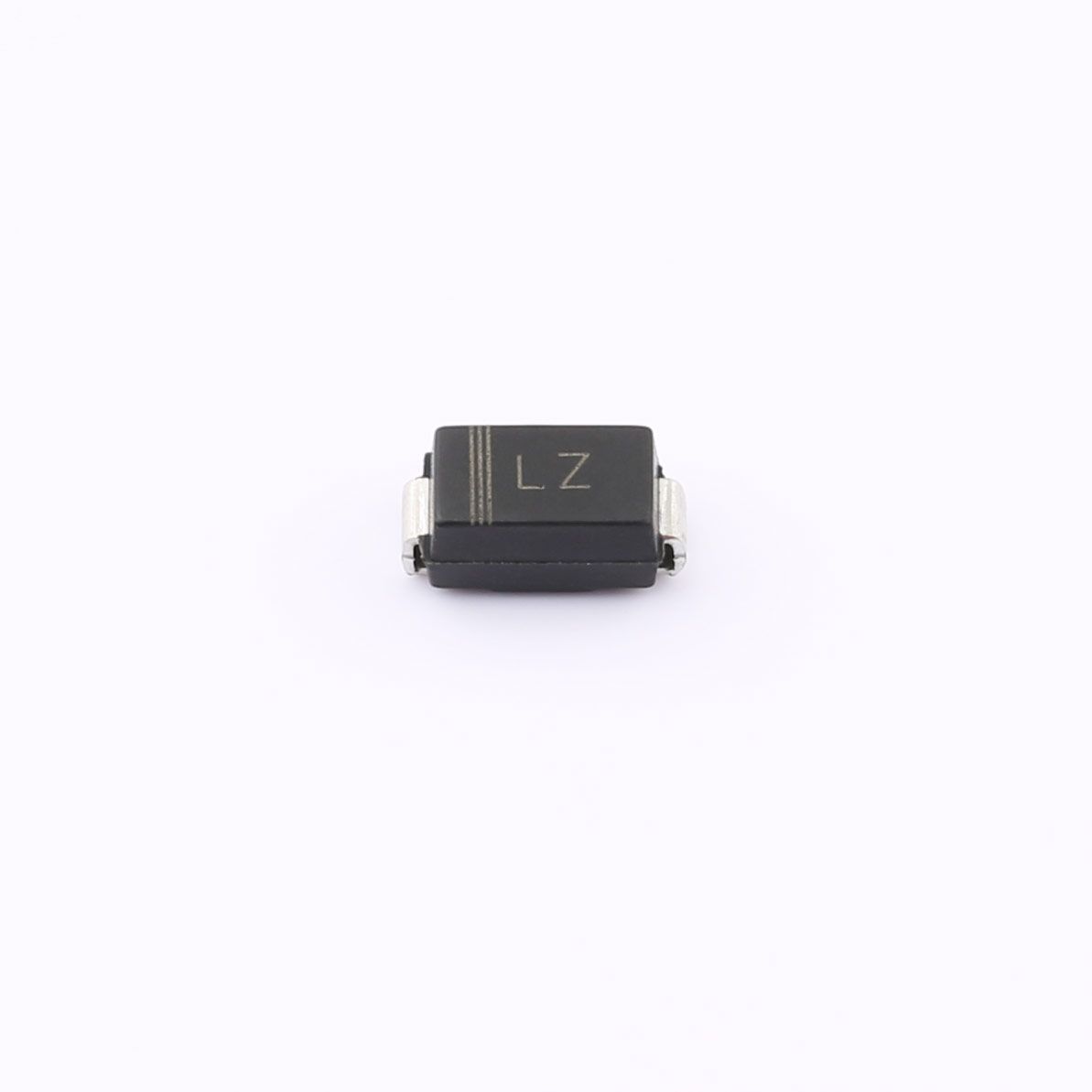

4. Polarity: Unidirectional, marked cathode band for identification
5. Dimension: Standard SMA dimensions (inch/mm) as defined in datasheet
6. Operating junction & storage temperature: -55℃ ~ +150℃
7. Mounting: Reflow soldering for automatic assembly

Applications

• Consumer electronics: Notebooks, chargers, monitors, wearable devices
• Household appliances: Smart home equipment, low-voltage power adapters
• Industrial control: PLC, sensor signal lines, small switching power supplies
• Automotive electronics: On-board ECU, vehicle power circuits
• Communication devices: Routers, modems, signal transmission interfaces
• Precision measuring instruments, LED drive power supplies
