Description

Features

1. 400W peak pulse power capacity for non-repetitive 10/1000μs surge waveform
2. Bidirectional structure to suppress transients of both polarities
3. Ultra-small low-inductance SOD-123FL SMD package, reducing voltage overshoot during surge events
4. Excellent voltage clamping performance for fast overvoltage suppression
5. Ultra-low reverse leakage current (IR ≤ 1μA for VRWM ≥12V) to minimize standby power loss
6. Ultra-fast response speed, typically less than 1.0ps from 0V to minimum breakdown voltage
7. Molded plastic encapsulation with UL 94V-0 flame retardant grade, fully RoHS compliant
8. MSL 1 moisture sensitivity level, no pre-baking required before SMT assembly
9. Solder-plated terminals compliant with MIL-STD-750 Method 2026 soldering standard
10. Wide temperature tolerance: junction temperature -55℃ ~ +125℃, storage temperature -55℃ ~ +150℃
11. Standard tape & reel packing compatible with automatic SMT mass production lines
12. Core electrical parameters measured at 25℃ ambient temperature:


    VRWM=36V, VBR Min=40.0V / VBR Max=44.2V, IR≤1μA, VC=58.1V, IPP=6.89A

Our advantages

1. Tiny SOD-123FL footprint greatly saves PCB layout space, suitable for slim and miniaturized portable electronics
2. Low-inductance packaging avoids signal distortion, ideal for high-speed signal interface protection
3. Single bidirectional TVS replaces two unidirectional TVS diodes, simplifying BOM and PCB routing design
4. Picosecond-level ultra-fast response instantly dissipates ESD energy to prevent chip burnout
5. 400W surge handling capacity meets the protection demands of consumer, communication and low-power industrial equipment
6. MSL 1 grade eliminates complex baking processes, cutting production costs and shortening manufacturing cycles
7. Microampere leakage current reduces power consumption, perfect for battery-powered wearable devices
8. RoHS green flame retardant material complies with global electronic safety and environmental regulations
9. Stable electrical performance under high and low extreme temperature working environments
10. Standard tape & reel packaging supports all mainstream high-speed pick-and-place machines for mass manufacturing

Mechanical Data

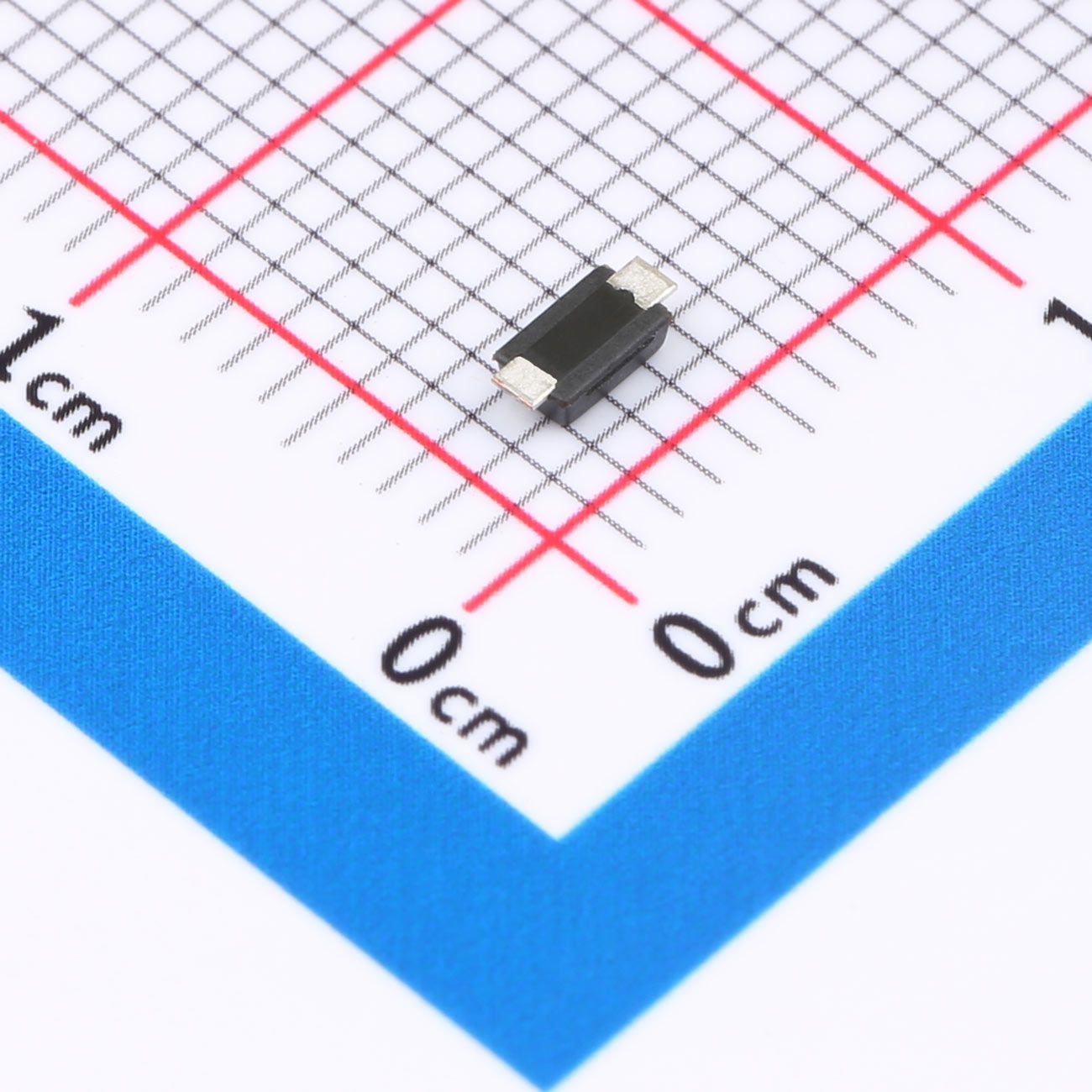

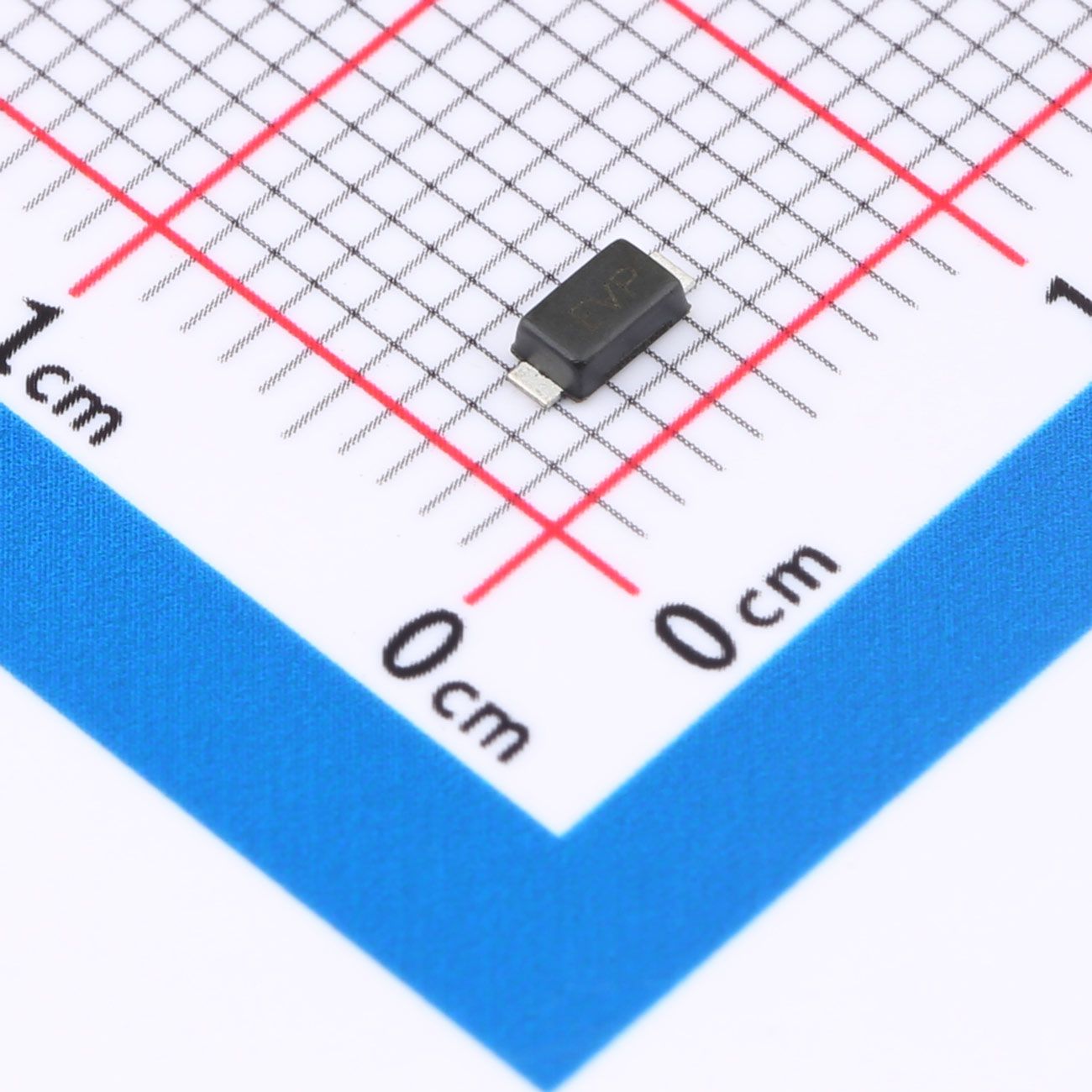

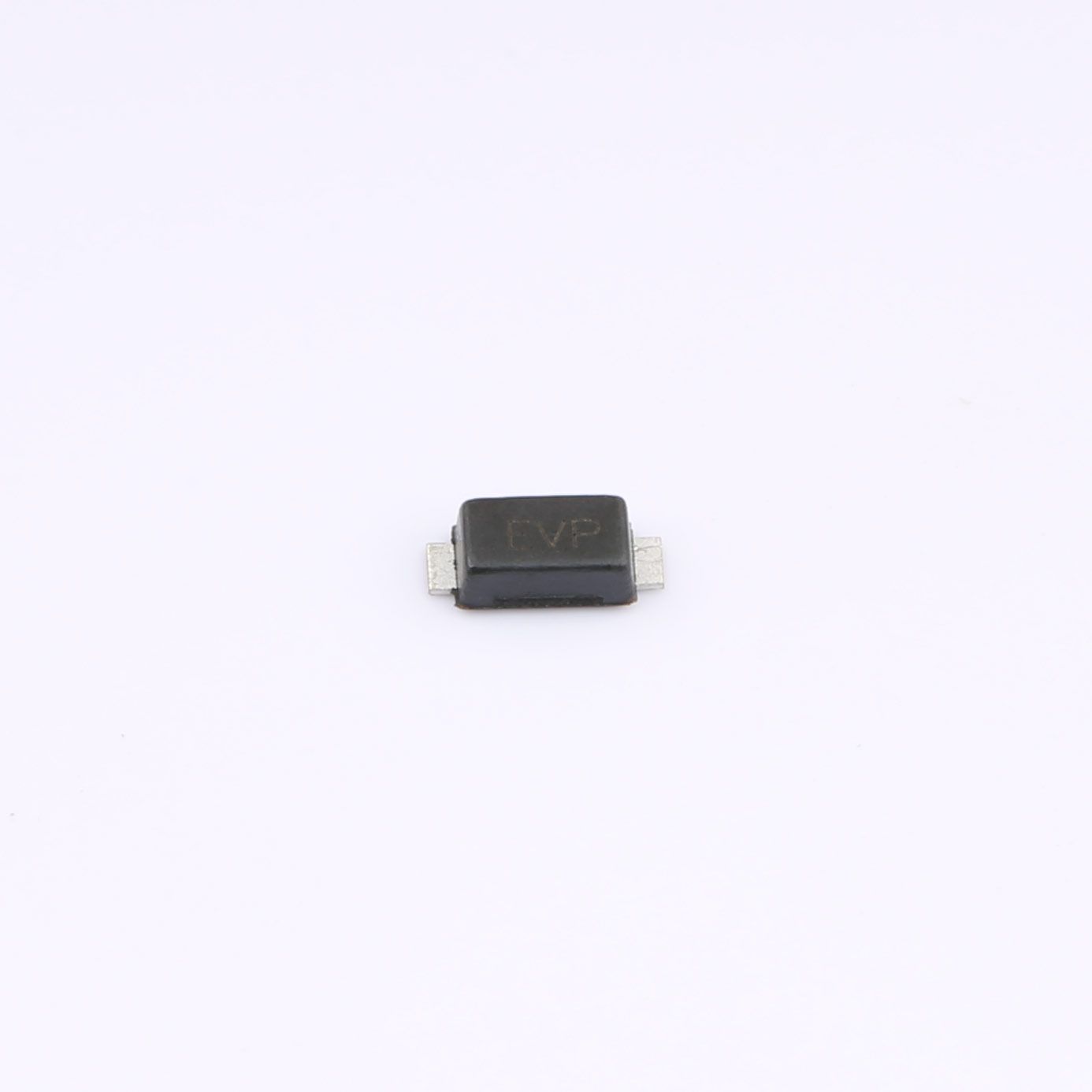

1. Package Type: SOD-123FL (SMF) molded plastic surface-mount package
2. Encapsulation Material: UL 94V-0 flame retardant molding compound, RoHS compliant
3. Moisture Sensitivity Level: MSL 1
4. Terminal Treatment: Solder-plated leads, solderable per MIL-STD-750 Method 2026
5. Polarity Mark: No cathode color band for bidirectional version
6. Approximate Single Weight: 0.017g
7. Outline Size: Standard SOD-123FL maximum dimensions (unit: mm)
8. Operating Junction Temperature: -55℃ ~ +125℃
9. Storage Temperature: -55℃ ~ +150℃
10. Packing Specification: Tape & reel with reel diameter 177.8mm

Applications

• Computer systems and peripheral signal ports
• Household smart appliances and low-voltage power adapters
• Video input ports and audio signal transmission lines
• Communication equipment: routers, modems, USB and serial communication interfaces
• Industrial control sensor signal circuits and small switching power supplies
• Portable consumer electronics and handheld measuring instruments
• Security monitoring low-voltage circuit modules
