Description

Features

1. Integrated 4-channel independent ESD protection for multi-line signal circuits
2. High anti-surge capability: Compliant with IEC 61000-4-2, ±20kV air discharge & ±15kV contact ESD protection
3. Lightning surge resistance per IEC 61000-4-5: 4A (I/O to GND), 17A (VDD to GND) under 8/20µs waveform
4. Rated reverse working voltage VRWM=5V, matched with 5V signal & power supply circuits
5. Ultra-low junction capacitance: 0.6pF typical (I/O-GND), avoids high-speed signal attenuation & distortion
6. Low clamping voltage to quickly clamp overvoltage to safe range and prevent IC damage
7. Ultra-fast response time, typical value less than 1ns
8. Built-in surge-rated TVS equivalent diode array, reliable transient energy absorption
9. Mini SOT23-6L small outline, greatly saves PCB layout space
10. Fully RoHS compliant, green molding material for environmental requirements
11. Standard tape & reel packing (3000pcs/reel) for automatic SMT mass production
12. Wide operating temperature range: -40℃ ~ +125℃

Our advantages

1. Four channels integrated in one single chip, greatly simplifies BOM quantity and PCB routing design
2. Ultra-low capacitance characteristic maintains integrity of high-speed differential signals up to Gigabit Ethernet and USB2.0
3. Dual protection for ESD and lightning surge, meets complete industrial EMC test standards
4. Rail-to-rail internal structure realizes supply voltage independent protection, applicable to various 5V interface systems
5. Tiny SOT23-6L footprint ideal for slim notebooks, monitors and portable electronic devices
6. Picosecond/nanosecond level ultra-fast response instantly dissipates static charge to avoid chip breakdown
7. Molding material meets RoHS green standard, suitable for consumer, industrial and communication products exported globally
8. Stable electrical performance under wide temperature range, reliable for indoor and mild outdoor equipment
9. Standard reel packaging compatible with all mainstream high-speed SMT pick-and-place machines
10. Strict production control ensures consistent leakage current and clamping voltage for mass batches

Mechanical Data

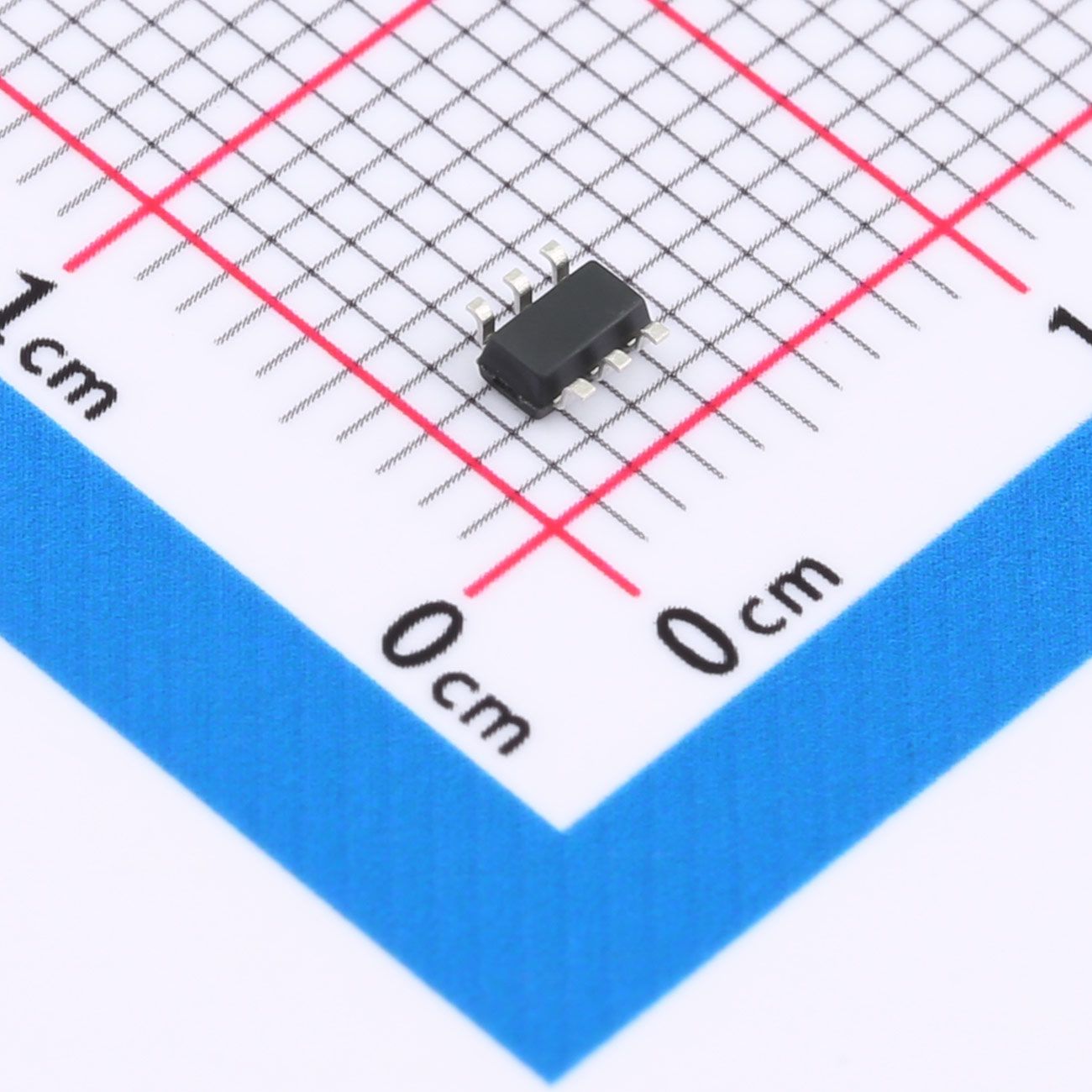

1. Package Form: SOT23-6L surface-mount plastic package

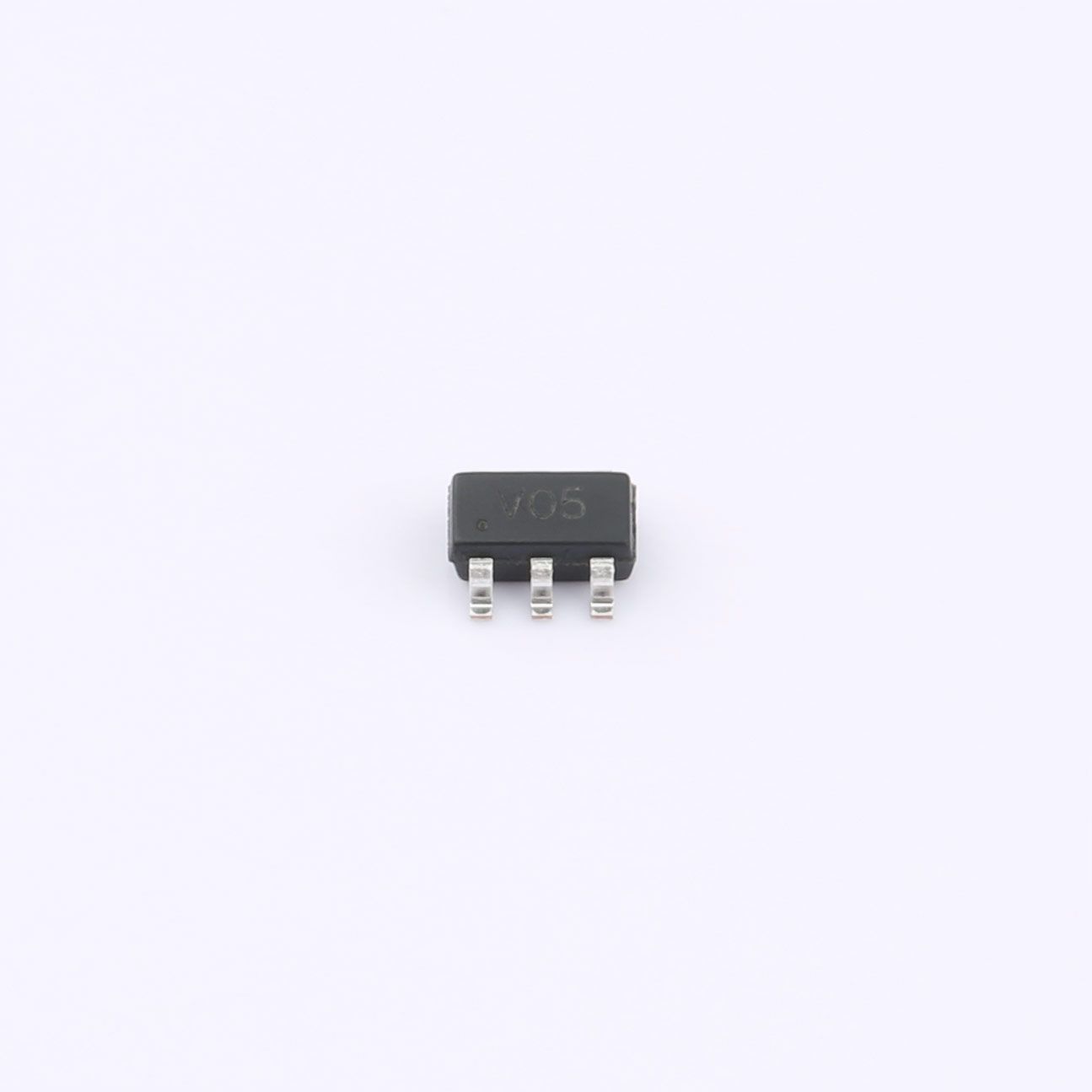

2. Marking Code: V05 printed on top of the component
3. Standard Packing: 3000 pieces per tape & reel
4. Outline Size: Standard SOT23-6L dimensions (unit: mm) as specified in datasheet
5. Soldering Limit: Max lead temperature 260℃ within 10 seconds
6. Operating Temperature Range: -40℃ ~ +125℃
7. Storage Temperature Range: -55℃ ~ +150℃
8. Encapsulation: Flame retardant plastic compound, RoHS compliant

Applications

• USB 2.0 power and data line protection
• 10/100/1000 Gigabit Ethernet communication ports
• DVI digital video interface & video graphics card circuits
• IEEE 1394 Firewire high-speed ports
• SIM card signal interfaces
• Notebooks, desktop PC mainboards
• LCD monitors and flat display equipment
• Portable consumer electronic high-speed signal circuits
• Industrial control digital signal input ports
