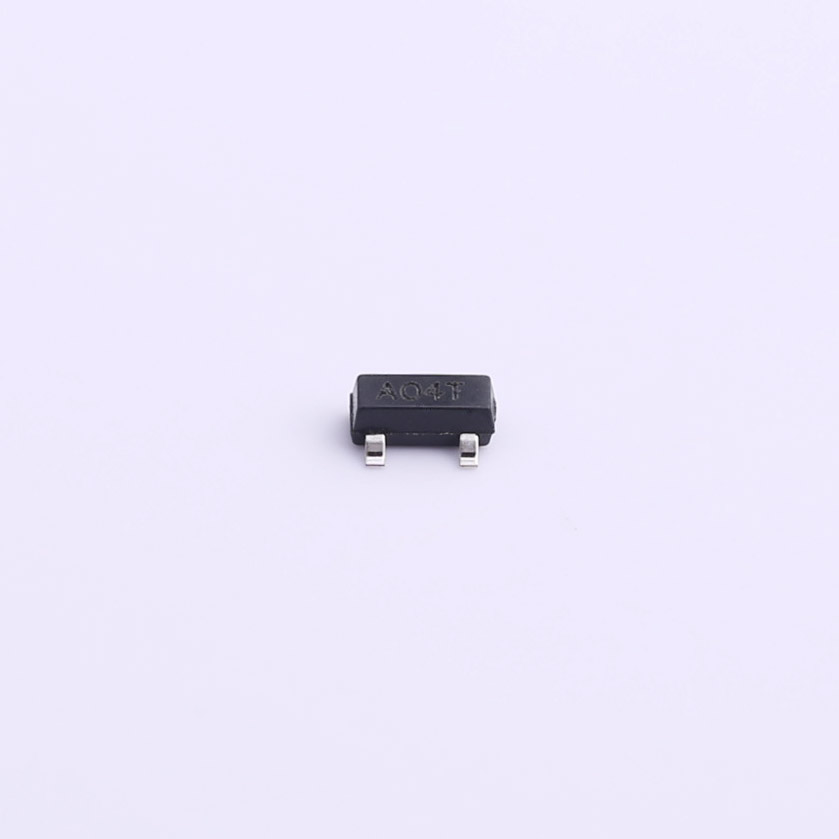

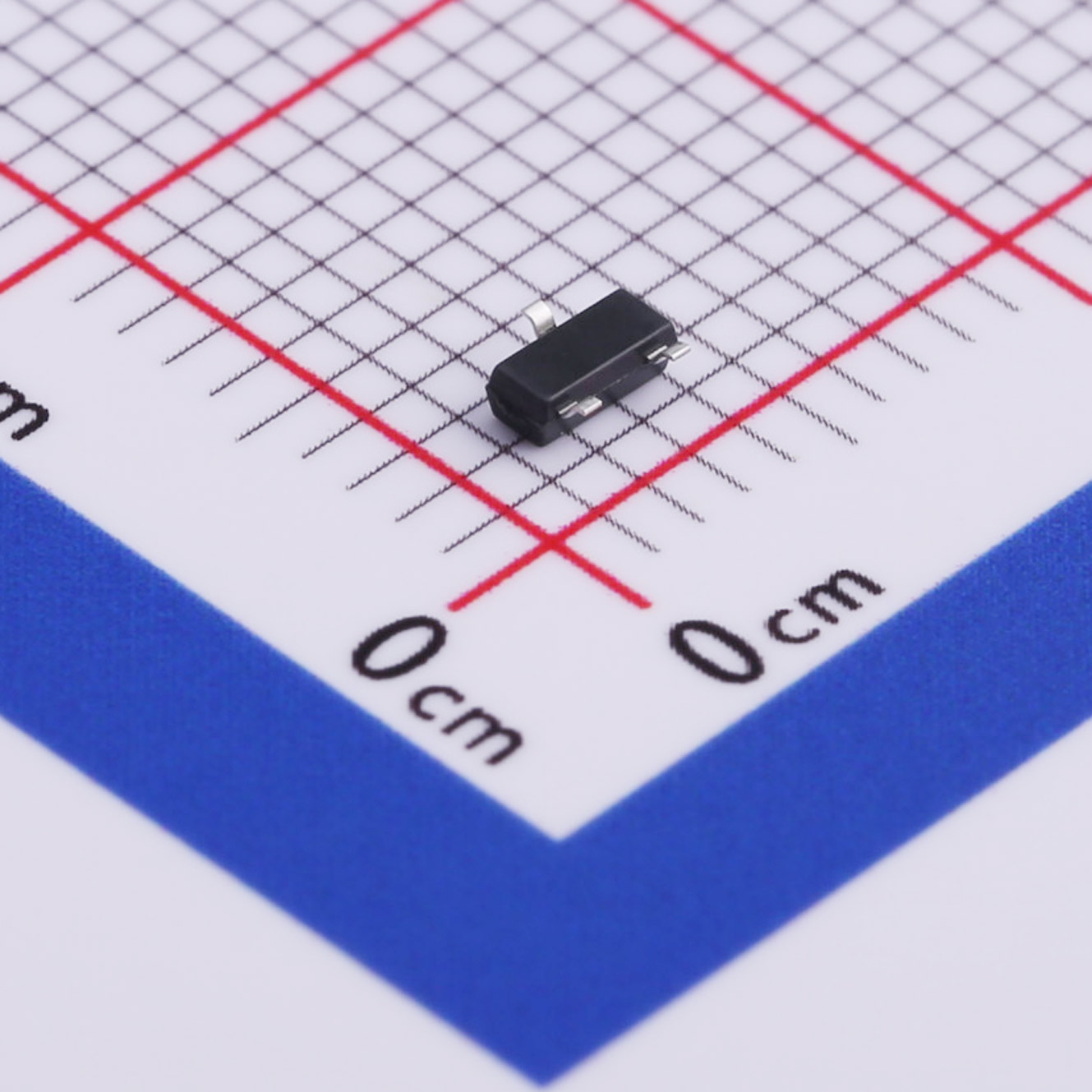

SL3404 N-Channel Enhancement MOSFET SOT-23
● High Current Capability: Id 5A for demanding applications.
● Efficient Operation: Low RDS(on) at Vgs 10V.
● Compact Design: SOT-23 for space-saving integration.
N-Channel Power MOSFET
| Characteristic | Symbol | Max | Unit |
| Drain-SourceVoltage | BVDSS | 30 | V |
| Gate-SourceVoltage | VGS | 20 | V |
| DrainCurrent(continuous) | ID | 5 | A |
| DrainCurrent(pulsed) | IDM | 18 | A |
| TotalDeviceDissipation | PD | 1400 | mW |
| TA=25℃ | |||
| Junction | TJ | 150 | ℃ |
| StorageTemperature | Tstg | -55to+150 | ℃ |
