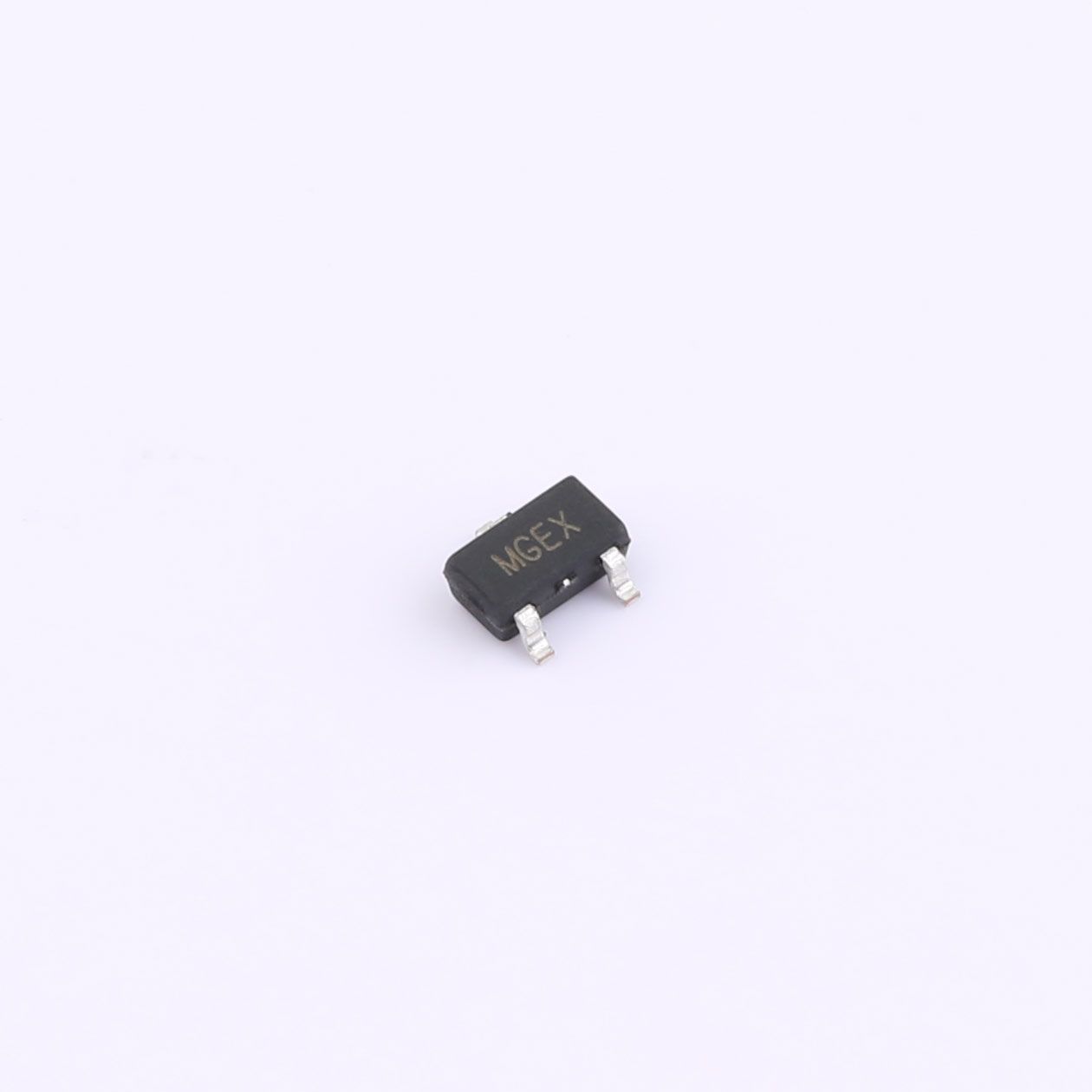

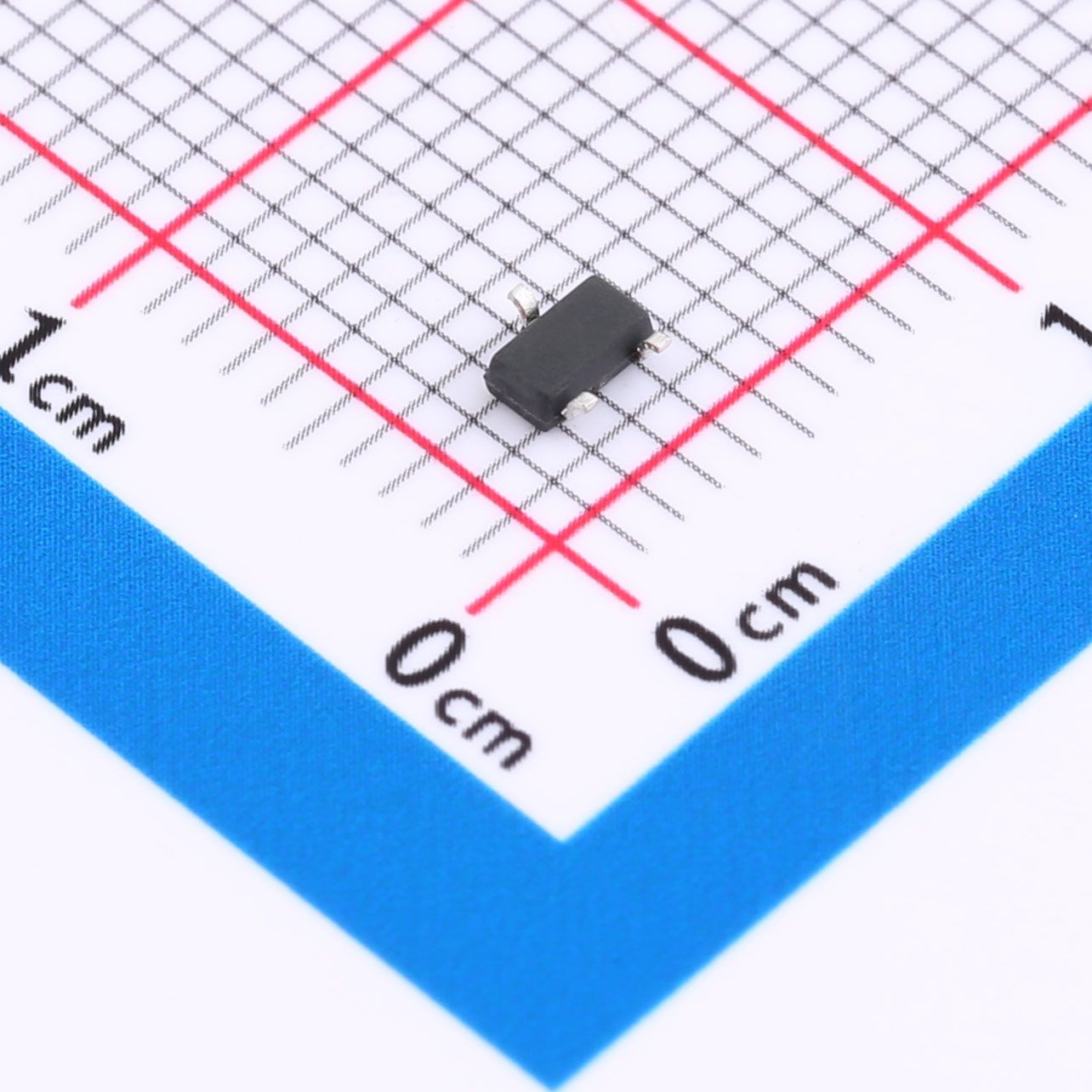

SL1703FH Hall Effect Sensor SOT-23-3L
SL1703FH is a high-performance, low-power, high-speed omnipolar Hall-effect switch sensor designed for compact and battery-powered systems. It detects both N-pole and S-pole magnetic fields with high threshold stability, using internal wake‑sleep control and temperature compensation to ensure reliable switching at 500Hz. It features CMOS push‑pull output and comes in a tiny SOT‑23‑3L package, ideal for high‑speed magnetic detection applications.
Description
SL1703FH is a high-performance, low-power, high-speed omnipolar Hall-effect switch sensor designed for compact and battery-powered systems. It detects both N-pole and S-pole magnetic fields with high threshold stability, using internal wake‑sleep control and temperature compensation to ensure reliable switching at 500Hz. It features CMOS push‑pull output and comes in a tiny SOT‑23‑3L package, ideal for high‑speed magnetic detection applications.
Our Advantages
- High-speed response at 500Hz for fast real‑time detection
- Omnipolar trigger: works with both N and S poles, easy installation
- Low power consumption: only 10.4μA at 1.8V
- High threshold stability: 48Gs for anti‑interference
- Wide voltage range supports 1.8V–5.5V battery systems
- Ultra‑reliable 8kV ESD protection
- Wide temperature range for harsh environments
- Small SOT‑23‑3L package for compact designs
Features
- Omnipolar magnetic detection (N/S pole trigger)
- Low operating current: 10.4μA @1.8V (500Hz)
- Supply voltage: 1.8V ~ 5.5V
- Magnetic threshold: BOP = 48Gs (high threshold)
- Switching frequency: 500Hz
- CMOS push‑pull output
- Built‑in temperature compensation & clock logic
- ESD HBM: 8kV
- Operating temperature: -40℃ ~ +125℃
- Package: SOT-23-3L
- RoHS compliant
Applications
- Laptop & tablet flip/lid detection
- TWS earbuds, mobile phones, smart wearables
- Electronic lock & valve position detection
- Water/gas meters, flow meters
- High‑speed non‑contact sensing
- Portable consumer electronics
- Low‑power industrial sensors
