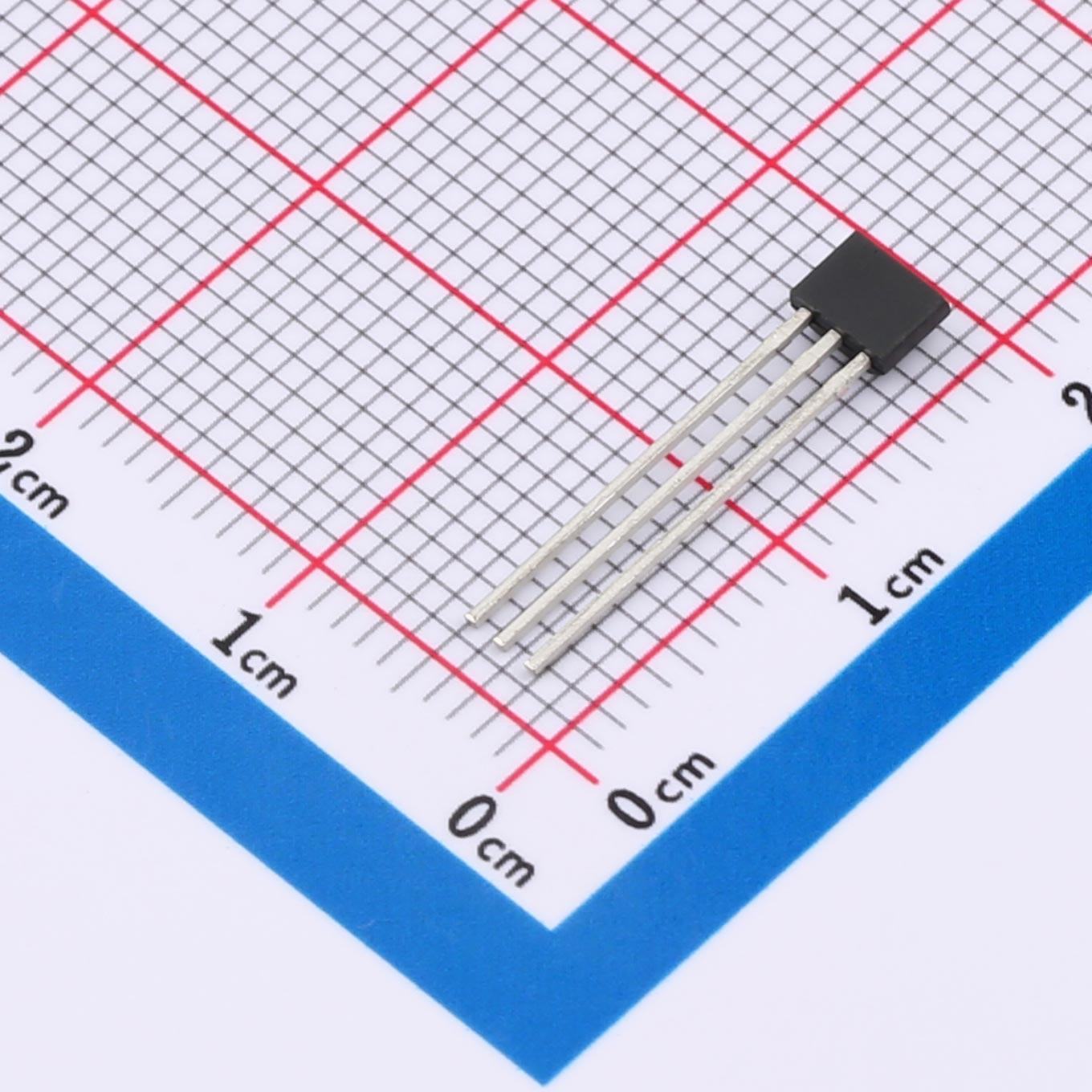

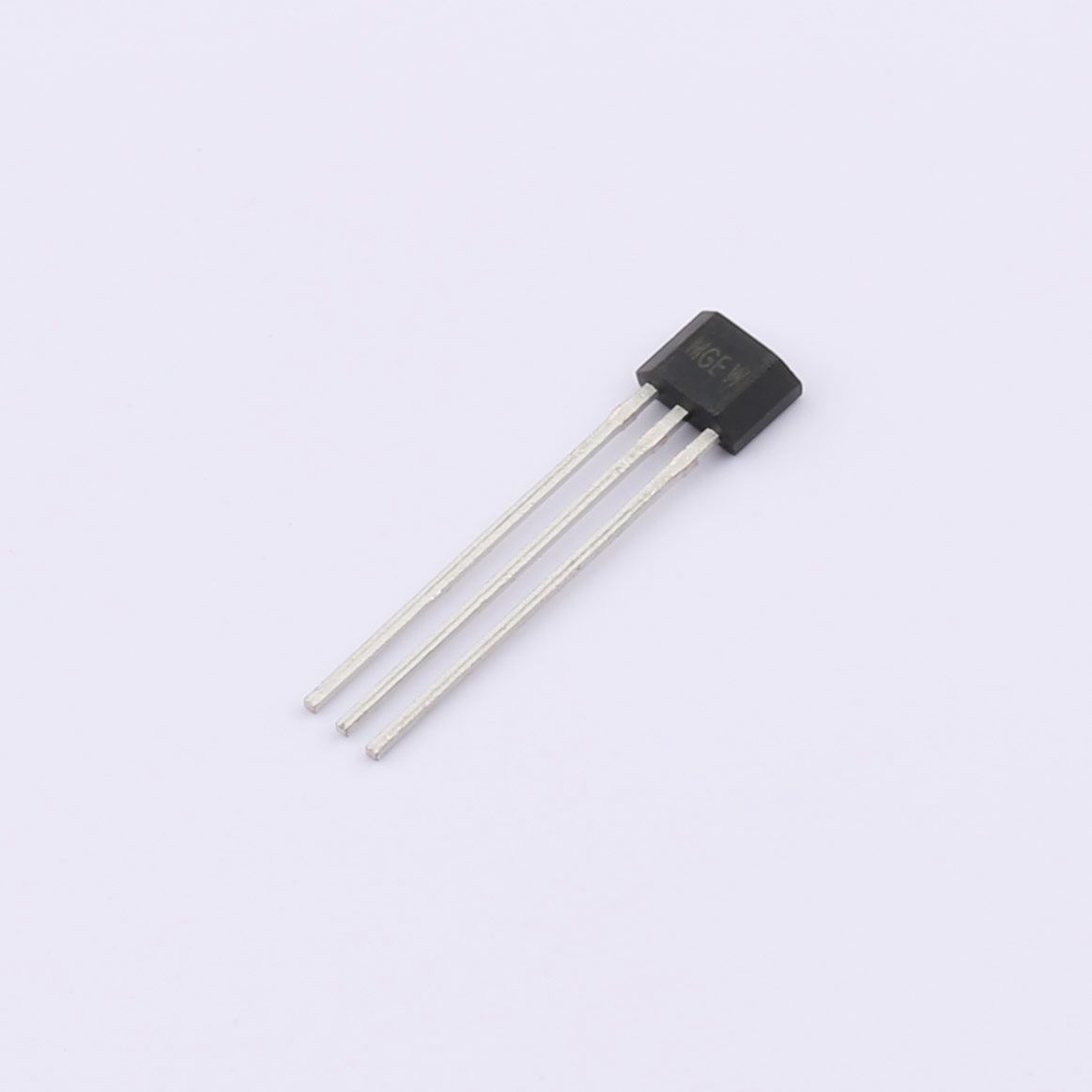

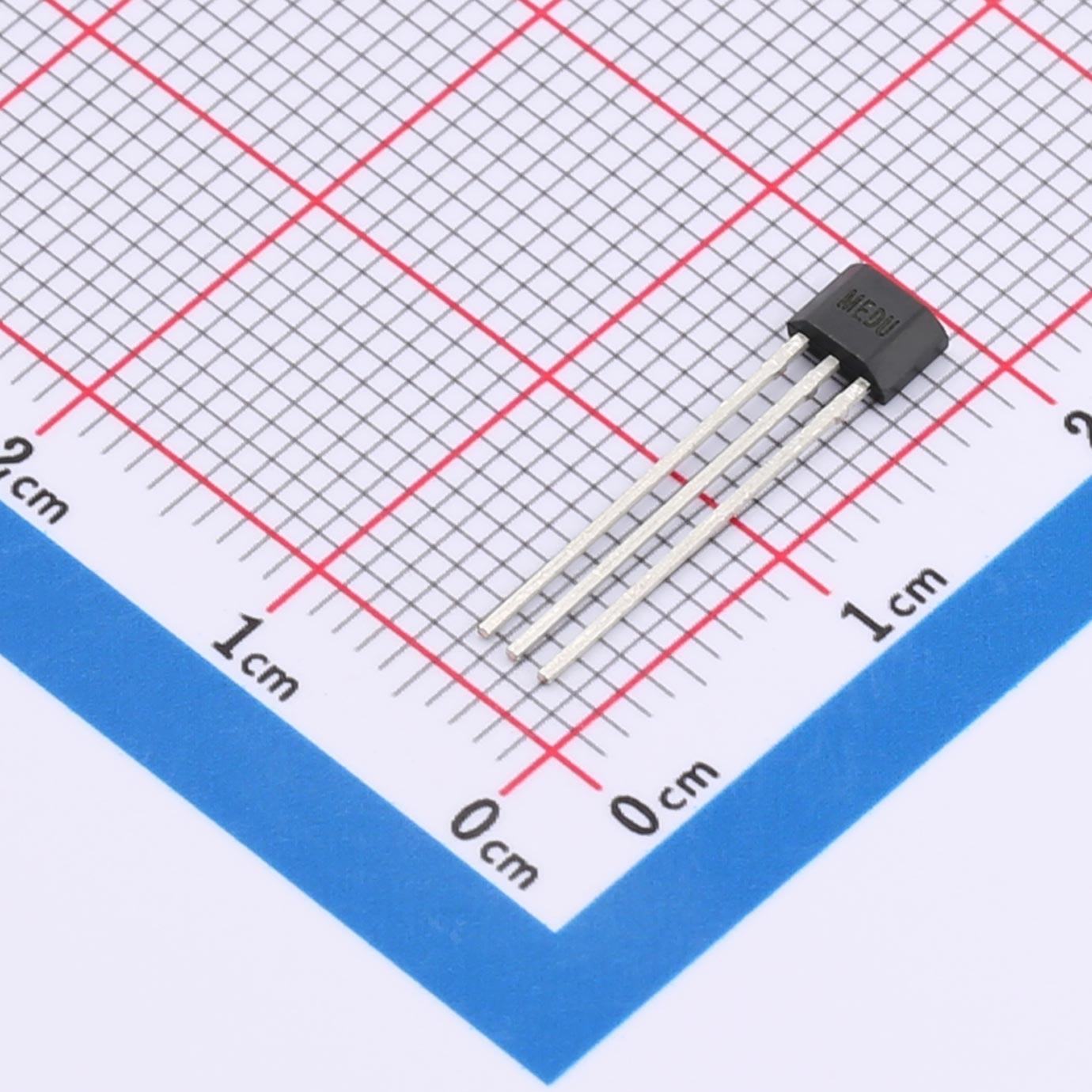

SL1709FH Hall Effect Sensor TO-92S
SL1709FH is a high-performance, low-power, high-speed omnipolar Hall-effect switch sensor designed for space-constrained and battery-powered systems. It detects both N-pole and S-pole magnetic fields with stable high threshold, and adopts internal sleep-wake logic and temperature compensation to ensure reliable 500Hz switching. It provides CMOS push-pull output and uses TO-92S through-hole package, ideal for easy soldering, testing and industrial magnetic detection.
Description
SL1709FH is a high-performance, low-power, high-speed omnipolar Hall-effect switch sensor designed for space-constrained and battery-powered systems. It detects both N-pole and S-pole magnetic fields with stable high threshold, and adopts internal sleep-wake logic and temperature compensation to ensure reliable 500Hz switching. It provides CMOS push-pull output and uses TO-92S through-hole package, ideal for easy soldering, testing and industrial magnetic detection.
Our Advantages
- High-speed switching up to 500Hz for real-time detection
- Omnipolar trigger: works with both N and S poles, easy installation
- Low power consumption: only 10.4μA @1.8V
- High threshold 48Gs for strong anti-interference
- Wide voltage range: 1.8V–5.5V for battery systems
- Excellent ESD: 8kV HBM for high reliability
- Wide temperature range for harsh environments
- Standard TO-92S package for easy assembly & repair
Features
- Omnipolar magnetic detection (N/S pole trigger)
- Low average current: 10.4μA @1.8V (500Hz)
- Operating voltage: 1.8V ~ 5.5V
- Magnetic threshold: BOP = 48Gs (high threshold)
- Switching frequency: 500Hz
- CMOS push-pull output
- Built-in temperature compensation & clock control
- ESD HBM: 8kV
- Operating temperature: -40℃ ~ +125℃
- Package: TO-92S
- RoHS compliant
Applications
- Laptop & tablet lid/flip detection
- TWS earbuds, mobile phones, smart devices
- Electronic lock and valve position sensing
- Water meters, gas meters, flow meters
- Non-contact position & proximity detection
- Portable consumer electronics
- Industrial control & low-power sensors
