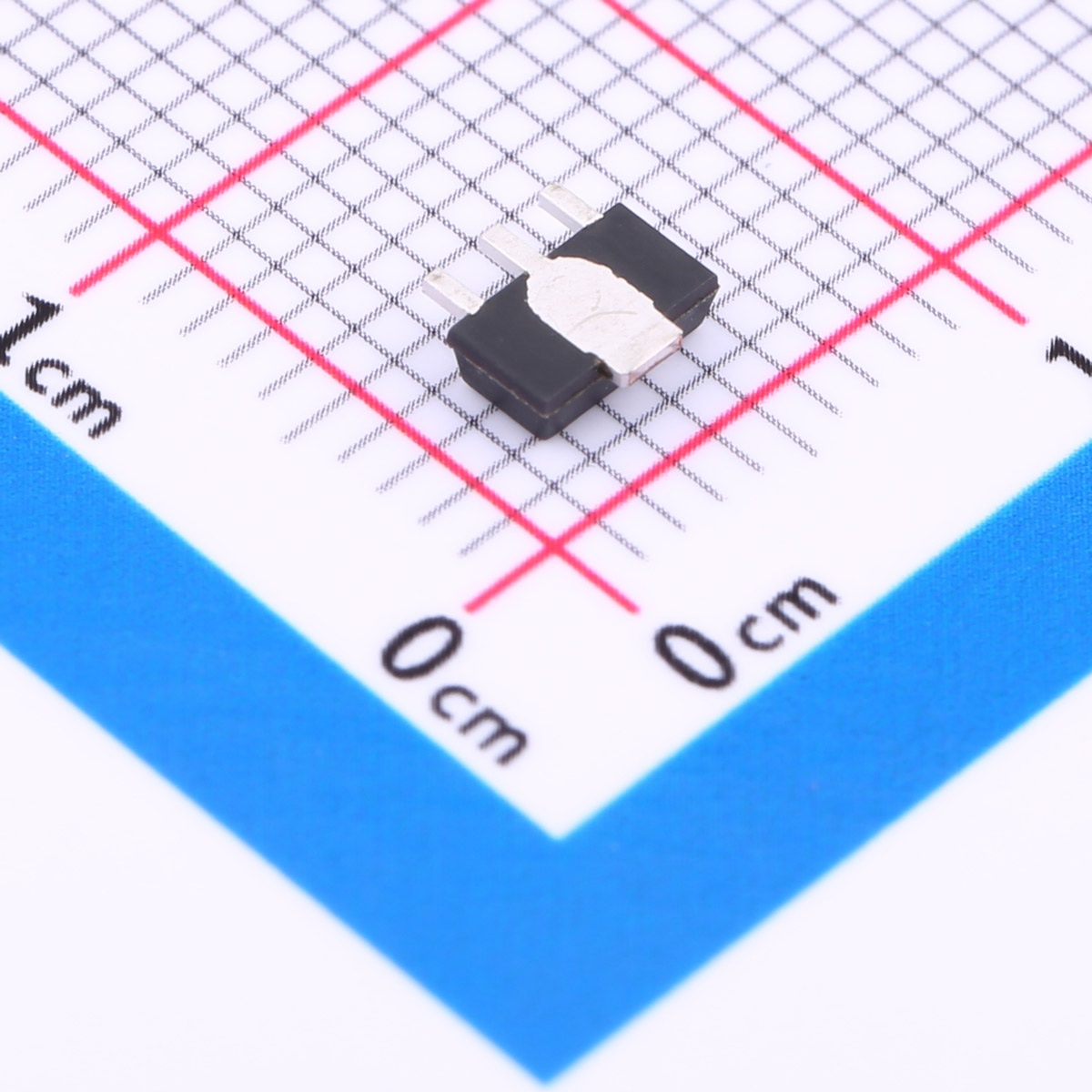

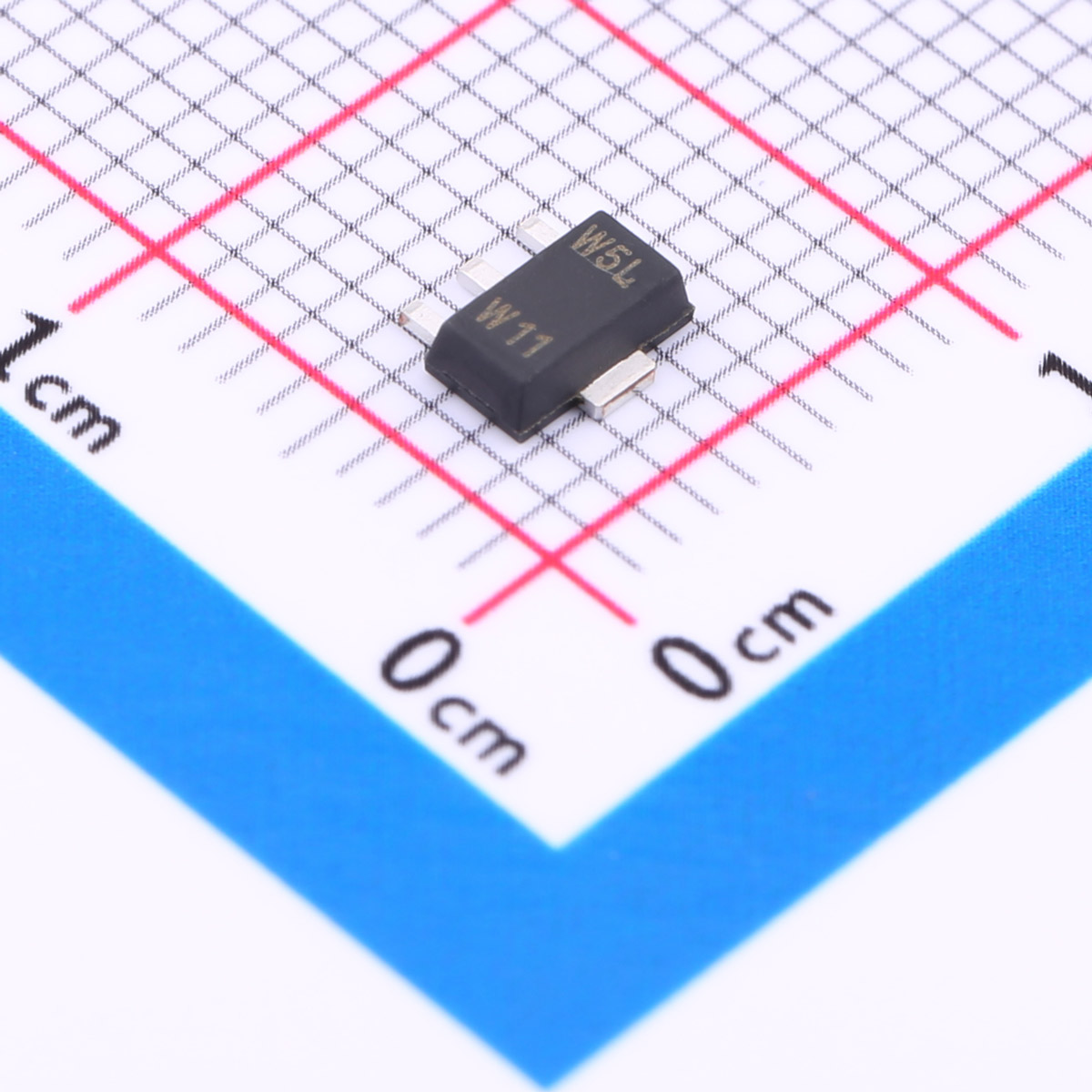

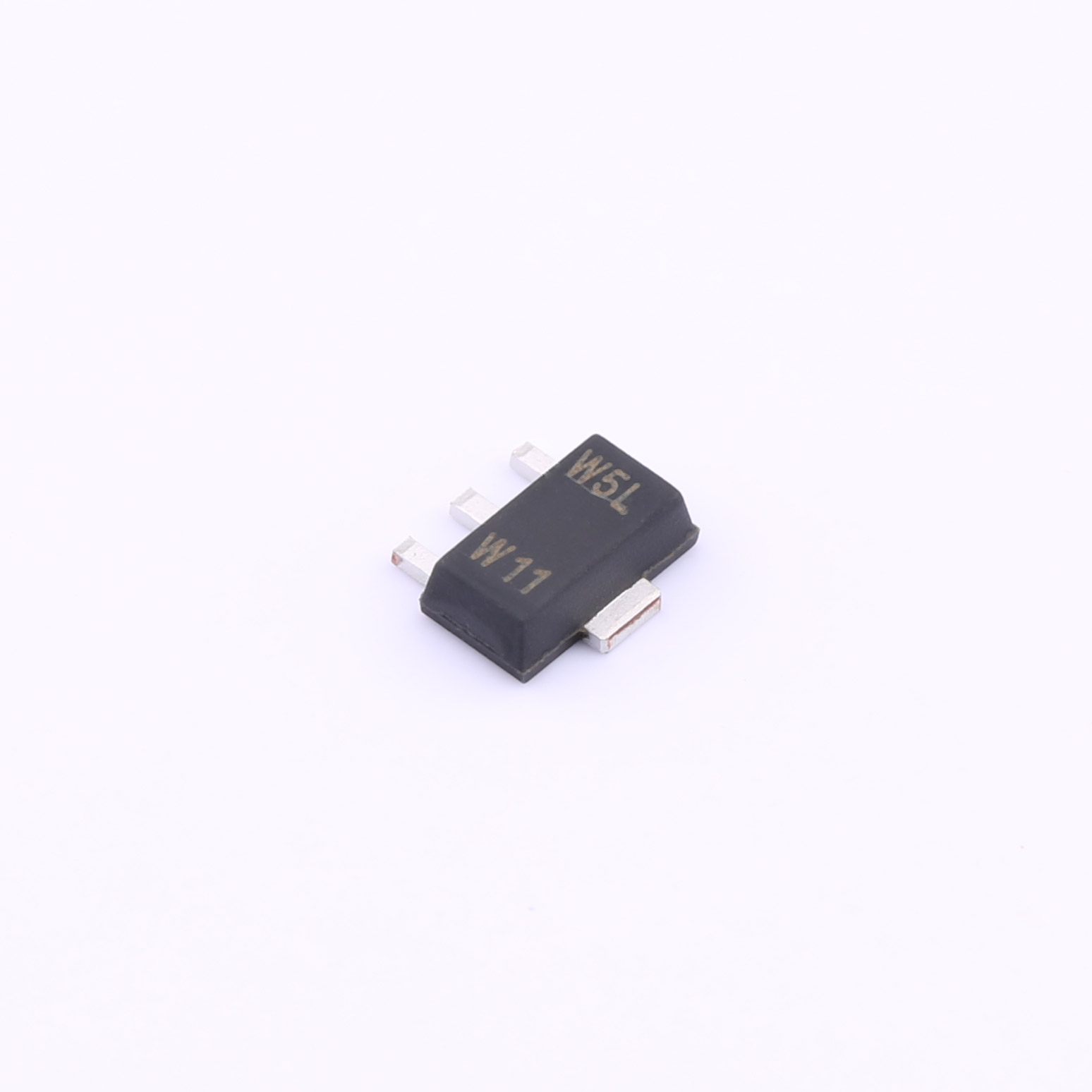

PBSS304PX PNP Bipolar Transistor

Download Datasheet Online Consultation

Product Details Product Documents Technical Support

Features

BV_CEO>60V
lc = -4.3A High Continuous Current
R_SAT = 32mΩ for a Low Equivalent On-Resistance
Low Saturation Voltage VCE(SAT)< -65mV @ lc= -1A
h_FE Specifed Up to -10A for High Curent Gain Hold Up
Lead-Free Finish; RoHs Compllant (Notes 1 & 2)
Halogen and Antimony Free. "Green" Device (Note 3)
PPAP Capable (Note 4)
Complementary NPN type:PBSS304NX

Features

Emergency Lighting Circuits
Motor Driving (including DC Fans)
Backlight Inverters
Power Switches
Gate Driving MOSFETs and IGBTs

Mechanical Data

Case: SOT89
Case Material: Molded Plastic. "Green" Molding Compound.UL Flammability Rating 94V-0
Moisture Sensitivity: Level 1 per J-SD-020
Weight: 0.05 grams (Approximate)

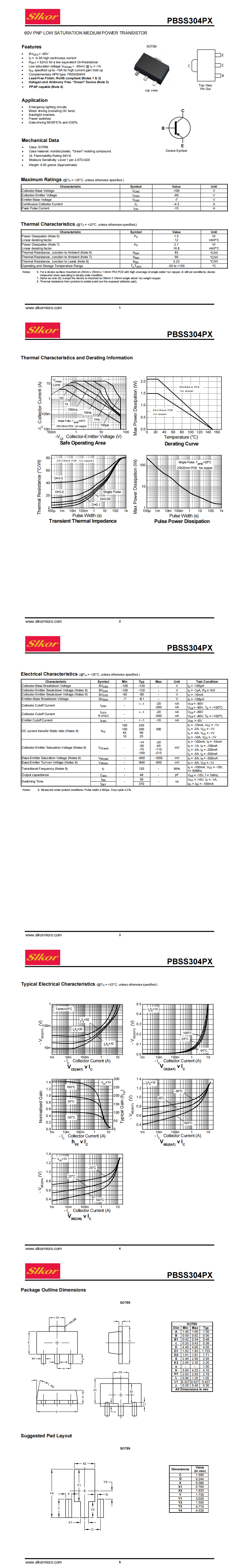

PBSS304PX SOT-89_00.png

Name

Title

Description

PBSS304PX SOT-89.pdf

Datasheet
