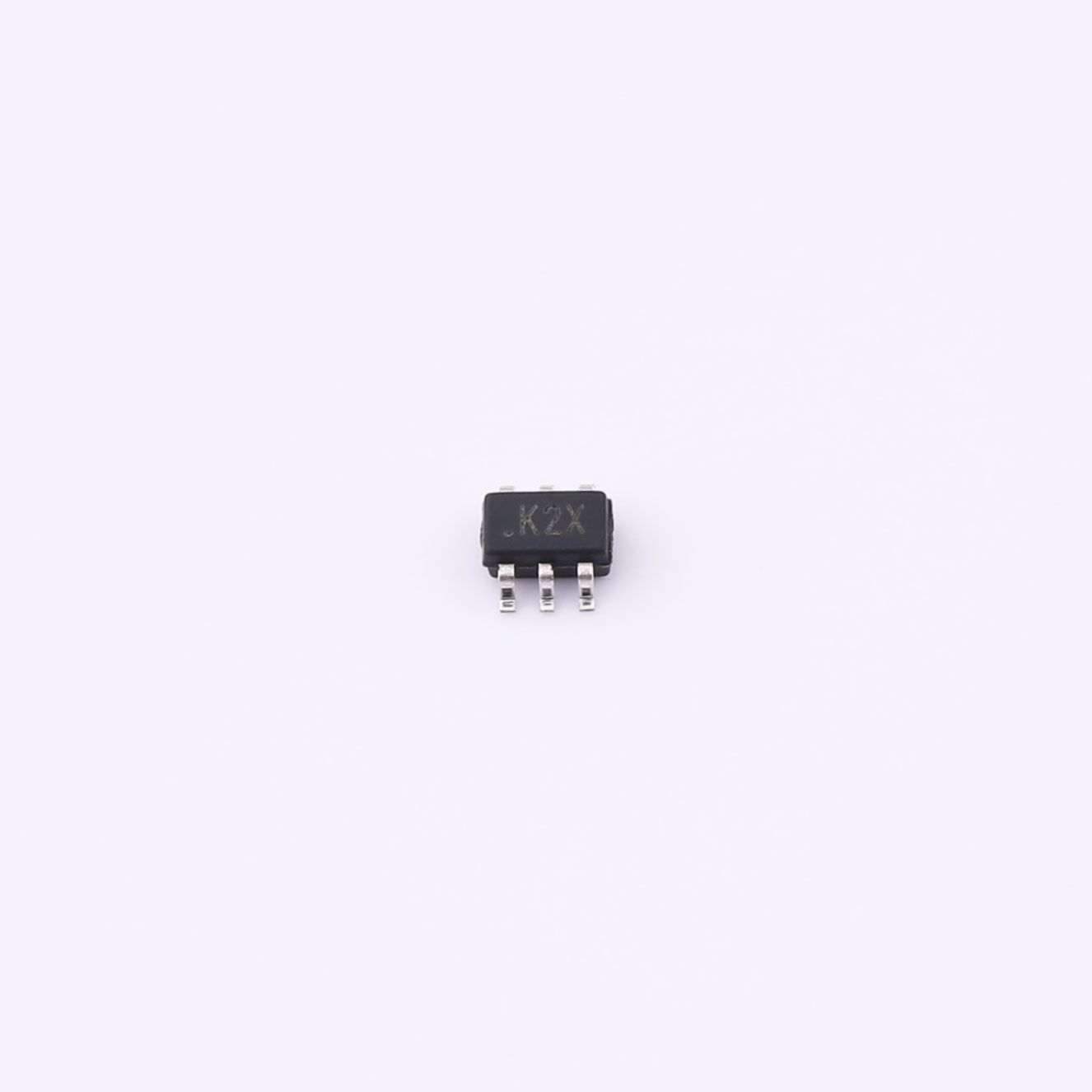

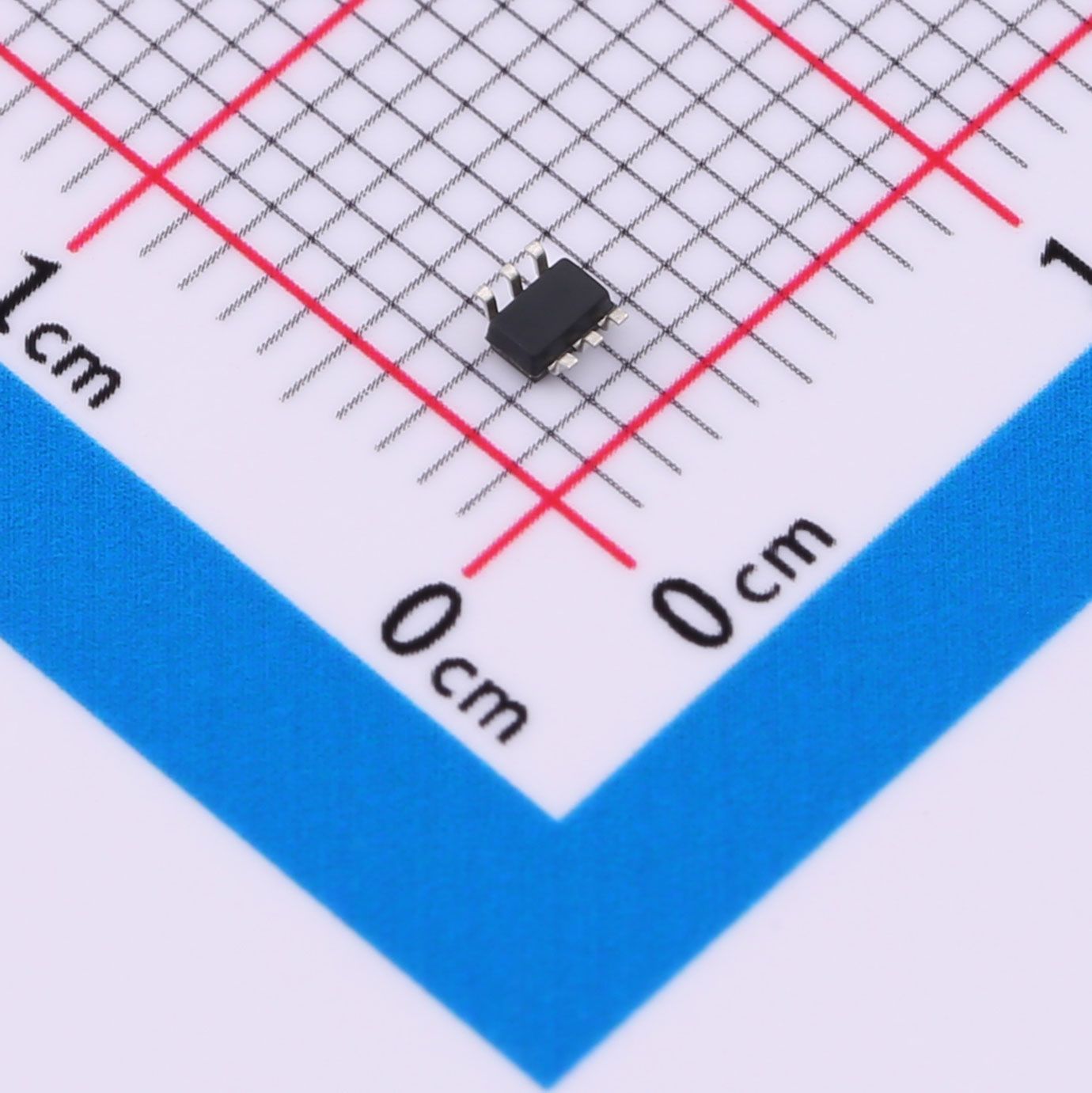

MMDT4401 NPN Bipolar Transistor SOT-363
MMDT4401 is a dual NPN small-signal surface-mount transistor in SOT-363 package, using epitaxial planar die construction. It is designed for low-power signal amplification and high-speed switching in compact electronic equipment. With a maximum collector current of 600mA, VCEO of 40V, and high fT up to 250MHz, it provides reliable performance in space‑constrained applications.
Our Advantages
- Dual NPN transistor in one compact package, saving PCB space and BOM cost
- Ultra-small SOT-363 surface-mount package for high-density circuit design
- Epitaxial planar process for stable and consistent electrical performance
- Wide DC current gain range for flexible switching and amplification
- High transition frequency up to 250MHz for high-speed signal applications
- Wide operating temperature range for industrial and consumer electronics
- RoHS compliant, tape-and-reel packaging for automatic SMT assembly
Description
MMDT4401 is a dual NPN small-signal surface-mount transistor in SOT-363 package, using epitaxial planar die construction. It is designed for low-power signal amplification and high-speed switching in compact electronic equipment. With a maximum collector current of 600mA, VCEO of 40V, and high fT up to 250MHz, it provides reliable performance in space‑constrained applications.
FEATURES
- Dual NPN small signal transistor
- Epitaxial planar die construction
- Ultra-small SOT-363 surface mount package
- High transition frequency: fT = 250MHz (typical)
- Low power dissipation: PD = 200mW
- VCBO = 60V, VCEO = 40V, VEBO = 6V
- Continuous collector current: IC = 600mA
- Wide temperature range: −55℃ to +150℃
- Ideal for low power amplification and switching
Applications
- Portable consumer electronics
- Mobile communication devices
- Signal amplification and switching circuits
- High-density PCB modules
- LED driver and indicator circuits
- Industrial control and sensor interfaces
- Battery-powered equipment
