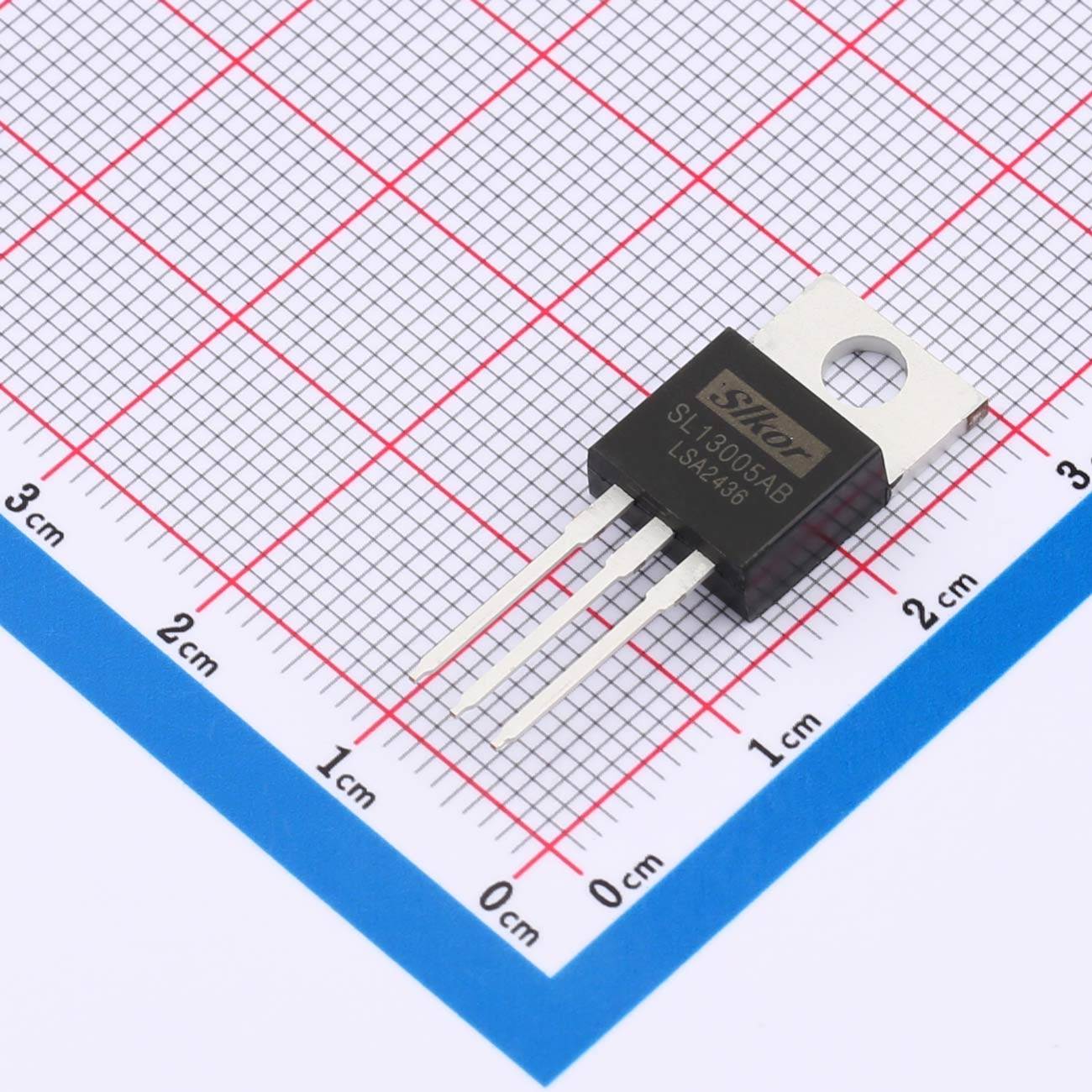

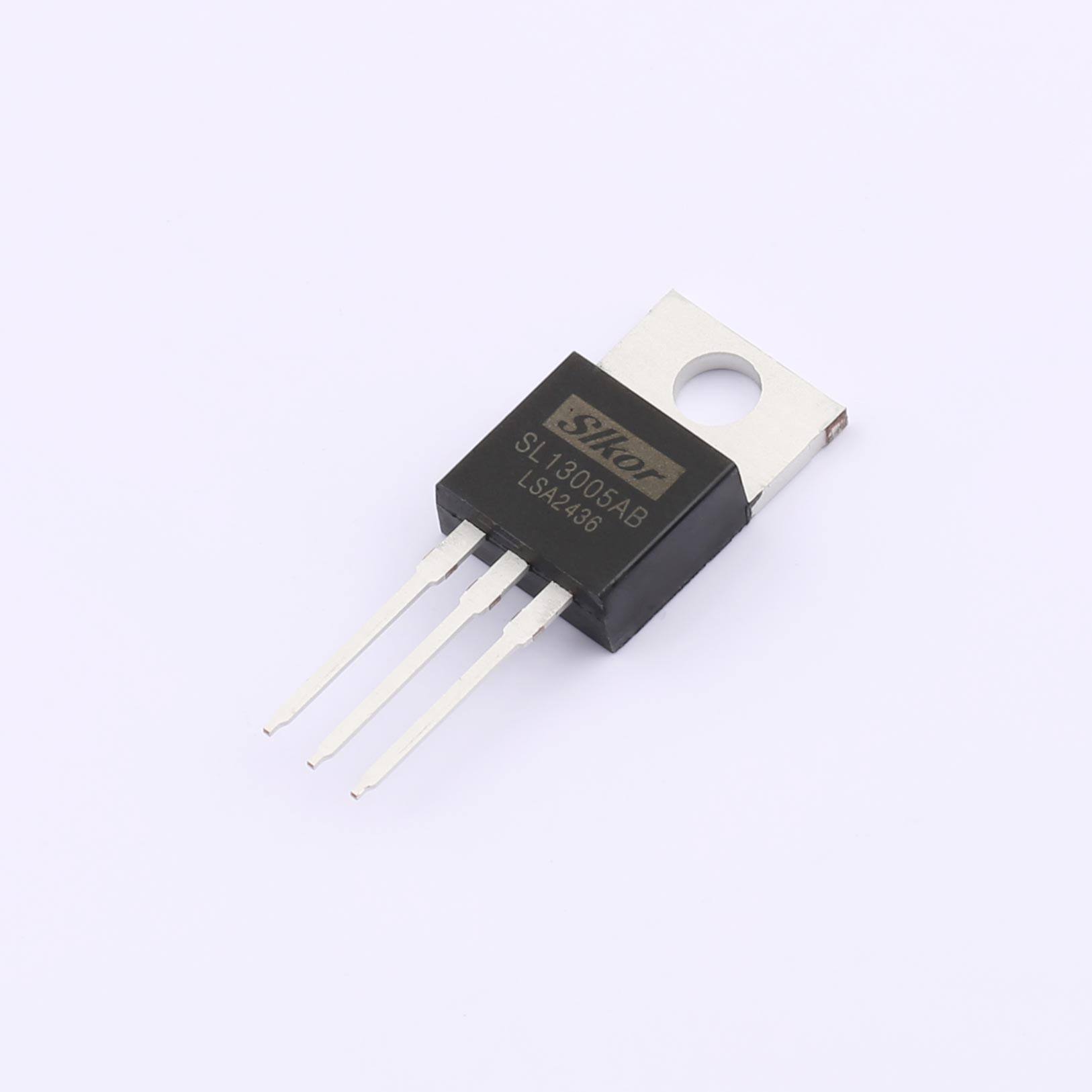

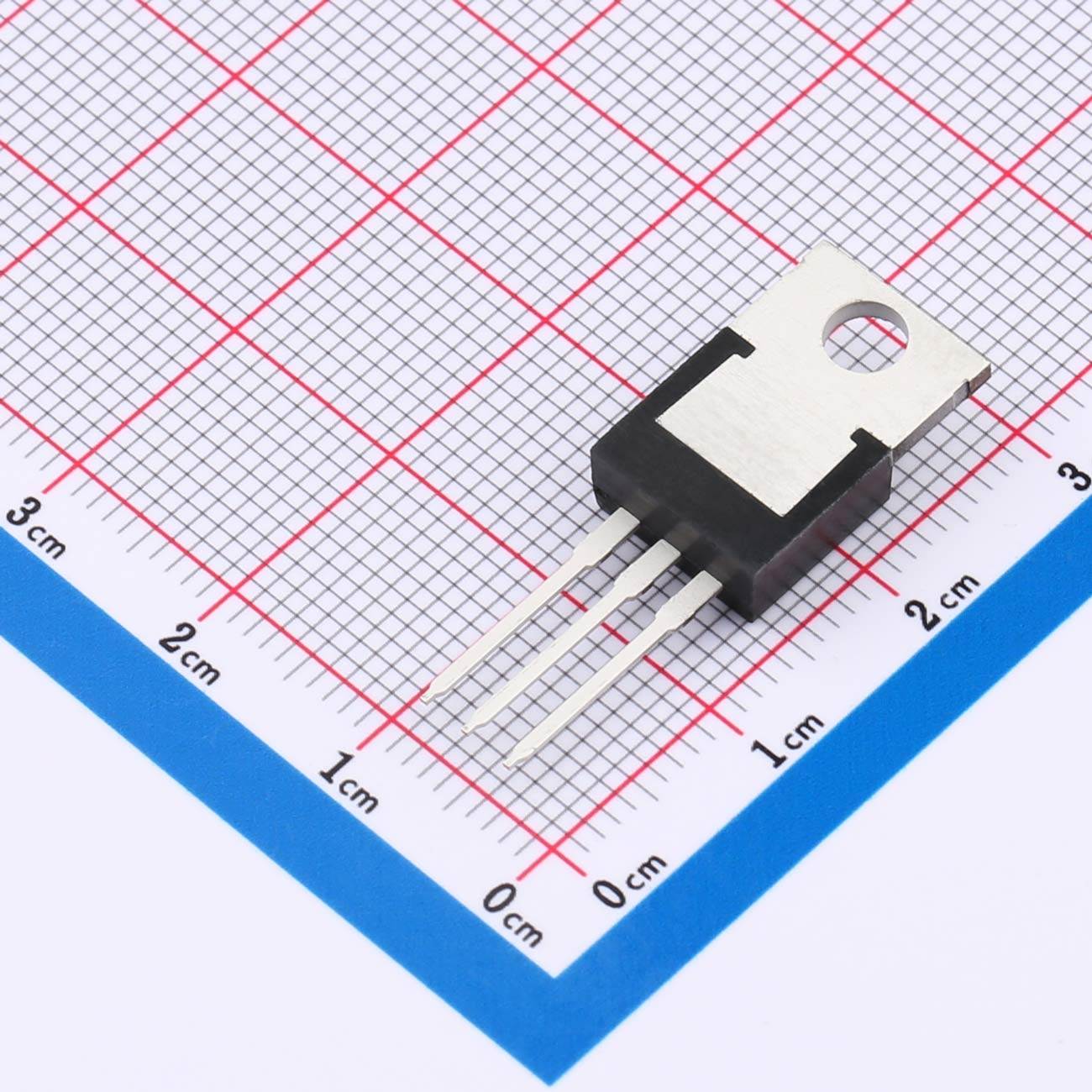

SL13005AB NPN Bipolar Transistor TO-220AB
SL13005AB is an NPN silicon epitaxial planar transistor in TO‑220AB package. It features high voltage and high‑speed switching characteristics, designed for high‑voltage switching applications, switching regulators, motor control, and other power electronic systems.
Our Advantages
- Ultra-high voltage rating up to 800V for industrial high‑voltage systems
- High‑speed switching for efficient power control
- High current capability up to 4A for heavy‑load driving
- Multiple package options (TO‑220AB / TO‑220F / TO‑263) for flexible design
- RoHS compliant, lead‑free, suitable for mass production
- Excellent thermal performance for long‑term reliability
- Wide temperature range for industrial environments
Description
SL13005AB is an NPN silicon epitaxial planar transistor in TO‑220AB package. It features high voltage and high‑speed switching characteristics, designed for high‑voltage switching applications, switching regulators, motor control, and other power electronic systems.
FEATURES
- NPN high‑voltage high‑speed switching transistor
- High voltage: VCBO = 800V, VCEO = 450V, VEBO = 9V
- High‑speed switching performance
- Continuous collector current: IC = 4A
- DC current gain: hFE = 15–35
- Power dissipation: Ptot = 1.25W
- Transition frequency: fT = 4MHz (typ.)
- Junction / storage temperature: −55℃ to +150℃
- RoHS compliant, lead‑free
- Available in TO‑220AB, TO‑220F, TO‑263 packages
Applications
- High‑speed switching circuits
- Switching regulators & power supplies
- Motor control & drive systems
- Industrial power control equipment
- High‑voltage electronic control systems
- Inverter and converter circuits
- Power electronic control modules
