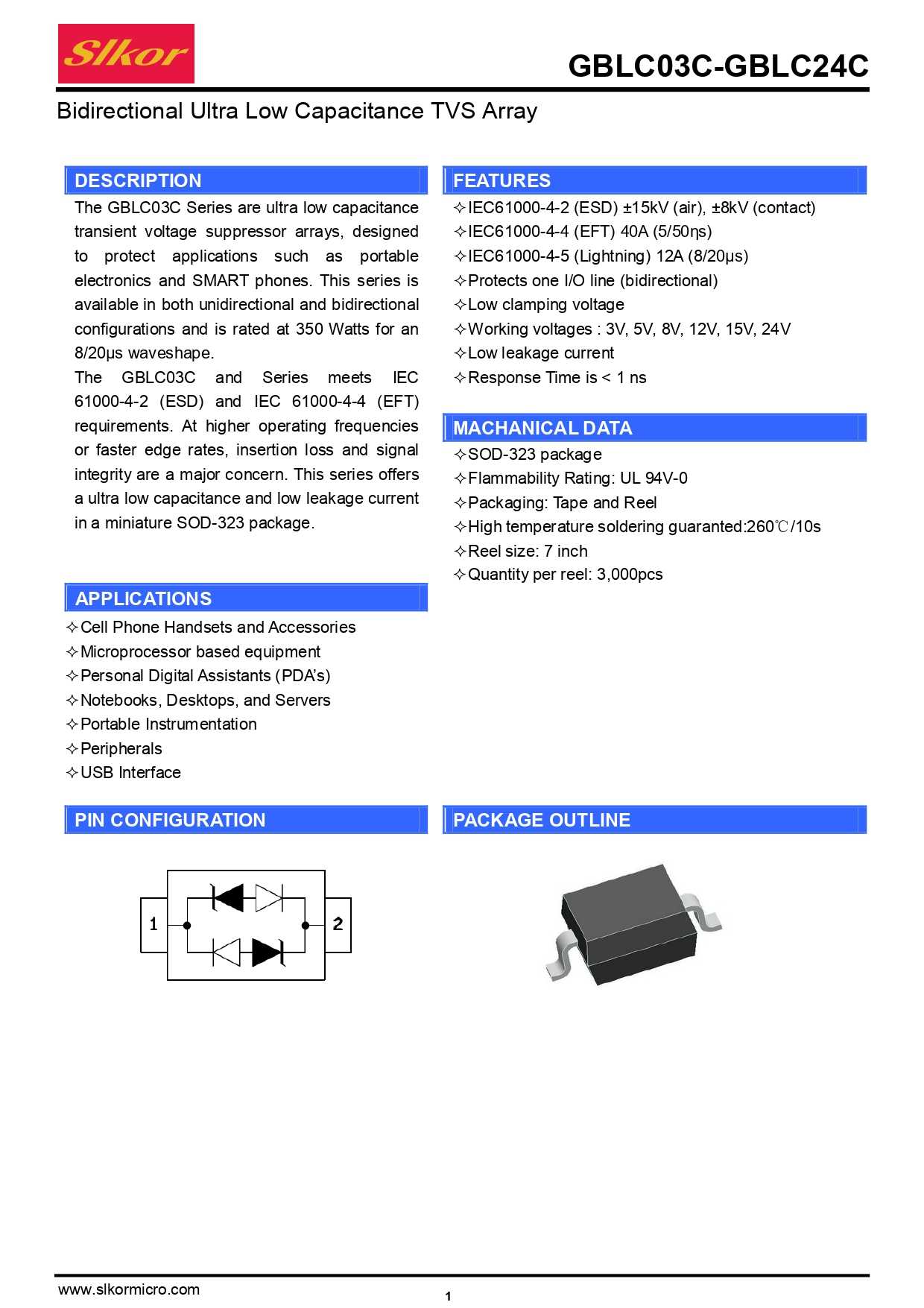

Description

The GBLC03C Series are ultra low capacitance transient voltage suppressor arrays, designed to protect applications such as portable electronics and SMART phones. This series is available in both unidirectional and bidirectional configurations and is rated at 350 Watts for an 8/20μs waveshape.

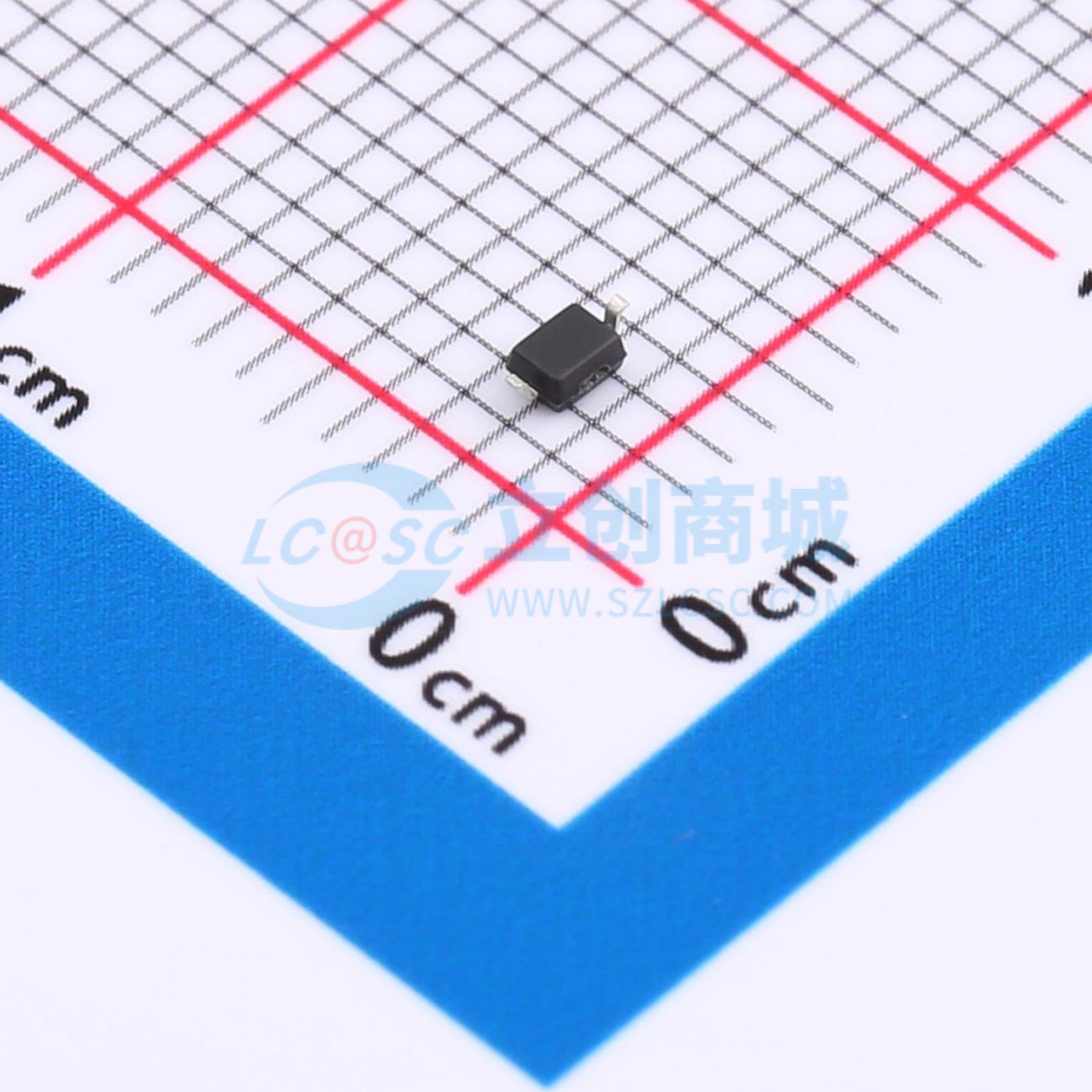

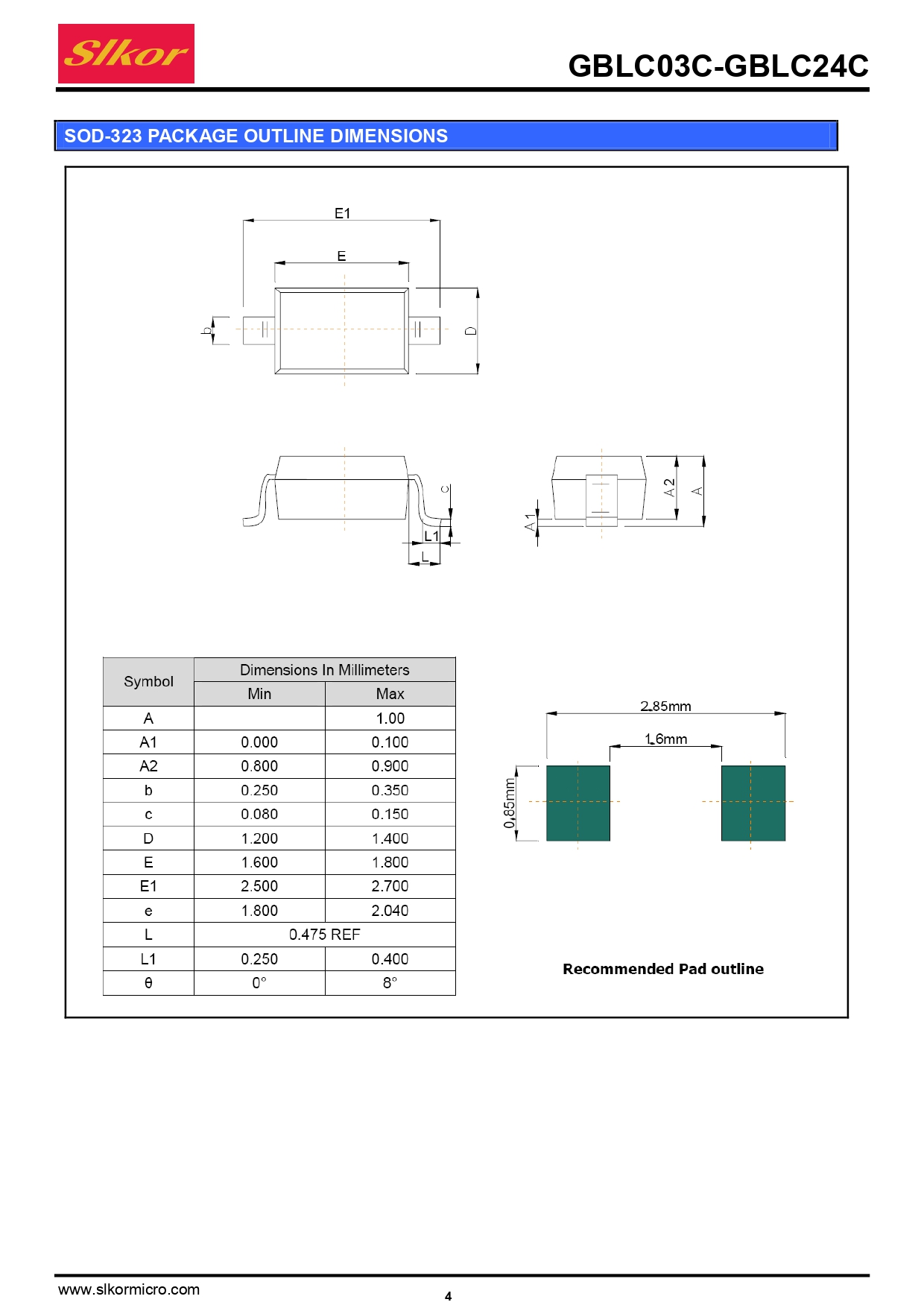

The GBLC03C and Series meets IEC 61000-4-2 (ESD) and IEC 61000-4-4 (EFT) requirements. At higher operating frequencies or faster edge rates, insertion loss and signal integrity are a major concern. This series offers a ultra low capacitance and low leakage current in a miniature SOD-323 package.

Features

●IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)

●IEC61000-4-4 (EFT) 40A (5/50ηs)

●IEC61000-4-5 (Lightning) 12A (8/20μs)

●Protects one I/O line (bidirectional)

●Low clamping voltage

●Working voltages : 3V, 5V, 8V, 12V, 15V, 24V

●Low leakage current

●Response Time is < 1 ns

Applications

●Cell Phone Handsets and Accessories

●Microprocessor based equipment

●Personal Digital Assistants (PDA’s)

●Notebooks, Desktops, and Servers

●Portable Instrumentation

●Peripherals

●USB Interface
