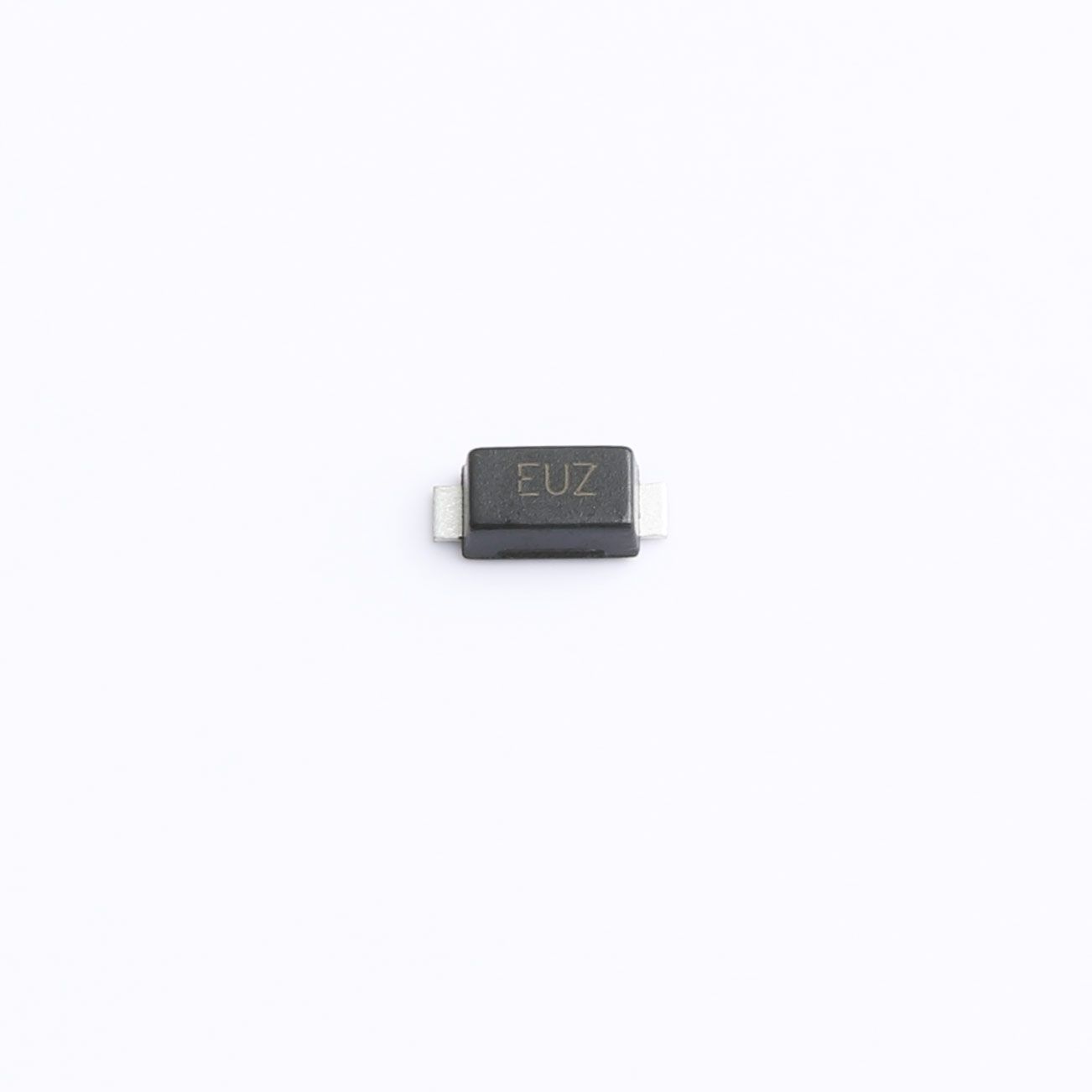

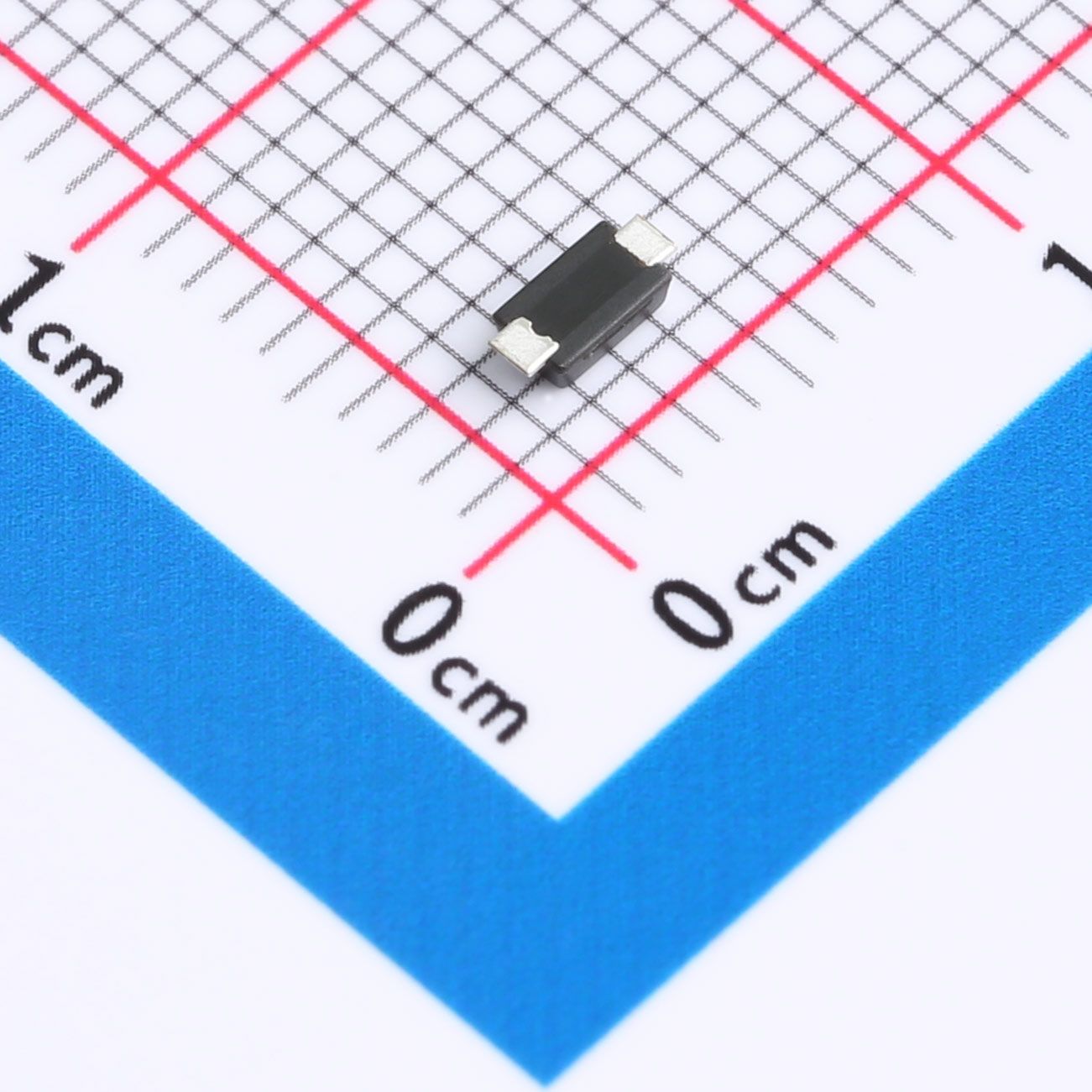

M4SMF24CA TVS Diode SOD-123FL
M4SMF24CA is a bidirectional surface-mount transient voltage suppressor (TVS) with SOD-123FL package. It features 4500W peak pulse power under standard 8/20μs surge waveform, designed to protect electronic circuits against positive and negative electrostatic discharge, lightning surges and transient overvoltage.
Description
M4SMF24CA is a bidirectional surface-mount transient voltage suppressor (TVS) with SOD-123FL package. It features 4500W peak pulse power under standard 8/20μs surge waveform, designed to protect electronic circuits against positive and negative electrostatic discharge, lightning surges and transient overvoltage.
Features
- 4500W peak pulse power for 8/20μs surge waveform
- Key electrical parameters: VRWM=24V, VBR=26.7V~29.5V @ 1mA, IR≤1μA @ 24V, VC=40V @ 200A
- Ultra-fast response time less than 1ps and low inductance design
- Outstanding transient voltage clamping performance
- Compact low-profile SMD package for surface mount assembly
Our advantages
- Bidirectional design provides comprehensive protection against both positive and negative voltage transients
- High power endurance ensures stable protection in harsh surge environments
- Miniature footprint effectively saves PCB layout space for compact devices
- Ultra-low leakage current minimizes standby power consumption
- Standard tape and reel packaging is fully compatible with automatic high-speed SMT production lines
Mechanical Data
- Package: SOD-123FL, molded plastic with UL94V-0 flame retardant rating
- Bidirectional type without cathode color band
- Approximate single weight: 0.07g
- Operating junction temperature: -55℃ ~ +125℃; Storage temperature: -55℃ ~ +150℃
- Compliant with MSL 1 moisture sensitivity standard
- Terminals are solder-plated and meet MIL-STD-750 soldering requirements
Applications
Computer systems, household appliances, video input circuits, automotive electronics, aerospace equipment, telecommunication devices and intelligent control systems
