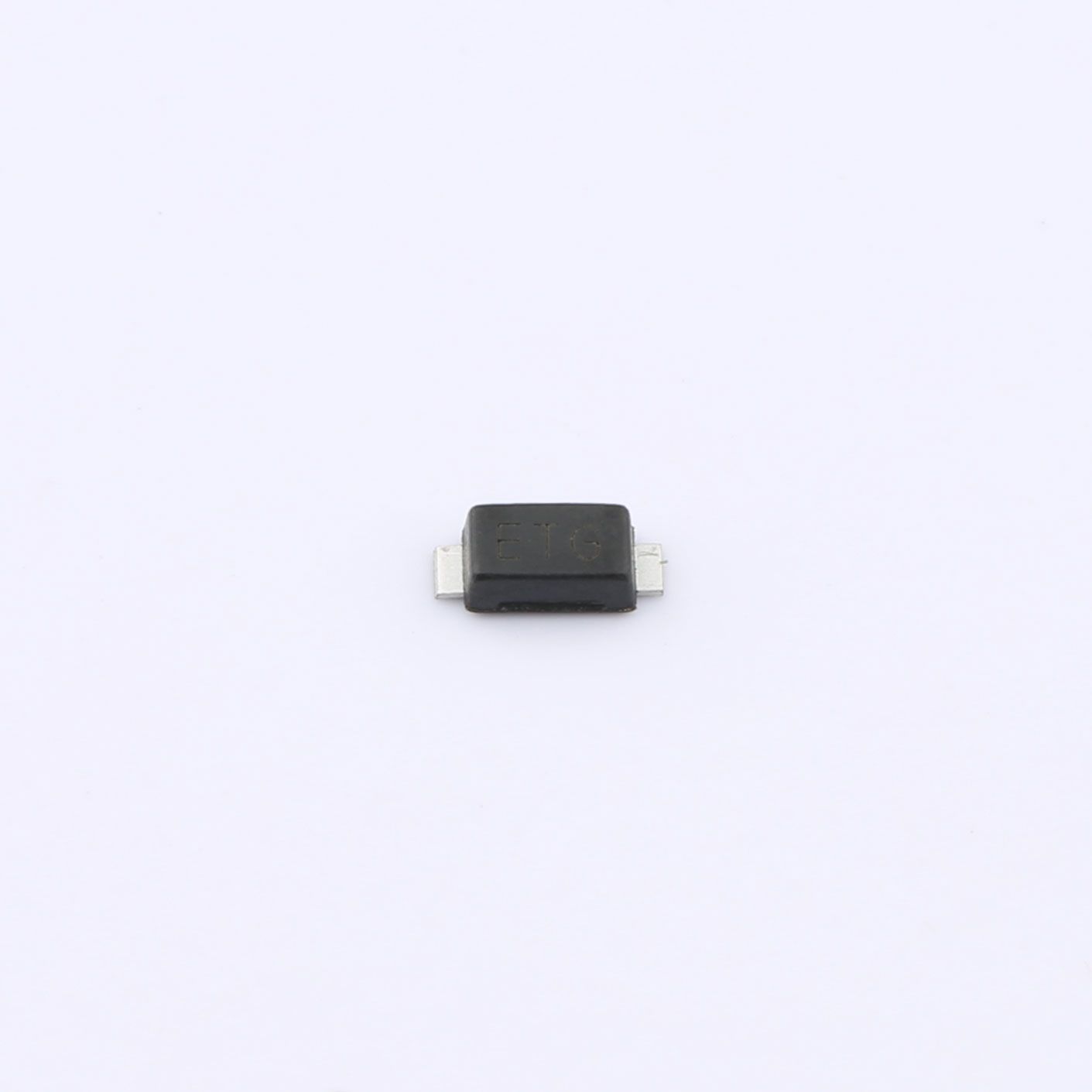

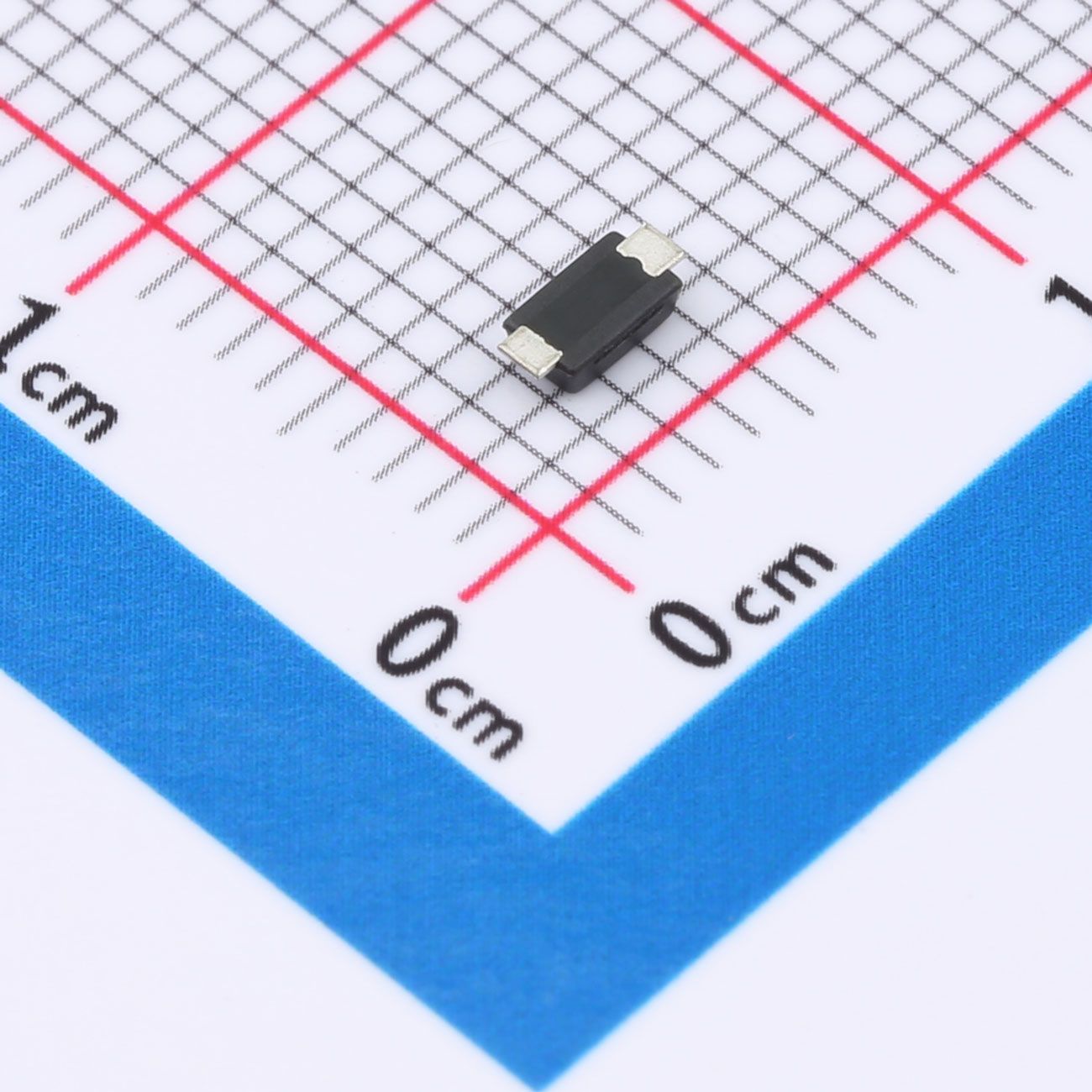

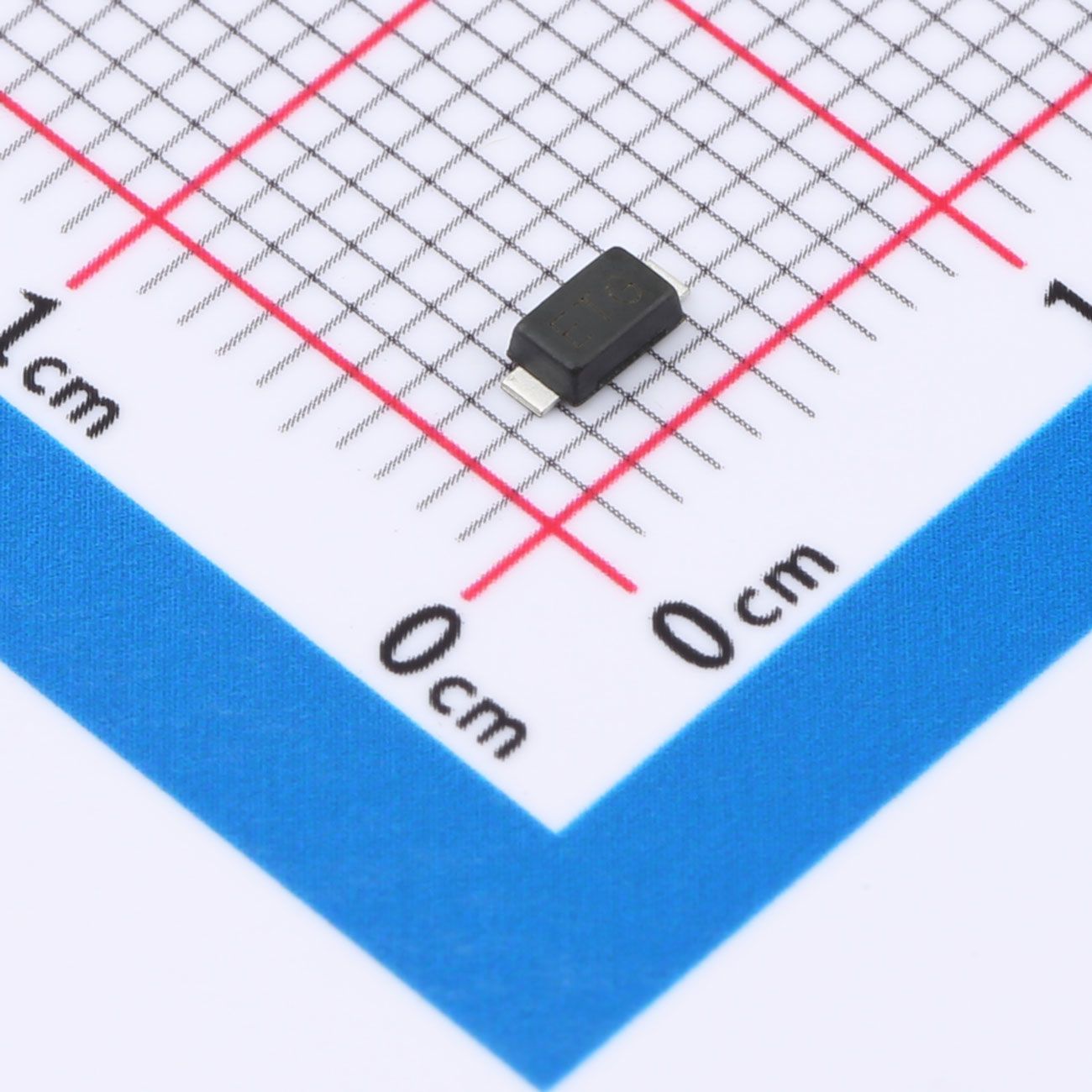

P4SMFT6.0CA TVS Diode SMF
P4SMFT6.0CA is a bidirectional surface-mount transient voltage suppressor (TVS) adopting SOD-123FL package. It is rated at 400W peak pulse power under 10/1000μs surge waveform. This component is specially designed to protect electronic equipment and circuits from positive and negative voltage spikes and transient surges induced by connecting wires.
Description
P4SMFT6.0CA is a bidirectional surface-mount transient voltage suppressor (TVS) adopting SOD-123FL package. It is rated at 400W peak pulse power under 10/1000μs surge waveform. This component is specially designed to protect electronic equipment and circuits from positive and negative voltage spikes and transient surges induced by connecting wires.
Features
- 400W peak pulse power for standard 10/1000μs surge waveform
- Core electrical parameters: VRWM=6.0V, VBR=6.67V ~ 7.37V @ 10mA, IR≤400μA @ 6.0V, VC=10.3V @ 38.84A
- Ultra-fast response time less than 1.0ps and low inductance design
- Excellent transient voltage clamping performance
- Full series offers wide VRWM range from 3.3V to 75V
- Typical reverse leakage current is below 1μA for models above 12V
- Low-profile SMD package, fully RoHS compliant
Our advantages
- Bidirectional design provides full protection against both positive and negative transient voltages
- Fast response speed quickly suppresses voltage spikes to safeguard sensitive electronic components
- Compact SOD-123FL package saves PCB space for miniaturized devices
- Low inductance ensures stable operation in various circuit environments
- Complies with MSL 1 moisture sensitivity standard for easy SMT processing
- Solder-plated terminals feature good solderability per MIL-STD-750
- Wide temperature tolerance enables reliable performance in diverse working conditions
Mechanical Data
- Package Type: SOD-123FL molded plastic, UL94V-0 flame retardant rating
- Polarity: No cathode color band for bidirectional type
- Approximate single weight: 0.017g
- Moisture Sensitivity Level: MSL 1
- Operating junction temperature: -55℃ ~ +125℃
- Storage temperature: -55℃ ~ +150℃
Applications
Computer systems, household appliances, video input circuits and various electronic devices that require bidirectional surge and ESD protection
