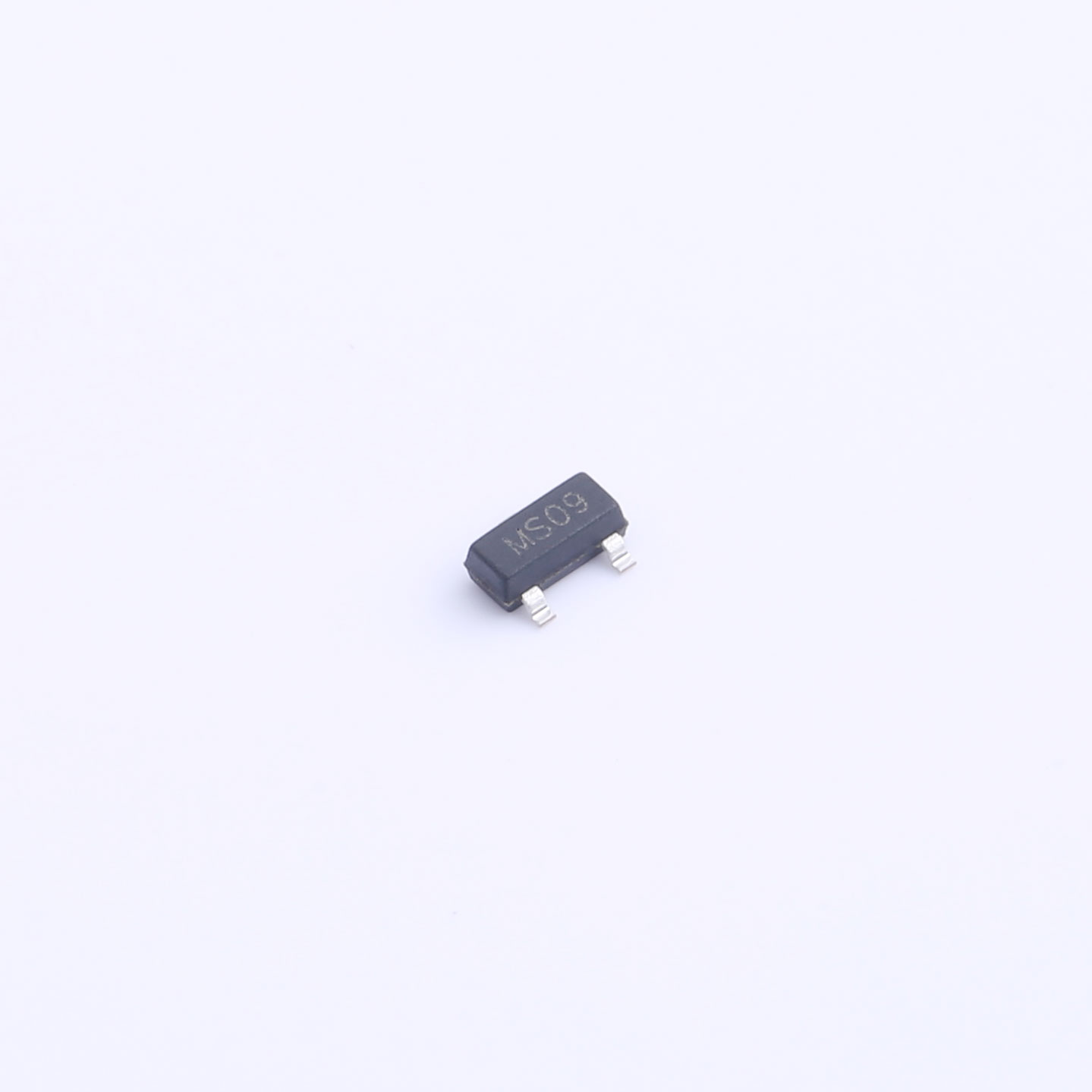

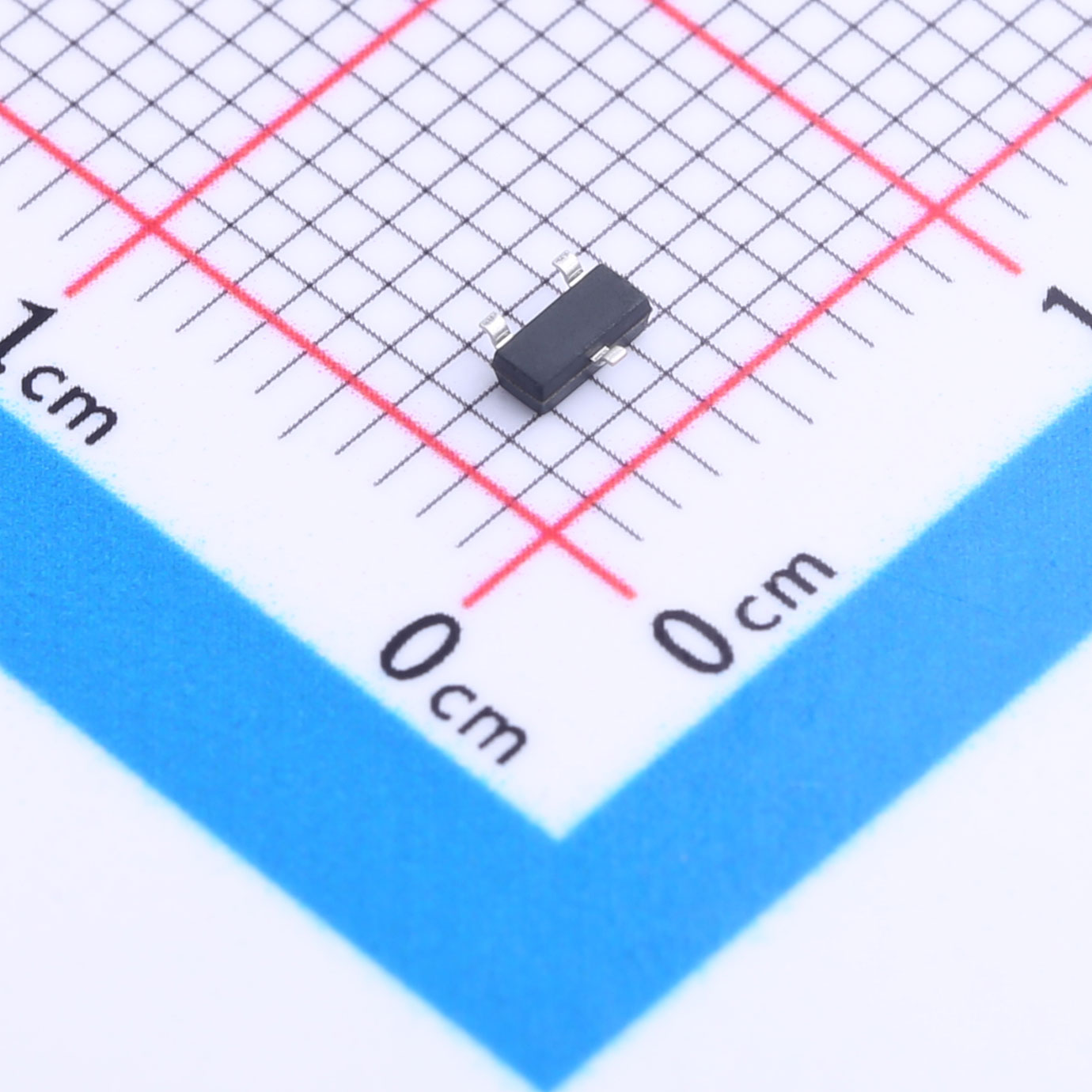

SL2309 P-Channel Power MOSFET SOT-23-3
● High density cell design for ultra low Rdson
● Fully characterized avalanche voltage and current
● Excellent package for good heat dissipation
Our advantages
Chinese manufacturing processes have undergone years of iteration, resulting in mature and reliable technologies. Many international corporations opt for production outsourcing in China. As an electronic components manufacturer in China, our products can fully replace those of major international brands in 99% of applications without the need for testing verification. Our products boast high consistency in quality, reasonable pricing, ample inventory, flexible supply, short lead times, and professional after-sales service.
Description
Our SL2309 P-Channel Power MOSFET, designed with a maximum drain-source voltage (VDS) of -60V and continuous drain current (ID) of -1.6A, is engineered to deliver reliable switching performance in various electronic circuits. It features low drain-source on-state resistance with maximum 160 mΩ @ VGS=-10V and maximum 200 mΩ @ VGS=-4.5V, bringing low conduction loss and high efficiency. This MOSFET is housed in a compact SOT-23 surface-mount package, optimizing PCB space utilization and facilitating good heat dissipation.
FEATURES
● Ultra-low on-state resistance by high-density cell design
● Fully characterized avalanche voltage and current capability
● Excellent thermal performance for heat dissipation
● Fast switching characteristics
● Compact SOT-23 surface-mount package for automated assembly
Applications
This high-performance P-Channel Power MOSFET is designed to meet the demands of modern electronic systems, offering both performance and reliability for diverse applications. - Load Switching Circuits: Ideal for system power load switch with low conduction loss. - PWM Control Applications: Suitable for pulse-width modulation switching scenarios. - Battery-powered Devices: Applied in portable electronics for power path management. - General-purpose switching: Works for various low-voltage high-speed switching circuits.
