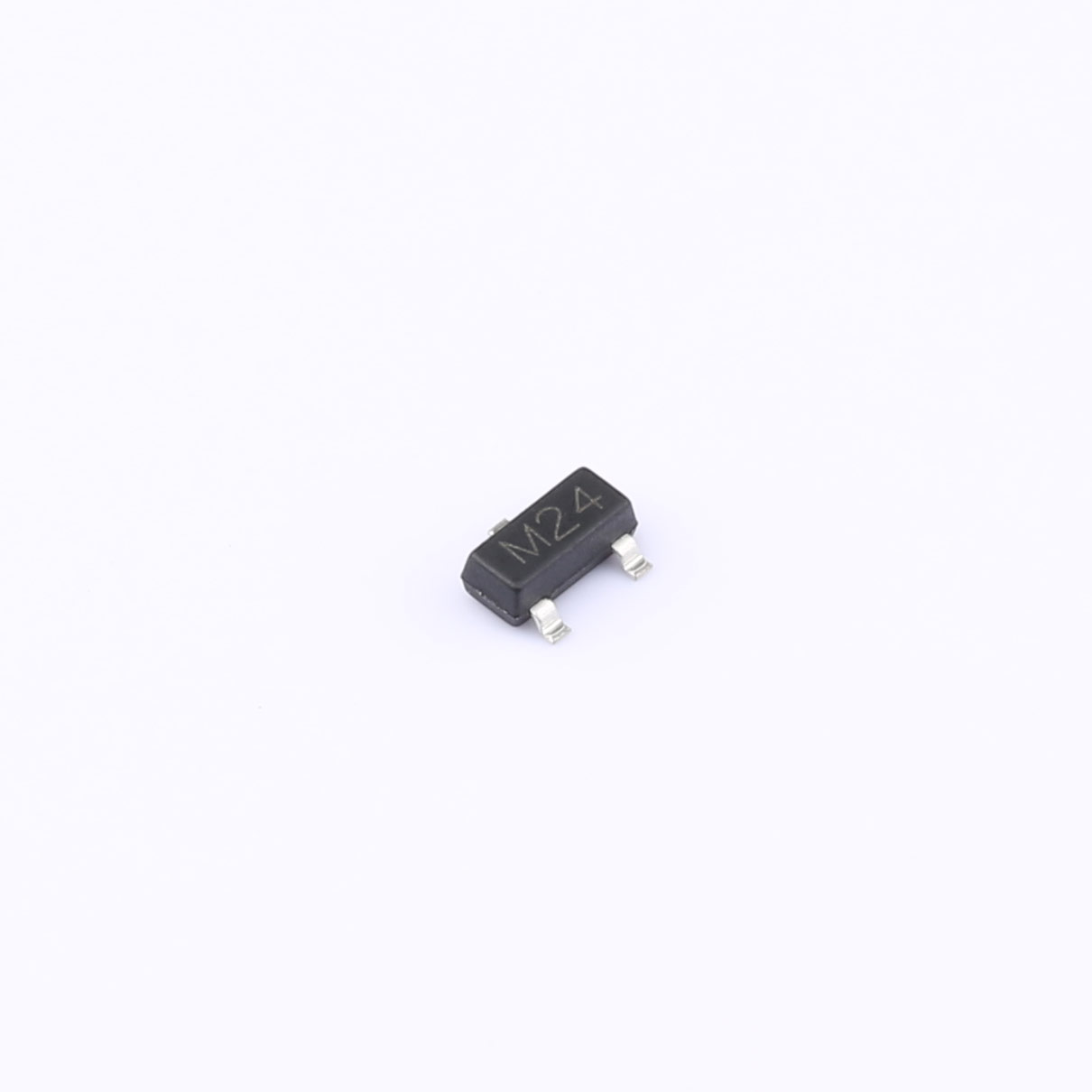

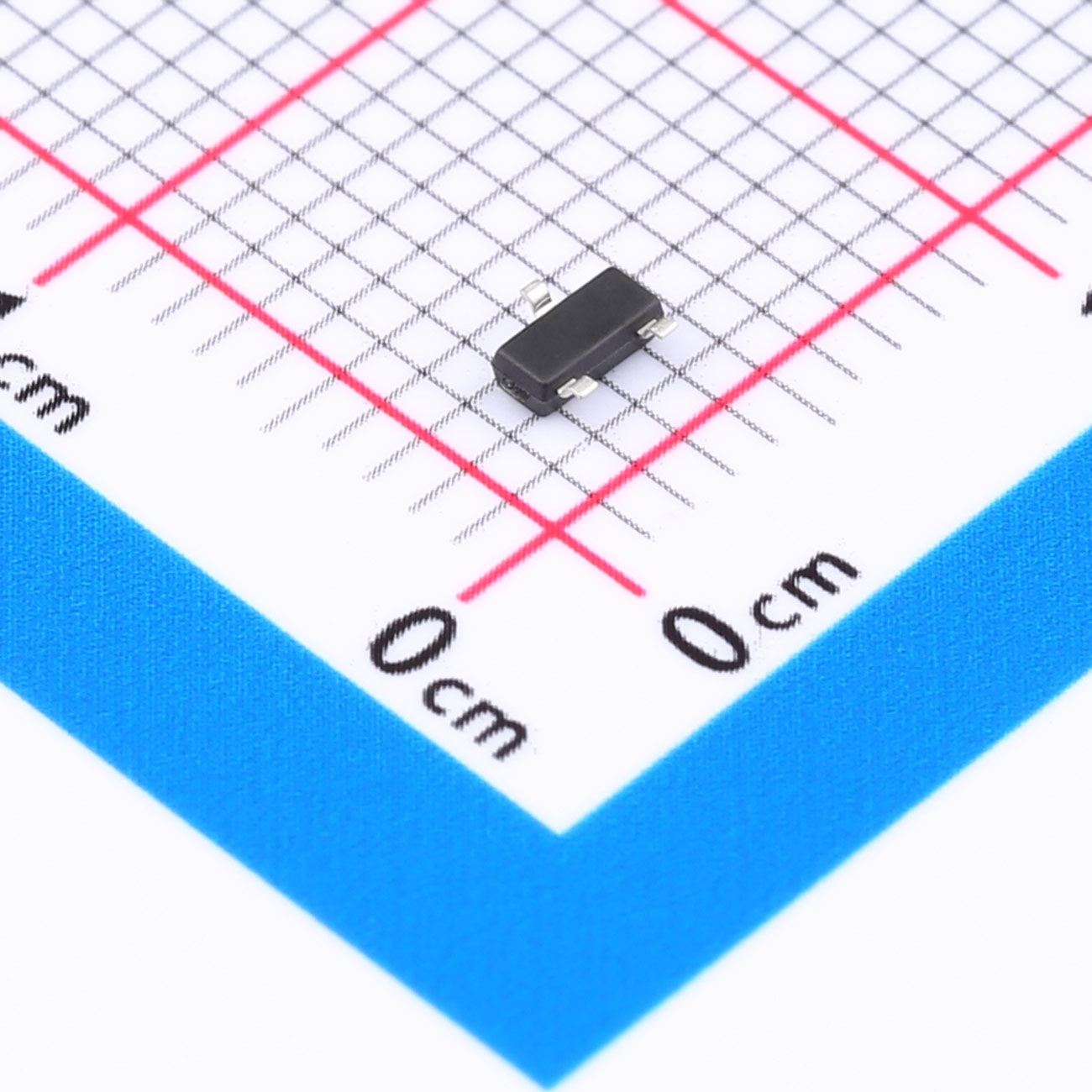

ESDA25L Transient Voltage Suppressor
ESDA25L Transient Voltage Suppressor
Description
TheESDA25L is designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and otherapplications. These devices are ideal for situations where board space is at a premium.
This series has been specifically designed to protect sensitive components which are connected to power、data and transmission lines from overvoltage caused by ESD(electrostatic discharge), CDE (Cable Discharge Events),and EFT (electrical fast transients).
Features
● IEC61000-4-2 (ESD) ±15kV (air), ±8kV (contact)
● IEC61000-4-4 (EFT) 40A (5/50ηs)
● 350 Watts Peak Pulse Power per (tp=8/20μs)
● Protects one bidirectional line or two unidirectional lines
● Low clamping voltage
● Working voltages : 3.3V to 36V
● Low leakage current
Mechanical Data
● SOT-23package
● Flammability Rating: UL 94V-0
● High temperature soldering guaranteed:260℃/10s
● Packaging: Tape and Reel
● Reel size: 7 inch
● MSL1
Ordering Information
● Device: ESDA25L
● Package: SOT-23
● Material: Halogen free
● Packing: Tape & Reel
● Quantity per reel: 3,000pcs
Applications
● Cell Phone Handsets andAccessories
● Microprocessor based equipment
● Personal Digital Assistants (PDA’s)
● Notebooks, Desktops, and Servers
● Portable Instrumentation
● Networking and Telecom
● Serial and Parallel Ports
● Peripherals
Name
Title
Description

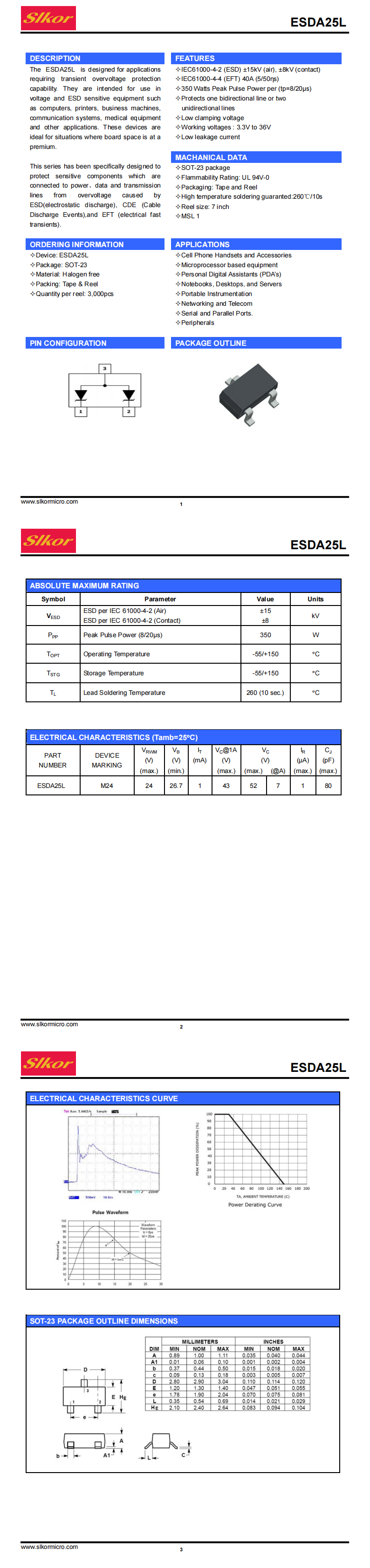

Datasheet
Support
Support
If you need design/technical support, please let us know and fill inResponse FormWe will get back to you as soon as possible.
Longevity
The Longevity Program is aimed to provide our customers information from time to time about the expected time that our products can be ordered. The NLP is reviewed and updated regularly by our executive Management Team. View ourlongevity programhere.

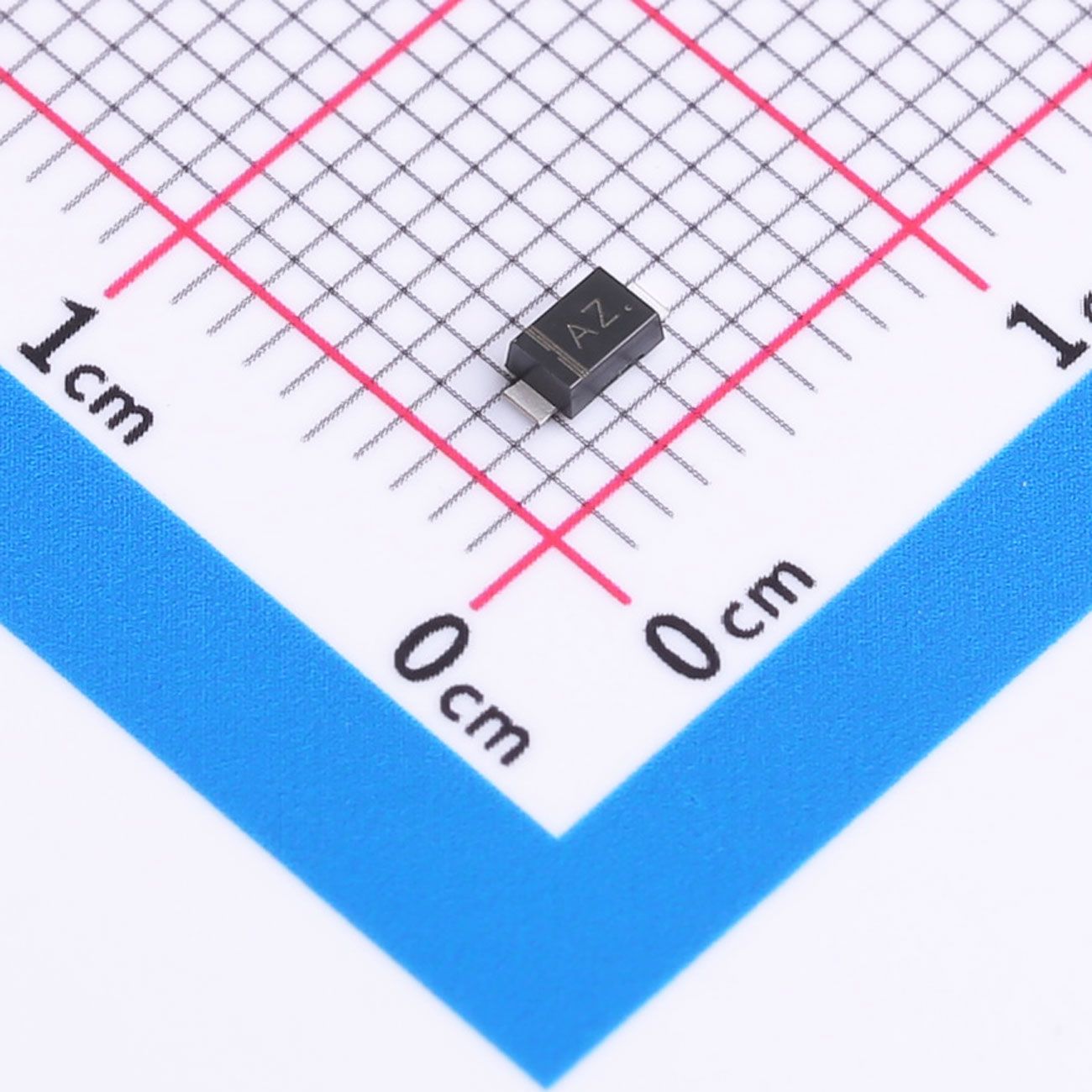

SMF11A Transient Protection Diode SOT-23
Brand: slkor，

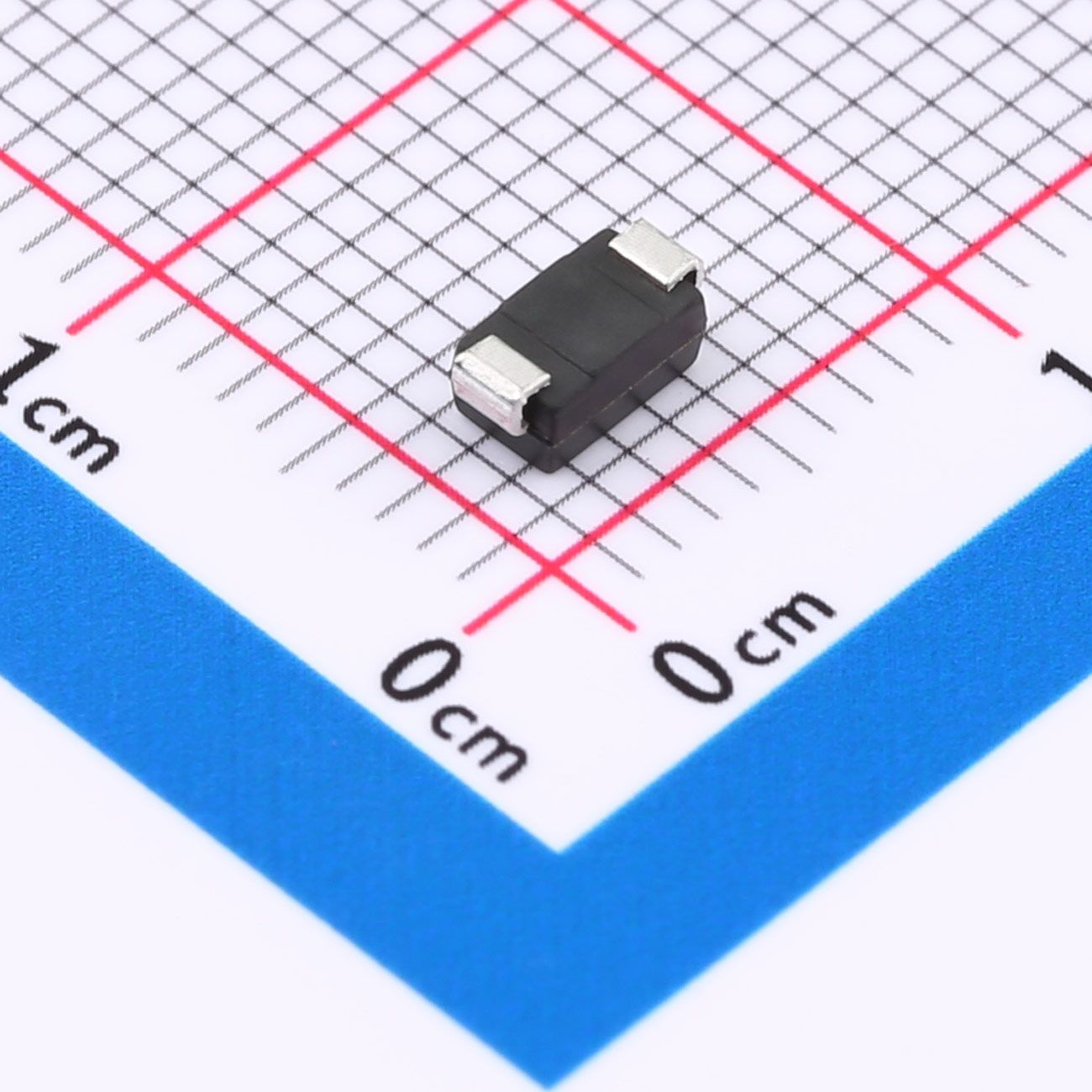

SMA6J5.0A TVS Diode SMA
Brand: slkor，
SMA6J5.0CA TVS Diode SMA
Brand: slkor，

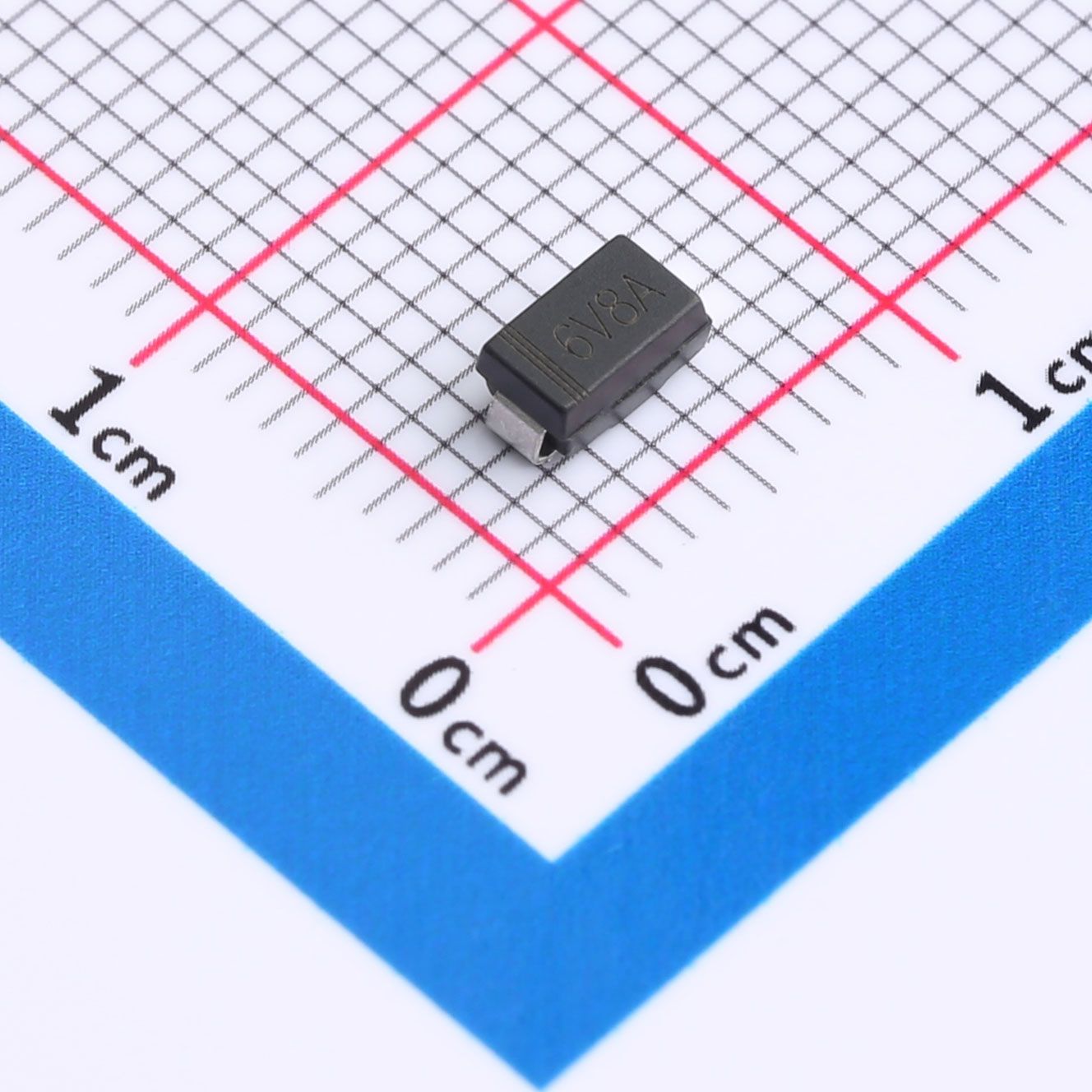

P4SMA6.8A TVS Diode SMA(DO-214AC)
Brand: slkor，

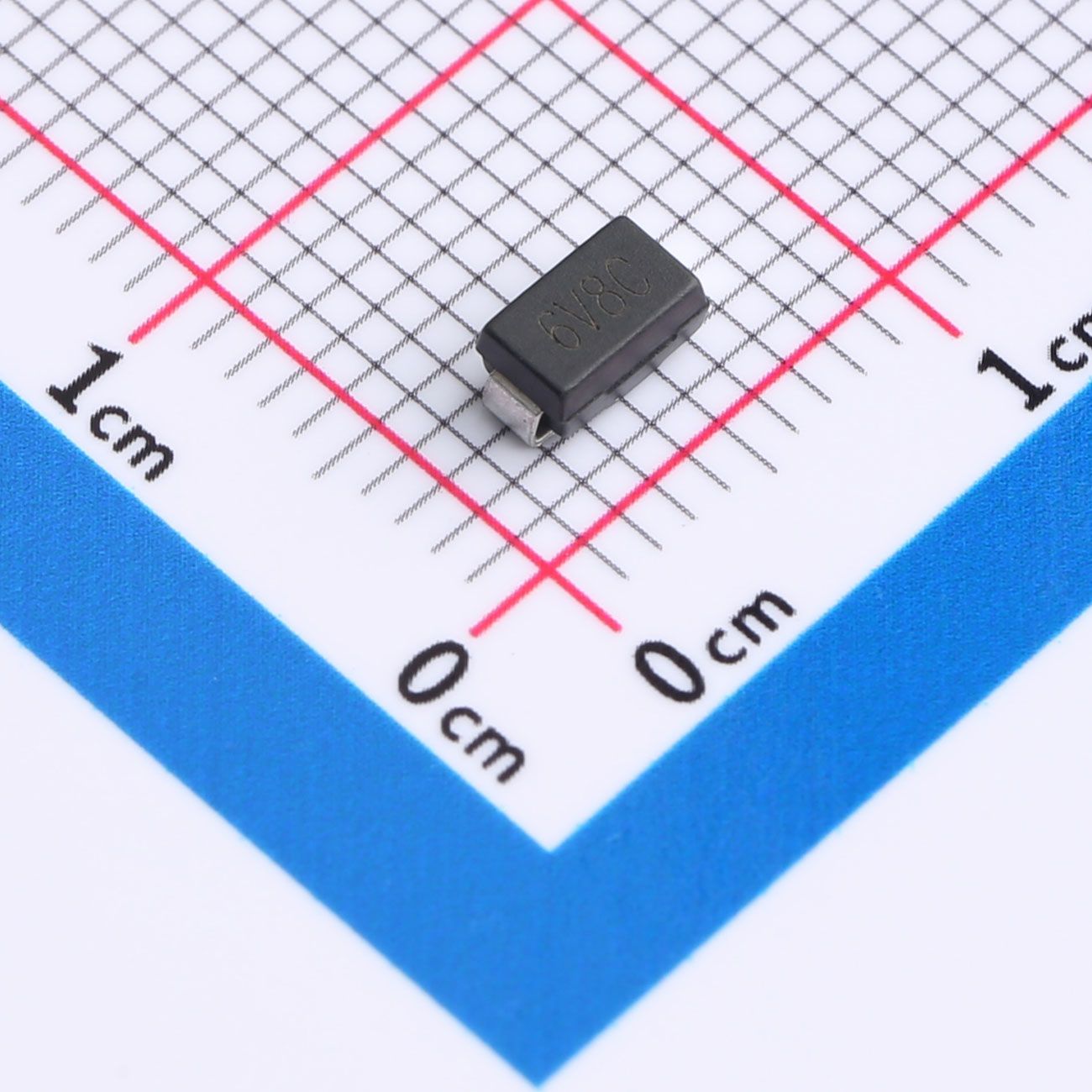

P4SMA6.8CA TVS Diode SMA(DO-214AC)
Brand: slkor，

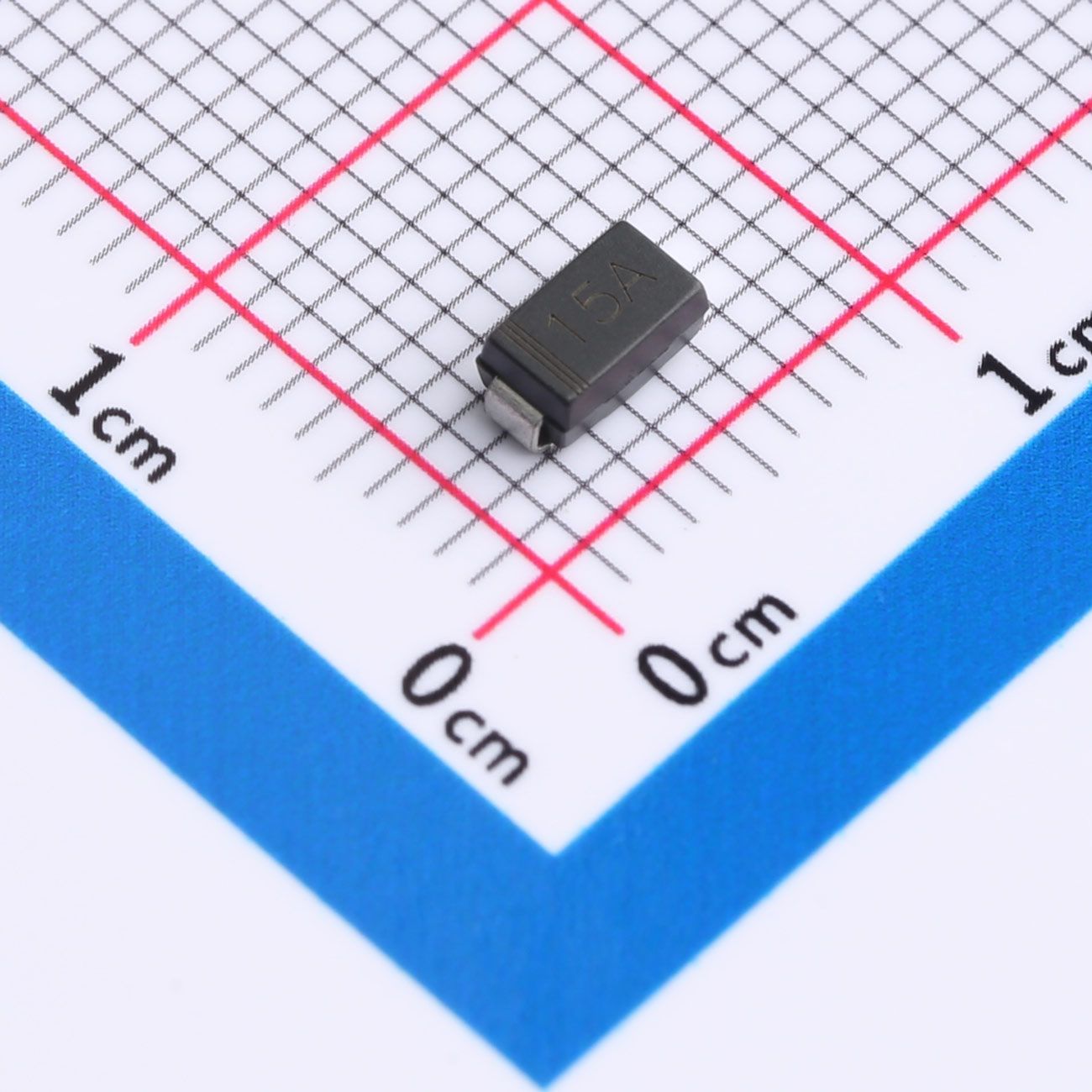

P4SMA15A TVS Diode SMA(DO-214AC)
Brand: slkor，

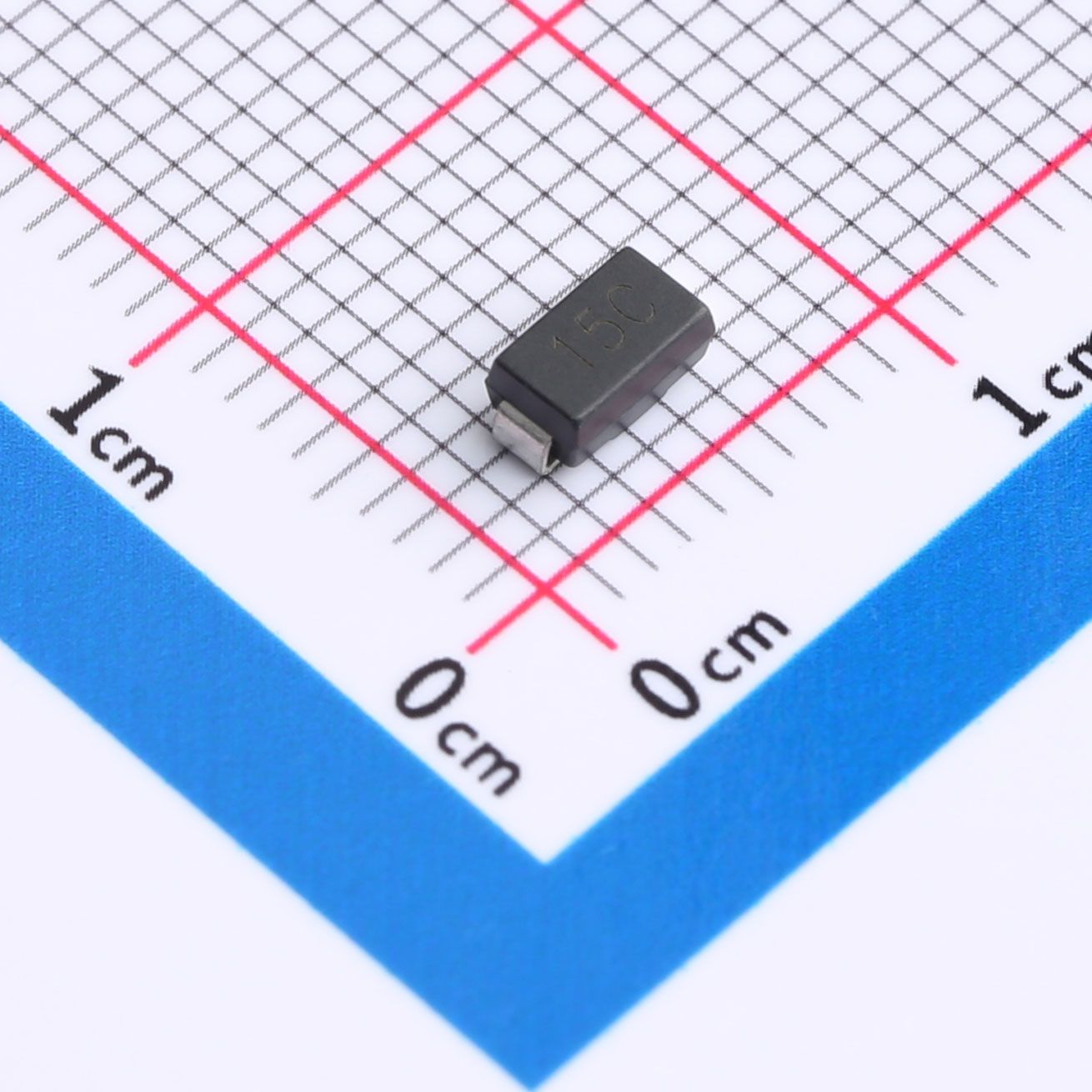

P4SMA15CA TVS Diode SMA(DO-214AC)
Brand: slkor，

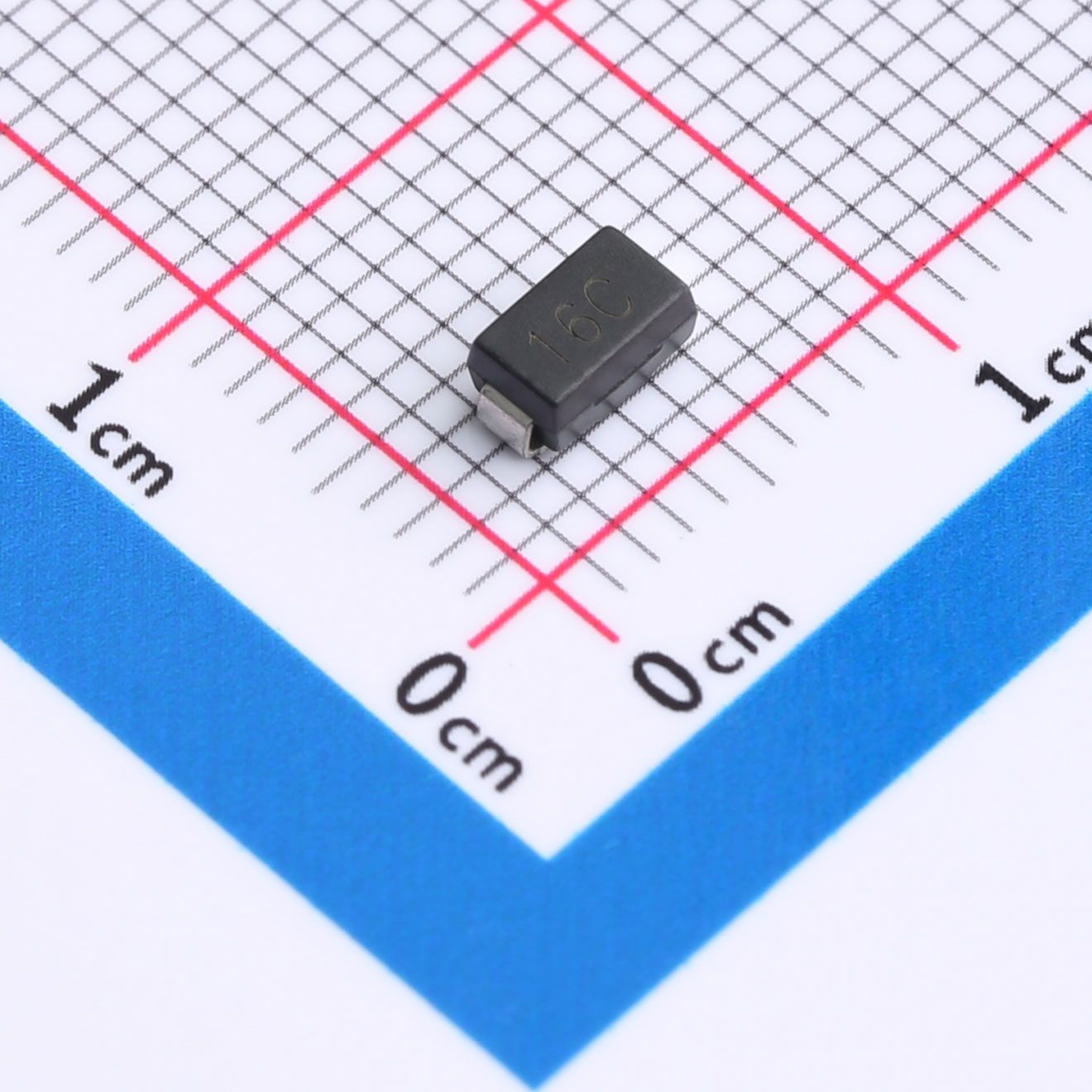

P4SMA16CA TVS Diode SMA(DO-214AC)
Brand: slkor，

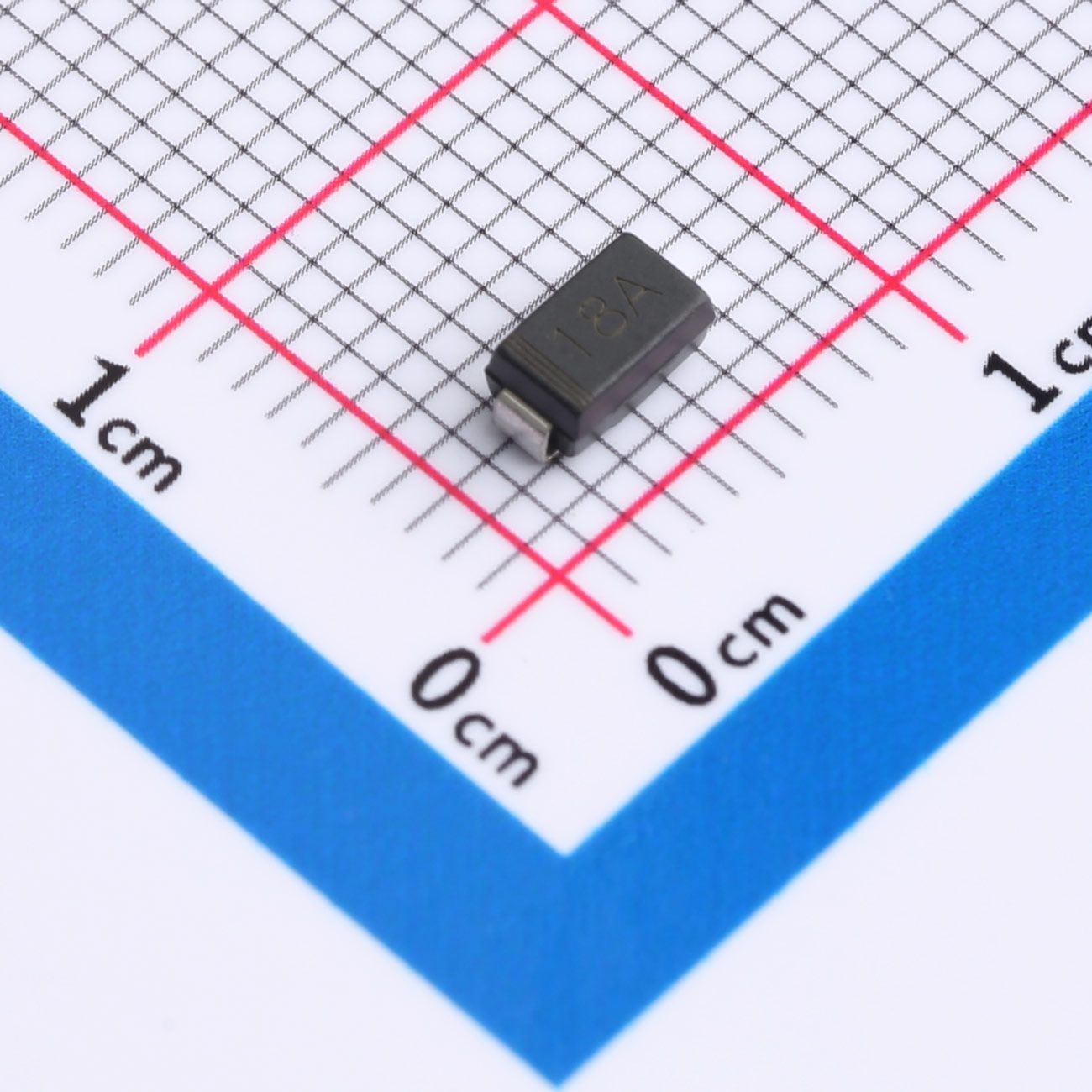

P4SMA18A TVS Diode SMA(DO-214AC)
Brand: slkor，

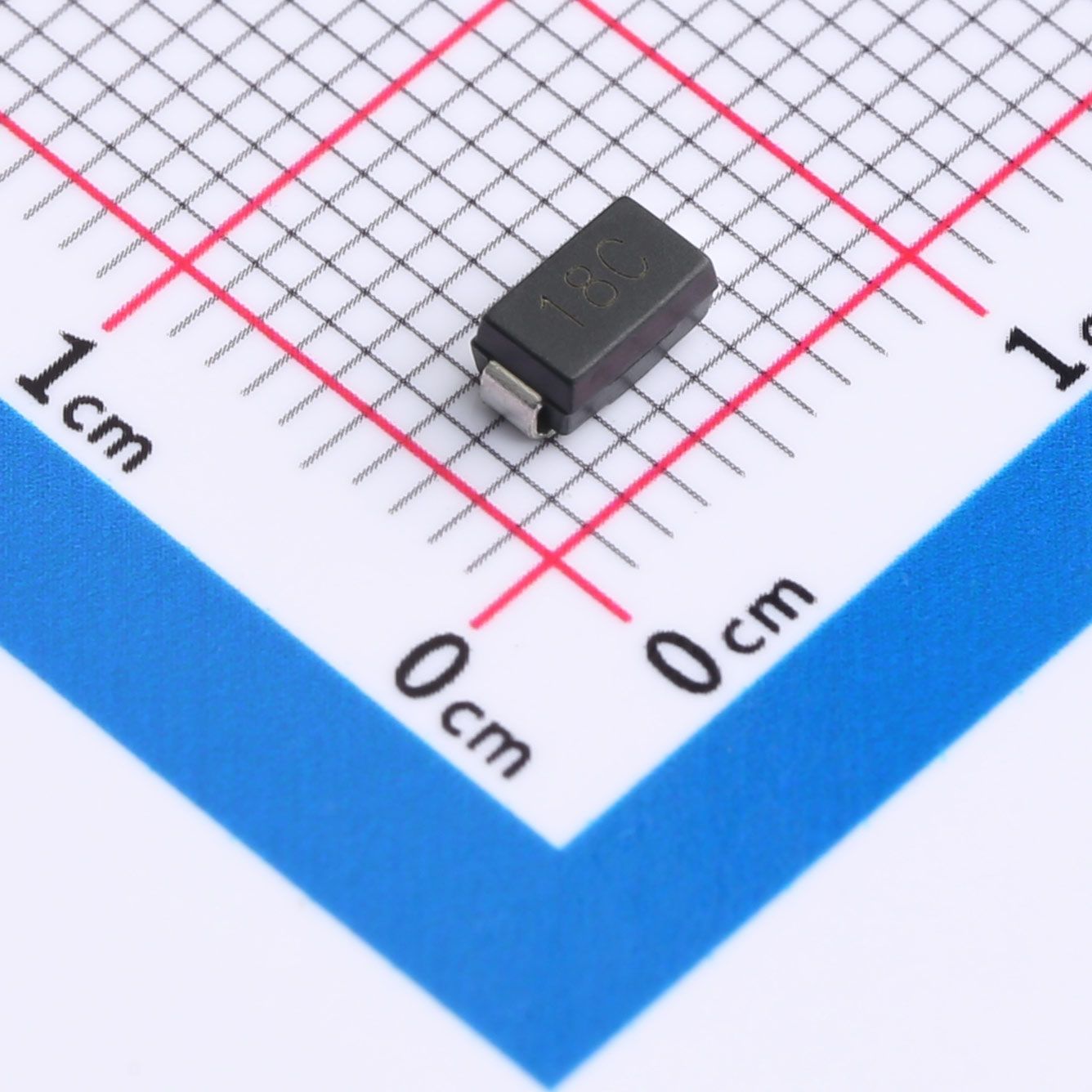

P4SMA18CA TVS Diode SMA(DO-214AC)
