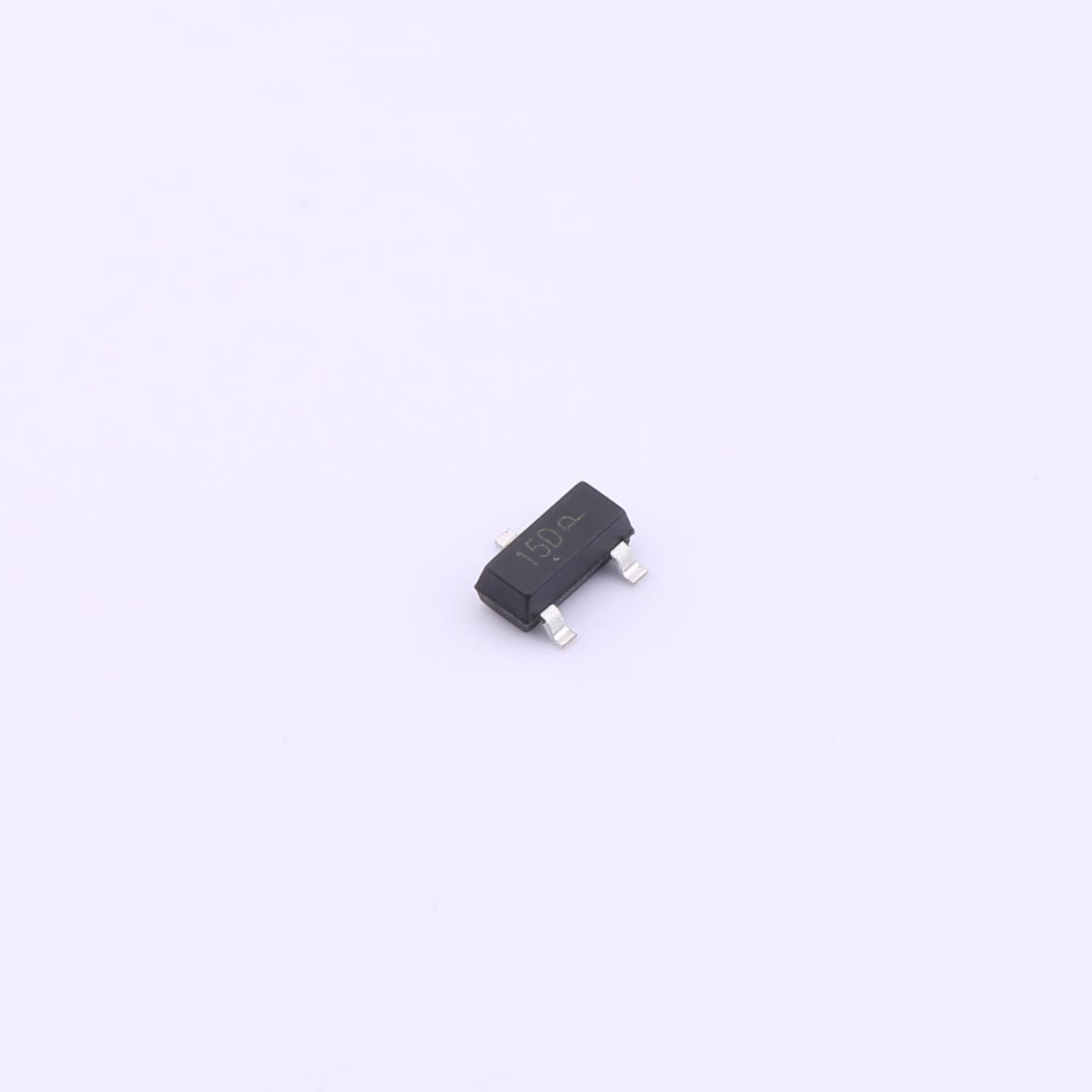

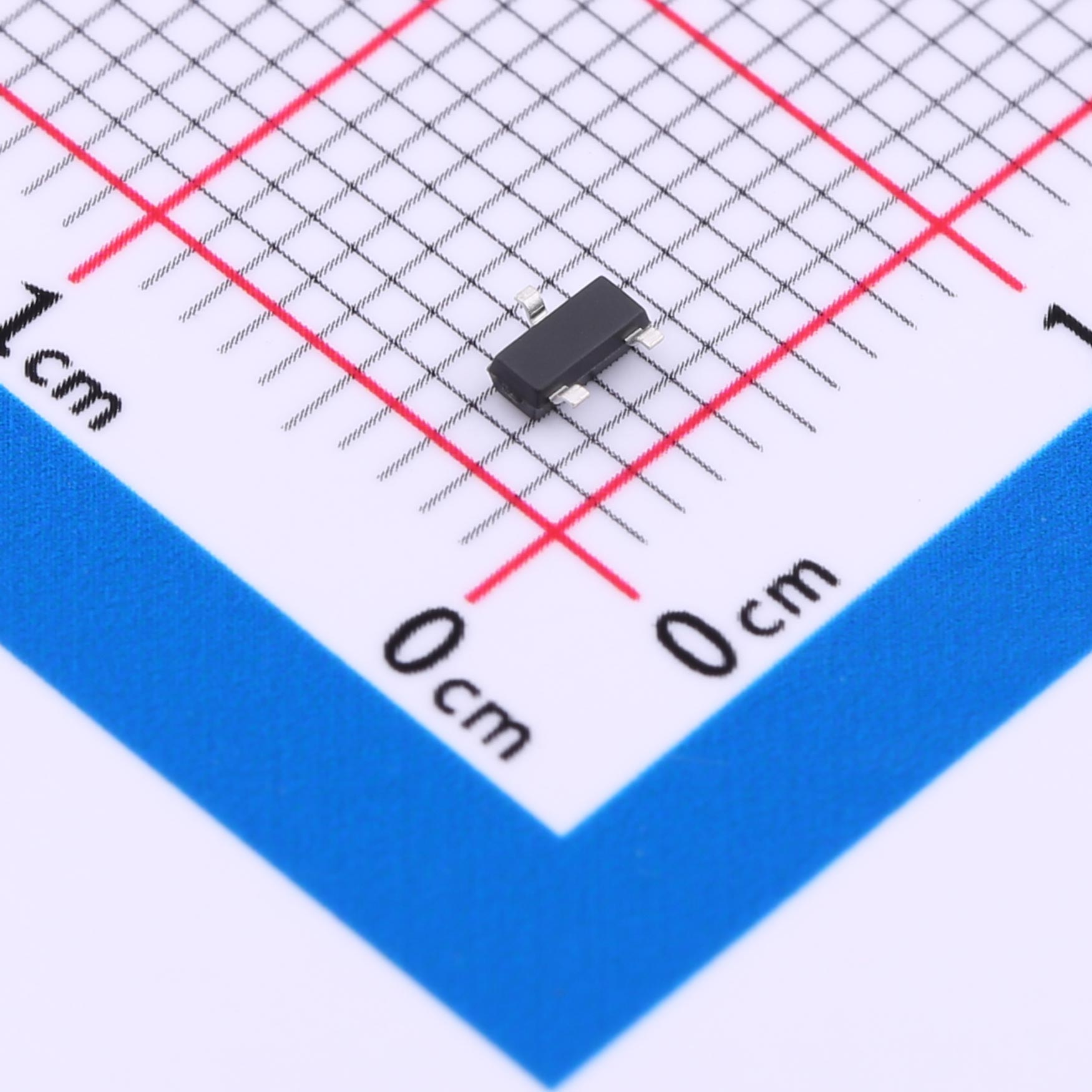

MMBZ15VDLT1G Transient Protection Diode SOT-23
These dual monolithie silicon Zener diodes are designed for applications requiring transientovervoltage protection capability.They are intended for use in voltage and ESD sensitive equipmentsuch as computers,printers,business machines,communication systems,medical equipment and otherapplications.Their dual junction common anode design protects two separate lines using only onepackage.These devices are ideal for situations where board space is at a premium.
Description
These dual monolithie silicon Zener diodes are designed for applications requiring transientovervoltage protection capability.They are intended for use in voltage and ESD sensitive equipmentsuch as computers,printers,business machines,communication systems,medical equipment and otherapplications.Their dual junction common anode design protects two separate lines using only onepackage.These devices are ideal for situations where board space is at a premium.
Features
-
Pb-Free Packages are Available
-
SOr-23 Package Allows Either Two Separate UnidirectionalConfigurations or a Single Bidirectional Configuration
-
Working Peak Reverse Voltage Range-3 V to 26 V
-
Standard Zener Breakdown Voltage Range-5.6 Vto 33 V
-
Peak Power-24 or 40 Watts @1.0 ms(Unidirectional),per Figure 5 Waveform
-
ESD Rating of Class N (exceeding 16 kV)per the HumanBody Model
-
Maximum Clamping Voltage @Peak Pulse Current
-
Low Leakage<5.0_A
-
Flammability Rating UL 94 V-0
Mechanical Data
Case:Void-free, transfer-molded, thermosetting plastic case
Finish: Corrosion resistant finish, easily solderable
Maximum Case Temperature For Soldering Purpose:260℃ for 10 Seconds Package designed for optimal automated board assembly Small package size for high density applications Available in 8 mm Tape and Reel Use the Device Number to order the 7 inch/3,000 unit reel. Replace the “T1” with “T3” in the Device Number to order the13 inch/10,000 unit reel.
