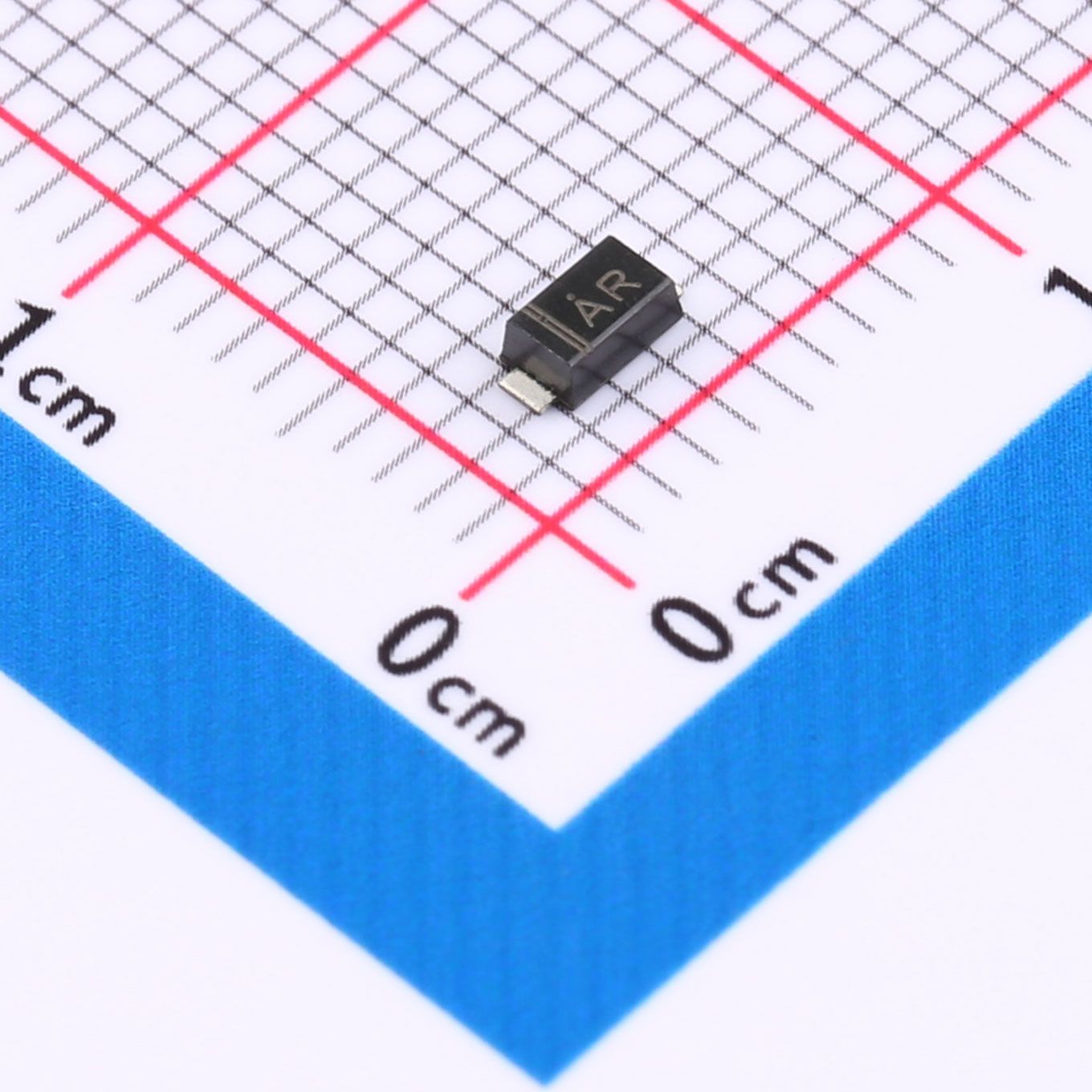

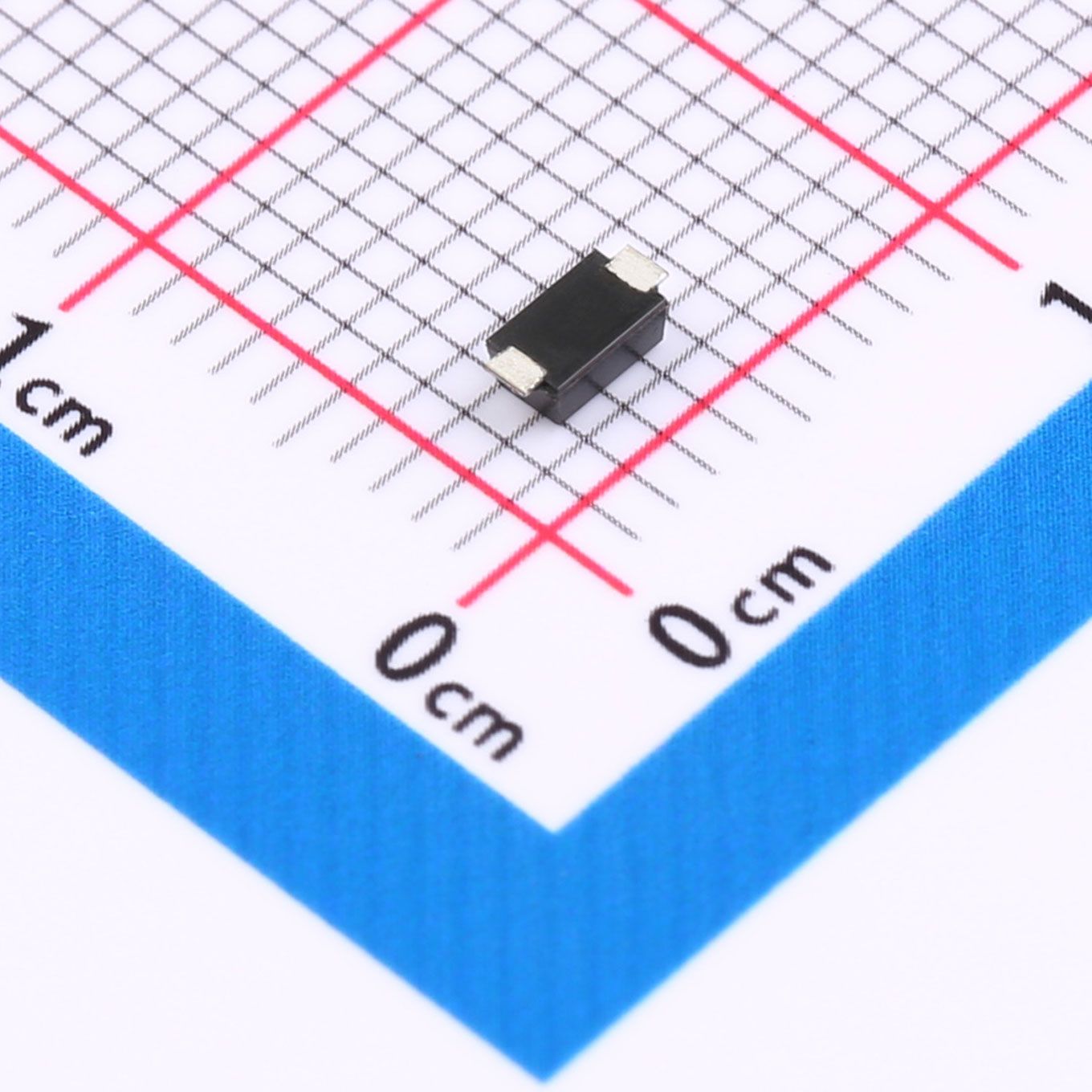

SMF8.0A TVS Diode SOD-123FL
SMF8.0A is unidirectional SOD-123FL surface mount transient voltage suppressor with 200W peak pulse power, designed to protect PCB circuits from ESD, surge and unexpected transient overvoltage for various compact electronic devices.
Description
SMF8.0A is unidirectional SOD-123FL surface mount transient voltage suppressor with 200W peak pulse power, designed to protect PCB circuits from ESD, surge and unexpected transient overvoltage for various compact electronic devices.
Features
- Peak pulse power:200W @10/1000μs surge waveform
- VRWM=8.0V, VBR:8.89~9.83V@1mA, IR≤25μA@8.0V, VC=13.6V@14.7A
- Low surge resistance and excellent clamping capability
- Ultra-thin low-profile SOD-123FL package
- Supports 260℃/10s high-temperature reflow soldering
- Repetition duty cycle up to 0.01%
Our advantages
- Compact small outline saves PCB layout space
- Superior clamping performance effectively suppress voltage spikes
- Low leakage reduces standby power loss
- Stable electrical property for long-term operation
- Compatible with fully automatic SMT mounting
Mechanical Data
- Package:SOD-123FL molded plastic package

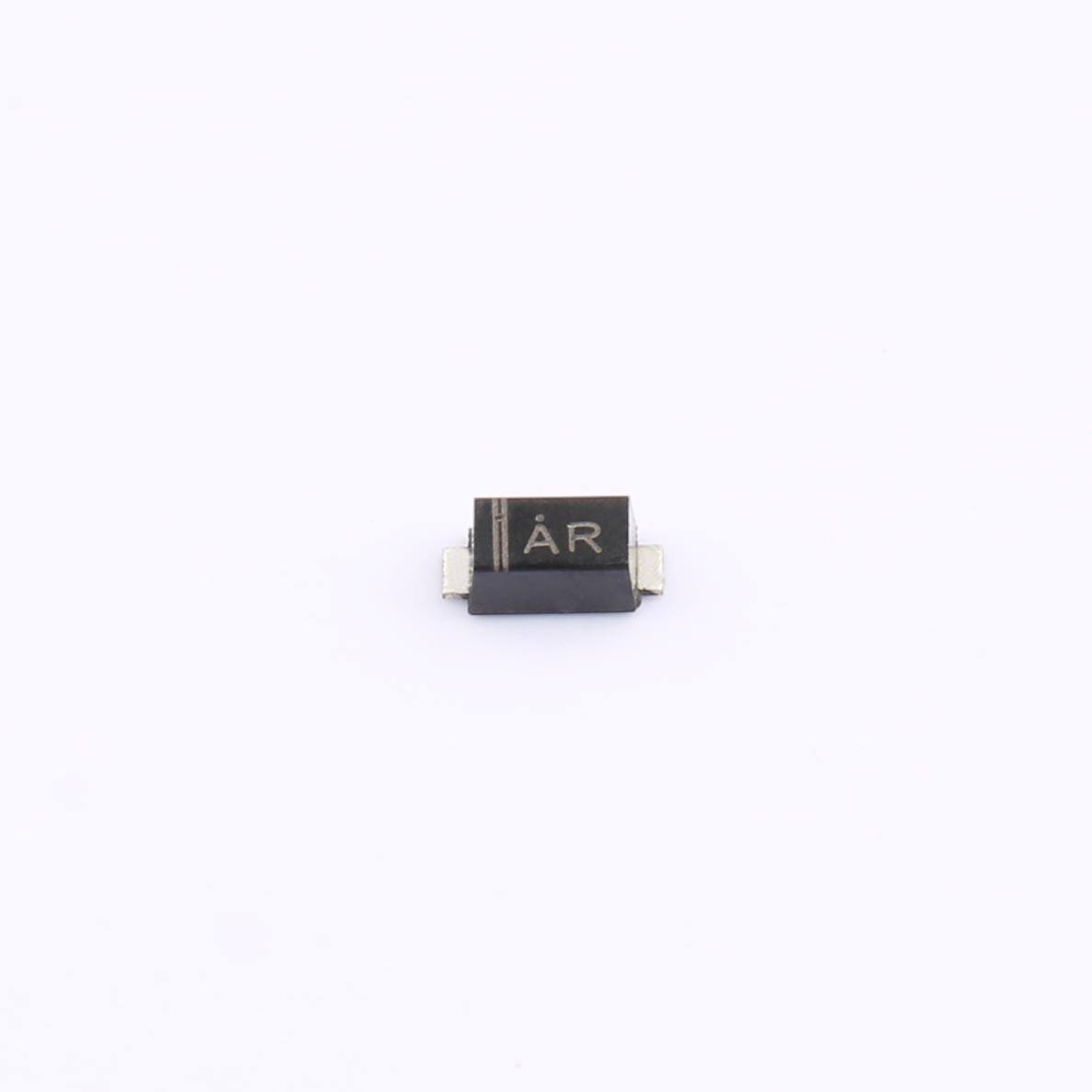

- Color band marks cathode terminal
- Single weight:0.02g
- Operating & storage temperature: -55℃ ~ +150℃
Applications
Mobile electronics, wearable devices, IoT modules, I/O interfaces, consumer digital products, communication circuit boards, small power supply circuits
