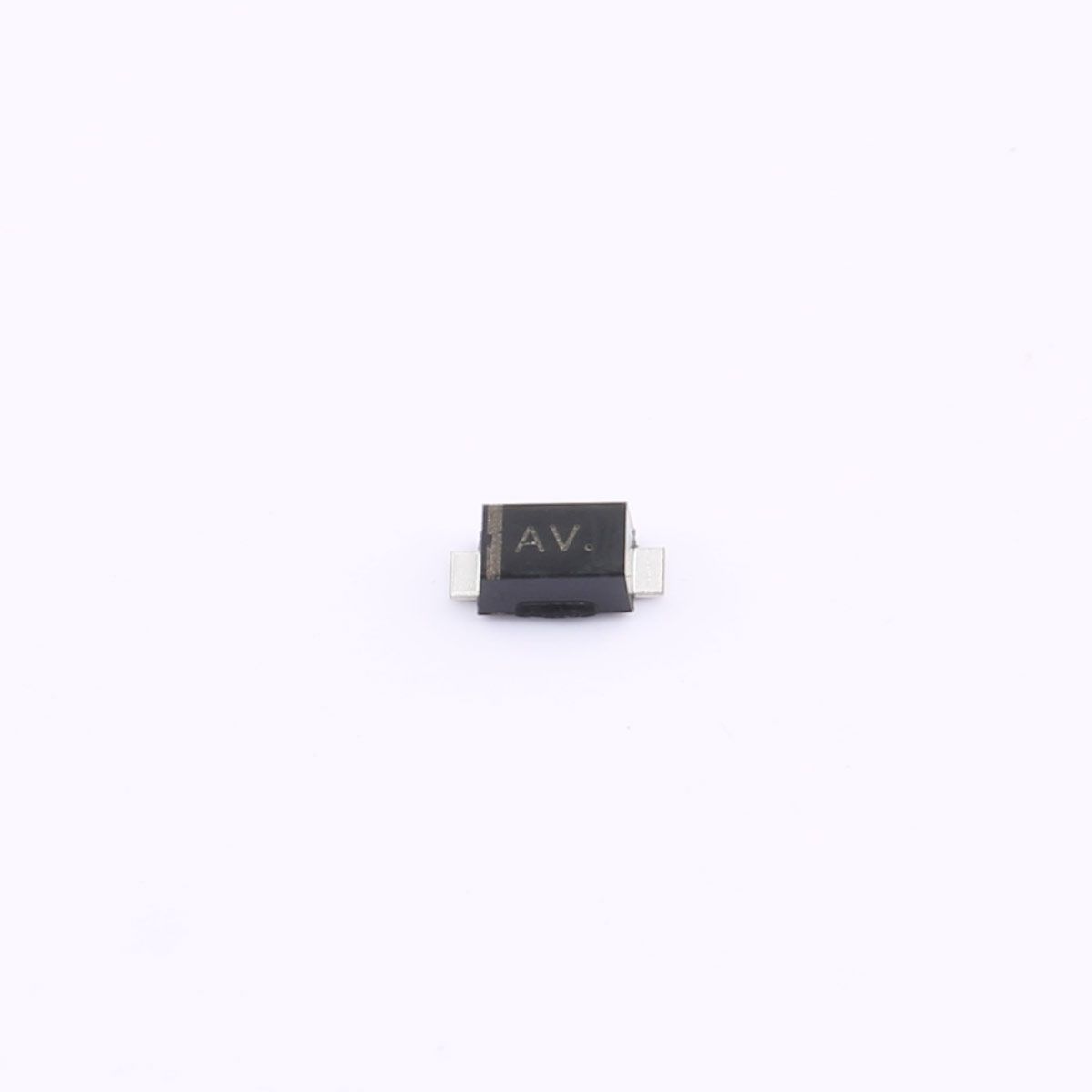

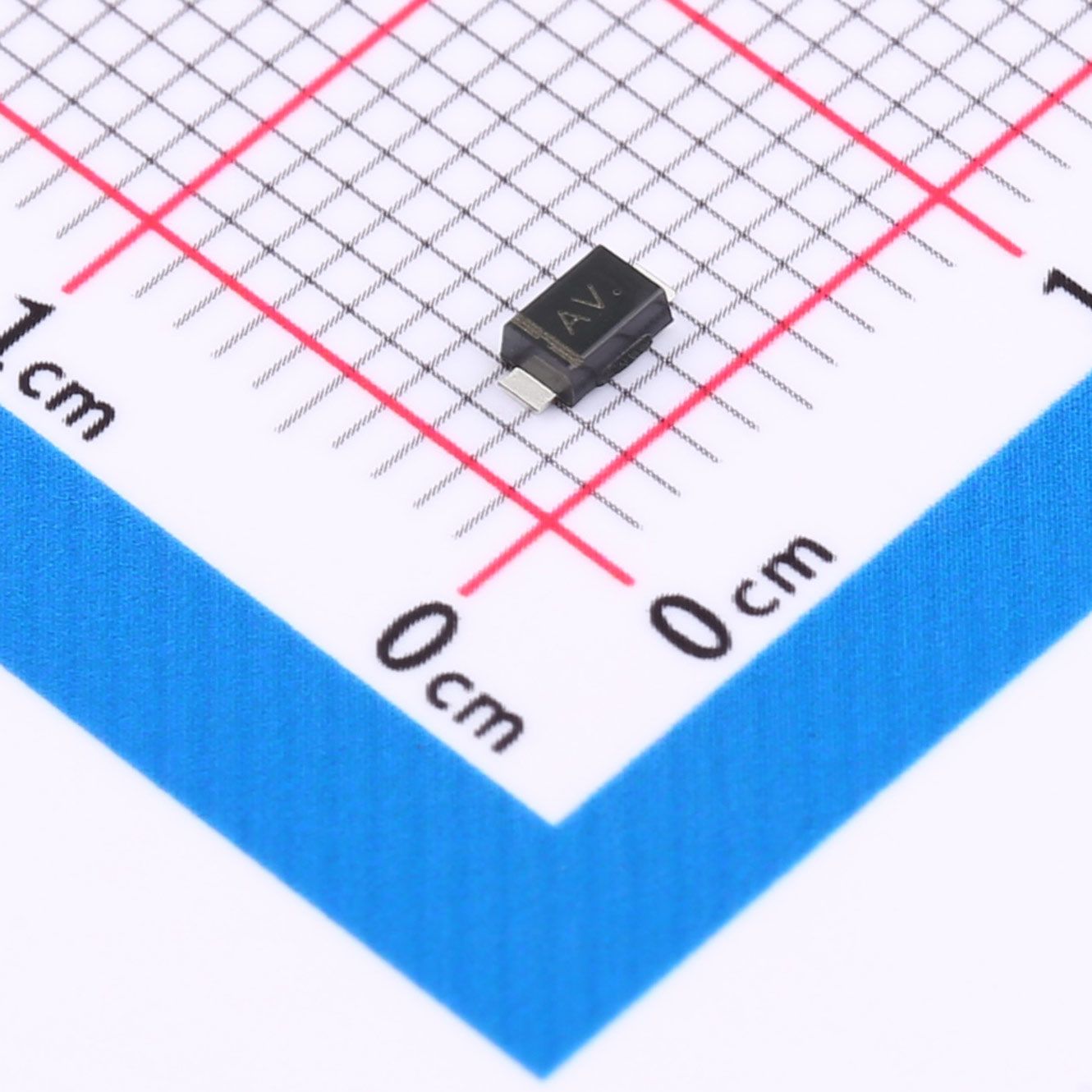

SMF9.0A TVS Diode SOD-123FL
SMF9.0A is unidirectional surface-mount TVS diode with SOD-123FL package and 200W peak pulse power, designed to protect electronic circuits against ESD, surge and transient overvoltage for compact electronic products.
Description
SMF9.0A is unidirectional surface-mount TVS diode with SOD-123FL package and 200W peak pulse power, designed to protect electronic circuits against ESD, surge and transient overvoltage for compact electronic products.
Features
- 200W peak pulse power at 10/1000μs waveform
- VRWM=9.0V; VBR:10.0~11.1V@1mA; IR≤5μA@9.0V; VC=15.4V@13.0A
- Low surge impedance and outstanding clamping performance
- Low-profile small SOD-123FL outline
- Able to endure 260℃/10s terminal soldering
- Repetition duty cycle up to 0.01%
Our advantages
- Mini size saves PCB layout space for miniaturized equipment
- Excellent clamping quickly suppresses abnormal voltage spikes
- Ultra-low leakage cuts idle power consumption
- Stable thermal property for wide temperature environment
- Standard package fits automatic SMT mass production
Mechanical Data
- Package: SOD-123FL molded plastic encapsulation
- Color stripe marks cathode terminal
- Single weight:0.02g
- Operating & storage temperature: -55℃ ~ +150℃
Applications
Wearable gadgets, smart home modules, IoT devices, mobile peripherals, I/O ports, small power boards, consumer portable electronics
