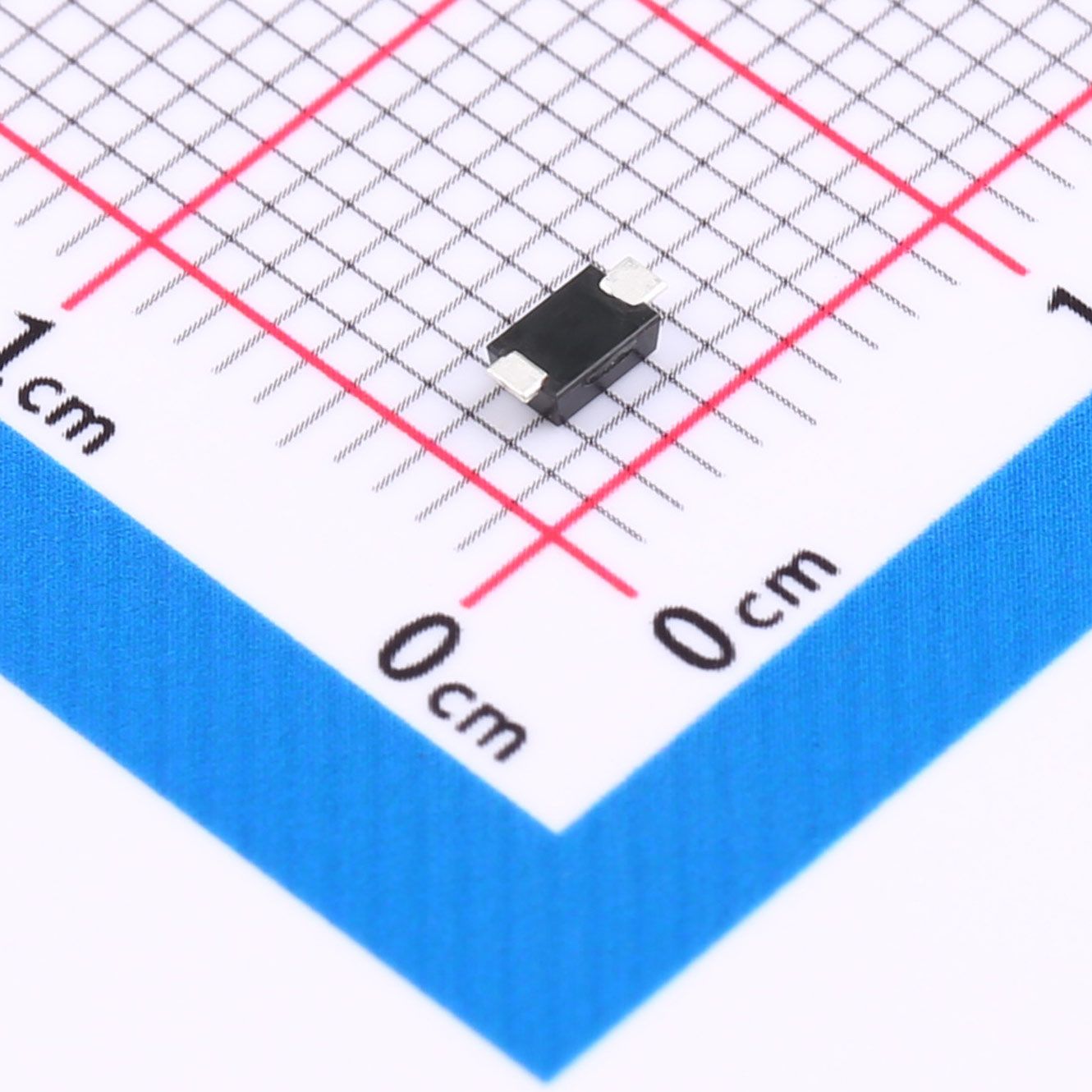

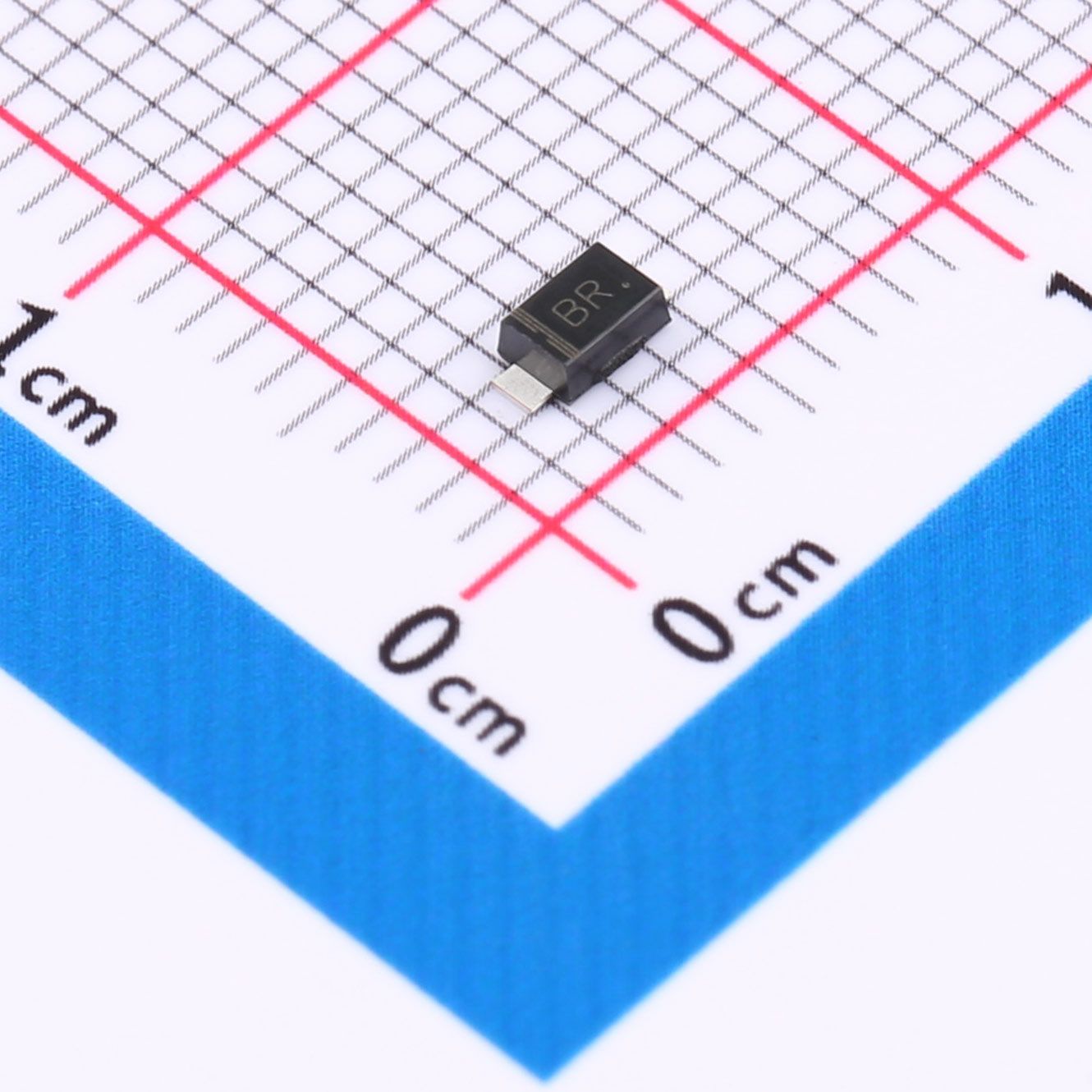

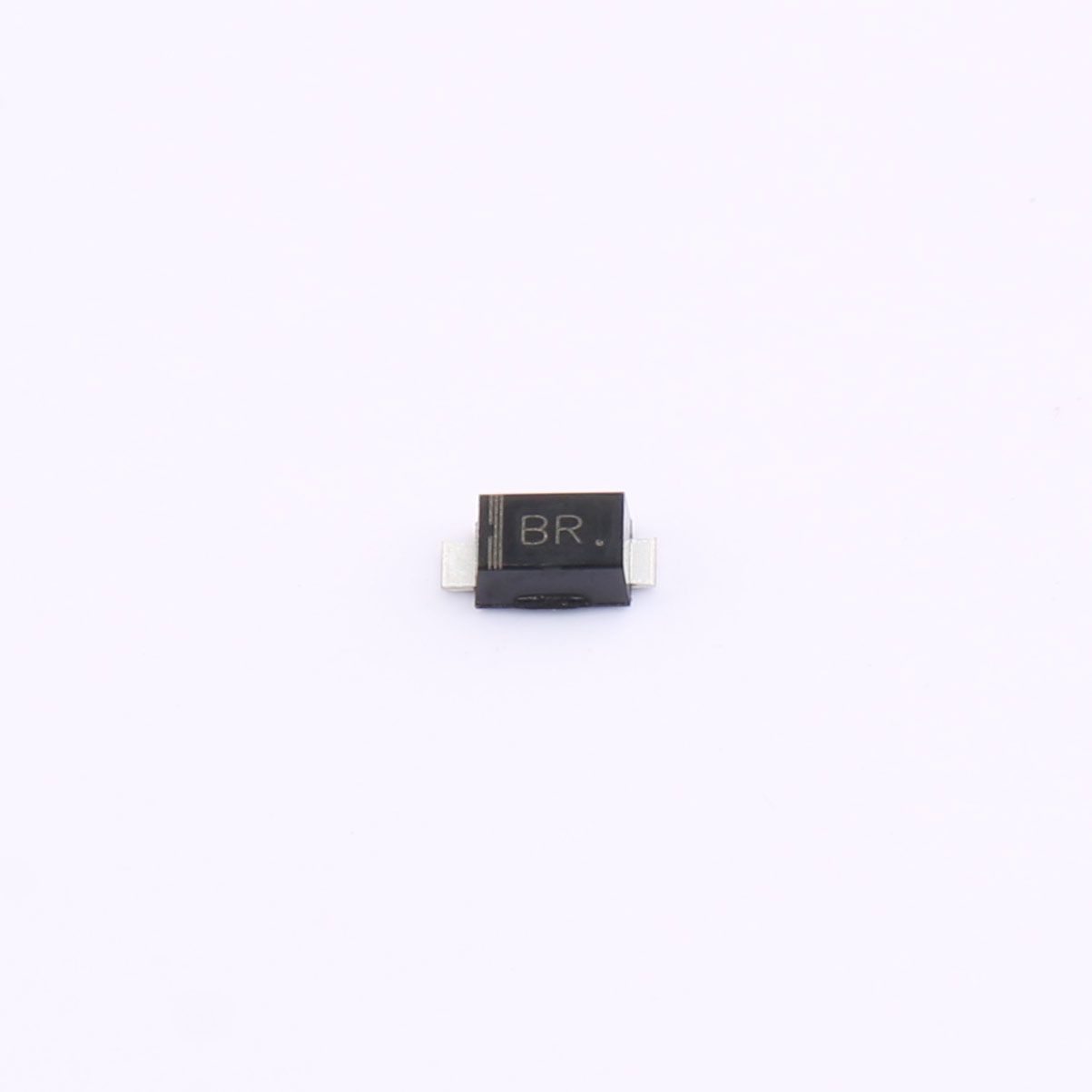

SMF17A TVS Diode SOD-123FL
SMF17A is unidirectional SOD-123FL surface mount TVS diode with 200W peak pulse power, developed to protect PCB circuits against ESD, surge pulse and unexpected transient overvoltage for compact portable electronics.
Description
SMF17A is unidirectional SOD-123FL surface mount TVS diode with 200W peak pulse power, developed to protect PCB circuits against ESD, surge pulse and unexpected transient overvoltage for compact portable electronics.
Features
- 200W peak power at 10/1000μs surge waveform
- VRWM=17V; VBR:18.9~20.9V@1mA; IR≤1μA@17V; VC=27.6V@7.2A
- Low surge resistance and outstanding clamping performance
- Ultra-thin low-profile SOD-123FL package
- Supports 260℃/10s high-temperature reflow soldering
- 0.01% repetitive duty cycle
Our advantages
- Tiny footprint saves PCB layout space for miniaturized products
- Fast clamping suppresses instantaneous voltage spikes effectively
- Ultra-low leakage reduces standby power loss
- Wide operating temperature range for harsh working environment
- Standard package fully compatible with automated SMT production
Mechanical Data
- Package: SOD-123FL molded plastic housing
- Color band marks cathode terminal
- Single weight: 0.02g
- Operating & storage temperature: -55℃ ~ +150℃
Applications
Wearable devices, IoT modules, smart wearable products, mobile peripherals, I/O interfaces, small power supply boards, consumer compact electronics
