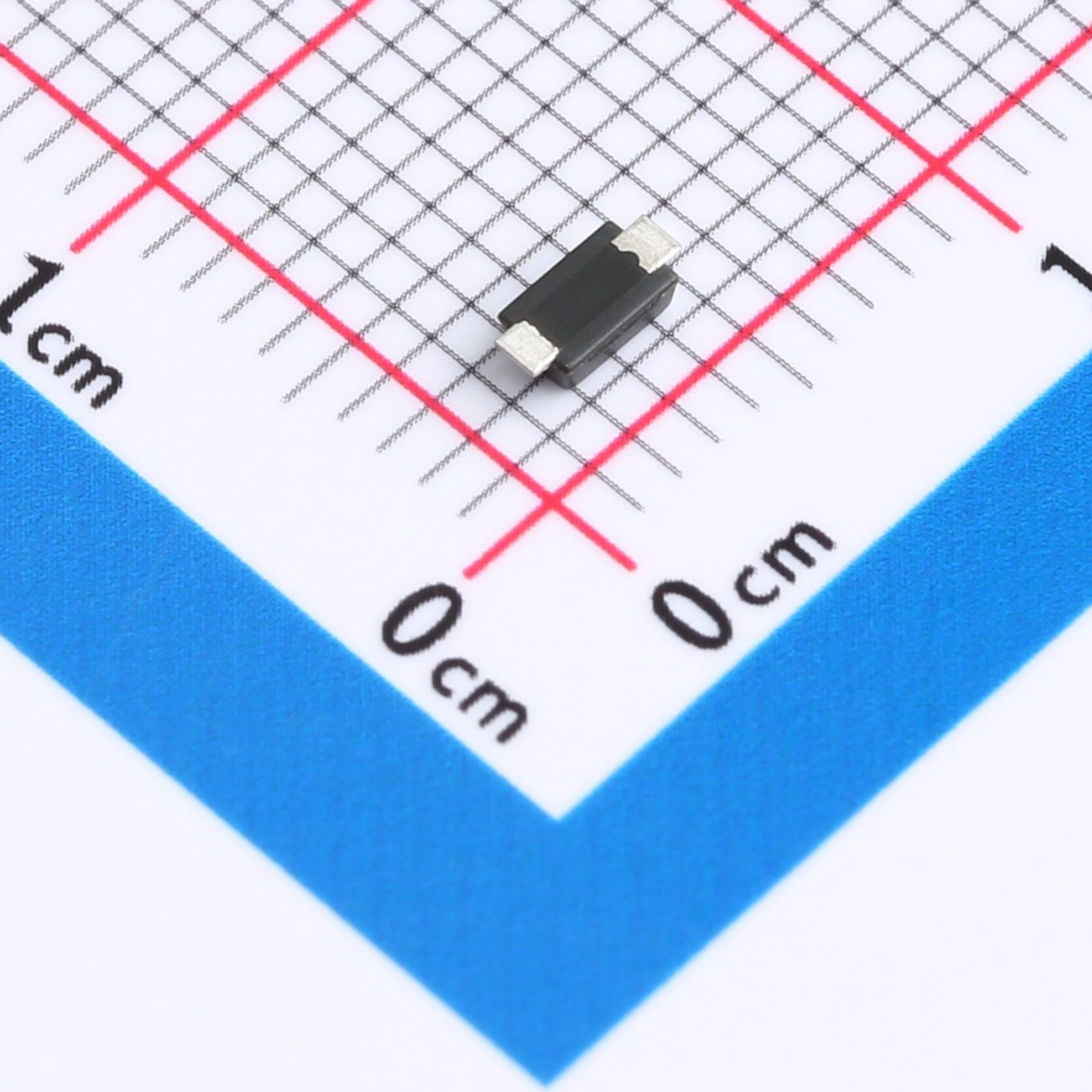

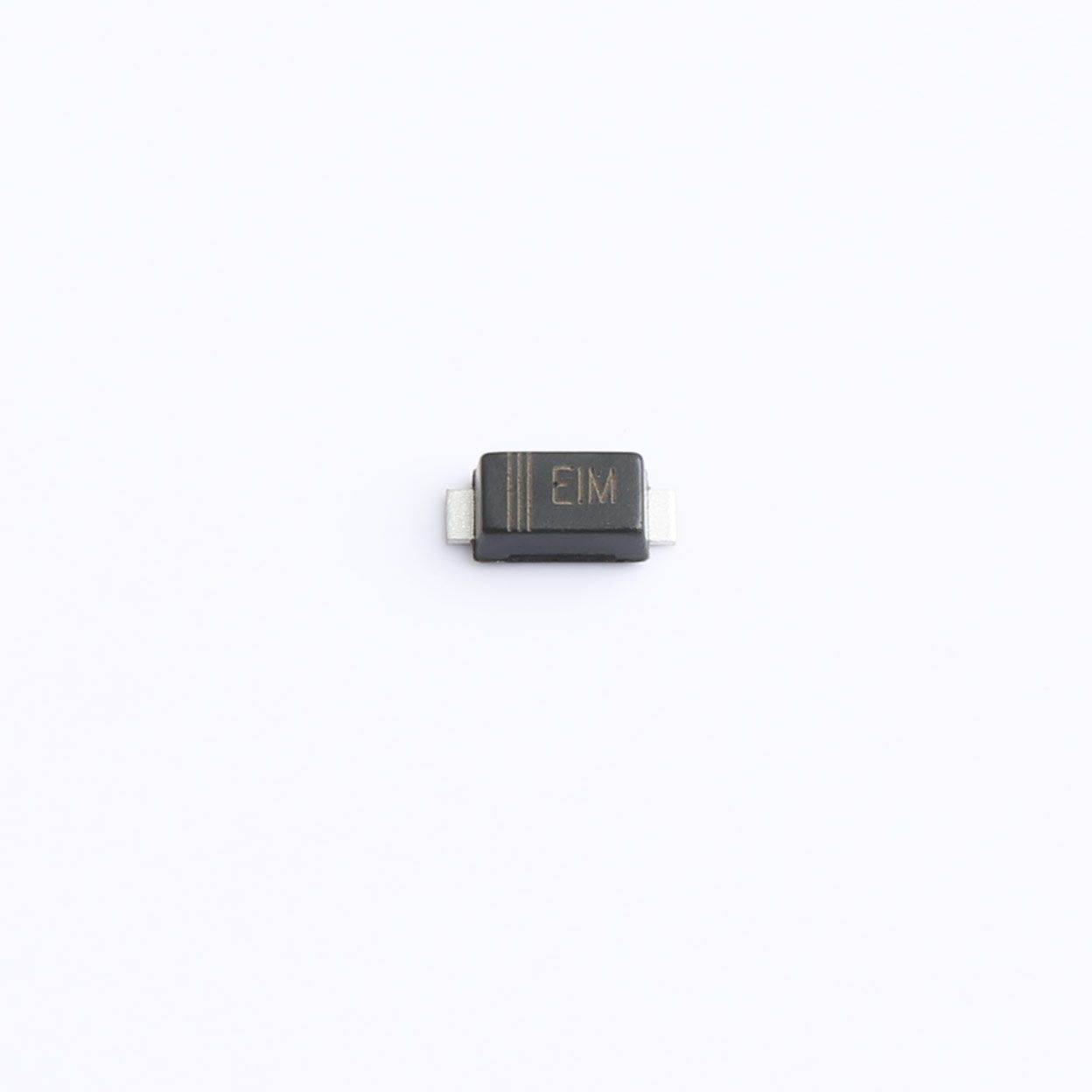

M4SMF15A TVS Diode SOD-123FL
M4SMF15A is a unidirectional surface mount TVS diode in SOD-123FL package. It delivers 4500W peak pulse power under 8/20μs surge waveform, which is widely used to protect electronic circuits against ESD, lightning and transient overvoltage.
Description
M4SMF15A is a unidirectional surface mount TVS diode in SOD-123FL package. It delivers 4500W peak pulse power under 8/20μs surge waveform, which is widely used to protect electronic circuits against ESD, lightning and transient overvoltage.
Features
- 4500W peak pulse power at 8/20μs surge waveform
- VRWM=15V; VBR: 16.7V~18.5V @ 1mA; IR≤1μA @ 15V; VC=26V @ 220A
- Ultra-fast response time below 1ps and low inductance design
- Excellent transient voltage clamping performance
- Low-profile SMD package suitable for surface mount assembly
Our advantages
- High 4500W surge handling capacity for severe surge protection scenarios
- Fast response effectively suppresses sudden voltage spikes
- Compact size saves PCB layout space for miniaturized devices
- Ultra-low leakage current reduces standby power loss
- Standard tape and reel packaging supports automatic SMT production
Mechanical Data
- Package: SOD-123FL, molded plastic with UL94V-0 flame retardant rating
- Color band marks the cathode terminal
- Approximate single weight: 0.07g
- Operating junction temperature: -55℃ ~ +125℃; Storage temperature: -55℃ ~ +150℃
- Meets MSL 1 moisture sensitivity requirements
Applications
Computer systems, household appliances, video input modules, automotive electronics, industrial control systems and communication equipment
