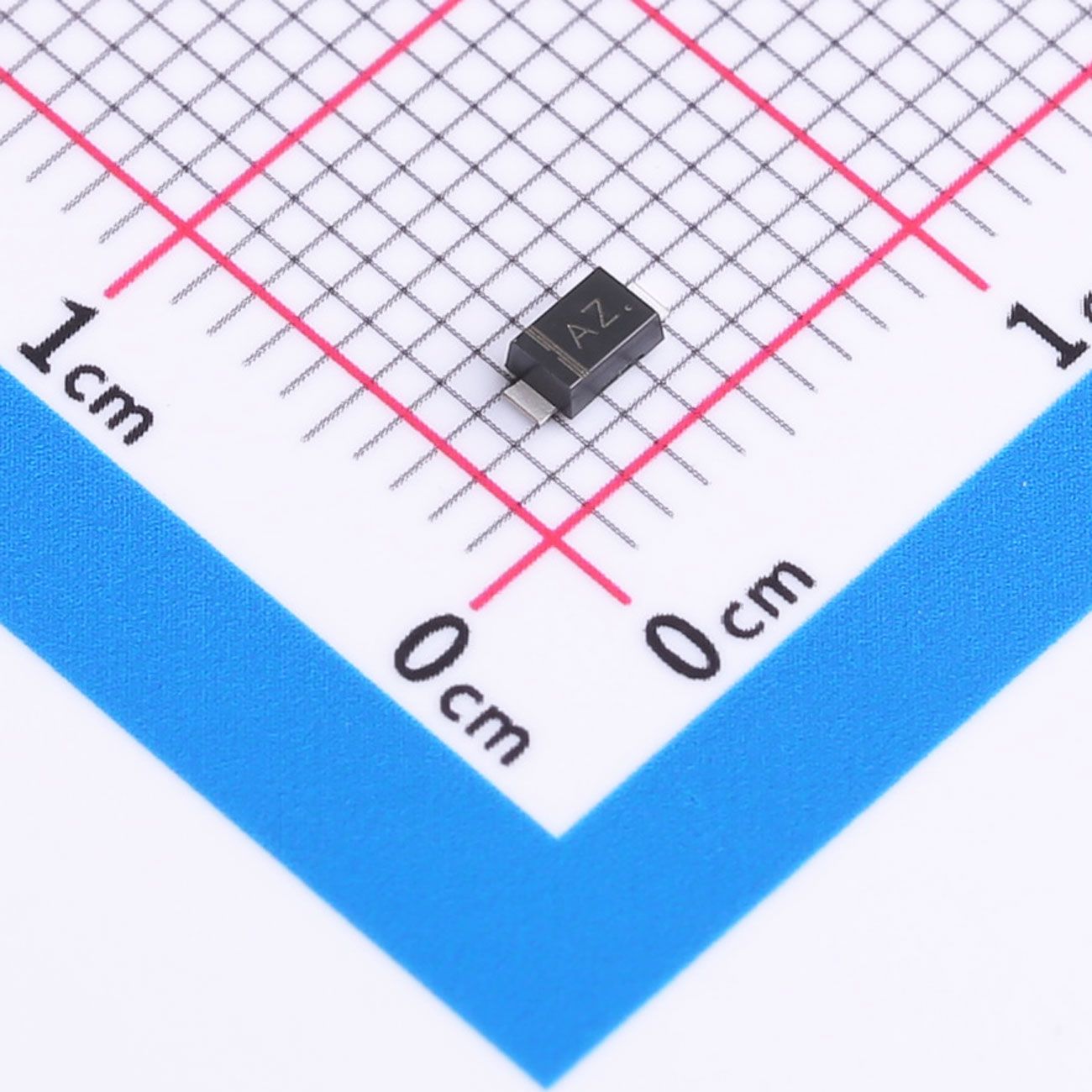

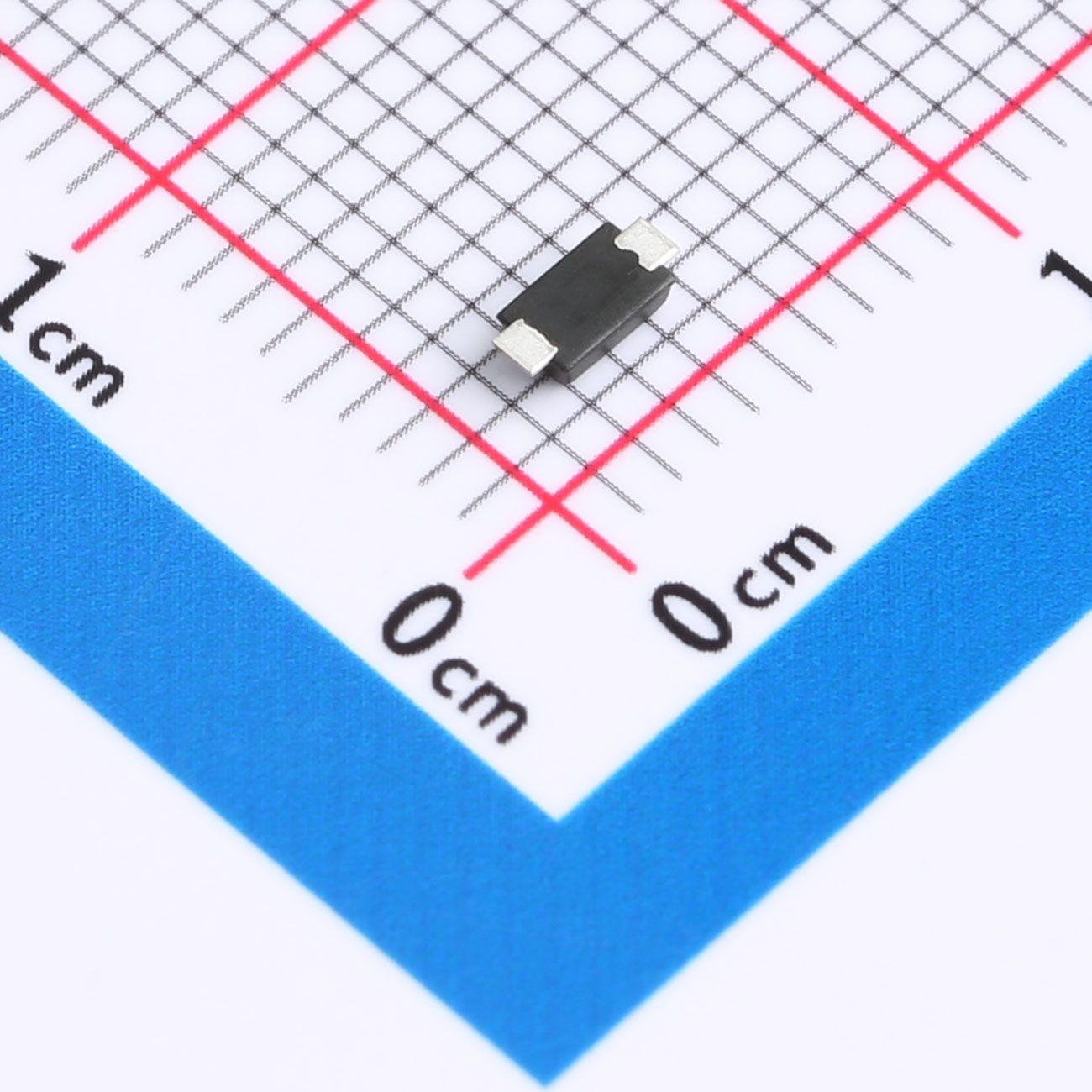

M4SMF18A TVS Diode SOD-123FL
M4SMF18A is a unidirectional surface-mount TVS diode in SOD-123FL package. It features 4500W peak pulse power under 8/20μs surge waveform, which is designed to protect electronic circuits against ESD, lightning surges and transient overvoltage.
Description
M4SMF18A is a unidirectional surface-mount TVS diode in SOD-123FL package. It features 4500W peak pulse power under 8/20μs surge waveform, which is designed to protect electronic circuits against ESD, lightning surges and transient overvoltage.
Features
- 4500W peak pulse power for 8/20μs surge waveform
- Electrical parameters: VRWM=18V, VBR=20~22.1V @ 1mA, IR≤1μA @ 18V, VC=30V @ 160A
- Ultra-fast response time less than 1ps and low inductance design
- Excellent voltage clamping performance
- Low-profile SMD package for surface mount assembly
Our advantages
- High surge power rating provides reliable protection against heavy transient pulses
- Fast response effectively suppresses sudden voltage spikes
- Compact size saves PCB space for miniaturized electronic devices
- Ultra-low leakage current reduces standby power consumption
- Standard tape and reel packaging supports automatic high-speed SMT production
Mechanical Data
- Package: SOD-123FL, molded plastic with UL94V-0 flame retardant rating
- Color band marks the cathode terminal
- Approximate single weight: 0.07g
- Operating junction temperature: -55℃ ~ +125℃; Storage temperature: -55℃ ~ +150℃
- Meets MSL 1 moisture sensitivity requirements
Applications
Computer systems, household appliances, video input modules, automotive electronics, industrial control equipment and communication devices
Name
Title
Description
Datasheet
Support

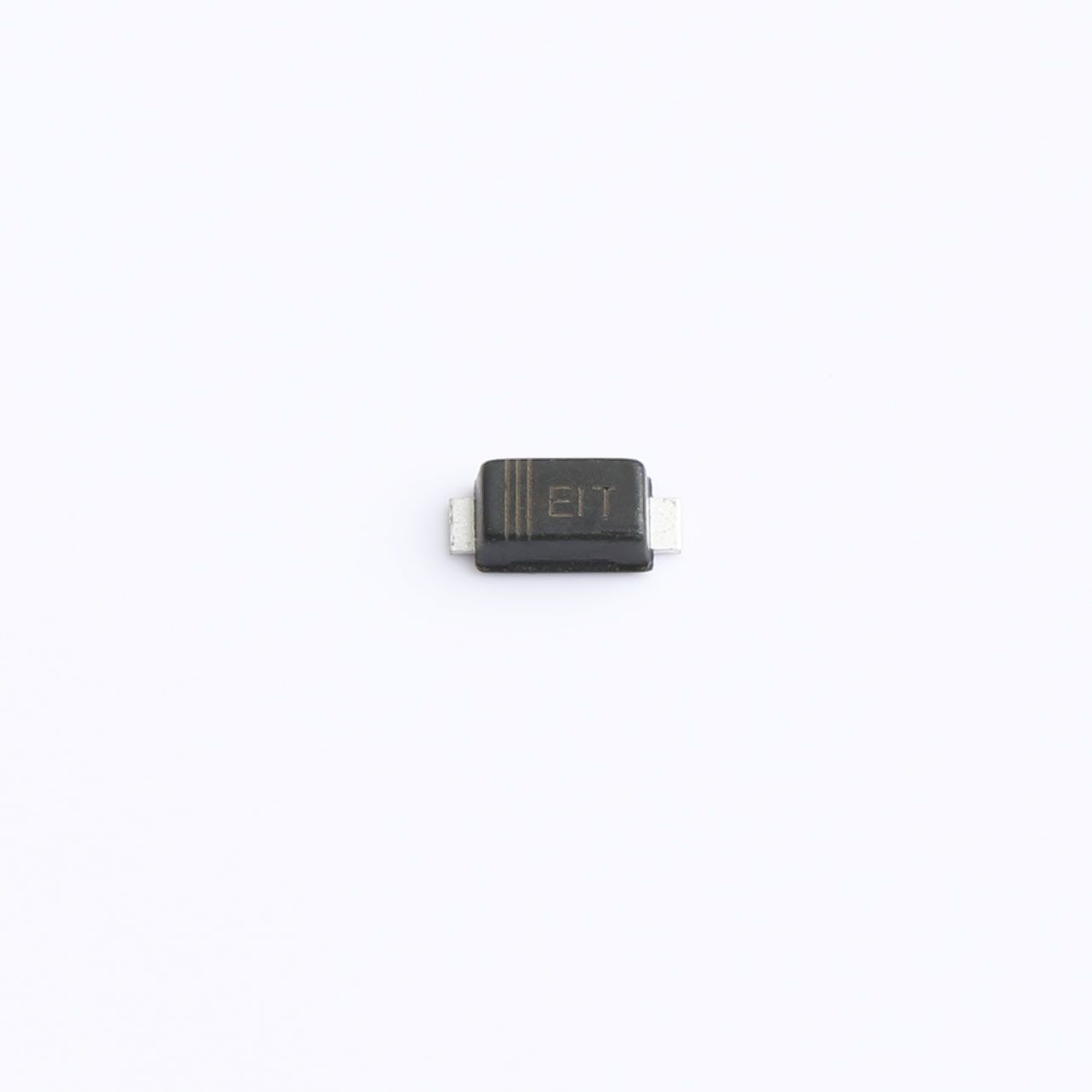

SMF11A Transient Protection Diode SOT-23
Brand: slkor，
SMA6J5.0A TVS Diode SMA
Brand: slkor，
SMA6J5.0CA TVS Diode SMA
Brand: slkor，

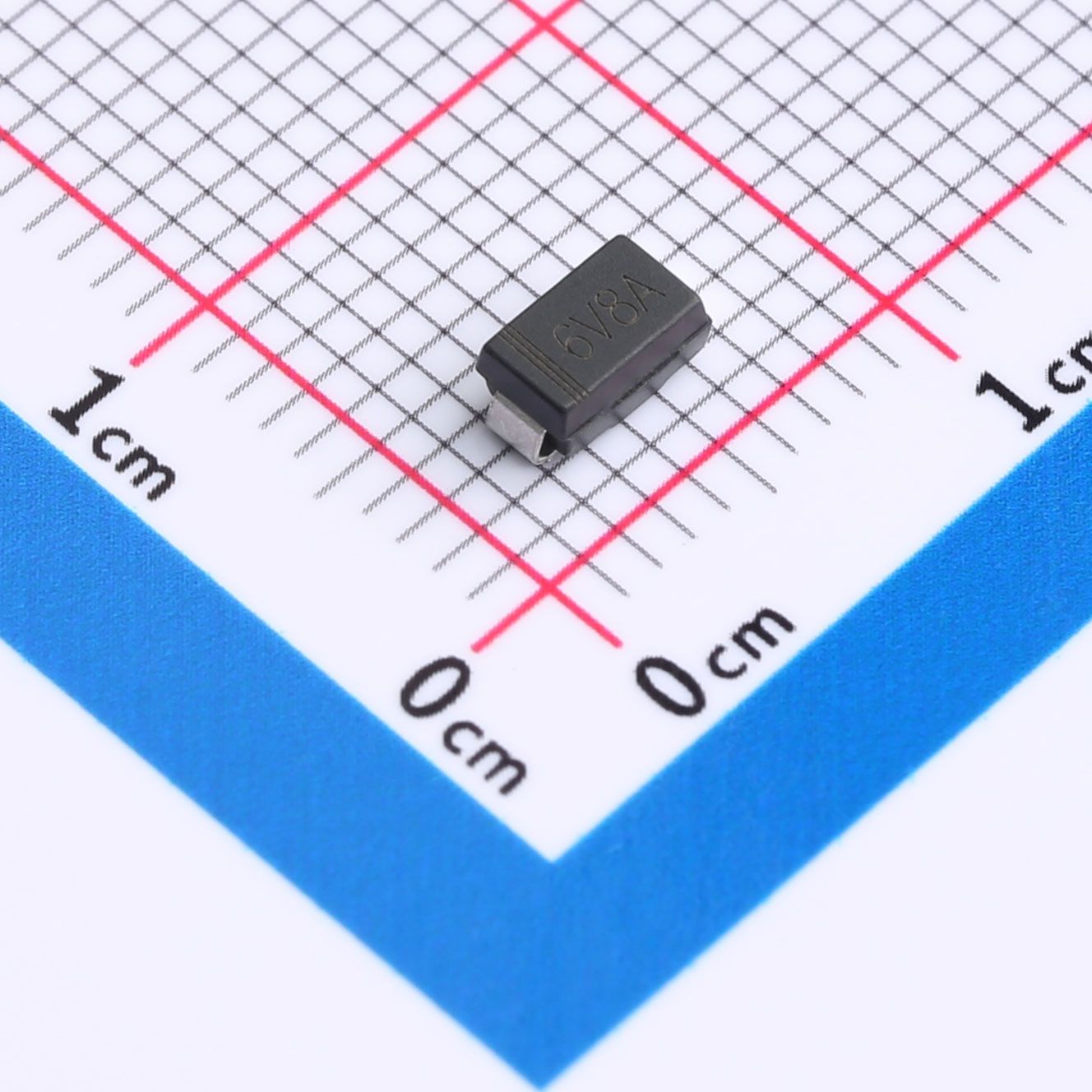

P4SMA6.8A TVS Diode SMA(DO-214AC)
Brand: slkor，

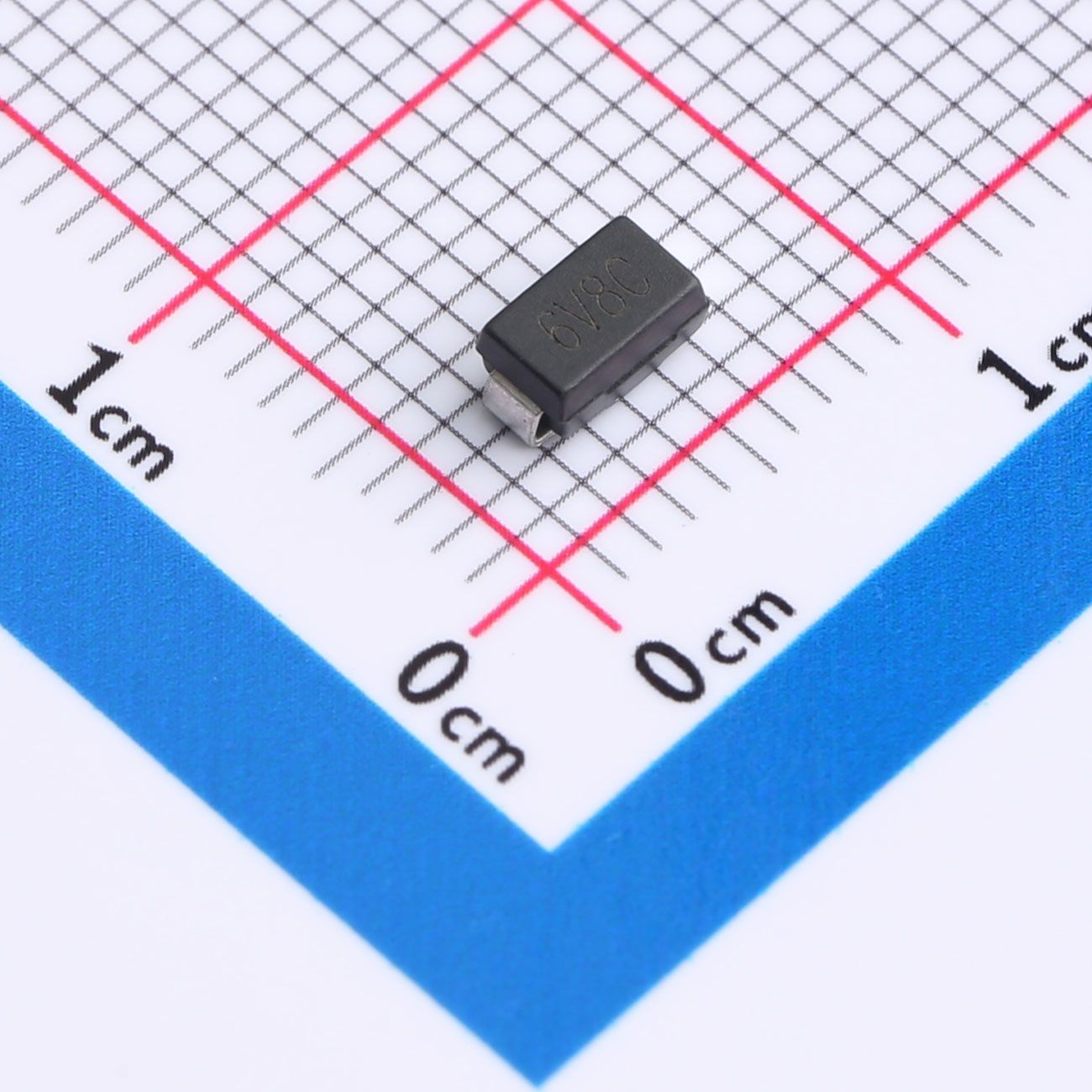

P4SMA6.8CA TVS Diode SMA(DO-214AC)
Brand: slkor，

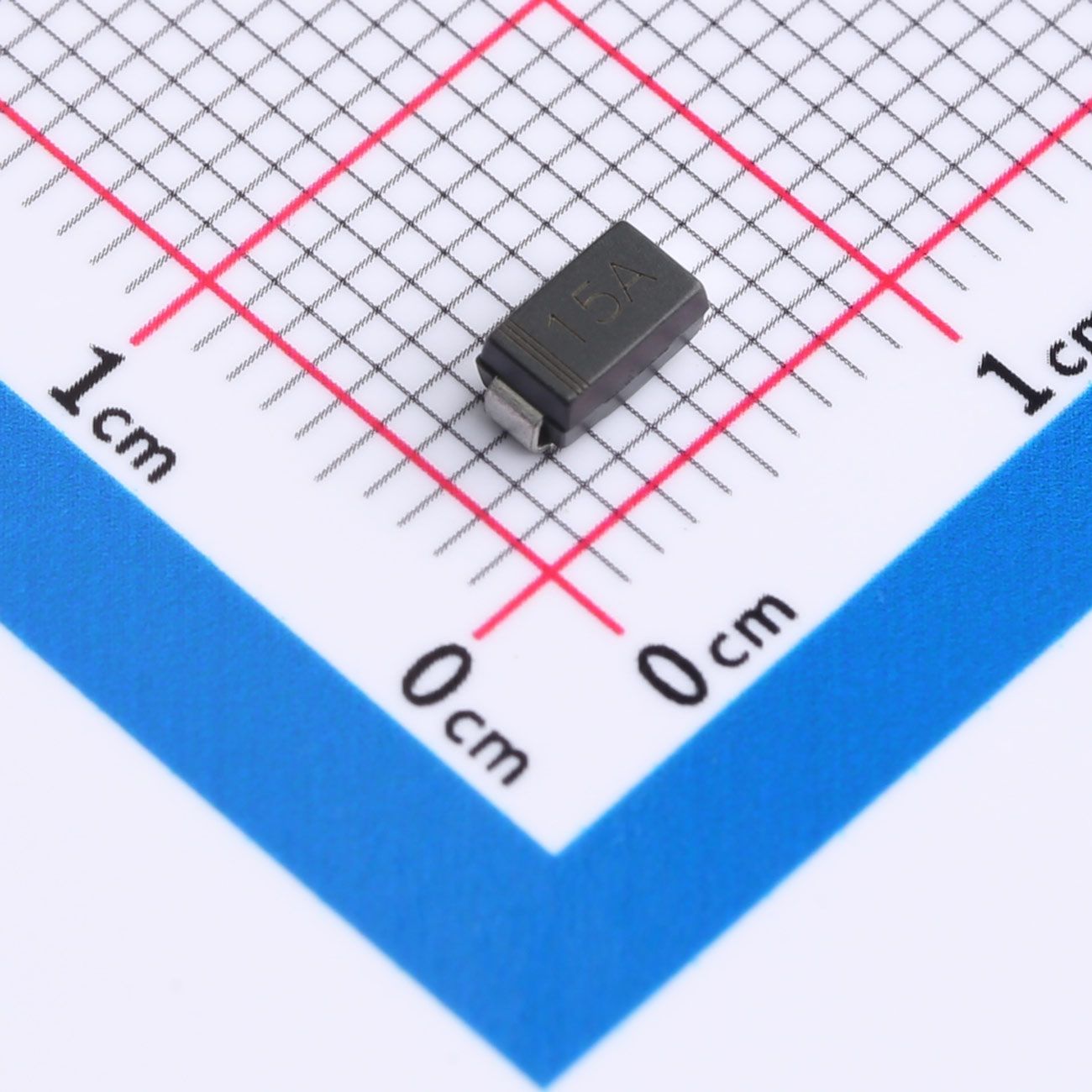

P4SMA15A TVS Diode SMA(DO-214AC)
Brand: slkor，

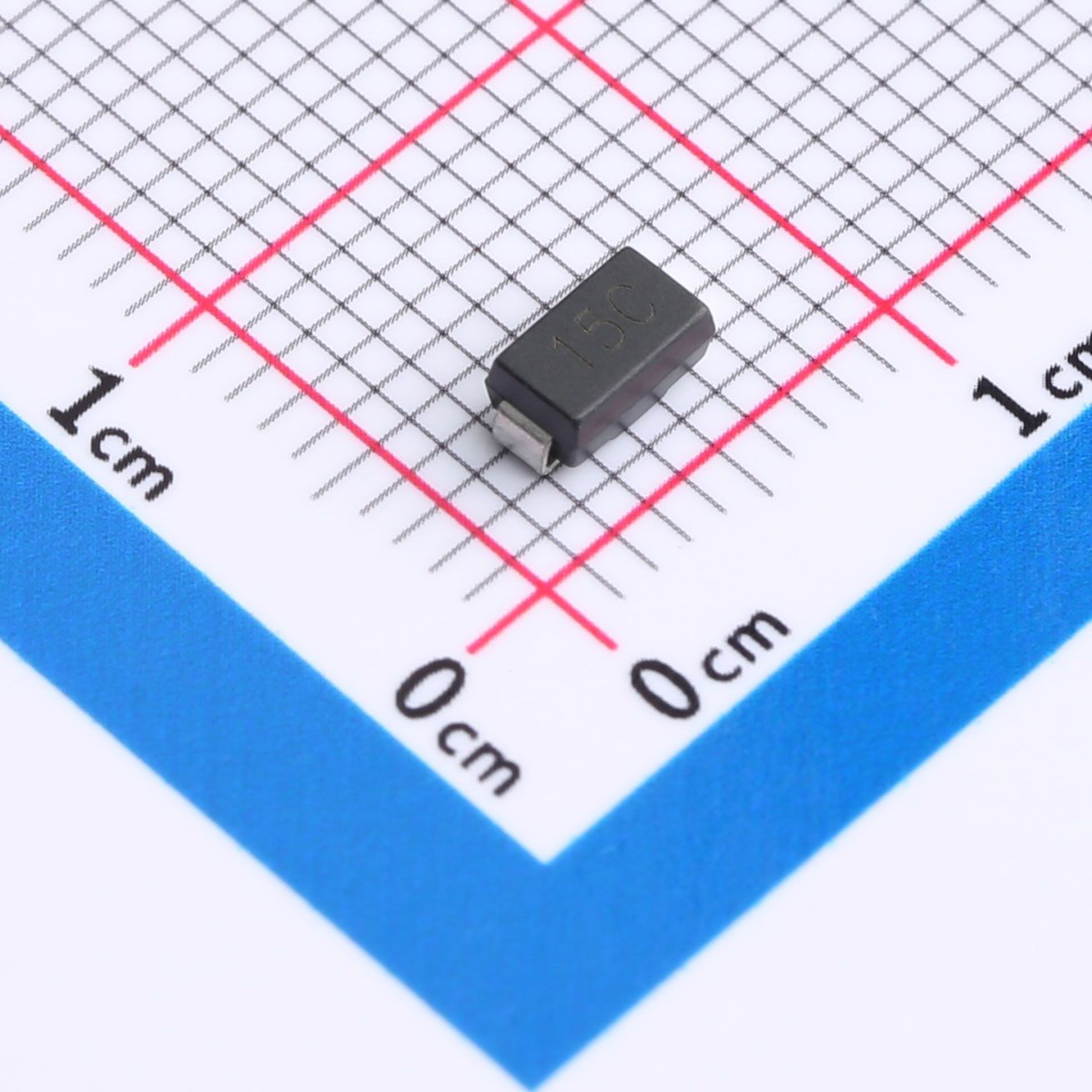

P4SMA15CA TVS Diode SMA(DO-214AC)
Brand: slkor，

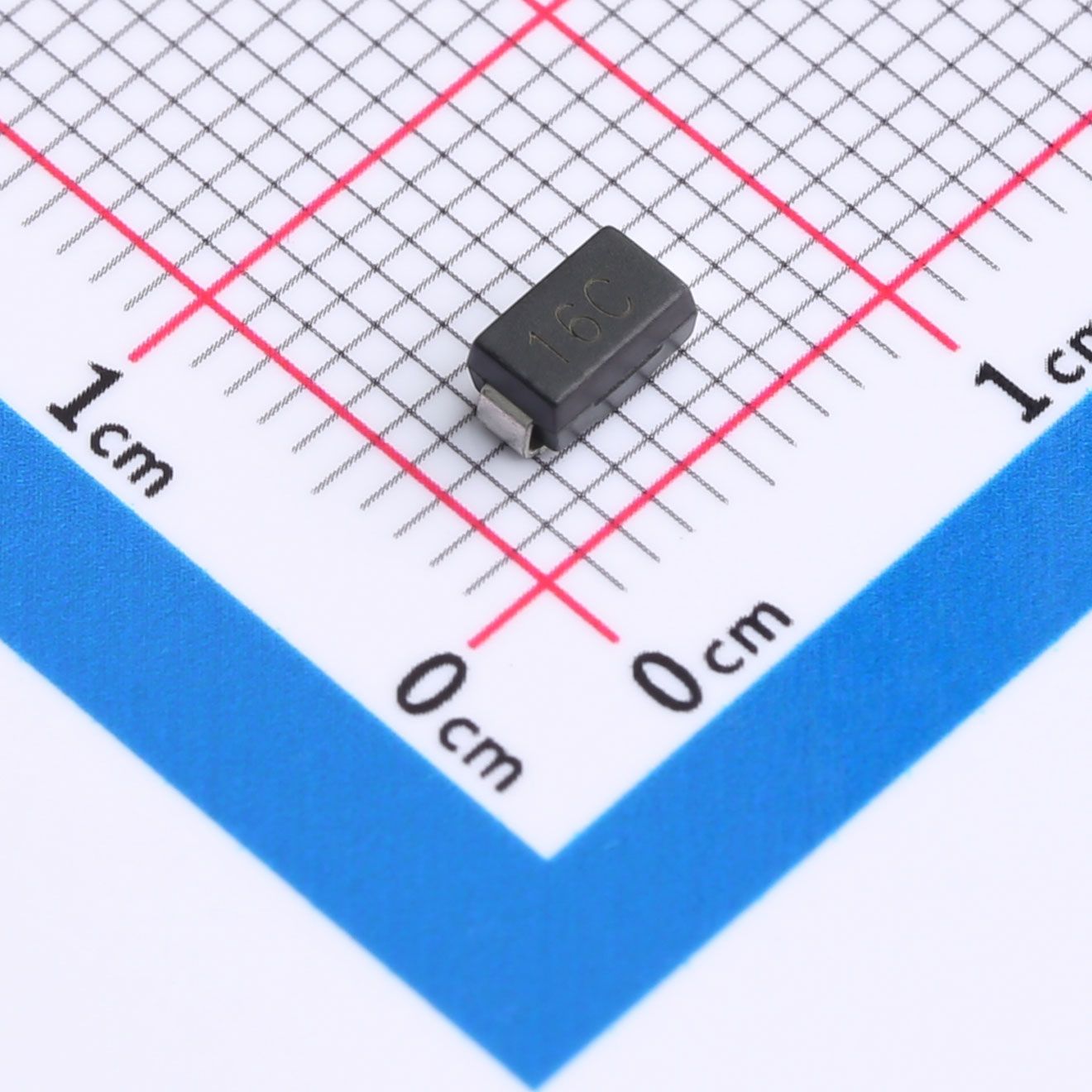

P4SMA16CA TVS Diode SMA(DO-214AC)
Brand: slkor，

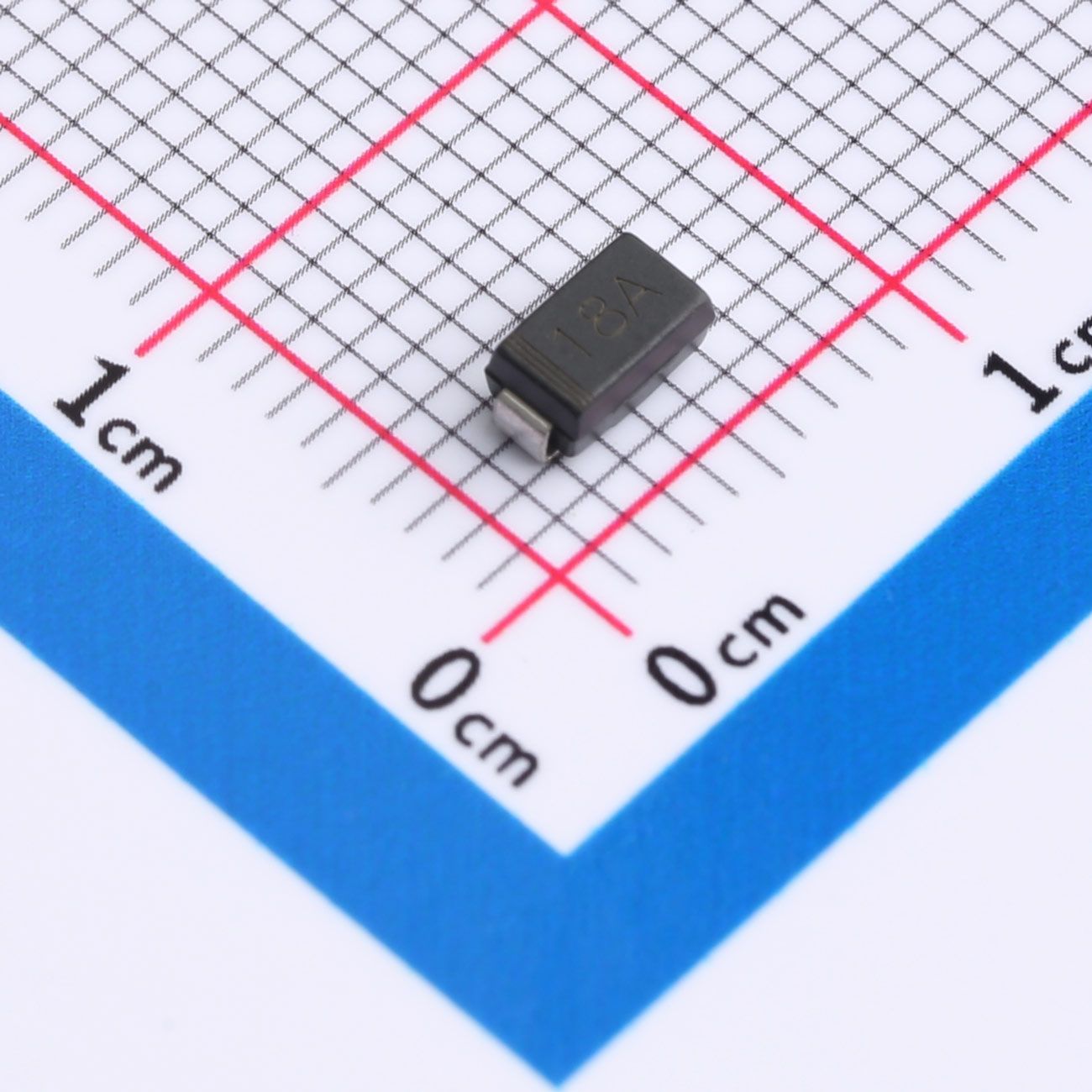

P4SMA18A TVS Diode SMA(DO-214AC)
Brand: slkor，

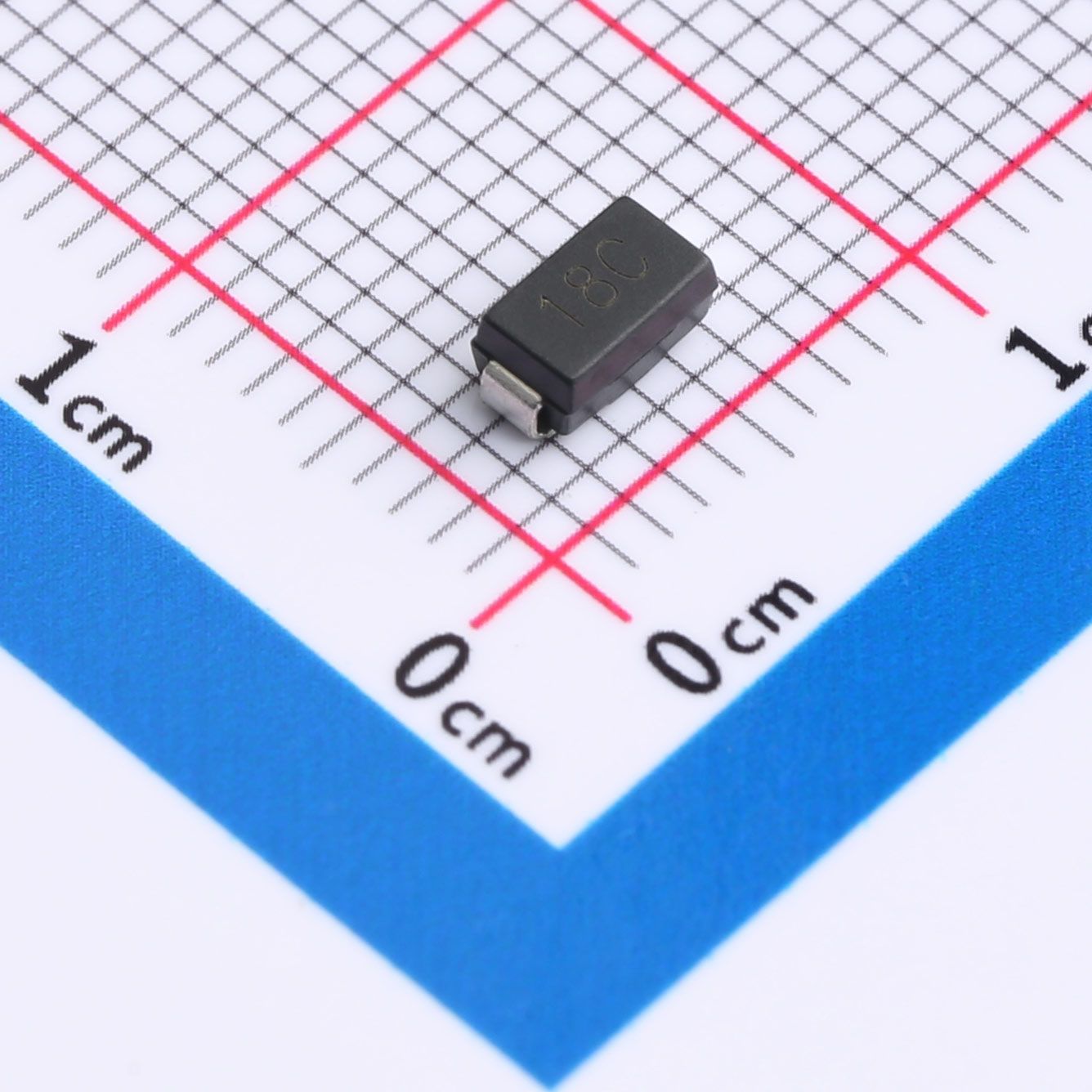

P4SMA18CA TVS Diode SMA(DO-214AC)
