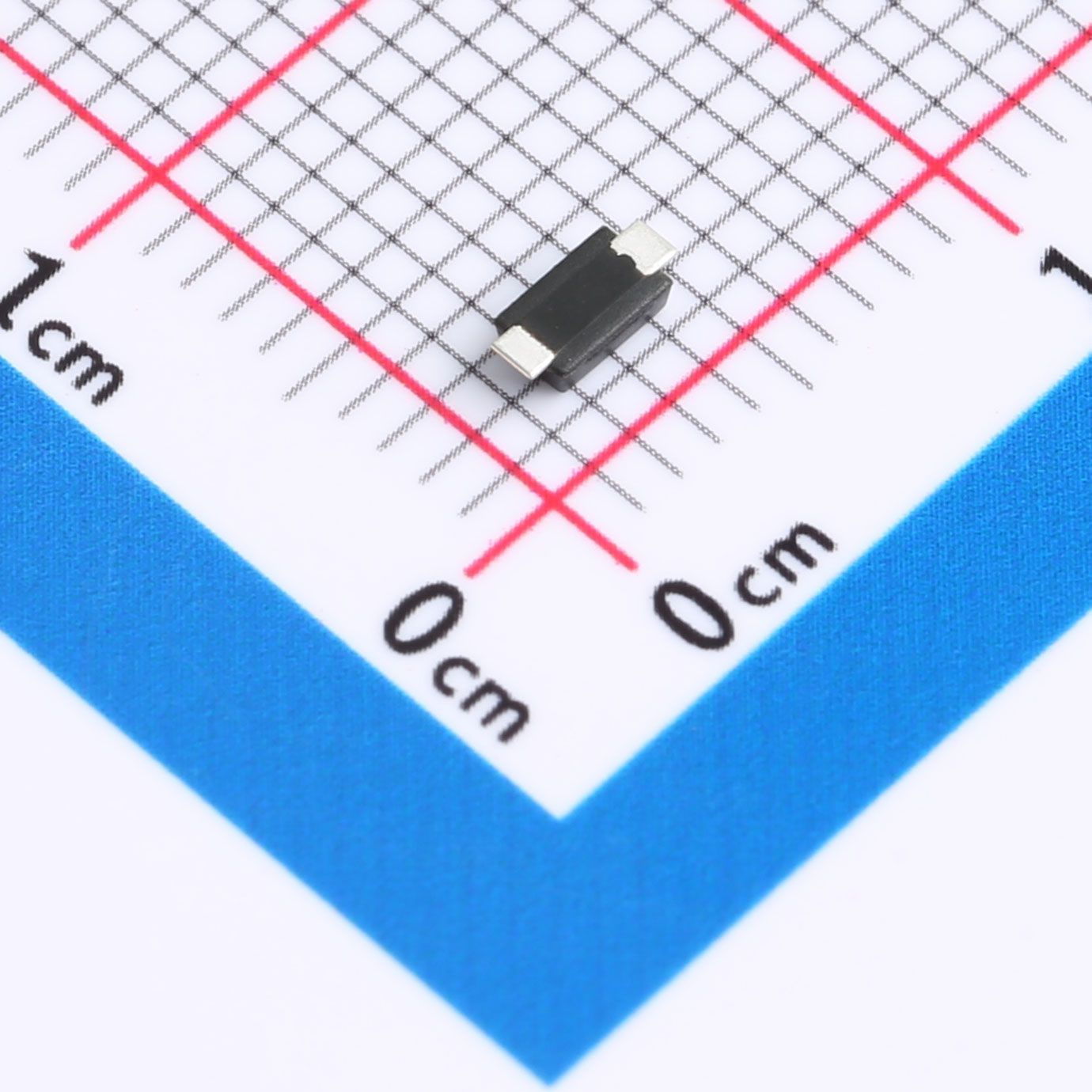

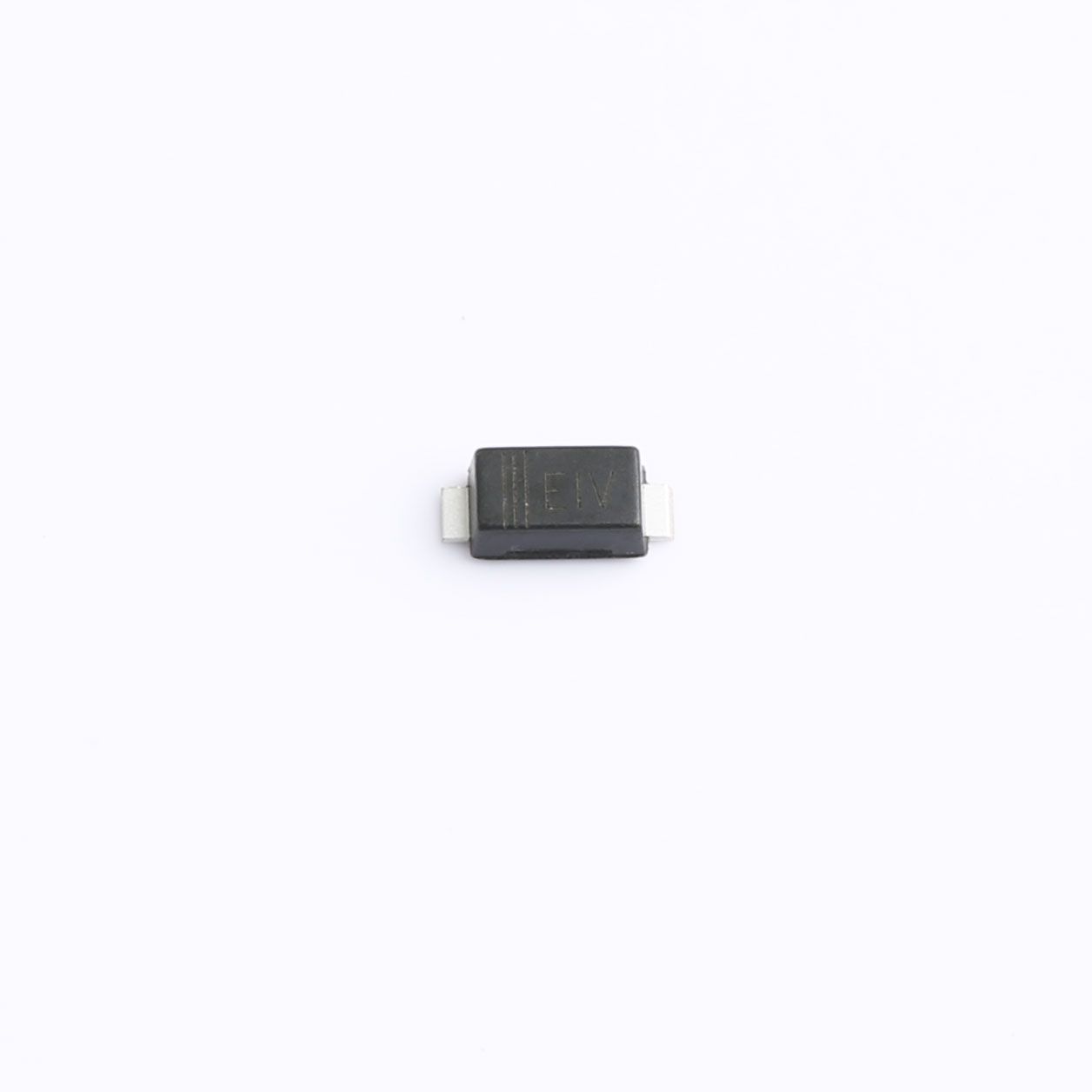

M4SMF20A TVS Diode SOD-123FL
M4SMF20A is a unidirectional surface-mount TVS diode packaged in SOD-123FL. It features 4500W peak pulse power under 8/20μs surge waveform, which is widely adopted to protect electronic circuits against ESD, lightning surges and transient overvoltage.
Description
M4SMF20A is a unidirectional surface-mount TVS diode packaged in SOD-123FL. It features 4500W peak pulse power under 8/20μs surge waveform, which is widely adopted to protect electronic circuits against ESD, lightning surges and transient overvoltage.
Features
- 4500W peak pulse power for 8/20μs surge waveform
- Electrical parameters: VRWM=20V, VBR=22.2~24.5V @ 1mA, IR≤1μA @ 20V, VC=35V @ 160A
- Ultra-fast response time less than 1ps with low inductance design
- Superior performance on transient voltage clamping
- Compact low-profile SMD package for surface mount assembly
Our advantages
- High surge power rating delivers reliable protection against heavy transient pulses
- Fast response effectively suppresses sudden voltage spikes
- Miniature size saves PCB space for miniaturized electronic devices
- Ultra-low leakage current reduces standby power loss
- Standard tape and reel packaging fits automatic high-speed SMT production
Mechanical Data
- Package: SOD-123FL, molded plastic with UL94V-0 flame retardant rating
- Color band marks the cathode terminal
- Approximate single weight: 0.07g
- Operating junction temperature: -55℃ ~ +125℃; Storage temperature: -55℃ ~ +150℃
- Compliant with MSL 1 moisture sensitivity standard
Applications
Computer systems, household appliances, video input modules, automotive electronics, industrial control equipment and communication devices
