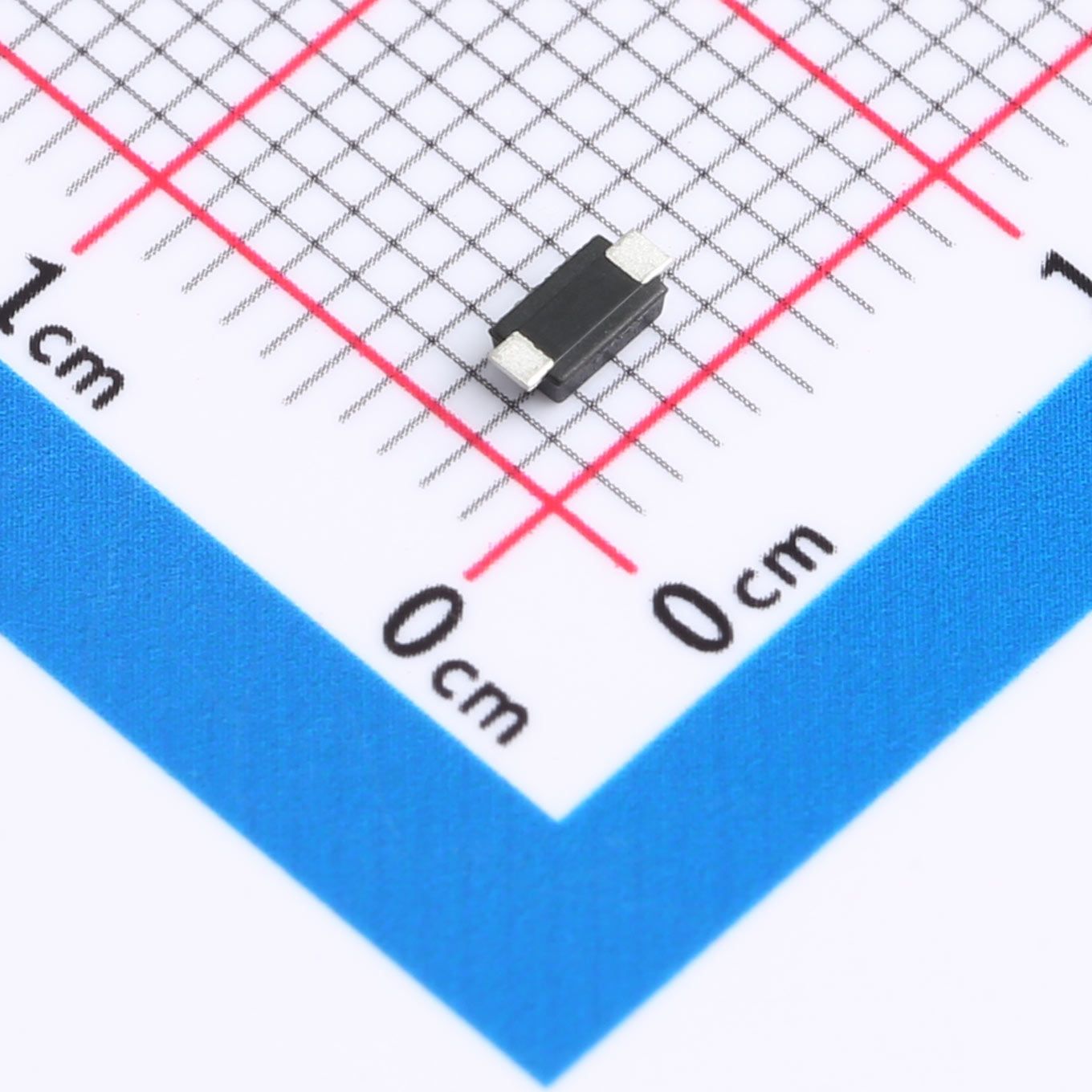

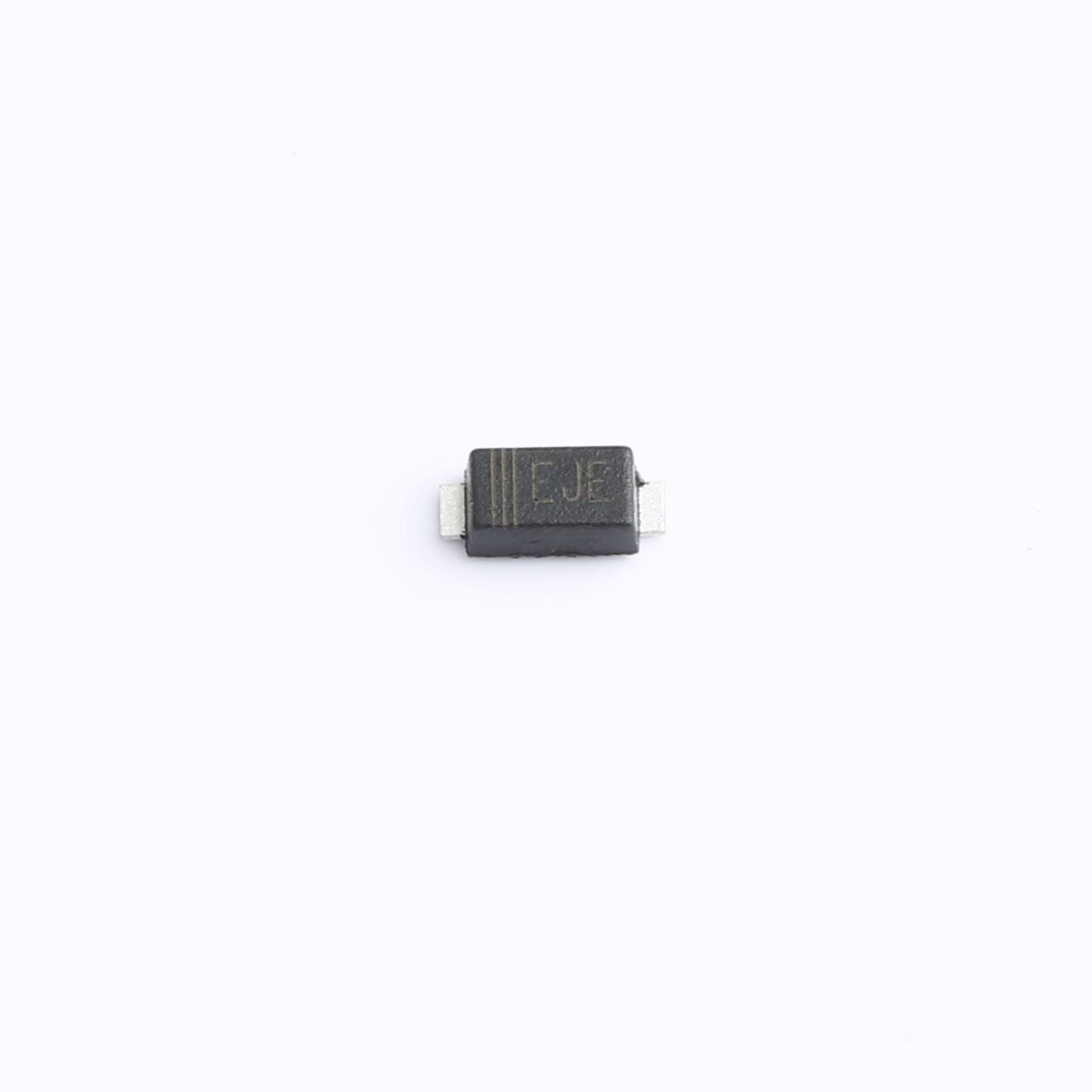

M4SMF26A TVS Diode SOD-123FL
M4SMF26A is a unidirectional surface-mount transient voltage suppressor (TVS) packaged in SOD-123FL. It is rated at 4500W peak pulse power under 8/20μs surge waveform, widely applied to protect electronic circuits against ESD, lightning surges and transient overvoltage.
Description
M4SMF26A is a unidirectional surface-mount transient voltage suppressor (TVS) packaged in SOD-123FL. It is rated at 4500W peak pulse power under 8/20μs surge waveform, widely applied to protect electronic circuits against ESD, lightning surges and transient overvoltage.
Features
- 4500W peak pulse power for standard 8/20μs surge waveform
- Electrical parameters: VRWM=26V, VBR=28.9~31.9V @ 1mA, IR≤1μA @ 26V, VC=44V @ 80A
- Extremely fast response time below 1ps and low inductance design
- Excellent voltage clamping performance for transient suppression
- Low-profile SMD package suitable for surface mount processing
Our advantages
- High surge power rating delivers reliable protection against severe transient pulses
- Fast response effectively clamps sudden voltage spikes and protects sensitive components
- Compact size saves PCB space for miniaturized electronic devices
- Ultra-low leakage current reduces standby power consumption
- Standard tape and reel packaging is fully compatible with automatic high-speed SMT production
Mechanical Data
- Package: SOD-123FL, molded plastic with UL94V-0 flame retardant rating
- Color band marks the cathode terminal
- Approximate single weight: 0.07g
- Operating junction temperature: -55℃ ~ +125℃; Storage temperature: -55℃ ~ +150℃
- Meets MSL 1 moisture sensitivity requirements
- Solder-plated terminals comply with MIL-STD-750 soldering standards
Applications
Computer systems, household appliances, video input modules, automotive electronics, aerospace equipment, telecommunication devices and intelligent control systems
