Description

Features

• 400W peak pulse power for 10/1000μs surge waveform
• Maximum single surge current: 40A (8.3ms single half sine-wave)
• Core electrical parameters (@ 25℃): VRWM=9.0V, VBR=10.0V ~ 11.1V @ 1mA, IR≤10μA, VC=15.4V, IPP=39.0A
• Bidirectional protection against positive and negative voltage transients
• Glass passivated chip structure ensures stable and durable performance
• Excellent clamping capability and ultra-fast response time
• Molded epoxy housing with UL94V-0 flame retardant rating
• Solder-plated terminals compliant with MIL-STD-750 Method 2026
• Wide operating and storage temperature range: -55℃ ~ +150℃

Our advantages

• Bidirectional design effectively suppresses surges in two directions, suitable for complex circuit protection
• Outstanding clamping performance rapidly absorbs surge energy to prevent damage to sensitive components
• Ultra-fast response quickly eliminates instantaneous voltage fluctuations
• Compact standard SMA package saves PCB space, ideal for miniaturized electronic products
• Mature glass passivated process improves long-term reliability and anti-aging performance
• Superior solderability supports high-efficiency automated SMT mass production
• Low reverse leakage current reduces standby power consumption
• Stable electrical performance across wide temperature ranges, adaptable to harsh working environments

Mechanical Data

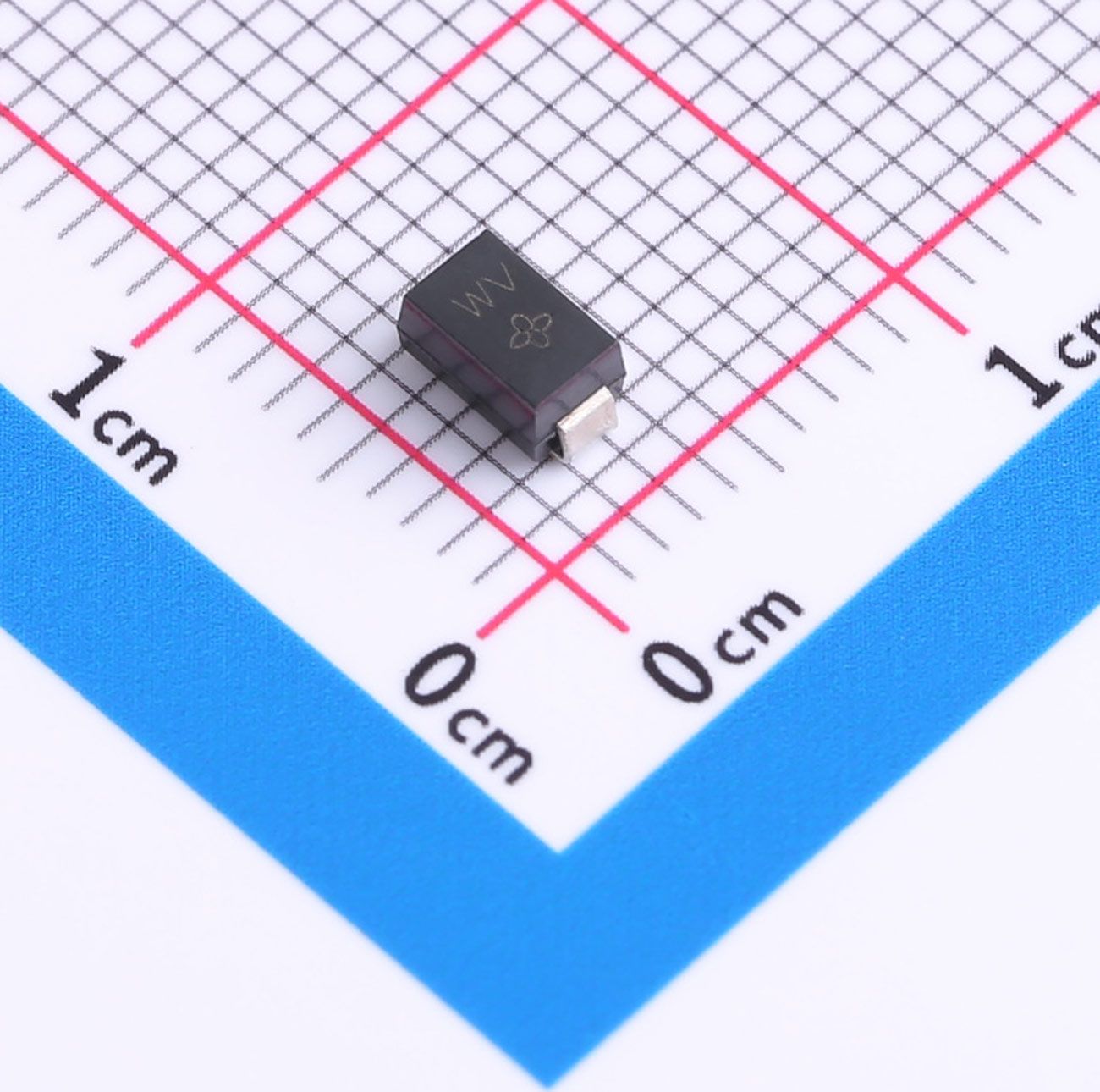

• Package: JEDEC SMA (DO-214AC), transfer molded epoxy
• Polarity: Bidirectional type with no polarity limitation
• Terminals: Solder plated, solderable in accordance with MIL-STD-750 Method 2026
• Dimensions: Standard SMA dimensions (marked in inches and millimeters)
• Operating & Storage Temperature: -55℃ ~ +150℃
